In this article I am going to show you the steps to configure a VPN. Follow the below steps to configure your VPN:
Step 1

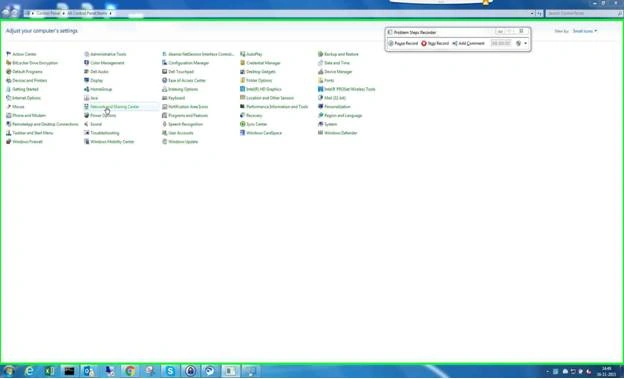

Click on "Network and Sharing Center" from "Control Panel" items,
Step 2

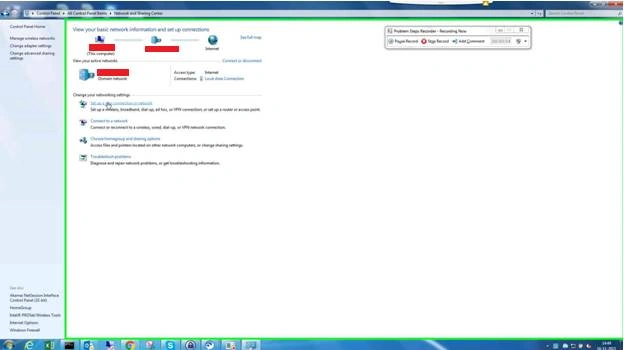

Click on "Set up a new connection or network" from "Network and Sharing Center"
Step 3

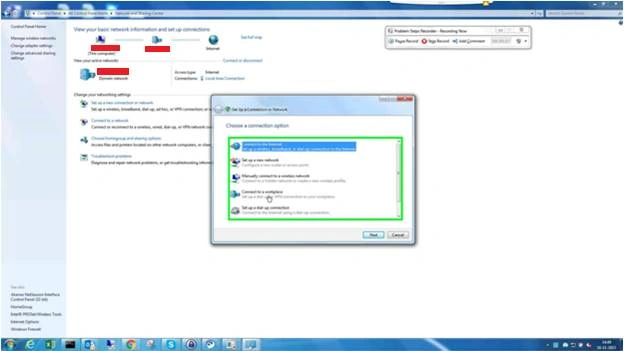

Click on "Connect to a workplace (list item)" from "Set Up a Connection or Network"
Step 4

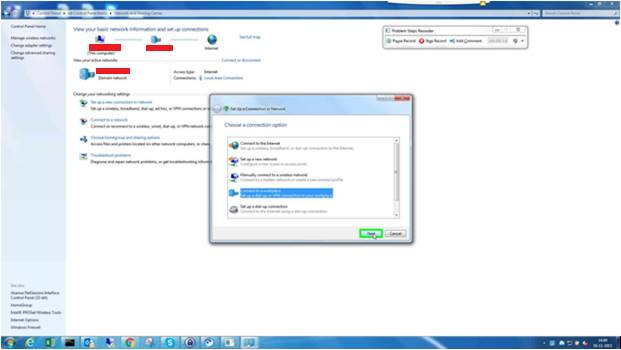

Click on "Next (push button)" in "Set Up a Connection or Network"
Step 5

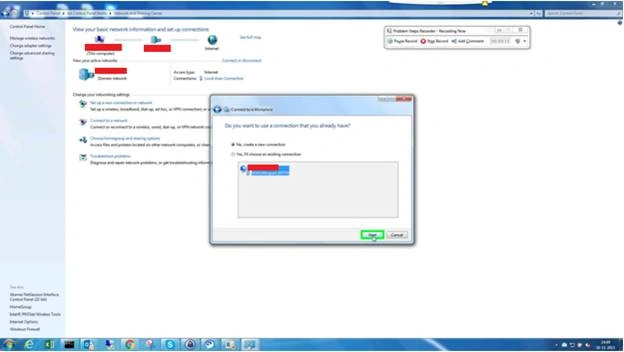

Select first option and Click on "Next" button from "Connect to a Workplace"
Step 6

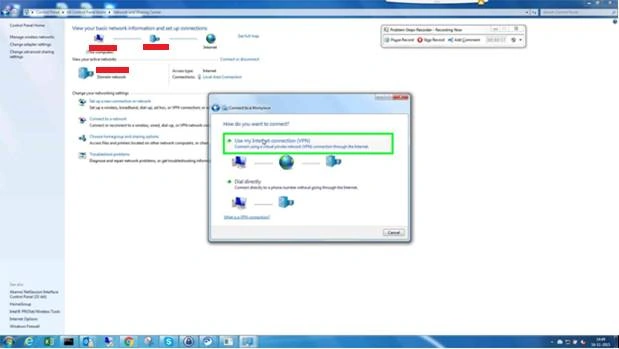

Click on "Use my Internet connection (VPN)" from "Connect to a Workplace"
Step 7
Click on "Internet address(editable text)" from "Connect to a Workplace"
Step 8

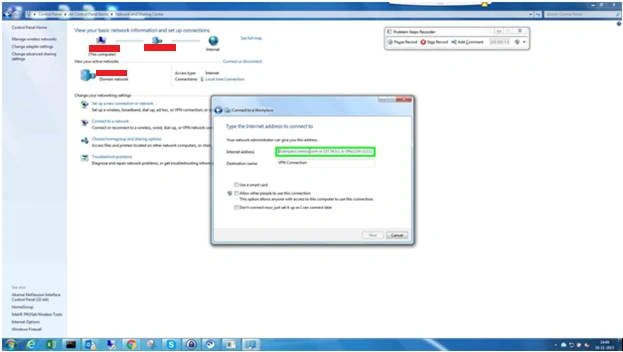

Enter the "Internet Address" (Ex“xxx.xxxx.com”)
Step 9
Enter the Destination Name in Destination Name field, below screenshot for reference,
Step 10
Once you enter the "Destination Name", Click on “Next” Button,
Step 11

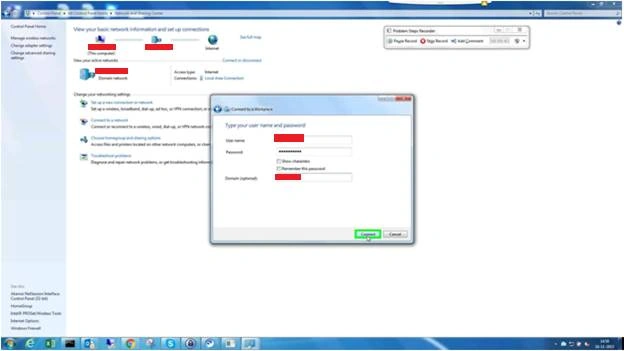

Enter Your Domain User account (Which is using for System Login) name in "User Name" field,
Step 12

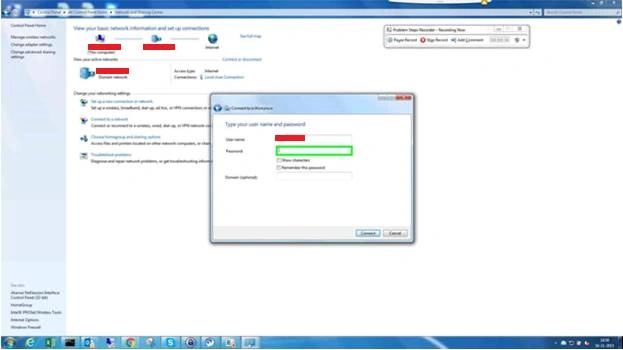

Enter your user account password in "Password" field,
Step 13
Enter your domain name in "Domain" field,
Step 14
Click on "Connect" button in "Connect to a Workplace",
Step 15

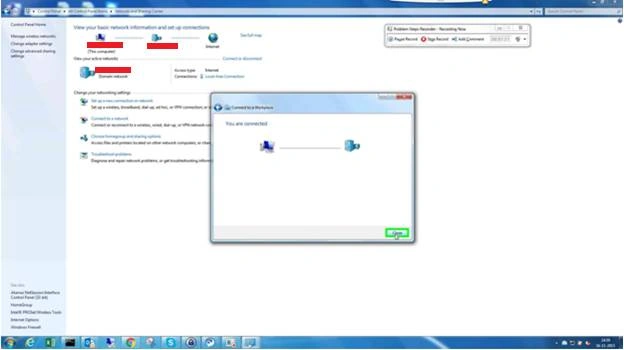

If you get a message like "You are connected" then Click on "Close" button in "Connect to a Workplace" popup. It means you are connected to a Network,
Step 16

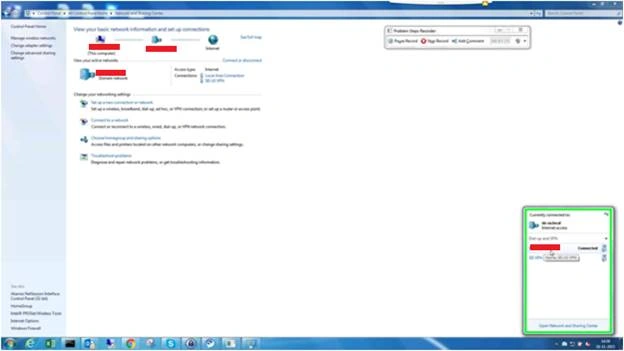

The connected Network account will be visible like below in "View Available Networks",
I would appreciate your valuable comments. Happy reading :)
