Star Rating Bar In Android Using Android Studio

Introduction


In this article, we are going to see how to obtain a rating bar in Android using Android Studio. Rating Bar is a famous library used widely all over the world. There are several types of rating bars but we will use the Star rating bar.

 Step 1

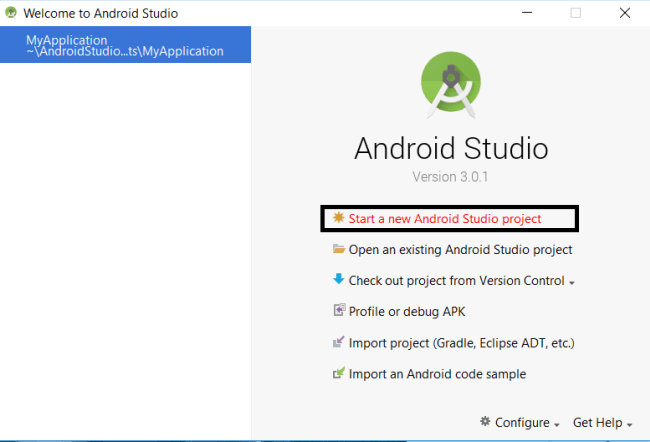

Create a new project in Android Studio.

Android

Give a name to the project and click "Next".

Android

Select the "Phone and Tablet" and click "Next".

Android

Select an empty activity and click "Next".

Android

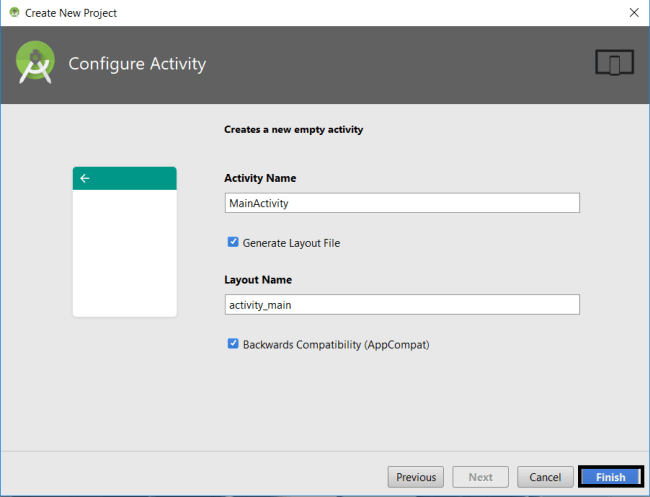

At last, give the activity name and click on "Finish".

Android

Step 2

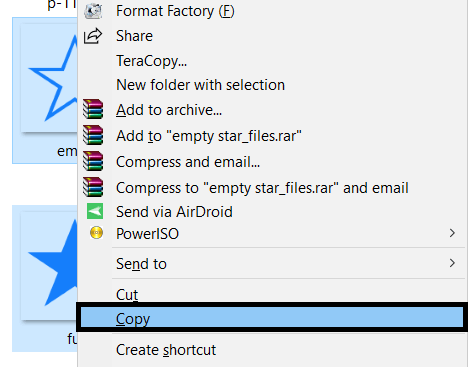

Next, copy the star image in .png format

Android

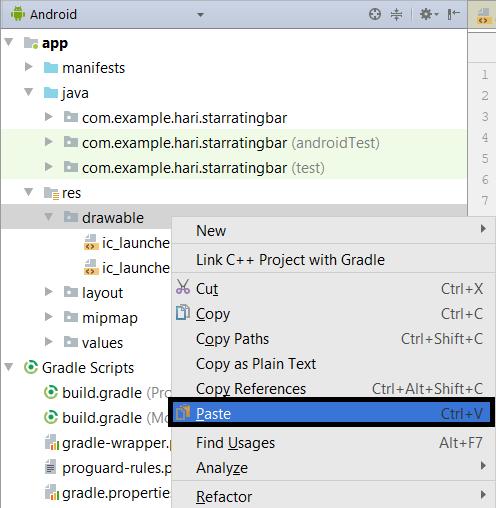

Locate app>>res>>drawable folder and paste the copied image into the drawable folder.

Android

Check whether it is pasted correctly.

Android

Step 3

Locate the Gradle Scripts>>Build.Gradle 1

Android

And type the following dependency in your app's build.gradle.

Android

Code copy is here:
  1. maven { url 'https://jitpack.io' }
Step 4

Locate the Gradle Scripts>>Build.Gradle 2

Android

And type the following dependency in your app's build.gradle.

Android

Code copy is here
  1. compile 'com.github.ome450901:SimpleRatingBar:1.4.1'
Step 5

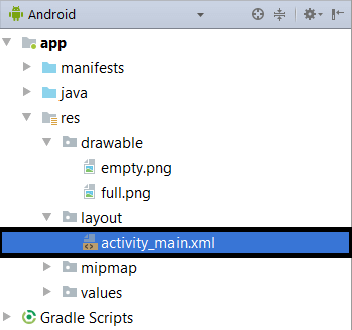

Next, go to app >> res >> layout >> activity_main.xml. Select activity page.

Android

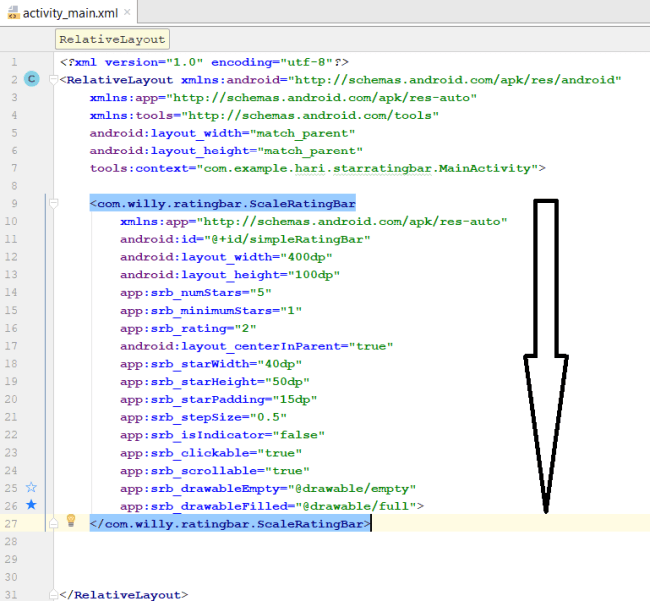

And just type the code as follows.

Android

Code copy is here:
  1. <com.willy.ratingbar.ScaleRatingBar
  2. xmlns:app="http://schemas.android.com/apk/res-auto"
  3.    android:id="@+id/simpleRatingBar"
  4.    android:layout_width="400dp"
  5.    android:layout_height="100dp"
  6.    app:srb_numStars="5"
  7.    app:srb_minimumStars="1"
  8.    app:srb_rating="2"
  9. android:layout_centerInParent="true"
  10.    app:srb_starWidth="40dp"
  11.    app:srb_starHeight="50dp"
  12.    app:srb_starPadding="15dp"
  13.    app:srb_stepSize="0.5"
  14.    app:srb_isIndicator="false"
  15.    app:srb_clickable="true"
  16.    app:srb_scrollable="true"
  17.    app:srb_drawableEmpty="@drawable/empty"
  18.    app:srb_drawableFilled="@drawable/full">
  19. </com.willy.ratingbar.ScaleRatingBar>
Step 6

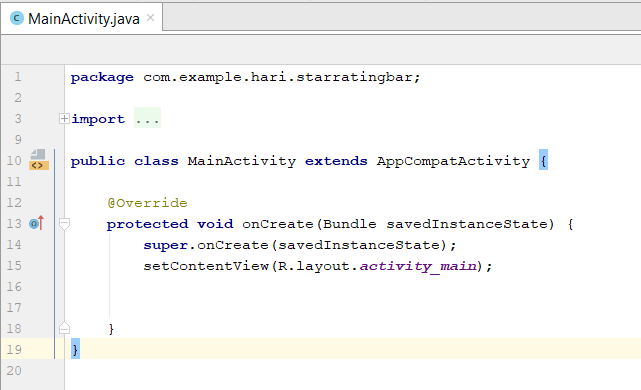

Next, go to app >> java>>Mainactivity.java. Select Mainactivity page.

Android

And check whether it is default or else make it default.

Android

Step 7

Verify the preview.
->After the code is applied, the preview will appear like this.

Android

Step 8

Next, go to Android Studio and deploy the application. Select an Emulator or your Android mobile with USB debugging enabled. Give it a few seconds to make installations and set permissions.

Android

Run the application in your desired emulator (Shift + F10).

Android

Explanation of source code

The code used in the activity_main.xml is used to insert the rating bar in our app and it is also used to define its width, height, and gravity of the rating bar.


Summary


We created a new app named rating bar and placed the rating icons in a drawable folder. After that, we have inserted the Gradle dependencies to build Gradle and verified the deployed output.

*Support and Share, Thank You*
