Introduction

  • In this article, I have explained about the Smart Signal Light System using Arduino Mega 2560.
  • It is used to generate light correctly.
  • It will automatically generate the signals.
Parts Of Lists:
  • Arduino Mega 2560
  • Led-3
  • Bread Board
  • Push Button
  • Hookup Wires
Connections:
Step 1: Connection From LED To Board:
  • Connect the LED1 of positive pin to the 03 of the Arduino board.
  • Connect the LED2 of positive pin to the 04 of the Arduino board.
  • Connect the LED3 of positive pin to the 05 of the Arduino board.
  • Connect the LEDS negative pin to the GND commonly.
Step 2: Connection From PUSHBUTTON To Board:
  • Connect the positive pin to the 7 of the Arduino board with the positive side. Connect the 5v of the board.
  • Connect the negative side to the GND of the board.
Programming
  1. int one = 03;
  2. int two = 04;
  3. int three = 05;
  4. int btn = 7;
  5. int state = 0;
  6. void setup()
  7. {
  8. pinMode(one, OUTPUT);
  9. pinMode(two, OUTPUT);
  10. pinMode(three, OUTPUT);
  11. }
  12. void loop()
  13. {
  14. if (digitalRead(btn))
  15. {
  16. if (state == 0)
  17. {
  18. setLights(HIGH, LOW, LOW);
  19. state = 1;
  20. } else if (state == 1)
  21. {
  22. setLights(HIGH, HIGH, LOW);
  23. state = 2;
  24. } else if (state == 2)
  25. {
  26. setLights(LOW, LOW, HIGH);
  27. state = 3;
  28. } else if (state == 3)
  29. {
  30. setLights(LOW, HIGH, LOW);
  31. state = 0;
  32. }
  33. delay(1000);
  34. }
  35. }
  36. void Traffic(int red, int yellow, int green)
  37. {
  38. digitalWrite(one, red);
  39. digitalWrite(two, yellow);
  40. digitalWrite(three, green);
  41. }
Explanation:
  • It can glow the lights automatically with the delay times.
  • We can set the delay time and watch the LEDs/lights, it changes automatically.
  • When the first light glows, the second and third remains off.
  • Second light glows the third and first is off.
  • Third light glows the first and second is off.
Output:

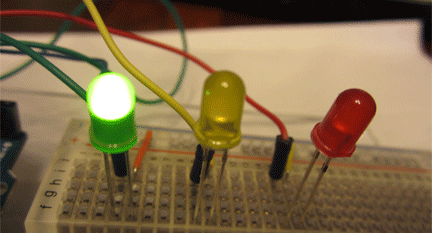

Figure 1: Output
