SharePoint Framework Webpart Property Pane Configuration With Custom Properties

The SharePoint Framework webpart can be added on SharePoint modern UI as well as classic. It has a Webpart property pane which allows end users to configure the web part with custom properties. We can add run time inputs using properties.

It has three key metadata: a page, an optional header, and at least one group.
  • Page
    It contains a header and groups. It provides the flexibility to separate complex interactions and put them into one or more pages.

  • Header
    It allows you to define the title of the property pane.

  • Group
    It allows you to define the various sections or fields for the property pane through which you want to group your field sets.
Supported PropertyFields and Objects
  • Label – PropertyPaneLabel
  • Textbox – PropertyPaneTextField
  • Multi-line Textbox – PropertyPaneTextField
  • Checkbox – PropertyPaneCheckbox
  • Dropdown – PropertyPaneDropdown
  • Link – PropertyPaneLink
  • Slider – PropertyPaneSlider
  • Toggle – PropertyPaneToggle
  • ChoiceGroup – PropertyPaneChoiceGroup
  • Button – PropertyPaneButton
  • HorizontalRule – PropertyPaneHorizontalRule
  • Custom
Step -1 Create a new SPfx WebPart

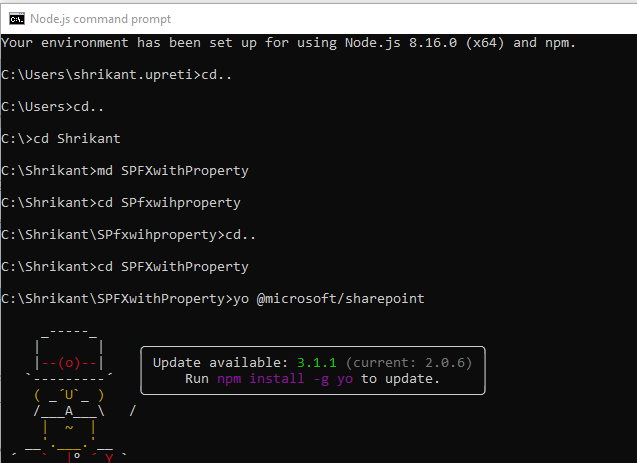

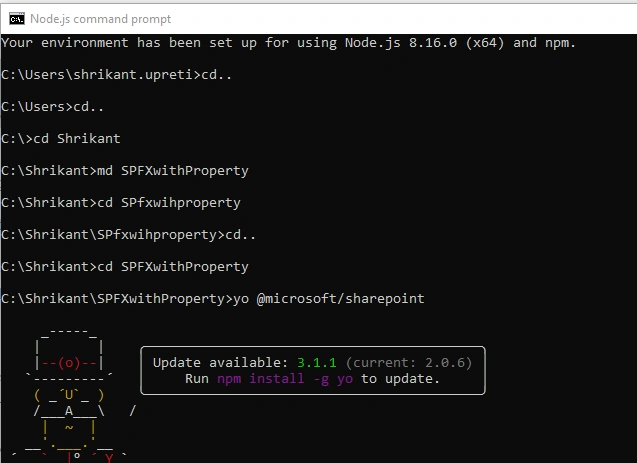

Open node js command promt
  1. md “your project name”
  2. cd “your project name”
  3.  yo @microsoft/shrepoint
SharePoint Framework Webpart Property Pane Configuration With Custom Properties

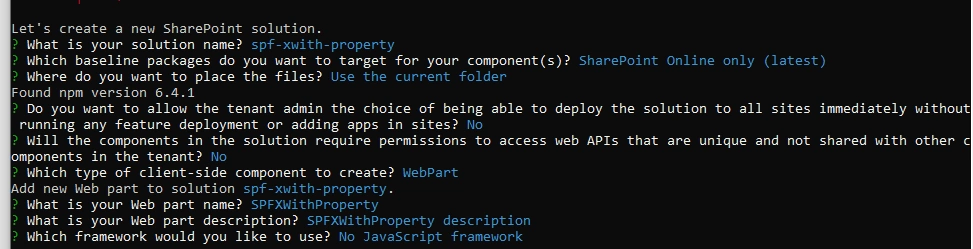

Provide your required details,

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Now your webpart is ready to use.

Step 2 - Open in code editor

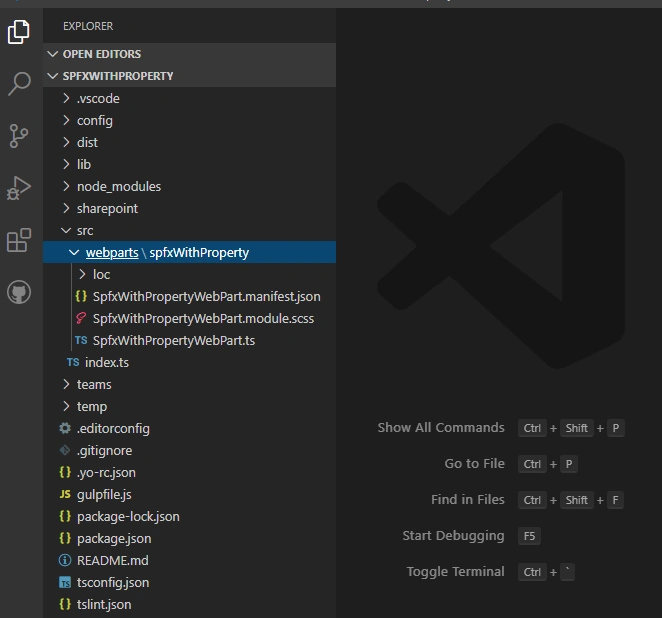

Open project in any code editor of your choice. I am using Visual Studio code here.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Step 3 - Property Pane Import

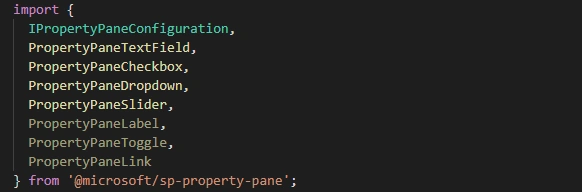

Open file SpfxWithPropertyWebPart.ts file, add import PropertyPane Components just below other import statements.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Step 4 - Add properties types

Go to export interface and add all property name with types.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Step 5 - Add Property Pane Configuration

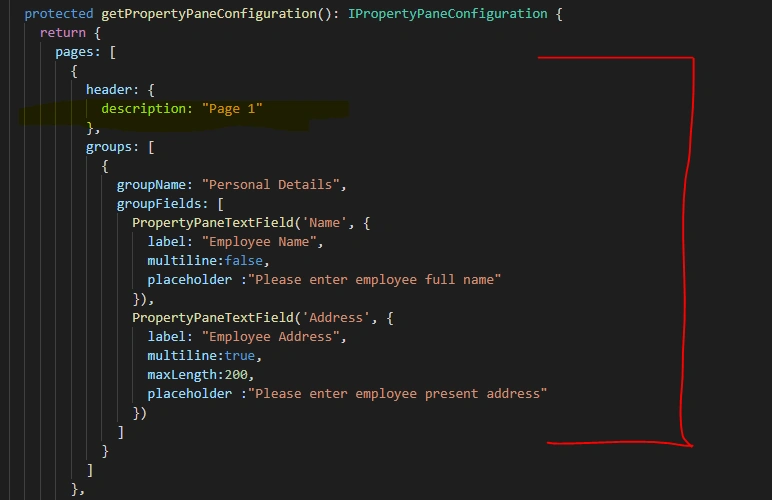

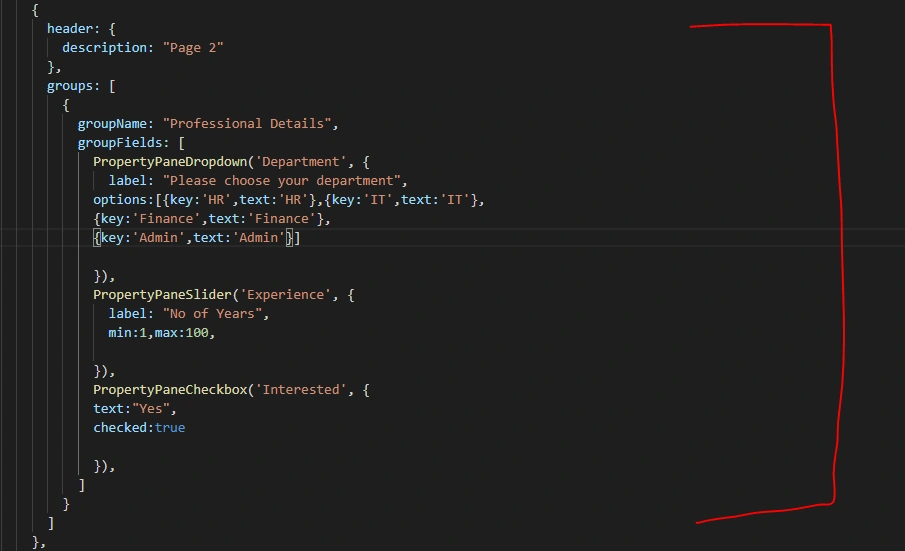

In this example we will add multiple pages with groups in property pane, for that we have to add all pages with properties with the getPropertyPaneConfiguration() method,

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Step 6 - Get Properties value in webpart

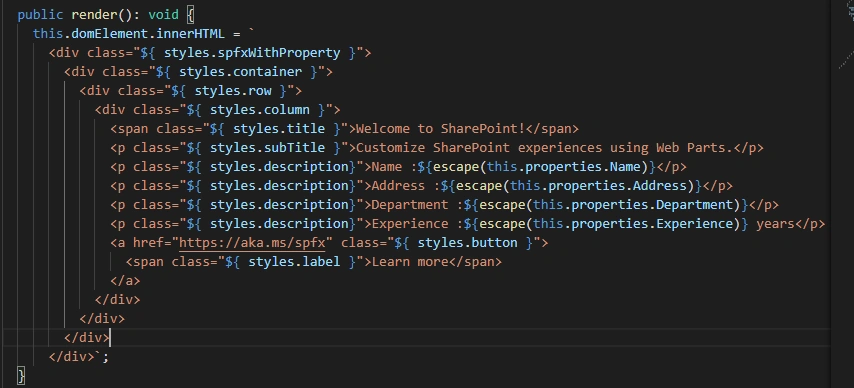

So far we have added custom properties with our webpart. Now to get property values add them inside the HTML of render.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Save your code and check on workbench.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

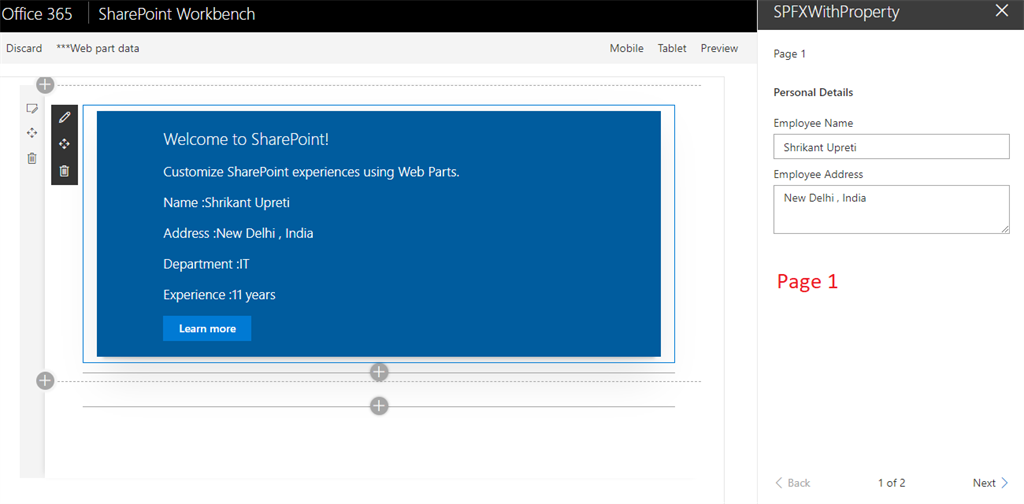

Property pane page 1 with group name “Personal Details” and properties.

SharePoint Framework Webpart Property Pane Configuration With Custom Properties

Property pane page 2 with group name “Professional Details” and properties.
