Introduction
SharePoint has an object model known as the Client-side object model (CSOM), which is available for the .net framework. It wasn't available for the .NET standard, but now Microsoft has provided a much-awaited CSOM for the .NET standard.
With the release of this, we can easily connect to SharePoint using an Azure AD OAuth-based approach from .net core applications.
So to understand how CSOM for .NET standard works, let's create a .NET Core console application connect to SharePoint, and fetch all the items from the list.
Create Azure AD application
Step 1. Navigate to here.
Step 2. Click on Azure Active Directory and click on App registration.
Step 3. Click on + New registration to register the Azure AD application
Step 4. Provide an appropriate name for the application -- we will use NETStandardCSOM.
![Register an application]()
Step 5. Navigate to API Permission and select SharePoint to provide appropriate permission. Select delegated permission and check all the required permissions. For our demo, we will select AllSites.FullControl.
![Request API permission]()
Step 6. Navigate to the authentication section and Under Default Client type select "Yes".
![Authentication]()
Step 7. Copy the client ID which got generated after creating the Azure AD application
Create a .Net Core console application
Step 1. Navigate to Visual Studio and create a new project with the template as .net core console application and name the project NetStandardCSOM.
Step 2. Add all the below NuGet packages.
- Microsoft.SharePoint online.CSOM - This library is CSOM for .NET Standard.
- Newtonsoft.Json
- System.Text.Json
- System.IdentityModel.Token.Jwt
Step 3. Add a class file named AuthenticationManager and add the below code.
This is the actual file where all the magic happens to fetch the token stored in the cache, so we are using OAuth 2.0 Resource Owner Password Credentials to fetch the token.
Please replace the client ID that we created in Step 1 in the string name defaultAADAppId.
using Microsoft.SharePoint.Client;
using System;
using System.Collections.Concurrent;
using System.Net.Http;
using System.Security;
using System.Text;
using System.Text.Json;
using System.Threading;
using System.Threading.Tasks;
using System.Web;
namespace NetStandardCSOM
{
public class AuthenticationManager : IDisposable
{
private static readonly HttpClient httpClient = new HttpClient();
private const string tokenEndpoint = "https://login.microsoftonline.com/common/oauth2/token";
private const string defaultAADAppId = "3de78f25-cbf5-4ec4-b9af-349c91904dc5";
private static readonly SemaphoreSlim semaphoreSlimTokens = new SemaphoreSlim(1);
private AutoResetEvent tokenResetEvent = null;
private readonly ConcurrentDictionary<string, string> tokenCache = new ConcurrentDictionary<string, string>();
private bool disposedValue;
internal class TokenWaitInfo
{
public RegisteredWaitHandle Handle = null;
}
public ClientContext GetContext(Uri web, string userPrincipalName, SecureString userPassword)
{
var context = new ClientContext(web);
context.ExecutingWebRequest += (sender, e) =>
{
string accessToken = EnsureAccessTokenAsync(new Uri($"{web.Scheme}://{web.DnsSafeHost}"), userPrincipalName, new System.Net.NetworkCredential(string.Empty, userPassword).Password).GetAwaiter().GetResult();
e.WebRequestExecutor.RequestHeaders["Authorization"] = "Bearer " + accessToken;
};
return context;
}
public async Task<string> EnsureAccessTokenAsync(Uri resourceUri, string userPrincipalName, string userPassword)
{
string accessTokenFromCache = TokenFromCache(resourceUri, tokenCache);
if (accessTokenFromCache == null)
{
await semaphoreSlimTokens.WaitAsync().ConfigureAwait(false);
try
{
string accessToken = await AcquireTokenAsync(resourceUri, userPrincipalName, userPassword).ConfigureAwait(false);
Console.WriteLine($"Successfully requested new access token resource {resourceUri.DnsSafeHost} for user {userPrincipalName}");
AddTokenToCache(resourceUri, tokenCache, accessToken);
tokenResetEvent = new AutoResetEvent(false);
TokenWaitInfo wi = new TokenWaitInfo();
wi.Handle = ThreadPool.RegisterWaitForSingleObject(
tokenResetEvent,
async (state, timedOut) =>
{
if (!timedOut)
{
TokenWaitInfo wi1 = (TokenWaitInfo)state;
if (wi1.Handle != null)
{
wi1.Handle.Unregister(null);
}
}
else
{
try
{
await semaphoreSlimTokens.WaitAsync().ConfigureAwait(false);
RemoveTokenFromCache(resourceUri, tokenCache);
Console.WriteLine($"Cached token for resource {resourceUri.DnsSafeHost} and user {userPrincipalName} expired");
}
catch (Exception ex)
{
Console.WriteLine($"Something went wrong during cache token invalidation: {ex.Message}");
RemoveTokenFromCache(resourceUri, tokenCache);
}
finally
{
semaphoreSlimTokens.Release();
}
}
},
wi,
(uint)CalculateThreadSleep(accessToken).TotalMilliseconds,
true
);
return accessToken;
}
finally
{
semaphoreSlimTokens.Release();
}
}
else
{
Console.WriteLine($"Returning token from cache for resource {resourceUri.DnsSafeHost} and user {userPrincipalName}");
return accessTokenFromCache;
}
}
private async Task<string> AcquireTokenAsync(Uri resourceUri, string username, string password)
{
string resource = $"{resourceUri.Scheme}://{resourceUri.DnsSafeHost}";
var clientId = defaultAADAppId;
var body = $"resource={resource}&client_id={clientId}&grant_type=password&username={HttpUtility.UrlEncode(username)}&password={HttpUtility.UrlEncode(password)}";
using (var stringContent = new StringContent(body, Encoding.UTF8, "application/x-www-form-urlencoded"))
{
var result = await httpClient.PostAsync(tokenEndpoint, stringContent).ContinueWith((response) =>
{
return response.Result.Content.ReadAsStringAsync().Result;
}).ConfigureAwait(false);
var tokenResult = JsonSerializer.Deserialize<JsonElement>(result);
var token = tokenResult.GetProperty("access_token").GetString();
return token;
}
}
private static string TokenFromCache(Uri web, ConcurrentDictionary<string, string> tokenCache)
{
if (tokenCache.TryGetValue(web.DnsSafeHost, out string accessToken))
{
return accessToken;
}
return null;
}
private static void AddTokenToCache(Uri web, ConcurrentDictionary<string, string> tokenCache, string newAccessToken)
{
if (tokenCache.TryGetValue(web.DnsSafeHost, out string currentAccessToken))
{
tokenCache.TryUpdate(web.DnsSafeHost, newAccessToken, currentAccessToken);
}
else
{
tokenCache.TryAdd(web.DnsSafeHost, newAccessToken);
}
}
private static void RemoveTokenFromCache(Uri web, ConcurrentDictionary<string, string> tokenCache)
{
tokenCache.TryRemove(web.DnsSafeHost, out string currentAccessToken);
}
private static TimeSpan CalculateThreadSleep(string accessToken)
{
var token = new System.IdentityModel.Tokens.Jwt.JwtSecurityToken(accessToken);
var lease = GetAccessTokenLease(token.ValidTo);
lease = TimeSpan.FromSeconds(lease.TotalSeconds - TimeSpan.FromMinutes(5).TotalSeconds > 0 ? lease.TotalSeconds - TimeSpan.FromMinutes(5).TotalSeconds : lease.TotalSeconds);
return lease;
}
private static TimeSpan GetAccessTokenLease(DateTime expiresOn)
{
DateTime now = DateTime.UtcNow;
DateTime expires = expiresOn.Kind == DateTimeKind.Utc ? expiresOn : TimeZoneInfo.ConvertTimeToUtc(expiresOn);
TimeSpan lease = expires - now;
return lease;
}
protected virtual void Dispose(bool disposing)
{
if (!disposedValue)
{
if (disposing)
{
if (tokenResetEvent != null)
{
tokenResetEvent.Set();
tokenResetEvent.Dispose();
}
}
disposedValue = true;
}
}
public void Dispose()
{
Dispose(disposing: true);
GC.SuppressFinalize(this);
}
}
}
Step 4. Now let us use this context and fetch the title of the site collection.
Replace the below code in the Program.cs file.
Update the URI with the site collection URL for which we require a title.
Update the Username and Password of the User
using System;
using System.Net;
using System.Security;
using System.Threading.Tasks;
namespace NetStandardCSOM
{
class Program
{
public static async Task Main(string[] args)
{
Uri site = new Uri("https://testinglala.sharepoint.com/");
string user = "<<userName>>";
string rawPassword = "<<password>>";
SecureString password = new SecureString();
foreach (char c in rawPassword) password.AppendChar(c);
// Note: The PnP Sites Core AuthenticationManager class also supports this
using (var authenticationManager = new AuthenticationManager())
using (var context = authenticationManager.GetContext(site, user, password))
{
context.Load(context.Web, p => p.Title);
await context.ExecuteQueryAsync();
Console.WriteLine($"Title: {context.Web.Title}");
}
}
}
}

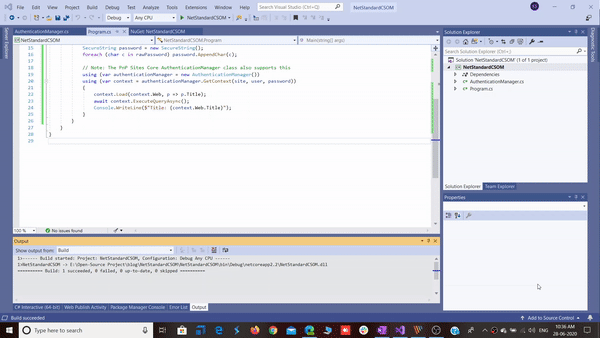

Outcome
![SharePoint CSOM For .NET Standard]()
Conclusion
Now with the release of CSOM for .NET Standard, we can use this in Azure Function v2 which is based on .NET core, and connect to SharePoint. We can even use it in all other applications which are based on .NET Standard so we can connect to SharePoint from any platform.
