SharePoint 2016 - Part Seven – Build Trust Between Workflow Manager And SharePoint Farm

Before reading this article, please go through the previous parts.

Now, in this wiki article, we will add the Workflow Manager 1.0 Certificate into SharePoint trust. After this step, we will avoid almost all the errors related to certificates. This is also to build trust between the Workflow Manager farm and SharePoint farm.

This is two-step process, in step one, we will export the certificate from Workflow Manager server and in the second step, we will import that certificate into SharePoint and build a trust.

Before Beginning

  • Please make sure you are logged in on the server where workflow Manager has been installed with an install account.

Export the Workflow Certificate

  • Login on the Server with Install account(krossfarm\kfinst)
  • Open Internet Information Services(IIS) by typing the Inetmgr in the search window

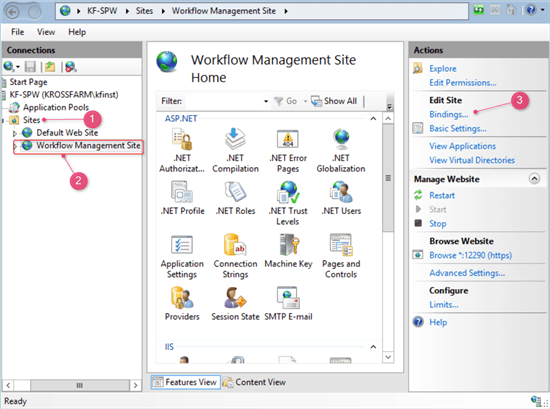

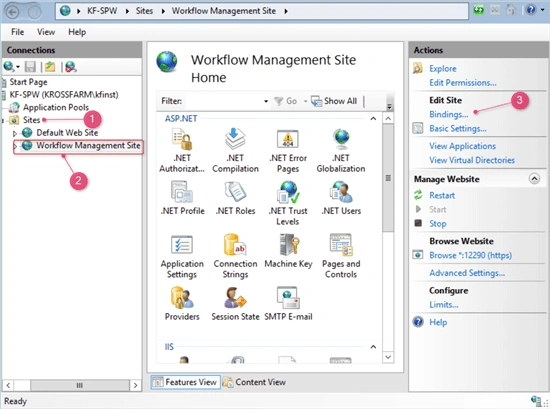

  • In the Internet Manager expand the Sites (on left-hand side), Click on Workflow Manager Site, and on the right-hand side under actions click on bindings

    Workflow

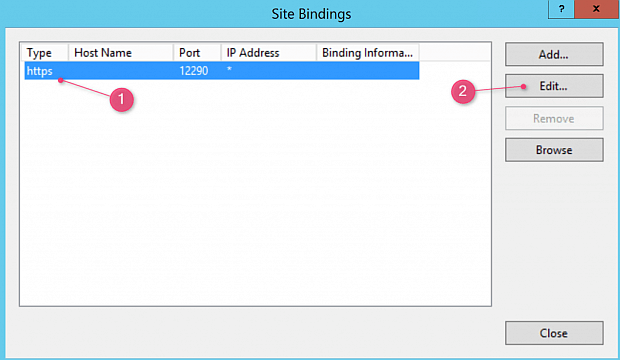

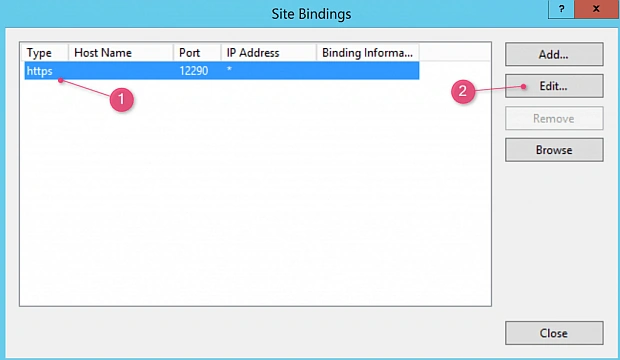

  • On this Page, Select Https and Click on Edit

    Workflow

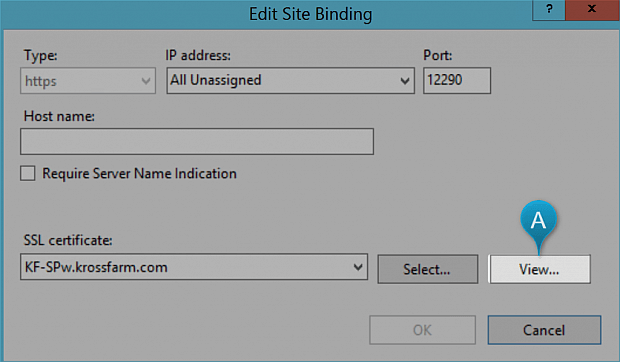

  • On this Page Under the SSL Certificate, click on View certificates

    Workflow

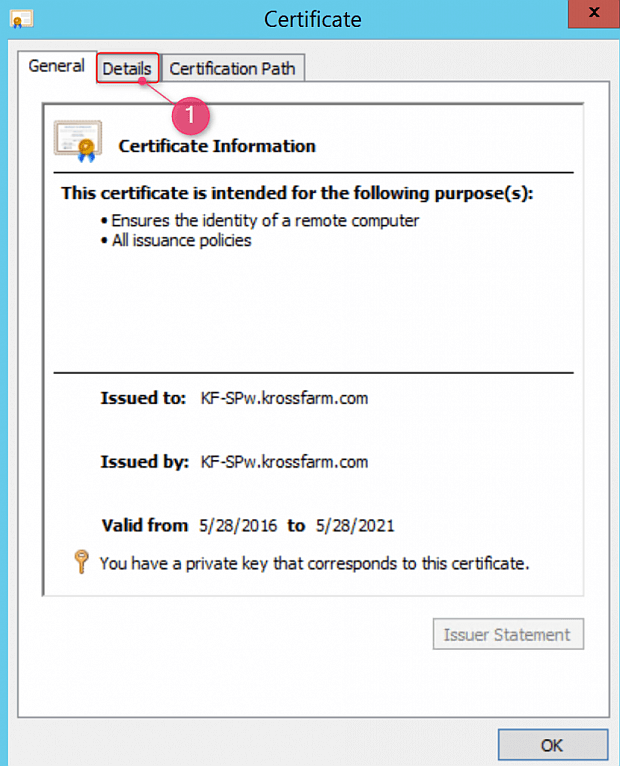

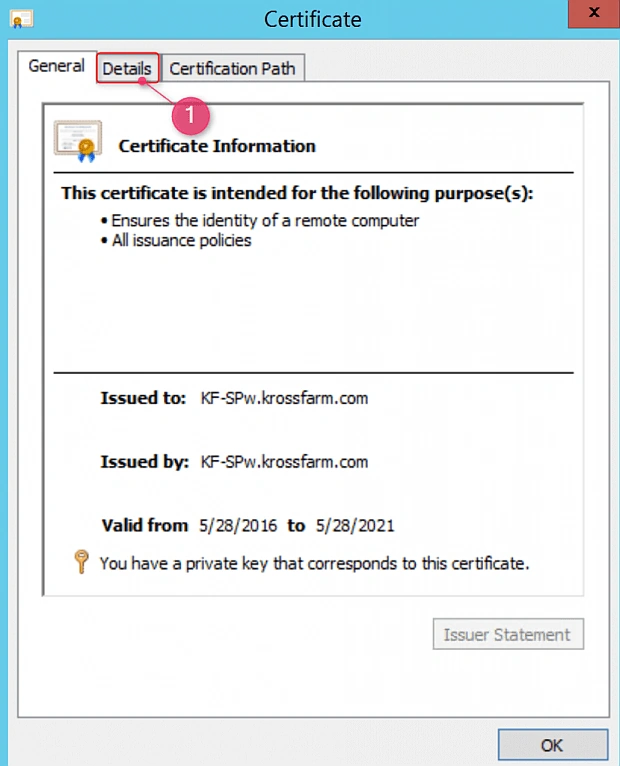

  • On this page click on Details tab

    Workflow

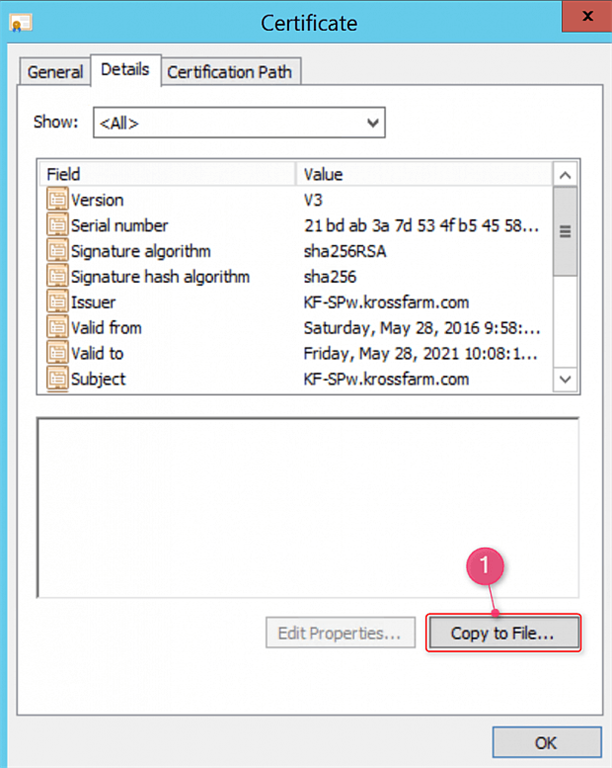

  • On this page Click Copy to File

    article

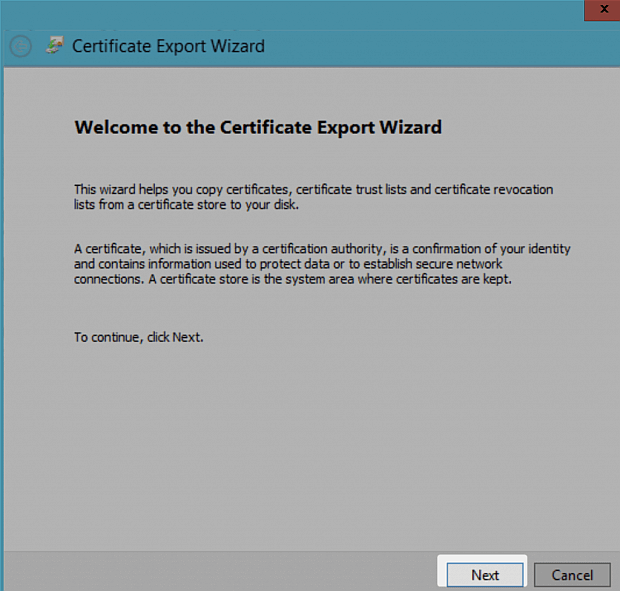

  • On Welcome to the Certificate Export Wizard Click Next

    article

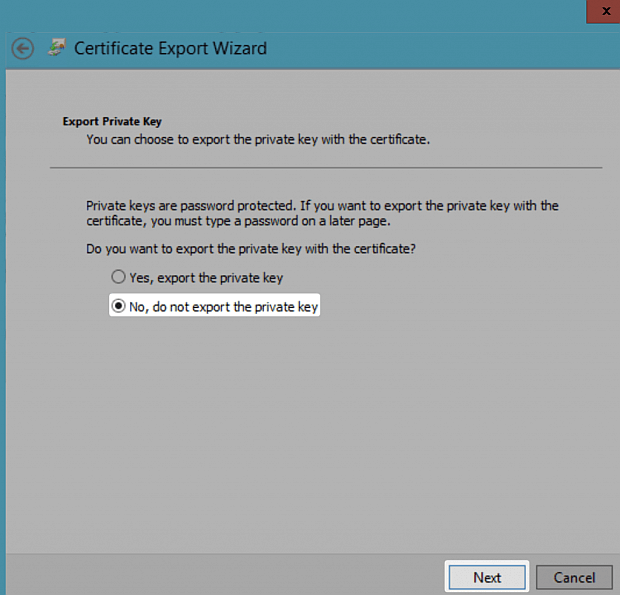

  • On Export Private Key page please select, No, Do not export the private key and click Next

    article

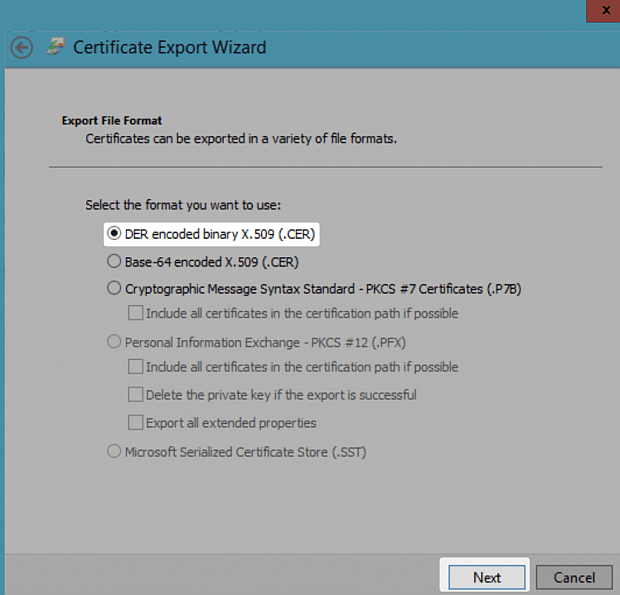

  • On export File Format page, Select Der encoded binary X.509(.cer) and click Next

    article

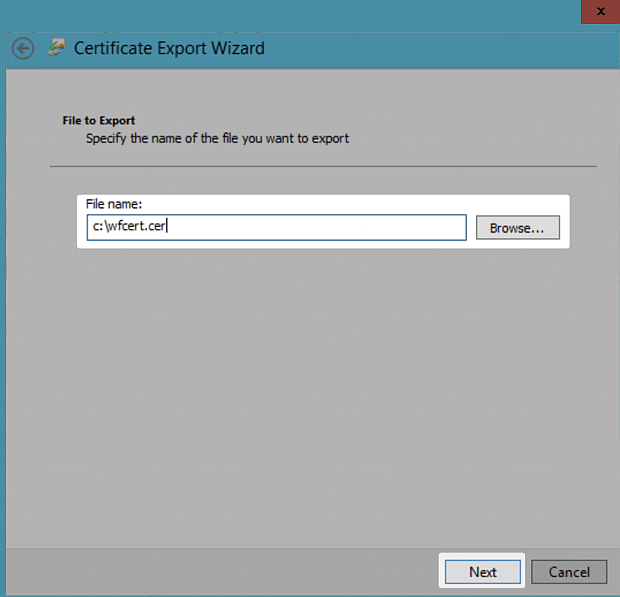

  • On File to export page, please select the path where certificate will be save and Click Next

    article

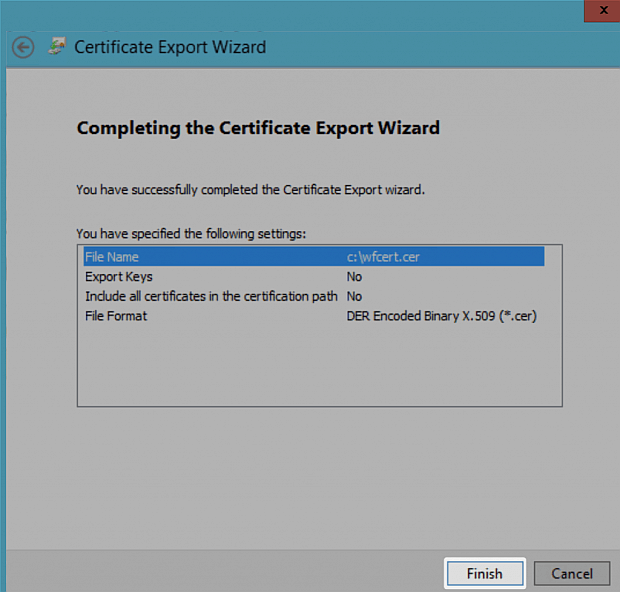

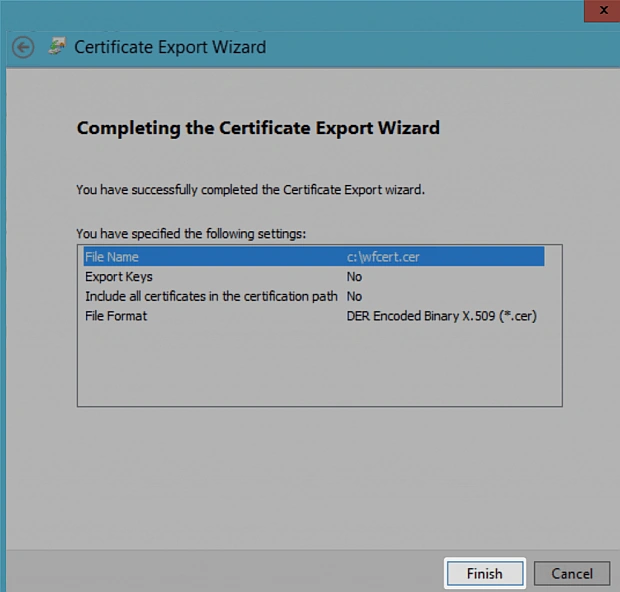

  • On Completing the Certificate export wizard, Click Finish

    article

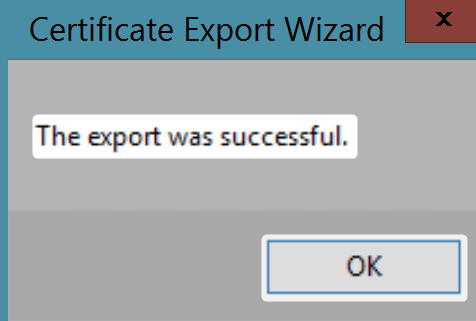

  • You will get a message "the export was successful," and click Ok

    article

Move the File

Now move the Certificate to the SharePoint Server.

Import Certificate into SharePoint

  • Now Login on the SharePoint Server with Farm Admin account
  • Open the Central Admin Site

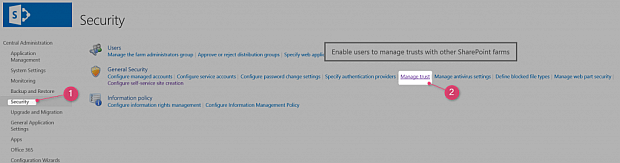

  • Click on Security and Click on Trust on right-hand side

    article

  • On Trust page Click on New

    article

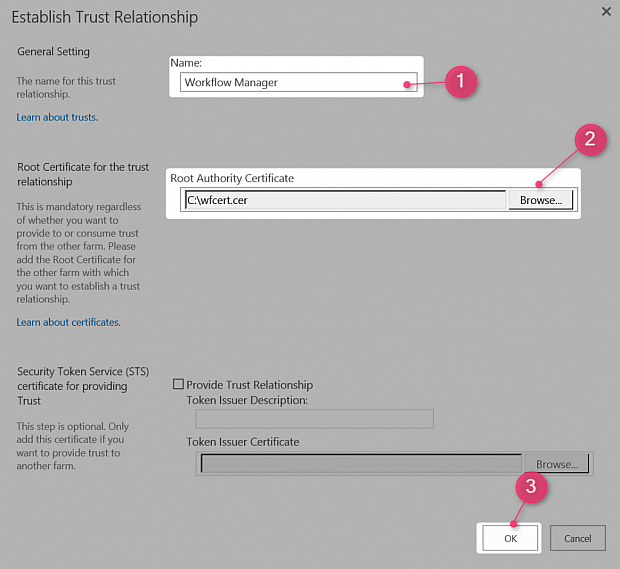

  • On Establish Trust Relationship Page enter the following information

    • Name of the Certificate
    • Path of Certificate( where you save the certificate)
    • Click Ok.

      article

  • You will see your certificate added.

    article

That's it, we successfully built the trust. Now move to the next step and register the workflow Proxy.
