Share Attachments And Compose Email In Windows Runtime Apps

Here are the steps,

Step 1:

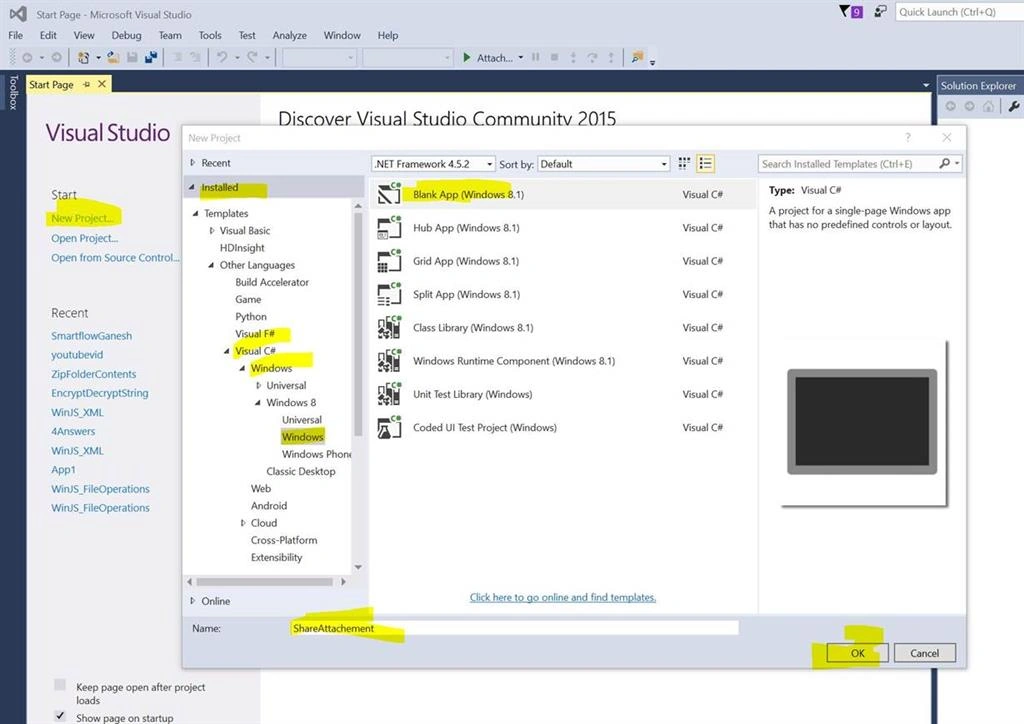

Create a simple Windows Project. Click New Project, Visual C#, Windows 8, Windows, then click Blank App (Windows 8.1).

new

Step 2:

Lets add a button in MainPage.xaml:
  • A button with the Click event.

    Complete XAML code is:
    1. <Page
    2.     x:Class="ShareAttachment.MainPage"
    3.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    4.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    5.     xmlns:local="using:ShareAttachment"
    6.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    7.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    8.     mc:Ignorable="d">
    9.
    10.     <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    11.         <Button x:Name="btn_Share" Content="Share Attachment" HorizontalAlignment="Left" Margin="377,231,0,0" VerticalAlignment="Top" Click="btn_Share_Click"/>
    12.
    13.     </Grid>
    14. </Page>

Step 3:

We put an image file ‘abc.jpg’ in Assets folder of solution explorer so that it can be used as an attachment in the mail.

assets

Step 4:

In the code behind: MainPage.xaml.cs,

Update your code with this:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Runtime.InteropServices.WindowsRuntime;
  6. using Windows.ApplicationModel.DataTransfer;
  7. using Windows.Foundation;
  8. using Windows.Foundation.Collections;
  9. using Windows.UI.Xaml;
  10. using Windows.UI.Xaml.Controls;
  11. using Windows.UI.Xaml.Controls.Primitives;
  12. using Windows.UI.Xaml.Data;
  13. using Windows.UI.Xaml.Input;
  14. using Windows.UI.Xaml.Media;
  15. using Windows.UI.Xaml.Navigation;
  16.
  17. namespace ShareAttachment
  18. {
  19.     public sealed partial class MainPage : Page
  20.     {
  21.         public MainPage()
  22.         {
  23.             this.InitializeComponent();
  24.             var dtm = Windows.ApplicationModel.DataTransfer.DataTransferManager.GetForCurrentView();
  25.             dtm.DataRequested += Dtm_DataRequested;
  26.         }
  27.
  28.         private async void Dtm_DataRequested(Windows.ApplicationModel.DataTransfer.DataTransferManager sender, Windows.ApplicationModel.DataTransfer.DataRequestedEventArgs args)
  29.         {
  30.             DataPackage dataToShare = args.Request.Data;
  31.             dataToShare.Properties.Title = "Attachment Sharing Application";
  32.             dataToShare.Properties.Description = "Attachment Sharing Application that share images";
  33.
  34.             var storageFile = await Windows.ApplicationModel.Package.Current.InstalledLocation.GetFileAsync("Assets\\abc.jpg");
  35.             var imageStream = Windows.Storage.Streams.RandomAccessStreamReference.CreateFromFile(storageFile);
  36.             dataToShare.SetBitmap(imageStream);
  37.         }
  38.
  39.         private void btn_Share_Click(object sender, RoutedEventArgs e)
  40.         {
  41.             Windows.ApplicationModel.DataTransfer.DataTransferManager.ShowShareUI();
  42.         }
  43.     }
  44. }
Step 5:

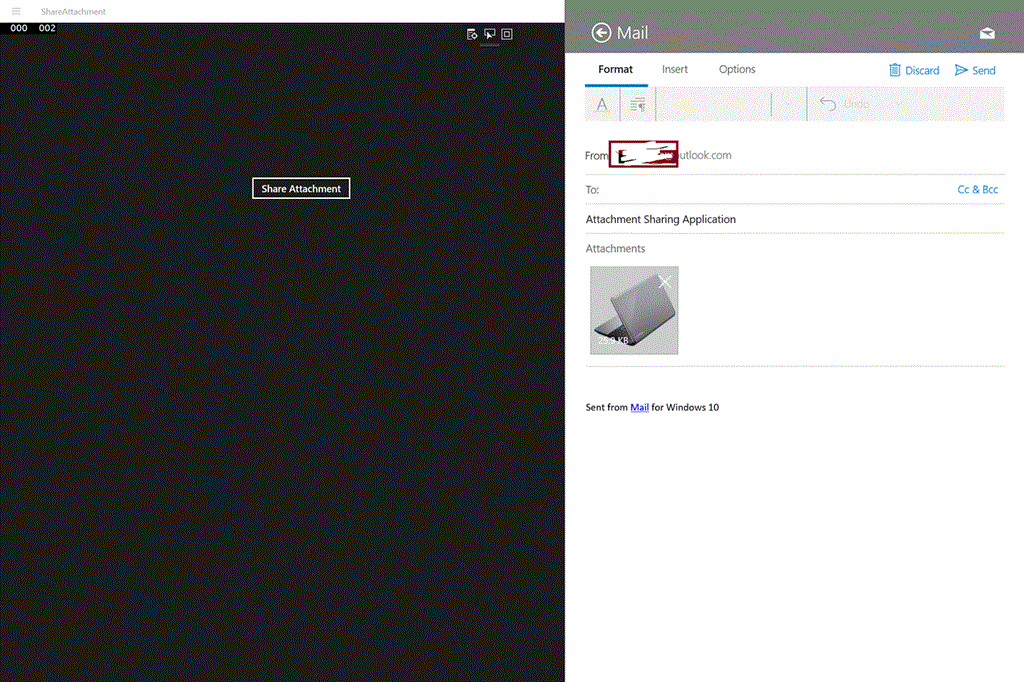

Run the application, click the Share Attachment button and you see a Share UI open in the right side of app.

Click on Mail and you see an email compose with an image attached.

attachment

That’s it.

Thanks, Happy Coding!
