Set Up Azure Dev Test Lab for SharePoint 2019

Introduction


Dev test lab is a Microsoft Azure Service designed to quickly create environments that contain virtual machines. These labs provide dev-test environments on Azure. They enable the quick deployment of Windows or Linux virtual machines in large batches, as well as allow us to install software and manage virtual machines configuration in a controlled way.

Dev test labs are primarily used for:
  • Development – Allows developers to quickly deploy a development environment and install software for their development needs.
  • Training – For training or classroom sessions, we can quickly deploy a number of virtual machines with software installed & publish it to users.
  • Testing - Testers can manage environments for different testing needs. One common scenario is load testing.
DevTest Labs Capabilities
  • Quickly create and manage cloud environments
  • Allow developer/tester self-service deployment
  • Create VMs from marketplace images or custom images
  • Apply formulas to quickly create multiple preconfigured VMs
  • Add artifacts (software) to the VMs
  • Apply Policies like auto shutdown/start VMs on a particular time
  • Create templates for redeployment
  • Save costs & resources
Step 1 - Create a Dev-Test Lab

Log in to Azure Portal and choose Create a new resource, search for Dev-Test Labs

Setup Azure Dev Test Lab For SharePoint 2019

Select DevTest Labs & choose Create.

Setup Azure Dev Test Lab For SharePoint 2019
Choose a name, resource group, location, etc. We can also set an auto-shutdown or auto-start for this lab.

Setup Azure Dev Test Lab For SharePoint 2019

It may take a few minutes to set up the lab. When finished you can open it.

Setup Azure Dev Test Lab For SharePoint 2019

Step -1 Create a Secret

When the lab is up and ready, we need to setup secrets that will be used when we create VM. Open “My Secrets”

Setup Azure Dev Test Lab For SharePoint 2019

Let’s add a new secret with a name and your secret key.

Setup Azure Dev Test Lab For SharePoint 2019

Setup Azure Dev Test Lab For SharePoint 2019

Step 2 - Create a Virtual Machine

Now we are ready to set up a new VM in our lab. Open “All Virtual Machines”.

Setup Azure Dev Test Lab For SharePoint 2019

Currently, there is no virtual machine available, as this is a new lab setup & we haven`t set up any VM yet. Let's add a new VM.

Setup Azure Dev Test Lab For SharePoint 2019

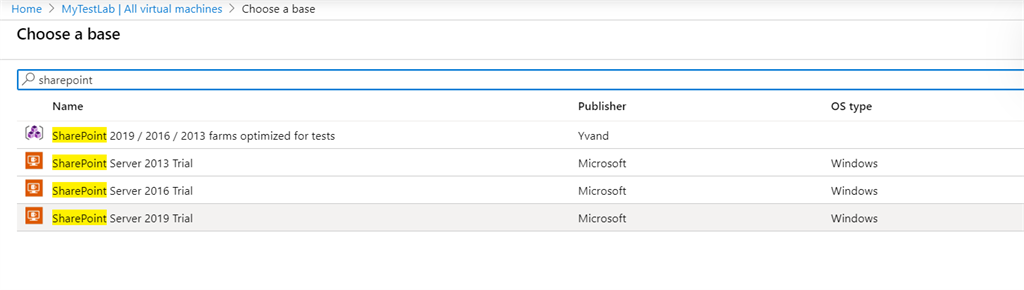

Here you can choose from a number of images available. I chose the SharePoint 2019 Trial VM image

Setup Azure Dev Test Lab For SharePoint 2019
Setup Azure Dev Test Lab For SharePoint 2019

It will take some time to set up your VM. Once ready, it's available for remote connection.

 Setup Azure Dev Test Lab For SharePoint 2019
