Setup Azure CI/CD Pipelines Using Visual Studio - Part Two

Introduction

In the previous article, we saw how to configure CI/CD for a single project solution. In this article, we will see how to configure CI/CD for multiple project solutions.

Before going forward, please go through the previous article.

I’m not going to spend time explaining Azure DevOps and its features, we are directly moving to CI/CD for multiple project solution. How can we configure this with the help of Visual Studio and TFS? We will see this step by step. Once we set up the Azure Pipeline, each check-in will build the application and deploy the changes on App Service according to the project.

To know about Azure DevOps and its other features, you can refer to the below blog.
Prerequisite

For configuring the Azure DevOps CI/CD, you need the following tools:
  1. Azure DevOps account
  2. Azure Portal Account
  3. Visual Studio 2012+(in my example I am using VS 2017 and 2019)
Steps

We will see how to configure CI/CD and setup Azure Pipeline using Azure DevOps.

Step 1

Create a new project by using the Azure DevOps account. I am using Team Foundation version control, but you can use Git too.

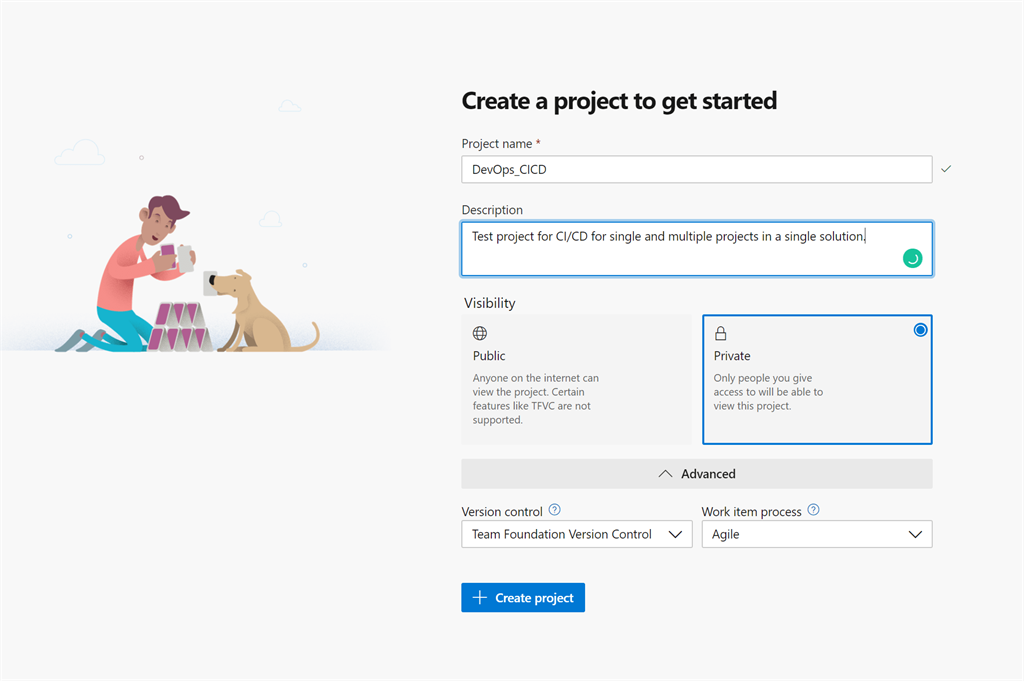

Create Project on Azure DevOps
Create Project on Azure DevOps

Step 2

Configure the newly created project in Visual Studio source control on your local system.

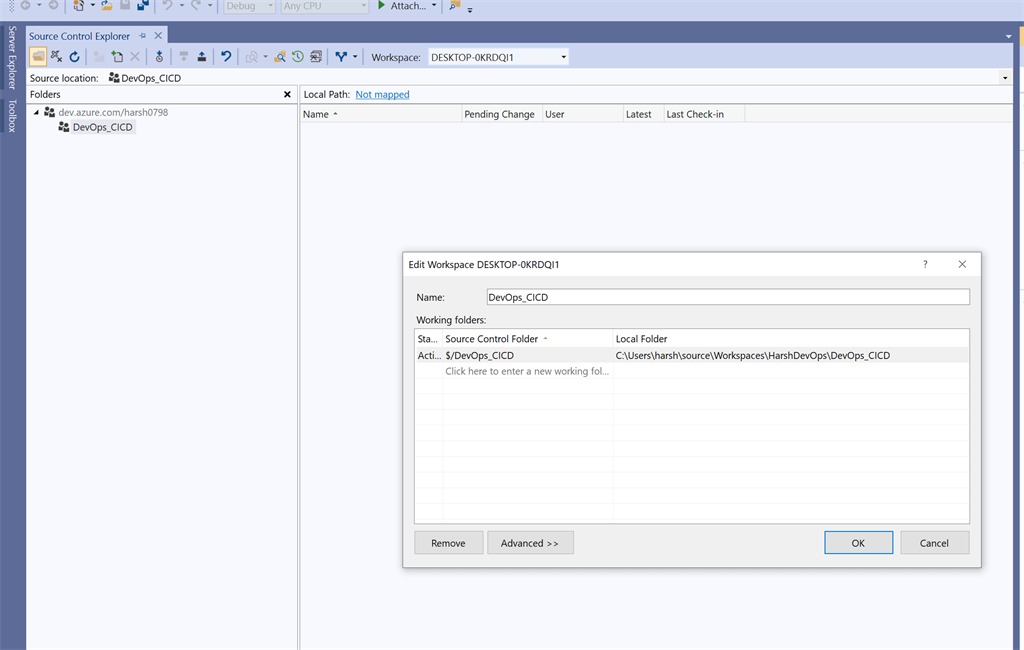

Configure Source Control
Configure Source Control

Step 3

In the previous article, we created a new project with a solution in Visual Studio, now we are going to add another project under the same solution and add the changes.

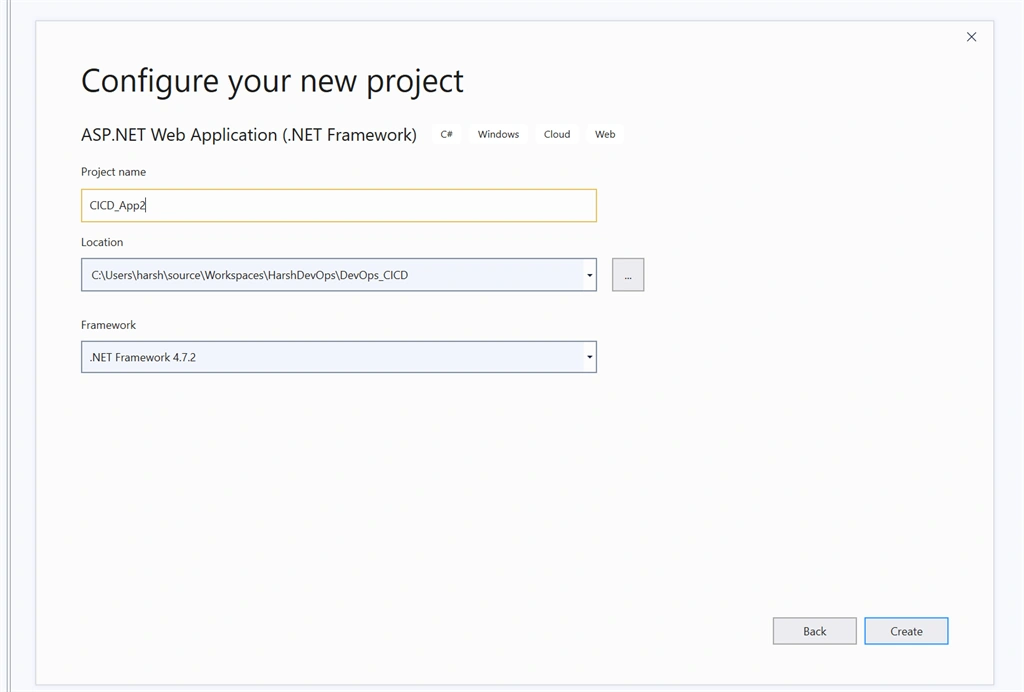

Create a Project with name CICD_App2
Create a Project with name CICD_App2

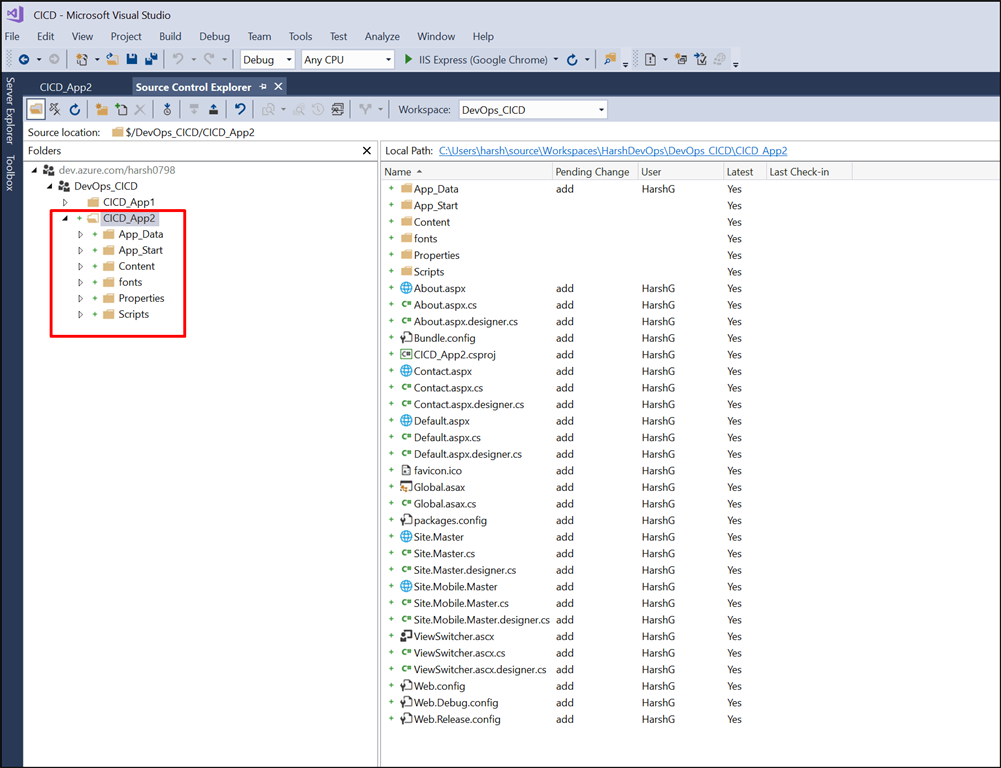

Added project in Solution control
Added project in Solution control

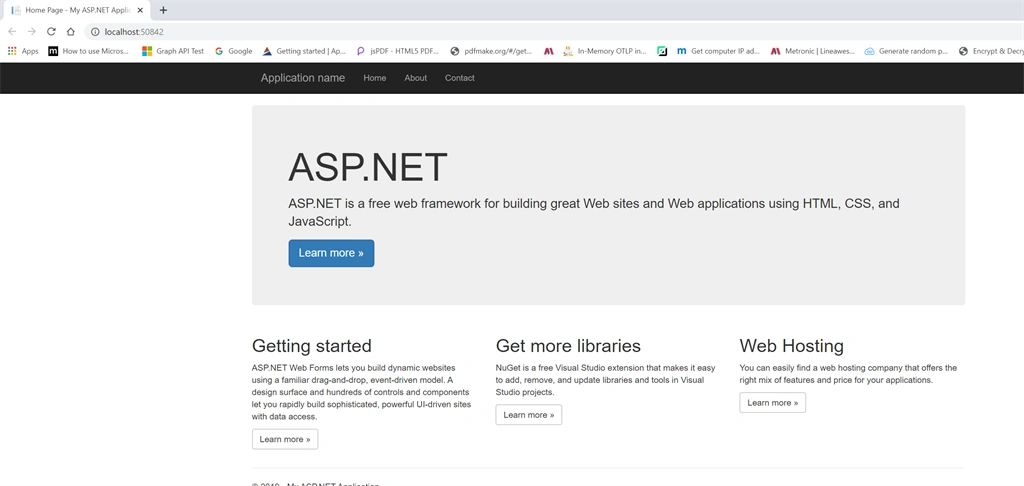

CICD_App2 Running Successfully
CICD_App2 Running Successfully

Step 4

Create a blank solution inside the CICD_App2 project folder.

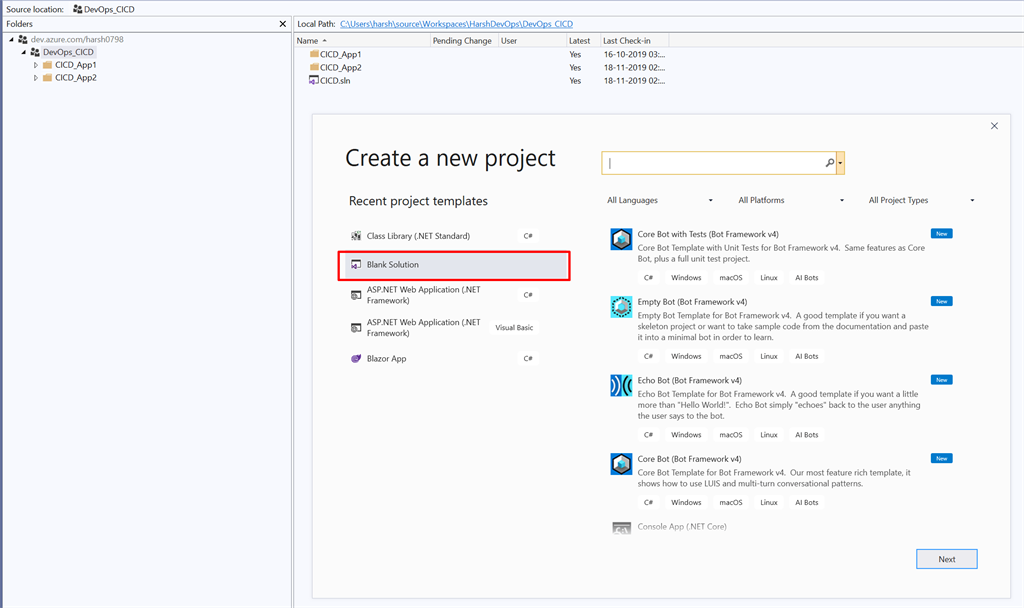

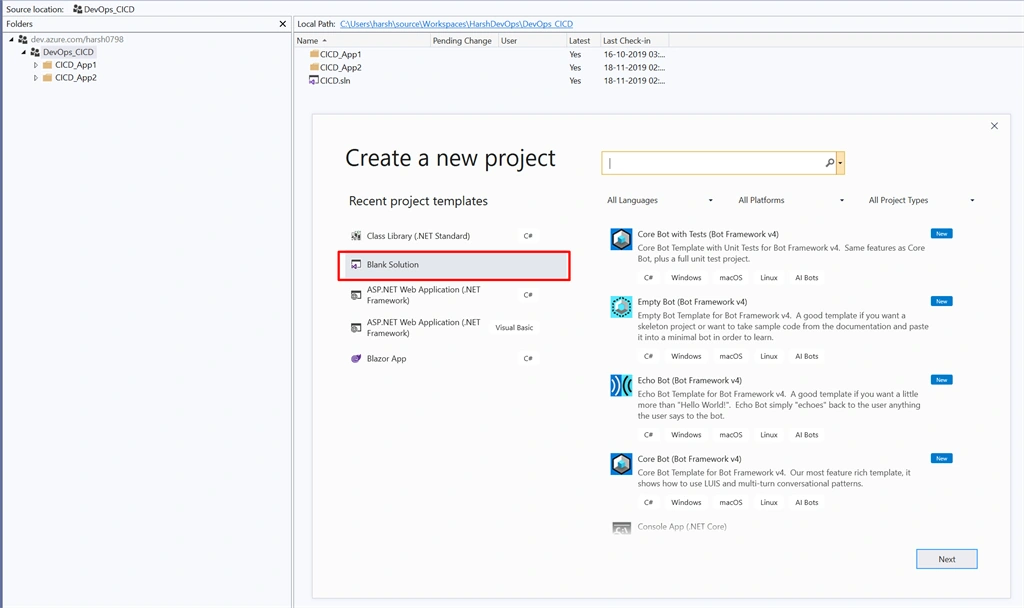

Blank Solution
Blank Solution

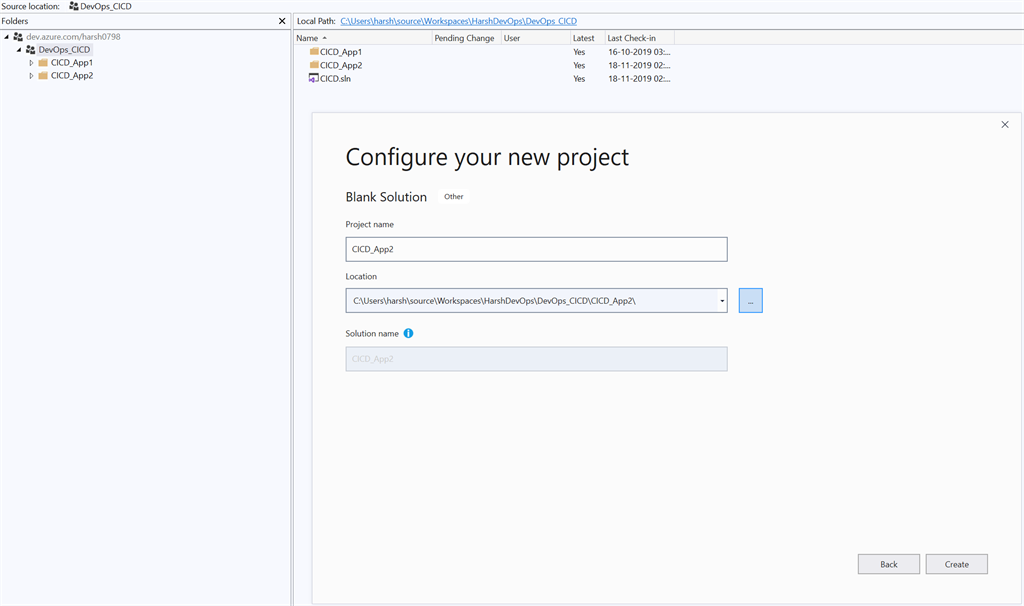

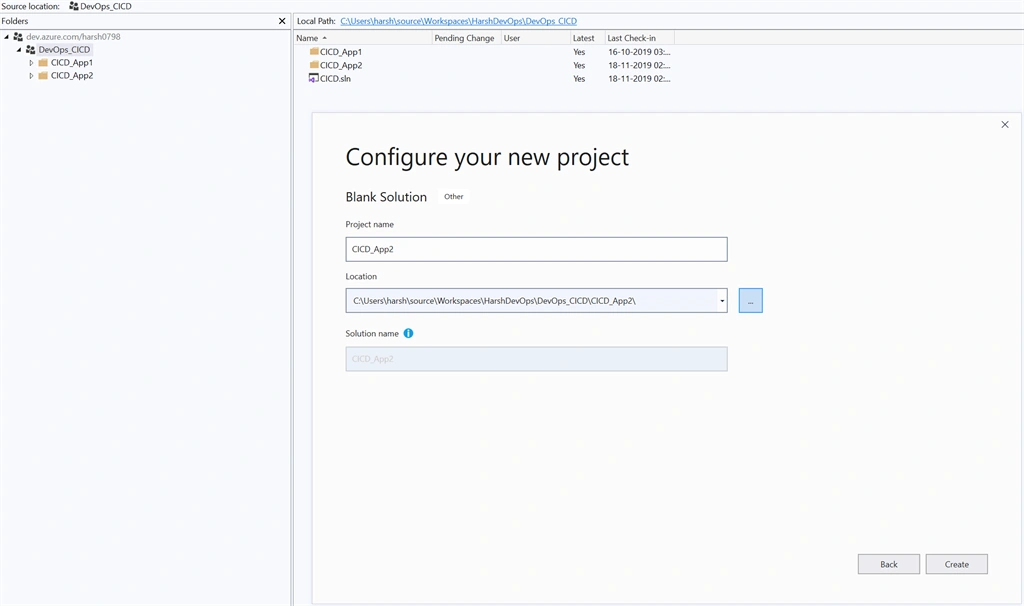

Creating a Blank Solution
Creating a Blank Solution

Step 5

Add CICD_App2 Project in the newly created blank solution.

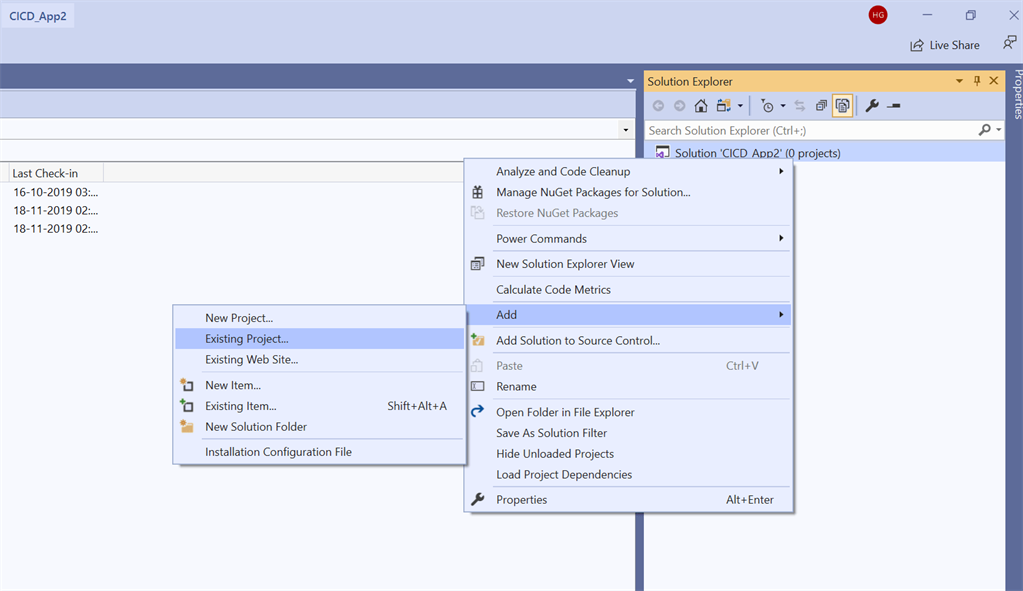

Adding Project
Adding Project

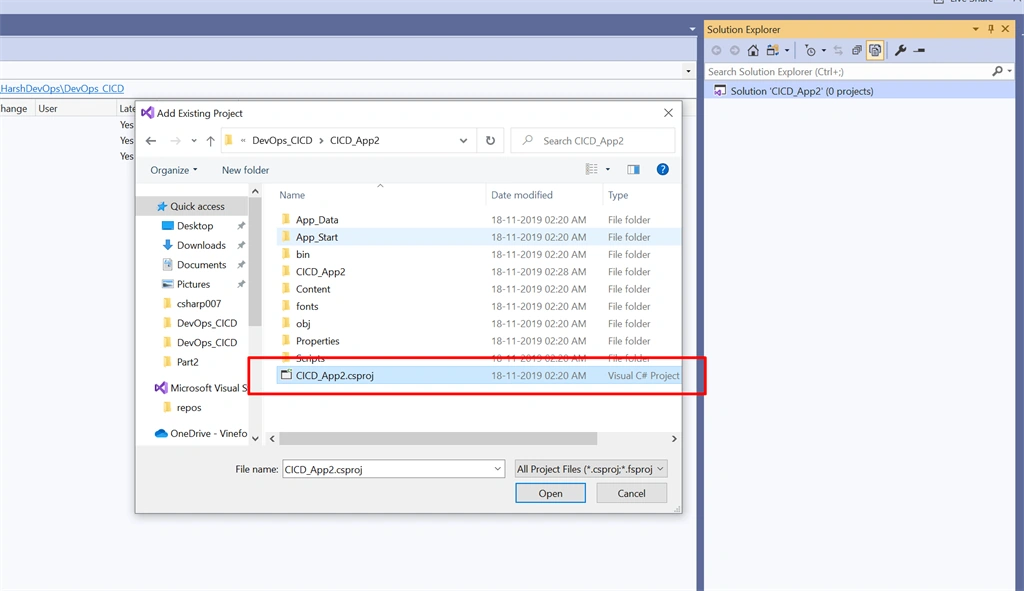

Select .csproj file in order to add a project in the solution
Select .csproj file in order to add a project in the solution

Step 6

Setup Azure Pipelines under the publish settings of your solution.

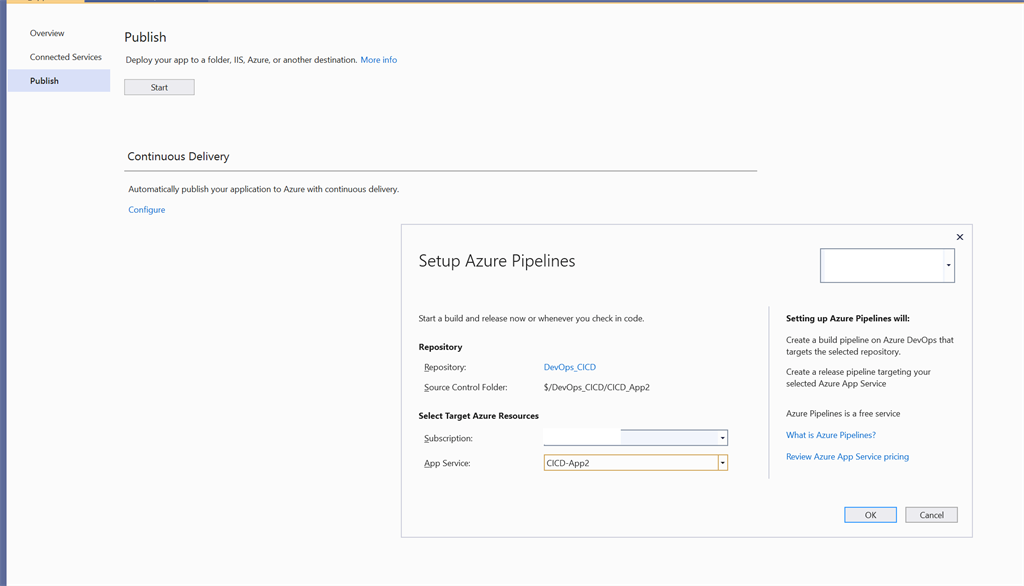

Setup Azure Pipeline
Setup Azure Pipeline

Step 7

Wait for a few minutes, then go the pipelines under Azure DevOps. You will see a new Pipeline created. The build of the project has started.

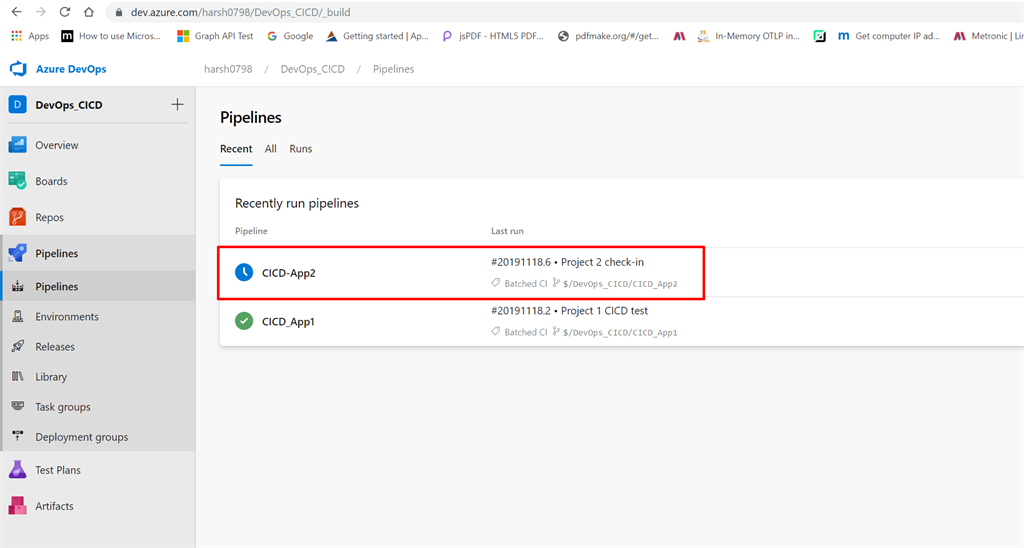

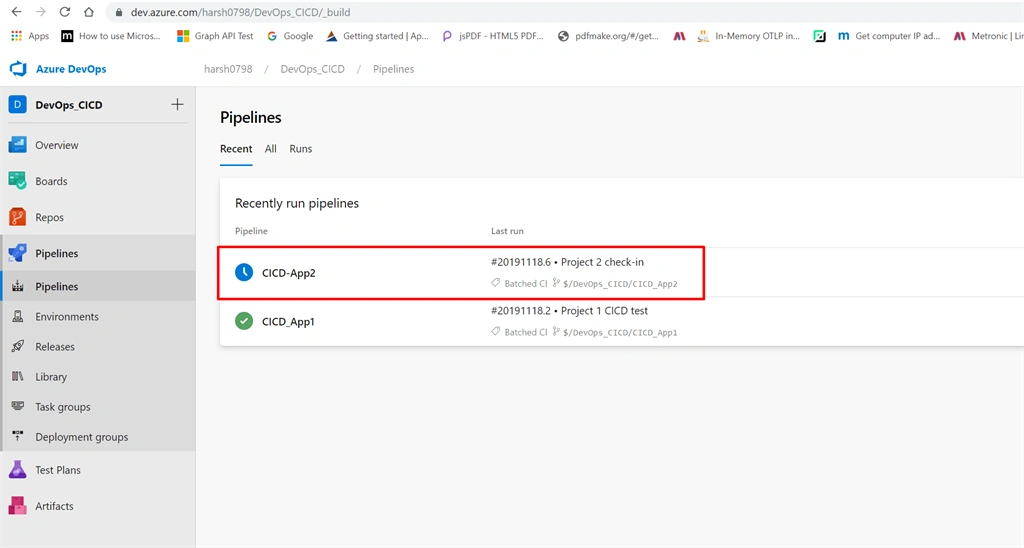

DevOps Pipeline Created
DevOps Pipeline Created

Step 8

Check the Deployment Center on the Azure portal for your App Service, which you have set up the Azure Pipeline in step 6.

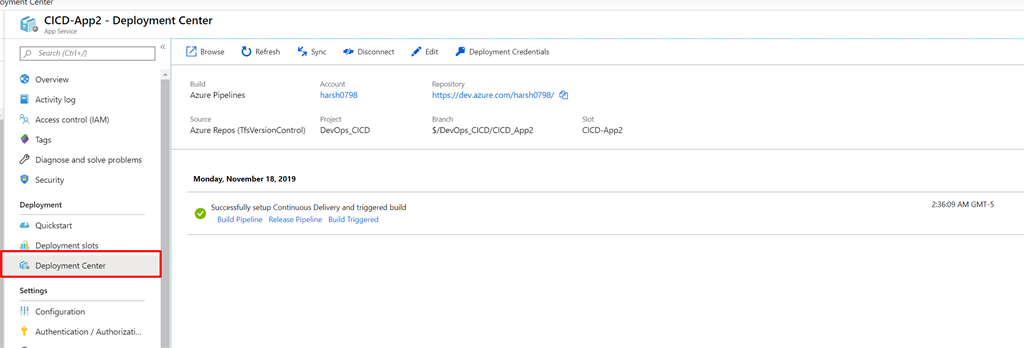

Azure App Deployment Center
Azure App Deployment Center

Step 9

If there is no error in the build, then your build has succeeded. It should take a few minutes. In my example, it took up to 2 min.

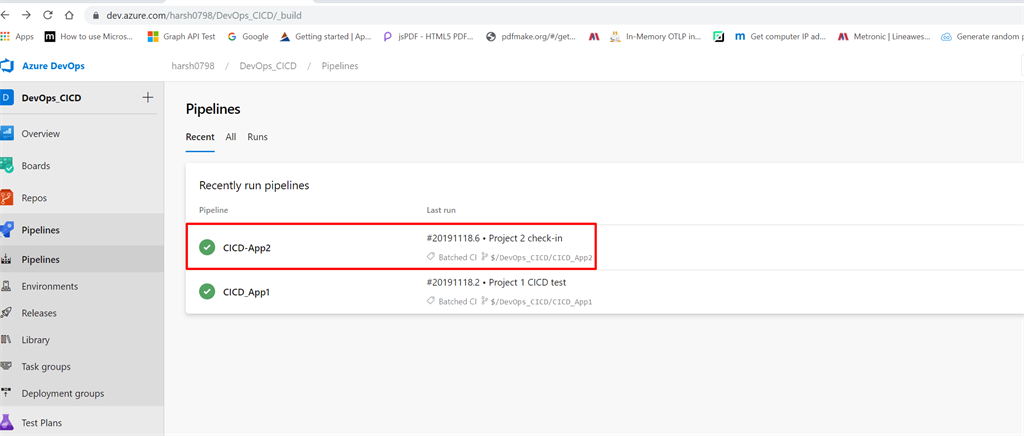

Build Succeeded
Build Succeeded

Step 10

It will also create a release as shown in the previous article. In this article, I am going to show you how to create and configure a release manually.

Under the Releases, there is an option to create a new release.

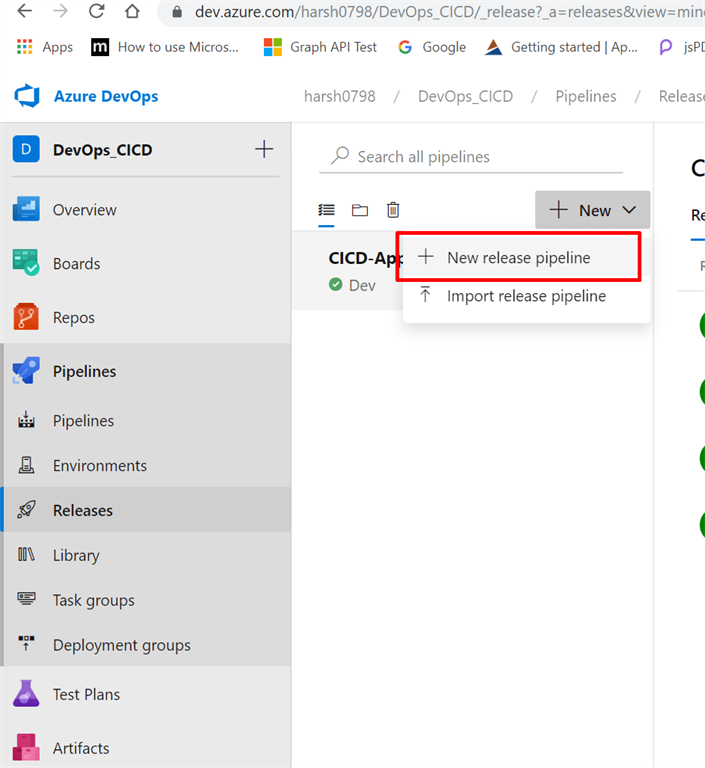

New Release Pipeline
New Release Pipeline

Step 11

Select a template (Azure App Service Deployment) for the stage and then add the Build Artifacts with a Continuous Deployment Trigger.

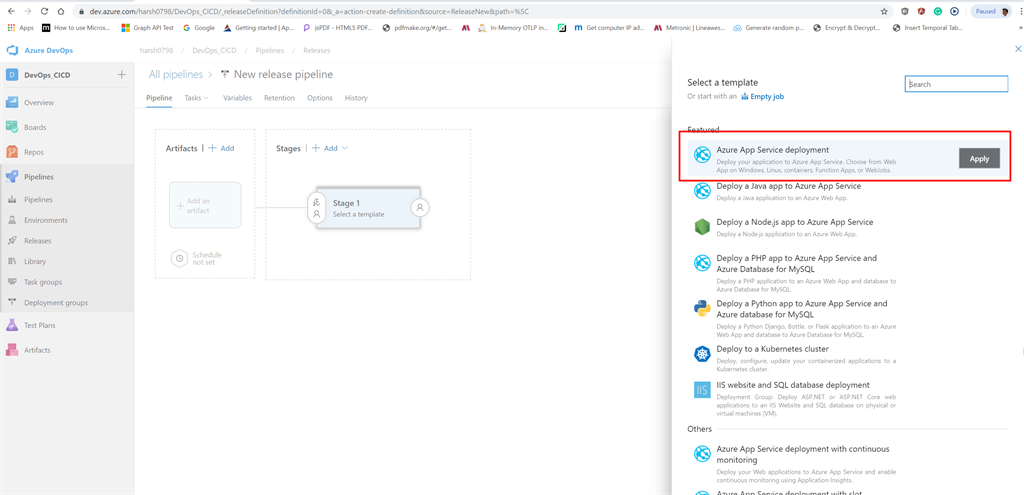

Template Selection
Template Selection

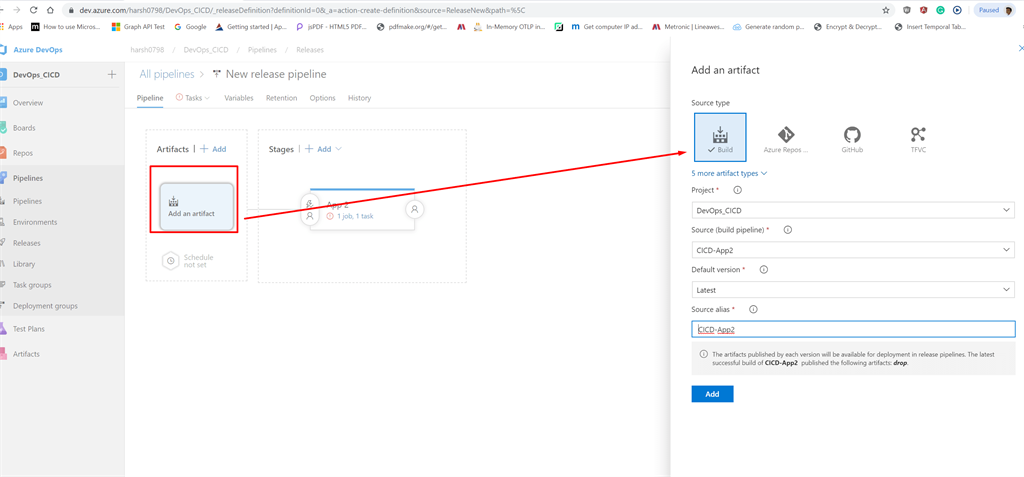

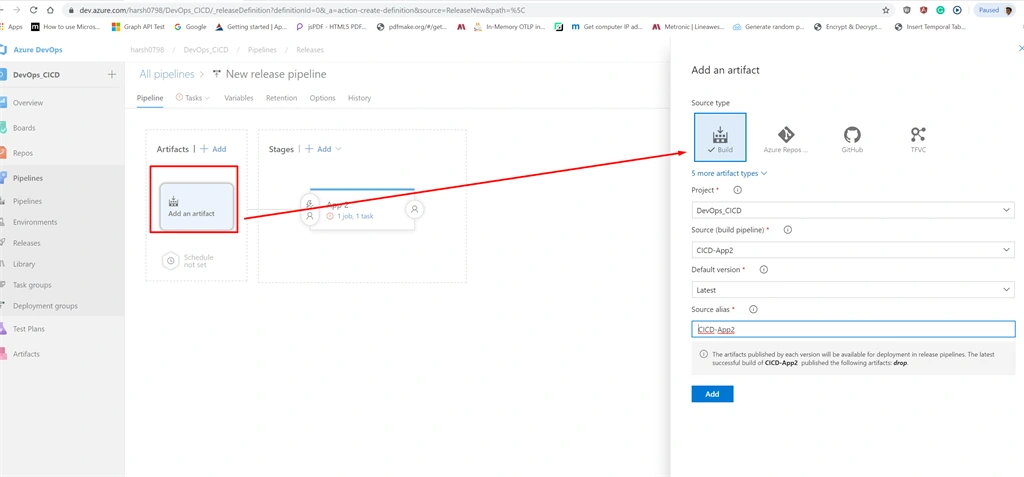

Artifacts
Artifacts

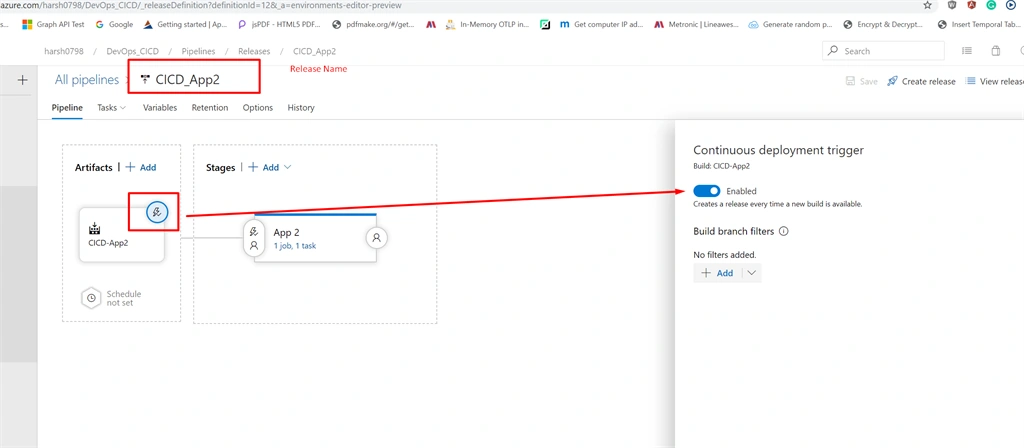

Continuous Deployment Trigger
Continuous Deployment Trigger

Step 12

Create a task under the task option, then add the options correctly when you are creating a task.

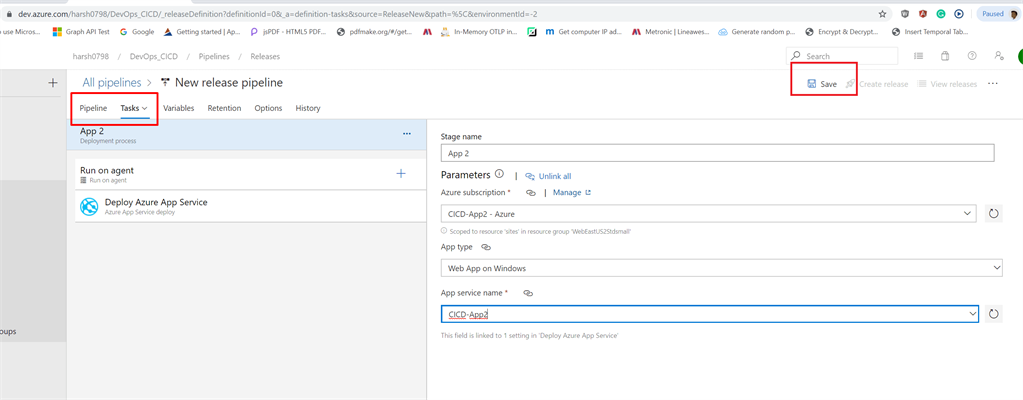

Create Task
Create Task

Now, you are ready to create a release.

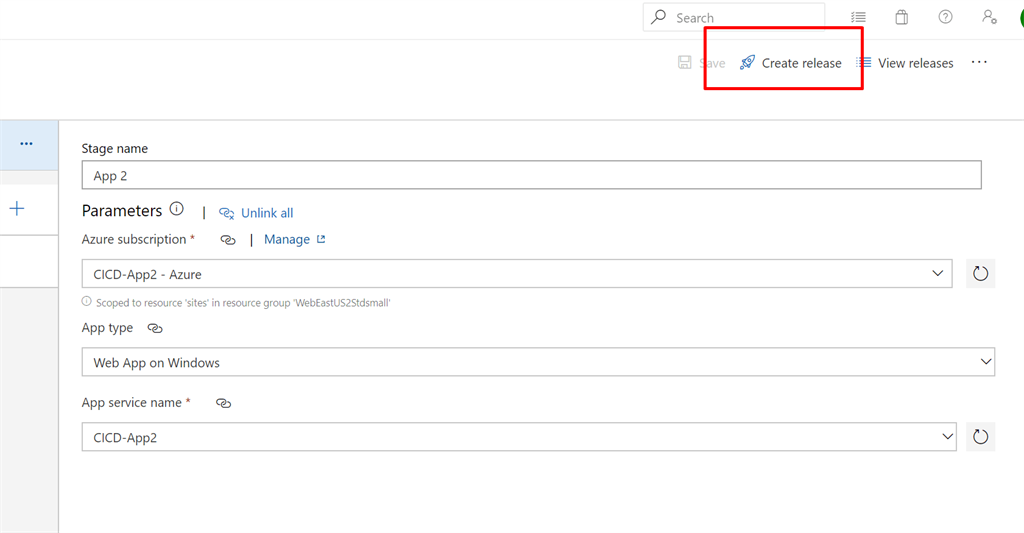

Creating Release Option
Creating Release Option

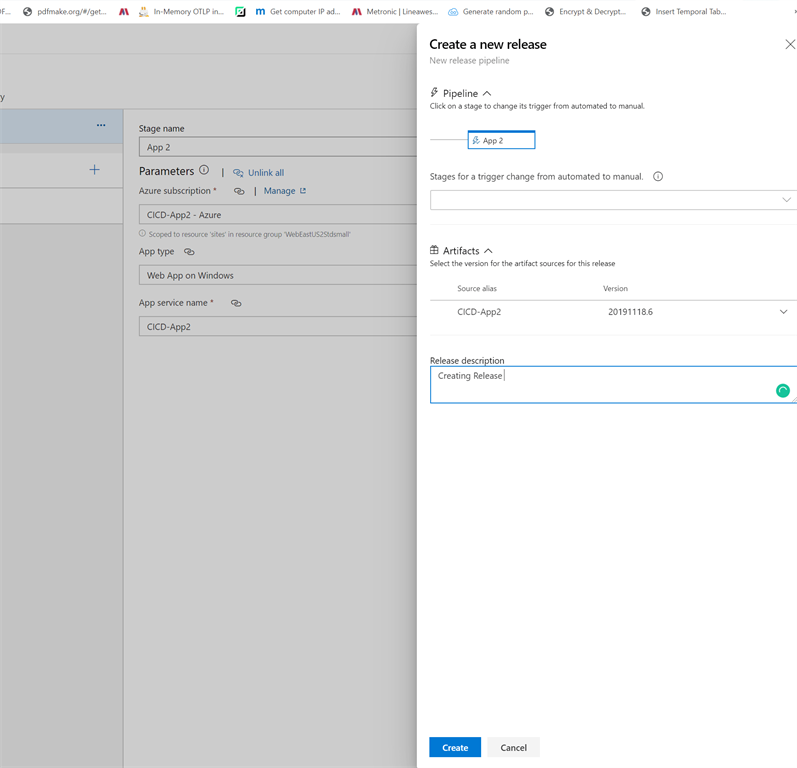

Create Release
Create Release

Step 13

After the release created it will start to deploy the changes on the App Service.

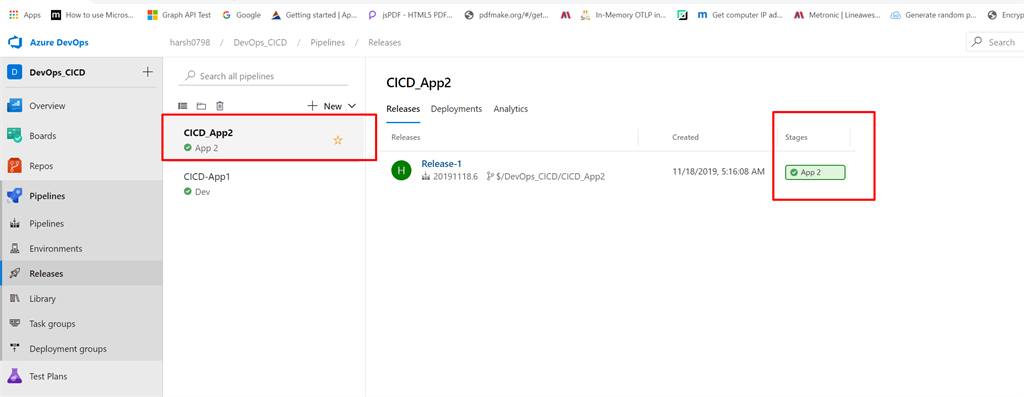

Released Successfully
Released Successfully

Step 14

Check the App by using URL and you will see the application has deployed.

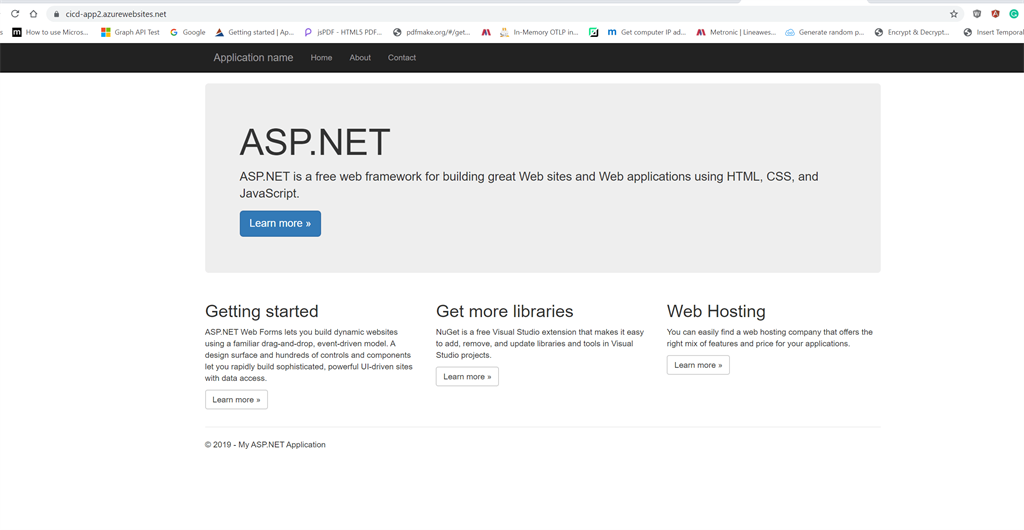

App Service URL after First Release
App Service URL after First Release

Step 15

Change anything you need to in the application, check-in the changes, then Azure DevOps will build the solution and release the changes.

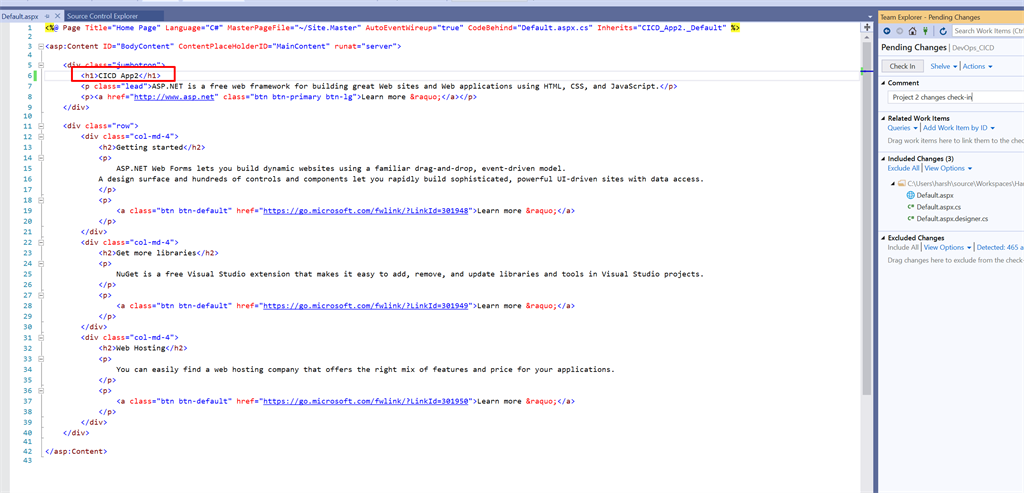

Heading change
Heading change

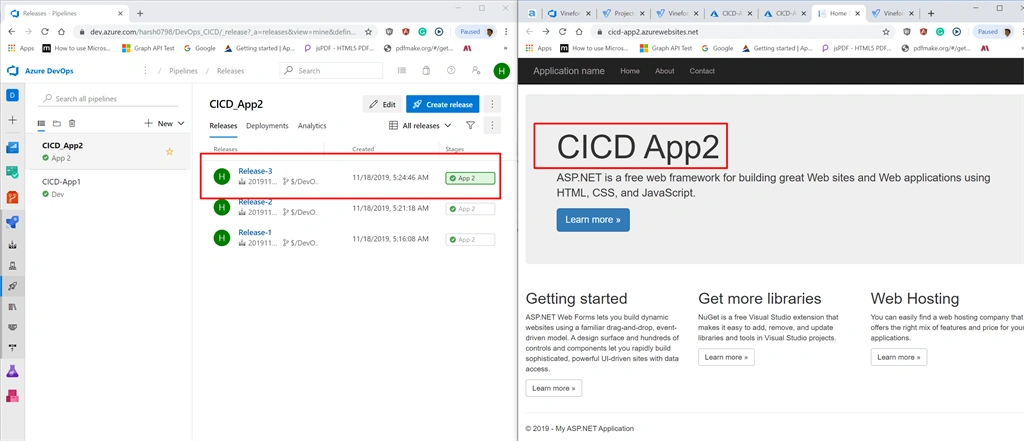

After build completed, new changes are deployed

After the build is completed, the new changes are deployed.

Step 16

Now we are going to change the code in both projects and check-in those in the single check-in. Then we will see how both projects are built separately and deploy the changes in different app services accordingly.

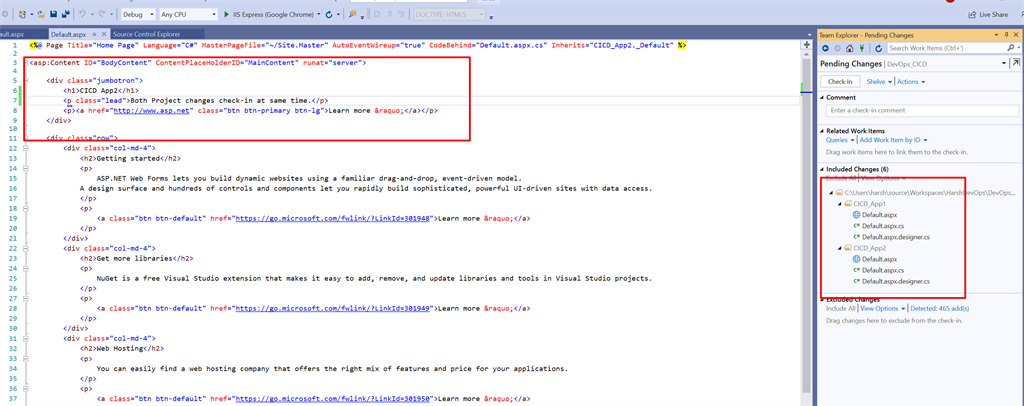

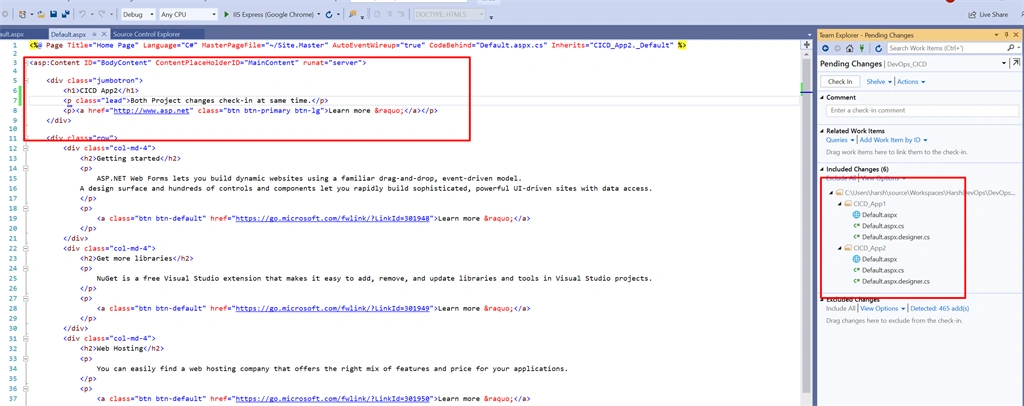

Changes in Default.aspx pages under both project

Changes in the Default.aspx pages under both projects.

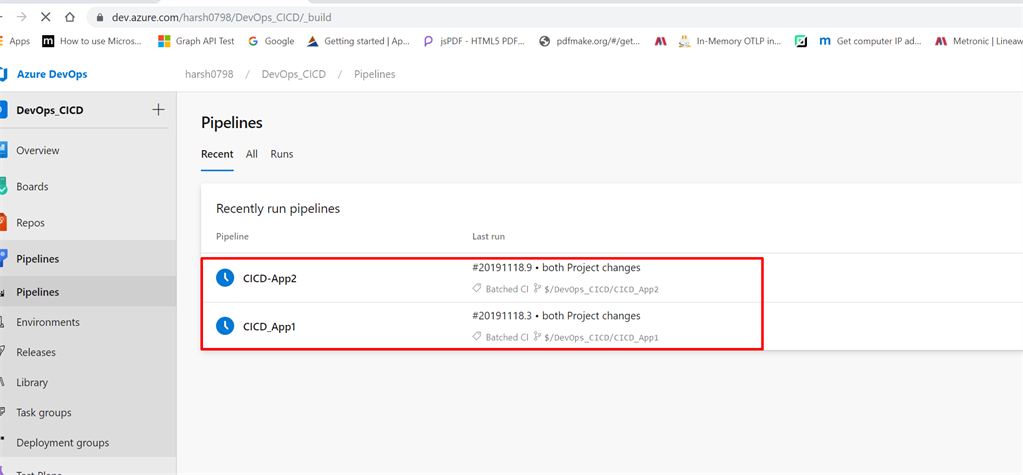

The build has started for both projects

The build has started for both projects

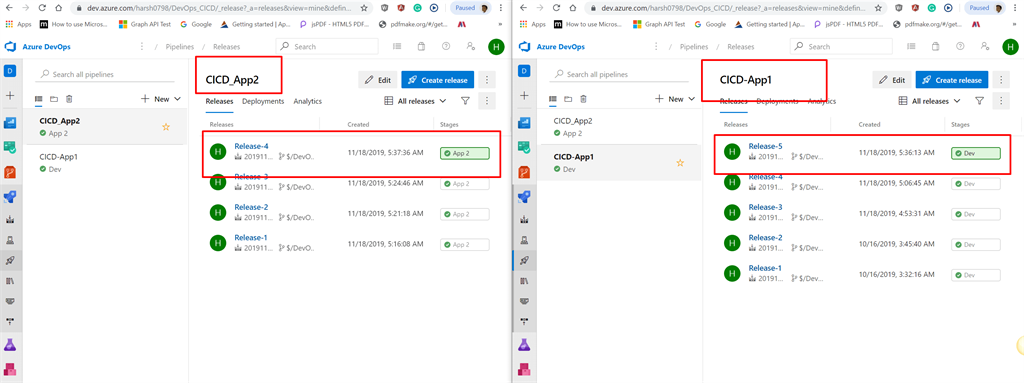

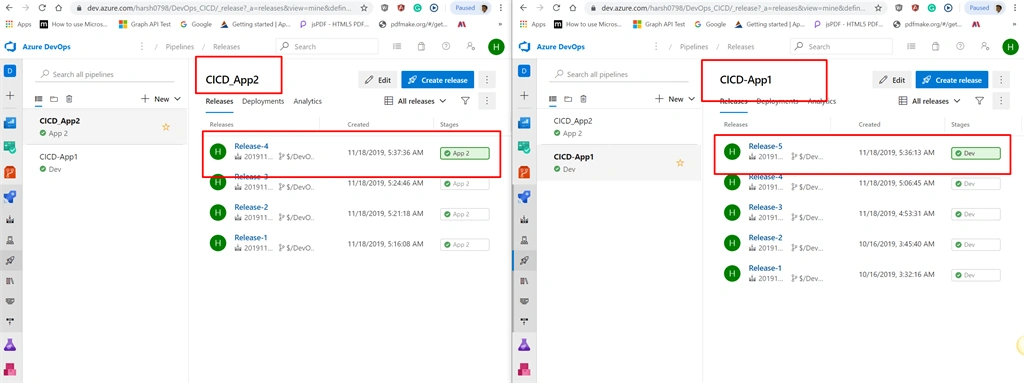

Released the changes of both projects

Released the changes of both projects

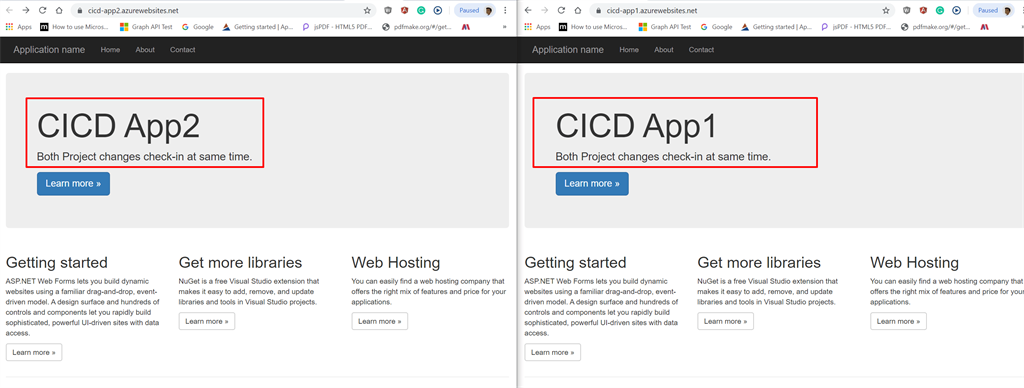

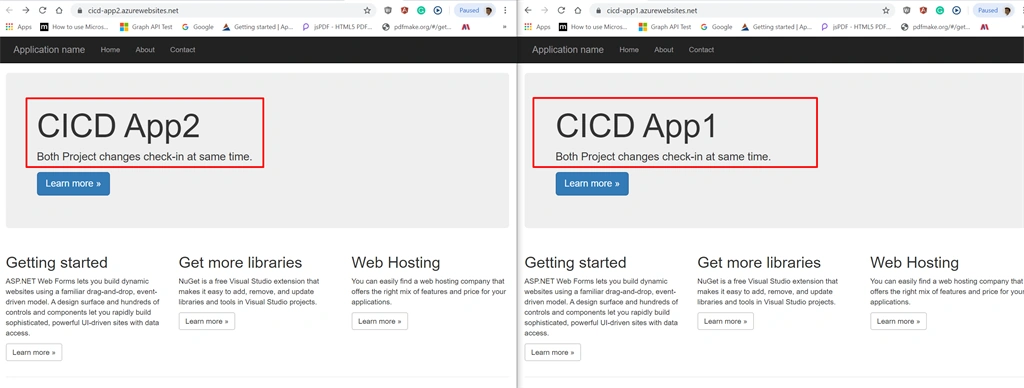

Changes have deployed
Changes have deployed

Note

We can see all Releases under Deployment Center on Azure Portal.

We need a separate .sln file to configure the CICD for each project.
