Setting Up Values Without Conditional Checks in Power Automate

Introduction

In this article, we will go through a quite simple use case on how to set up a variable value without using conditional checks. Please note that this might not be suitable for all the scenarios but could be helpful in specific scenarios where the flow nesting limitation has reached its maximum level, which is eight, or in any other conditions where the conditional check can be avoided.

Method 1. With condition action

Let us go through the following steps to depict the normal scenario.

Step 1. Log in to the Power Automate maker portal https://make.powerautomate.com

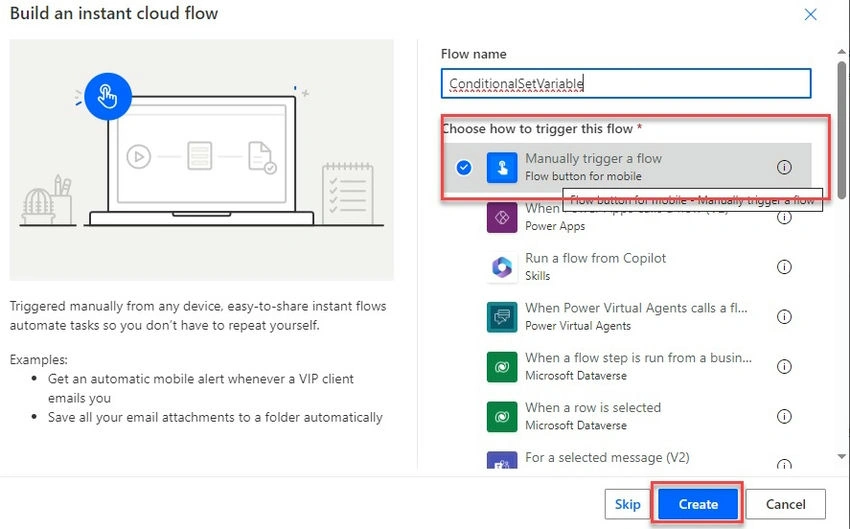

Step 2. Click on ‘Instant cloud flow’ --> ‘Manually trigger a flow’.

Create

Step 3. Initialize the variable called ‘strApprovalStatus’ and leave the value blank.

String

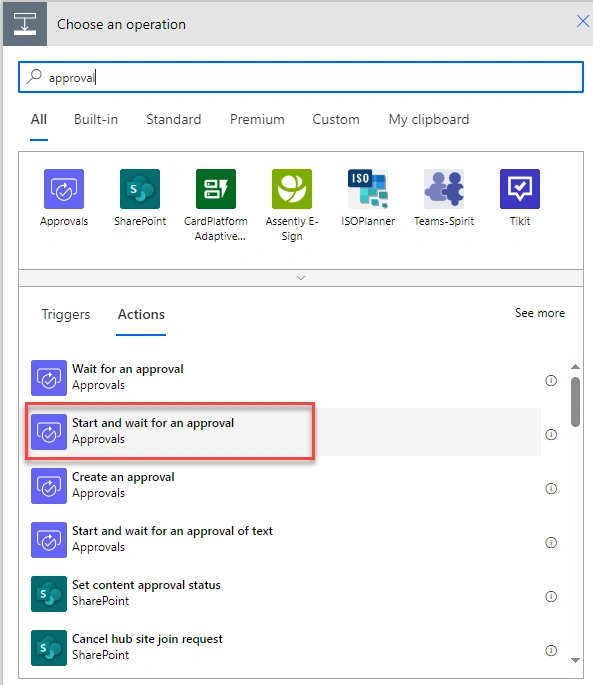

Step 4. Add action ‘Start and wait for approval’.

Approval

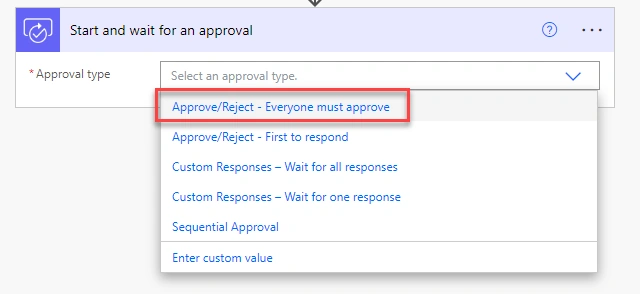

Step 5. Select the first condition, which is everyone must approve.

Condition

Step 6. Assign the approval to yourself or any other service account to which you have access. The condition here is to check if the outcome is approved, then usually we use conditional checks to set the variable values. Later, these variables can be used to set values in Dataverse tables, or SharePoint lists, or anywhere else where the PowerAutomate has a connector.

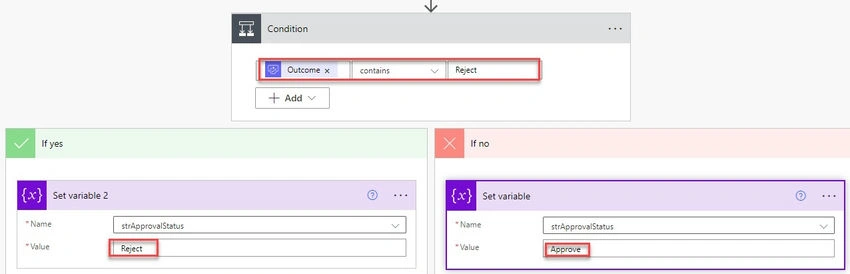

Step 7. Add the conditional check to set the final approval status. Select the ‘Outcome’ from Dynamic content and check for ‘Outcome’, which contains ‘Reject.’ Here, I am using a variable called “strApprovalStatus”. Use action ‘Set variable’ and in the right branch set the value to ‘Approve’ and in the left branch set the value to ‘Reject’.

Outcome

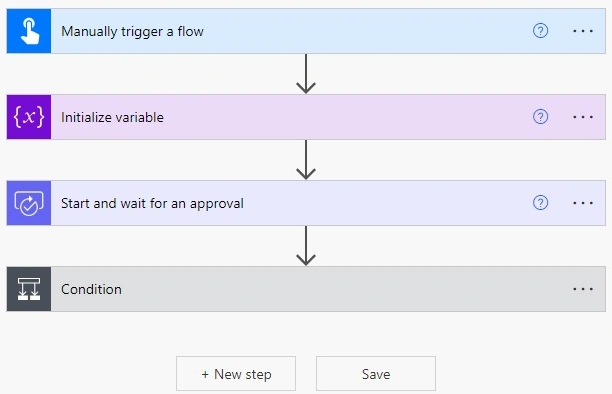

Step 8. Below is the overall configuration of the flow.

Configuration

Testing

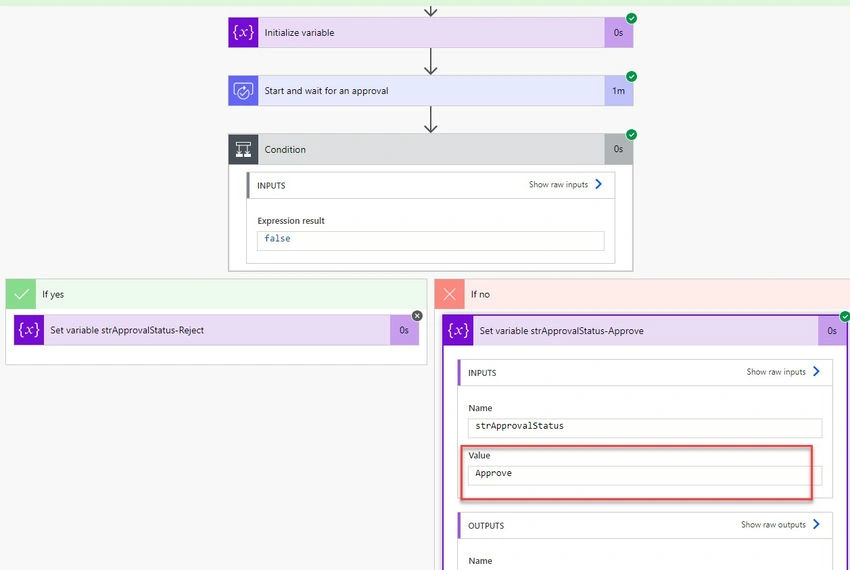

Step 1. When approved, the output run for the flow is below.

Output

Method 2. Using Dynamic Expression

The advantage of this method is that we can skip conditions and therefore, avoid one nesting level of Power Automate. The nesting level occurs when any of the following actions are used.

Apply to each
Condition
Do Until
Scope
Switch

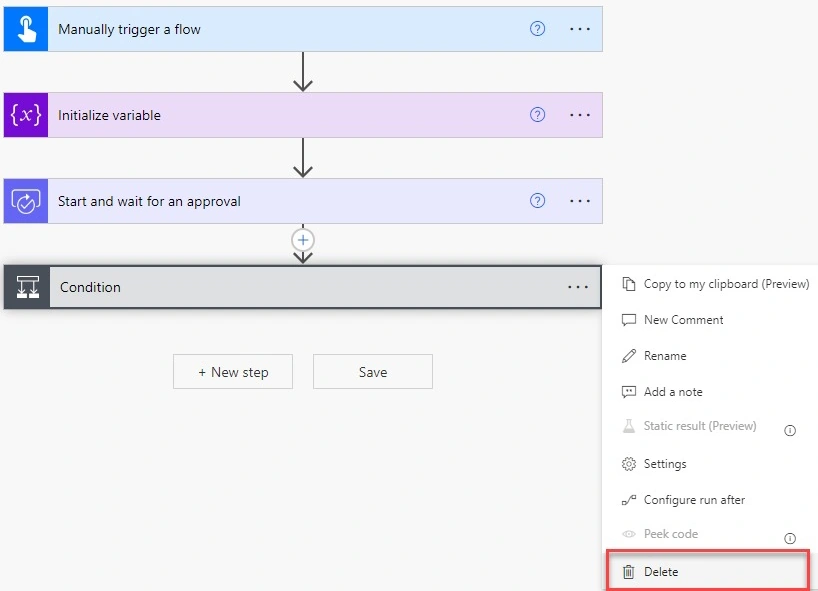

Step 1. Edit the flow design from the previous Method 1 and remove the ‘Condition’ action.

Delete

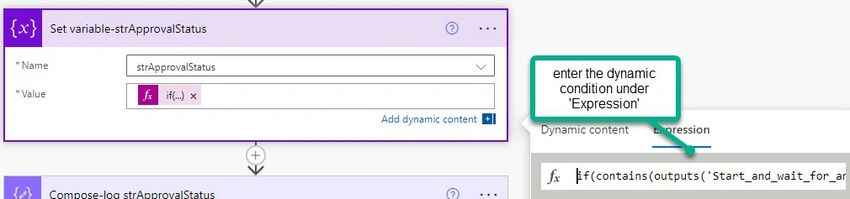

Step 2. Add Set variable action. Edit the action and rename it to ‘Set variable-strApprovalStatus' in the expression, and enter the following expression.

if(contains(outputs('Start_and_wait_for_an_approval')? ['body/outcome'], 'Reject'),' Rejected', 'Approved').

It says if the outcome contains ‘Reject’ set the status to ‘Rejected’ or else set it to ‘Approved’.

Variable

Step 3. Log the variable status to check.

Compose log

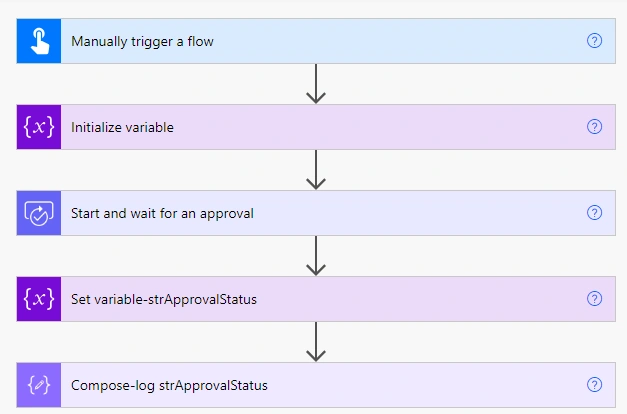

Step 4. The overall design looks like the one below.

Overall design

Testing

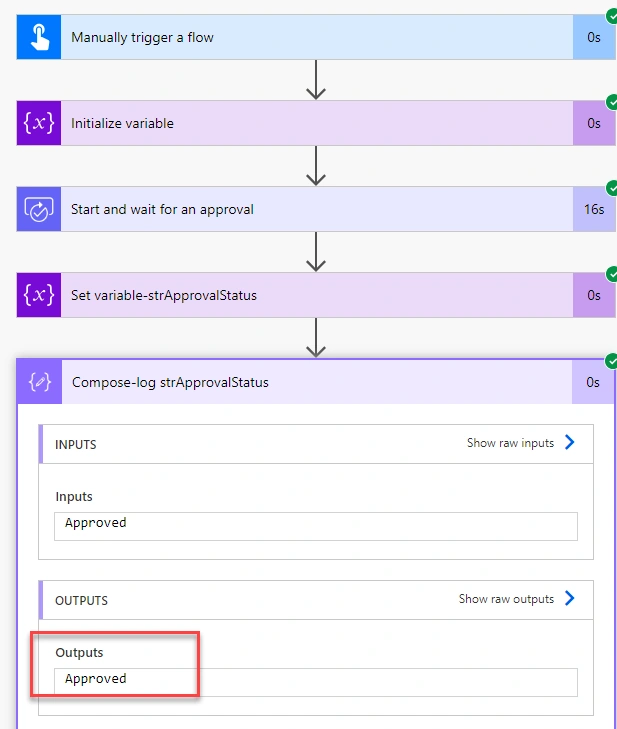

Step 1. When approved, the variable strApprovalStatus should be set to ‘Approved’.

Initialize variable

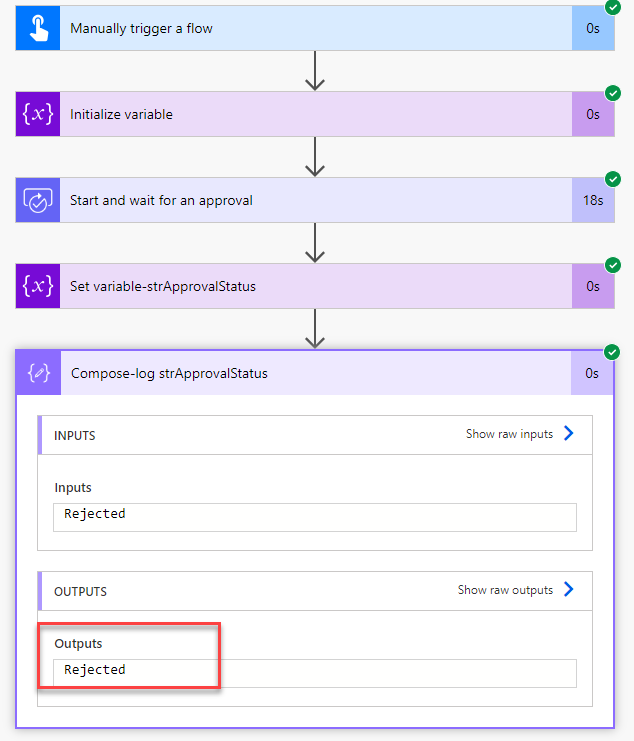

Step 2. When rejected, the variable strApprovalStatus should be set to ‘Rejected’.

Rejected

Conclusion

Thus, in this article, we have seen how to avoid conditional action in Power Automate to set the variable value based on the approval outcome. This can be extended to more advanced scenarios. Please feel free to comment on any issues or for any ideas that you may have.
