Overview



Welcome to SharePoint Spaces step by step series. You are reading the second part of this article series. During this article, we will learn how we can set up the environment for SharePoint Spaces.



If you haven’t visited my previous articles. Please visit the articles using the below link.

• Part 1: Get Started with SharePoint Spaces
• Part 2: Setting Up the Environment with SharePoint Space
• Part 3: Add a 360° image web part to a SharePoint Space
• Part 4: Add 360° virtual tour web part to SharePoint Space
• Part 5: Add a 360° Video web part to a SharePoint Space
• Part 6: Add a 3D Object web part to a SharePoint Space
• Part 7: Add Document Library web part to a SharePoint Space
• Part 8: Add File Viewer web part to a SharePoint Space
• Part 9: Add Organizational Chart Using People web part to a SharePoint Space
• Part 10: Add the Image web part to a SharePoint Space
• Part 11: Add Video web part to a SharePoint Space
• Part 12: Add the Text web part to a SharePoint Space

During this article, we will cover the following things. The same article is available in the form of vLog.

• Activate Feature for SharePoint Space
• Create SharePoint Space Environment
• What is Structure in SharePoint Space?

So, now let’s get started!



Step 1 - Build a modern SharePoint Team site or Communication site

• SharePoint spaces work perfectly with the modern SharePoint Team site or communication site.
• Microsoft recommends using SharePoint Space with the Communication site. The reason is, communication site provides more room space for the Space structure as it doesn’t have left navigation in place.
• During this entire session series, we have added all the web parts to the modern communication site.

Step 2 - Activate Spaces(preview) site Feature

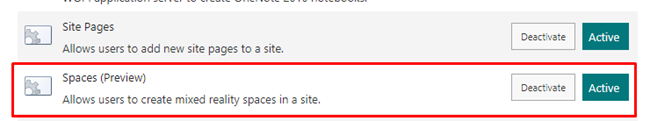

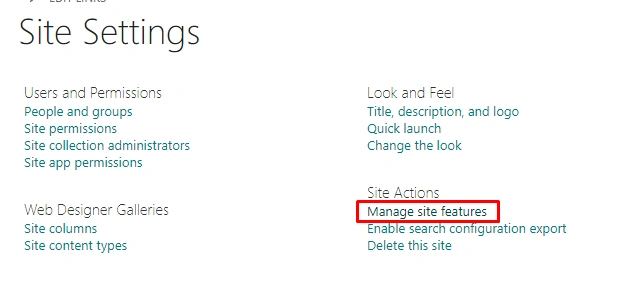

Go to Site Settings and click on Manage site features







Make sure, you activate the Spaces feature.







Once we enable the feature we will be able to create a Space page to the SharePoint Space.



Step 3 - Create a Space Page

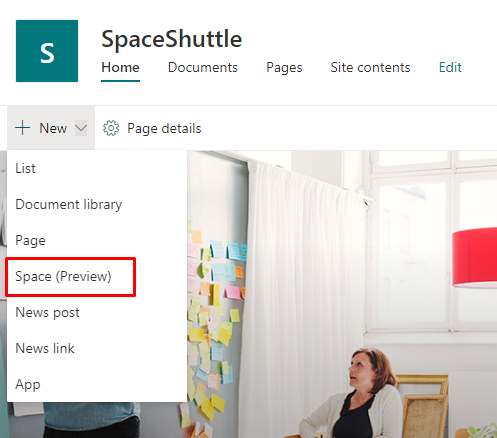

From Home, click on + icon and create New Space Page.

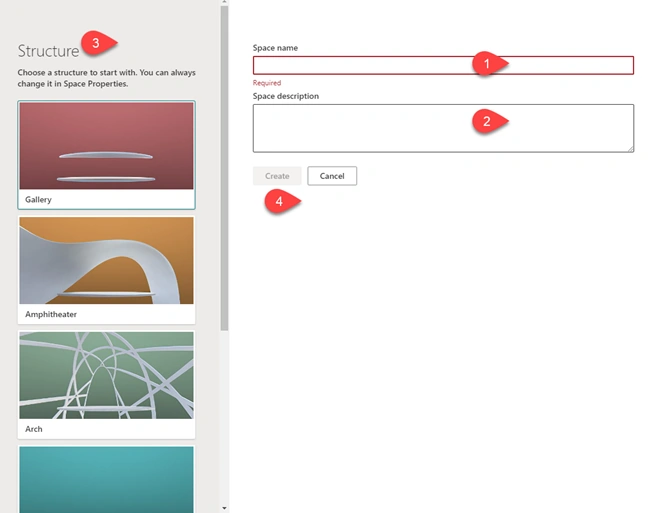

Provide Space name, description, and choose any structure and click on Create button.







This will create stunning SharePoint Space for your environment.

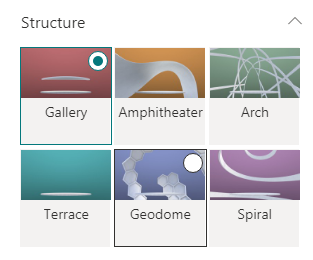

Tip- What is Structure in SharePoint Space?



SharePoint Space structure provides a place where we can add our different 360° videos, 360° images, 3D Objects, Images, videos, etc. Structure creates a boundary around our SharePoint Space.



OOTB 6 structures are supported at this moment.

• Gallery
• Amphitheater
• Arch
• Terrace
• Geodome
• Spiral



Step 4 - Set Up Environment for SharePoint Space Page:

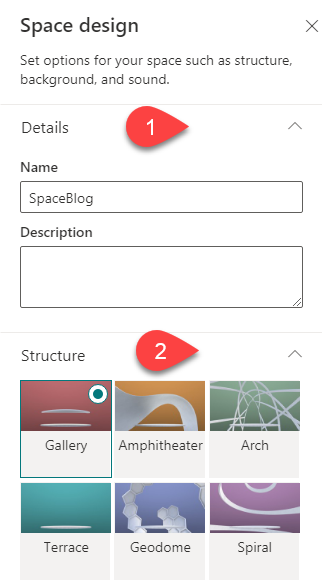

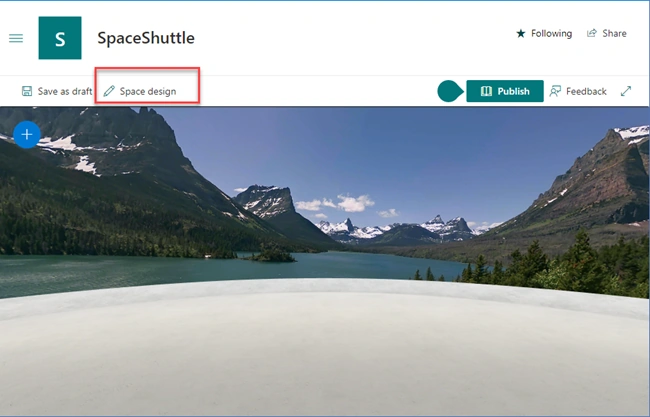

Click on Space design







This will open the setting option for Space design.



Here, we need to configure the following properties:



Details section: Change space name and description.







Structure: Select any structure as you wish.

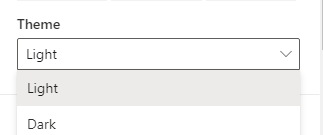

Theme: Select Dark or Light Theme

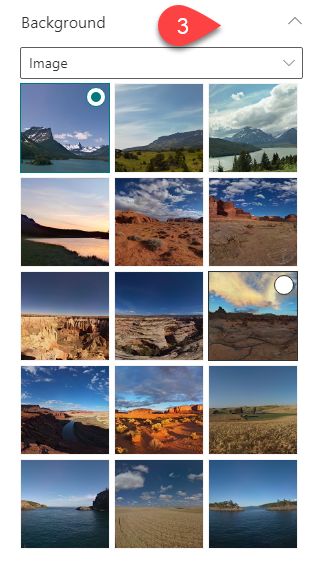

Background: We have the following options to set a background.

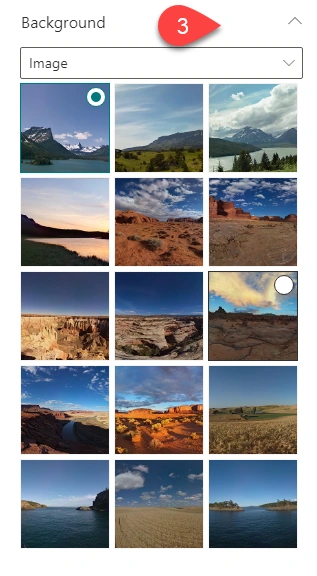

• Image
  OOTB different backgrounds are provided here.

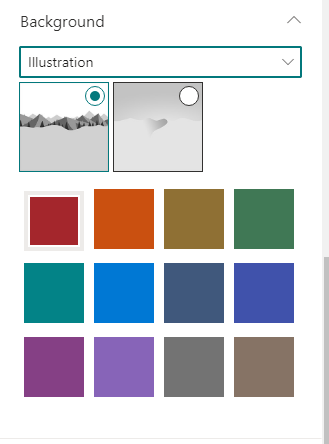

• Illustration
  The illustration is like a decoration where we need to select from two options and we can choose a color for our illustration.

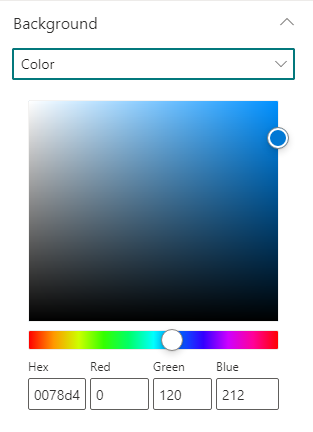

• Background Color
  This is a plane background with different color options.




• Custom 360° file
  We can upload any 360° Image file.

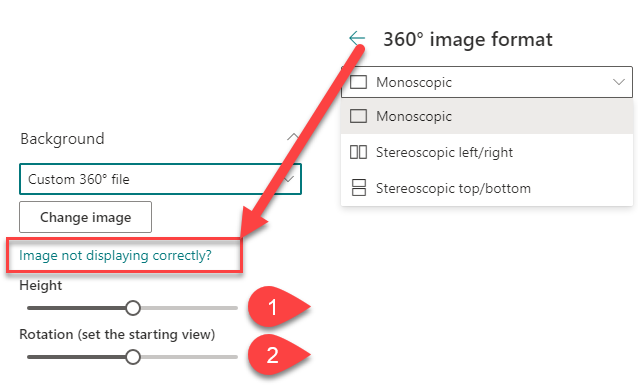

For Image, it provides us two options to set the images,

• Height
• Rotation

Also, still, the image is not displaying properly then select 360° image format by clicking on “Image does not display correctly?” option.



Here, we have two options.



Monoscopic:



If the camera you used to capture the 360° video was a single lens camera which was placed on a rig or ring formation to make a circle, select Monoscopic.



Stereoscopic



If the camera you used to capture the 360° video was two cameras for each field of view, select Stereoscopic.

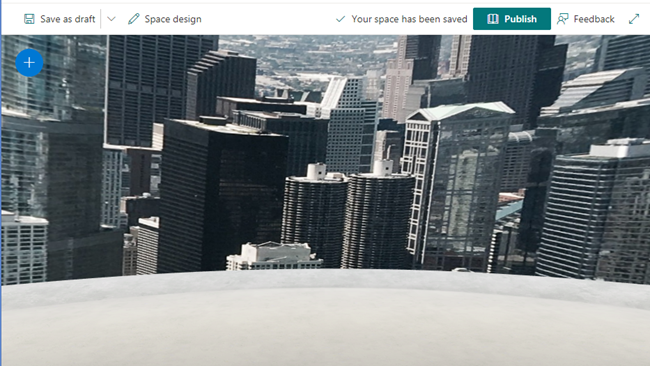

We set a custom 360° image file and it will look like the following.

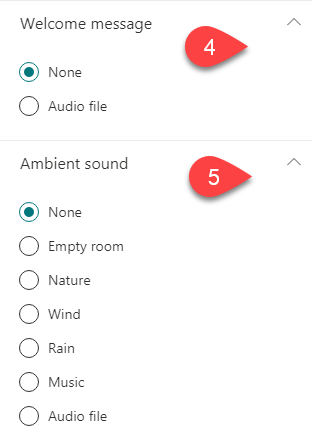

Set a Welcome message in the form of an audio file when the user will open the Space page.





Without Sound, any Mixed Reality concept is incomplete. Select Ambience sound from the provided options.



So, this is how we can create a SharePoint Space and prepare the environment for our space page.



Conclusion



This is how we can set up a SharePoint Space environment. In the next article, we will learn, how we can add the web part to the SharePoint Space page. Stay connected with me for the next article!
