Introduction
The Industrial Internet of Things (IIoT) has revolutionized industries by connecting devices, machines, and systems to enable intelligent data-driven decisions. In the IIoT landscape, one of the key communication protocols is OPC UA (Open Platform Communications Unified Architecture). OPC UA provides a standardized and secure way to exchange data between devices and applications, making it a preferred choice for industrial automation and control systems. When combined with the power of cloud computing and analytics, OPC UA's integration with Azure IoT unlocks endless possibilities for seamless data exchange and advanced insights.
Crucial Role of OPC UA in Seamless Integration
OPC UA has emerged as a leading communication protocol due to its robustness, scalability, and interoperability. It allows devices from different vendors to communicate effortlessly, overcoming the challenges posed by proprietary protocols. OPC UA's ability to handle complex data structures and support various security mechanisms makes it a top choice for mission-critical applications.
Azure IoT for Advanced Analytics
Azure IoT is Microsoft's cloud platform designed to empower IoT solutions with advanced analytics, machine learning, and artificial intelligence. By integrating OPC UA with Azure IoT, industries gain access to a plethora of Azure services, enabling them to harness the true potential of IoT data.
Secure Data Exchange with OPC UA and Azure IoT
One of the primary concerns in the IoT world is data security. OPC UA's built-in security features, such as encryption and authentication, ensure secure communication between devices and the cloud. Azure IoT, on the other hand, offers robust identity management and access control mechanisms, ensuring that only authorized devices and users can access critical data.
Seamlessly Connecting OT and IT Systems
The convergence of Operational Technology (OT) and Information Technology (IT) is crucial for successful IIoT implementations. OPC UA serves as a bridge between the traditionally isolated OT systems and the cloud-based IT systems. With Azure IoT acting as a middleware, data from OT devices can seamlessly flow to IT applications, enabling real-time monitoring and predictive analytics.
Edge Computing for Reduced Latency
In industrial settings, low latency and real-time responsiveness are imperative. Azure IoT Edge extends the capabilities of Azure IoT to the edge of the network, allowing data processing and analytics to occur locally on devices or gateways. This approach minimizes data transfer to the cloud, reducing latency and bandwidth usage while ensuring rapid decision-making.
Scalability and Flexibility
OPC UA's scalability and Azure IoT's cloud-native architecture complement each other, providing an elastic and flexible infrastructure for IoT deployments. Whether it's connecting a few devices or scaling up to thousands, the OPC UA and Azure IoT integration can handle the demands of diverse industrial environments.
Predictive Maintenance and Analytics
With OPC UA-enabled devices feeding data to Azure IoT, industries can leverage predictive maintenance and analytics capabilities. Machine learning algorithms can analyze historical data and patterns to predict potential equipment failures, enabling proactive maintenance and reducing downtime.
Architecture of OPC UA with Azure IoT Components
![Azure IOT Component]()

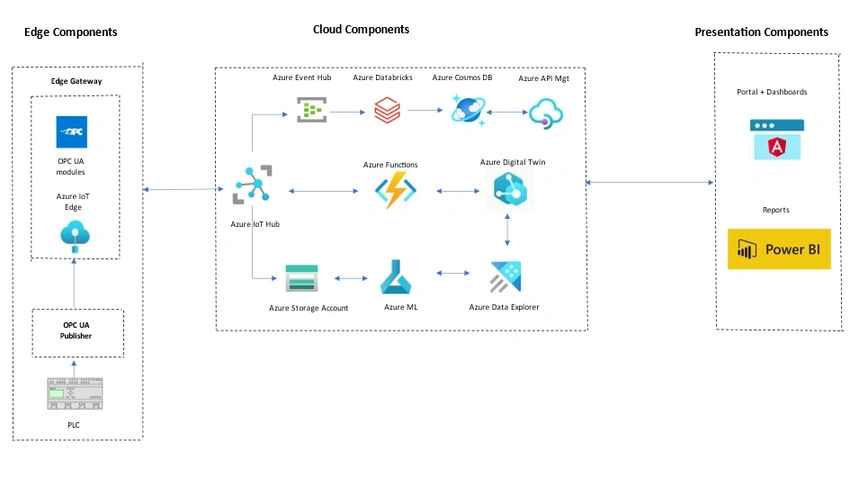

The architecture diagram is divided into three parts: Edge components, Cloud Components, and Presentation components.
Edge Components
In the Edge components section, we have things like a smart controller (PLC), a data sender (OPCUA publisher), and a special helper (Edge Gateway). Inside this helper, there are more modules like a custom assistant for data (OPCUA custom module) and some tools from Azure IoT (Azure IoT Edge modules). Now, the smart controller (PLC) sends its data to the data sender (OPCUA publisher), which then passes it to the special helper (Edge Gateway). This helper has its own smart modules for managing data (OPC UA modules), and it's also connected to the Azure IoT tools (IoT Edge hub and IoT Edge agent) and also find the explanation of each Edge Component below.
PLC
A Programmable Logic Controller (PLC) can be thought of as a specialized computer used in factories to manage and control various machines and processes. It's programmable, meaning it can be given specific instructions to perform tasks like starting or stopping machinery, monitoring sensors, and making simple decisions based on the data it receives. PLCs play a crucial role in automating and streamlining industrial operations, reducing the need for constant human oversight and intervention.
OPCUA Publisher
OPCUA Publisher is like a messenger for factories and machines. It helps them share important information with computers and systems in a safe and quick way. This is useful for keeping an eye on how things are running and making smart choices based on the data.
Azure IoT Edge
Azure IoT Edge is like a smart helper for devices. It lets them do more advanced tasks right where they are instead of sending all the information to a faraway computer. It's like having a mini-computer on the device itself that can analyze data and make decisions, which is great for things like controlling machines in real-time or saving bandwidth by only sending important information to the main system.
Cloud Components
The data collected from Edge Components starts its journey. It goes to Azure IoT Hub, which sends it to Azure Storage Account and Azure Event Hub. Then, it moves to Azure Databricks for processing before landing in Azure Cosmos DB. From there, APIs in Azure API Management use it. Data in Azure Storage Account helps train models in Azure ML, then goes to Azure Data Explorer. Azure Digital Twin and Azure Functions use it to create a cool 3D view of the data flow.
- Azure IoT Hub: This is like a central command center for Internet of Things (IoT) devices. It helps manage and communicate with a large number of devices, collecting data from them and sending commands back. It ensures secure and reliable connections between devices and the cloud.
- Azure Event Hub: It collects and stores streams of data from different sources, like applications or devices. This data can then be used for things like analysis, monitoring, or triggering actions.
- Azure Storage Account: It's like having a locker to keep your files, images, and other data safe. You can access these files from anywhere, and Azure takes care of keeping your stuff secure and available.
- Azure ML (Machine Learning): Azure ML lets you build and train models using data, so you can predict things or make decisions based on patterns it finds.
- Azure Databricks: It's like a collaborative workspace where they can analyze and process big data, discovering insights and patterns.
- Azure Cosmos DB: Think of this as a global data repository. It can store different kinds of data and allows you to access it from anywhere in the world. It's like having a super-fast and reliable library for all your digital information.
- Azure API Management: It helps manage, secure, and monitor the APIs (ways that different software systems talk to each other) you create, ensuring smooth and controlled communication between different parts of your applications.
- Azure Functions: They are like mini-programs that run only when needed, triggered by events like data arriving or a schedule. Instead of running a whole big application, you can use these functions to quickly and efficiently accomplish smaller tasks, like sending notifications or processing data.
- Azure Digital Twins: That's what Azure Digital Twins does. It's like making a digital twin of a physical thing. This can help you understand how that thing works, monitor its performance, and even predict issues before they happen. It's like having a simulation that helps you keep everything running smoothly and efficiently.
Presentation Components
The processed data residing in Azure Cosmos DB serves as a source for multiple APIs powered by the Node.js technology stack. Leveraging these APIs, a dynamic dashboard or portal will be crafted, employing leading JavaScript frameworks such as Angular or React. This creation aims to elegantly present the data to end-users, completing the user experience loop.
Conclusion
The seamless integration of OPC UA with Azure IoT has paved the way for transformative advancements in the IoT world, particularly in the industrial landscape. With secure data exchange, real-time analytics, and edge computing capabilities, industries can now harness the full potential of their IoT data. OPC UA's standardized communication and Azure IoT's robust cloud services complement each other, offering a comprehensive solution to meet the diverse challenges faced in IIoT deployments.
