Save Email Attachment to Blob Storage using Azure Logic App

Azure Logic Apps

Logic App is a cloud-based service that allows us to react to an event in one service (such as SharePoint online) and do something with the data from that event into another service (such as Twitter). It makes it practical and simple for business processes. The users build workflows that automatically perform some business tasks and processes across applications and services. We can connect our business-critical apps and services with Azure Logic Apps, automating our workflows without writing a single line of code.

Before reading this article, please go through some important article links mentioned below.

Prerequisites

  • Microsoft Azure Account

Here, we are going to see how to move the specific email to a specific folder using the Azure Logic App.

Follow the steps below to build a workflow using a template.

Step 1

  • Log into https://portal.azure.com/.
  • In the dashboard, choose to create a resource and click on Integration. Now, select "Logic App".

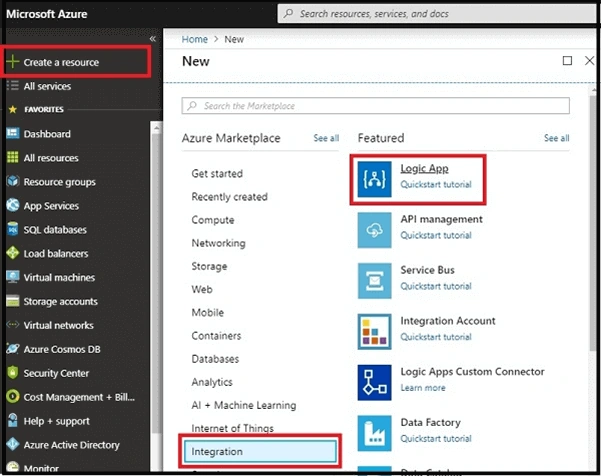

    Create a resource in Microsoft Azure

Step 2

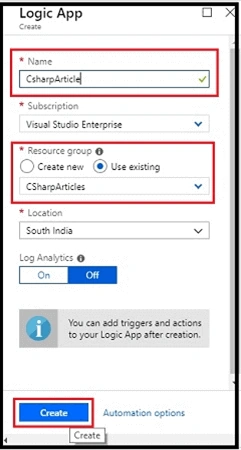

  • Enter the name you want to assign to the logic. Select the subscription and resource group where you organize the related resources and the location where your logic app is stored. Then, click on "Create".
    Logic App
  • Here is the dashboard. Click "Logic App Designer".
    Logic App Designer

Step 3

Now, click on the Blank Logic App.

Blank Logic App

Step 4

Configure the Email by signing into Outlook.

  • Search for Outlook in the search bar.
    Outlook.com
  • Choose the Triggers.
  • Sign into Outlook.
    Sign into Outlook

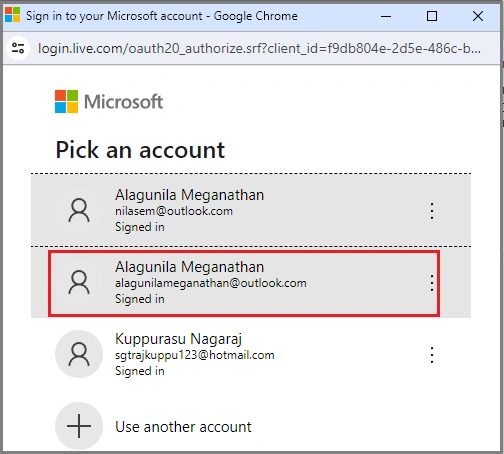

    Pick an account

Step 5

Configure the values.

  • Choose the Folder.

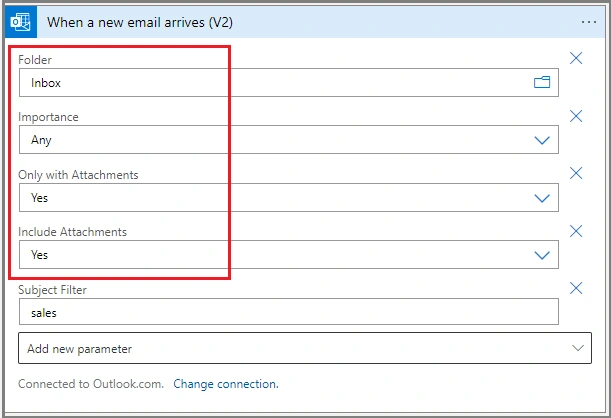

    Choose the folder
  • Then, Add the parameter Subject Filter as a specific keyword (Eg. Sales).

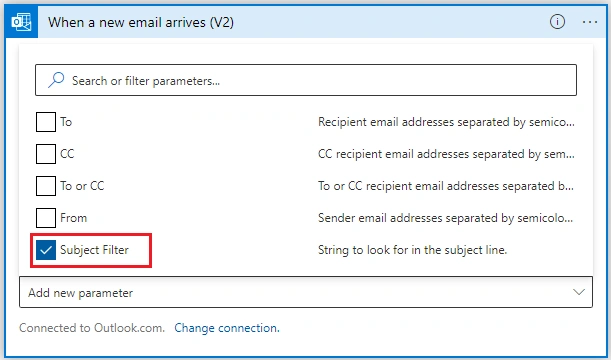

    Add Parameter Subject Filter
  • Finally.

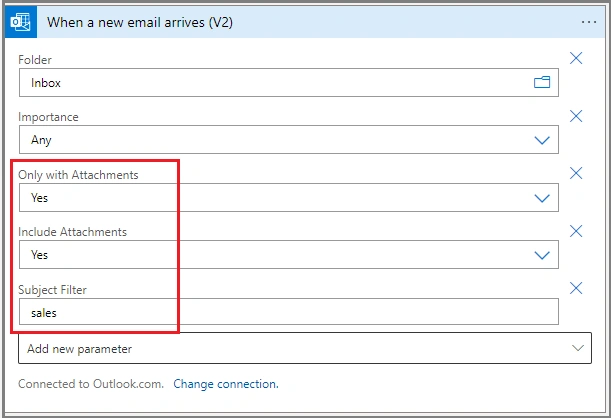

    Finally

Step 6

Get the Attachment

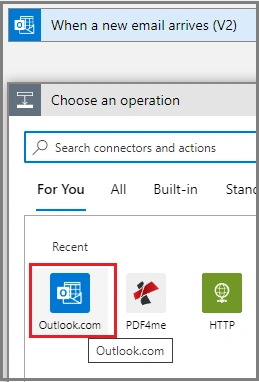

  • Add the new step as Outlook and choose the action as Get Attachment
    Outlook.com
    Actions

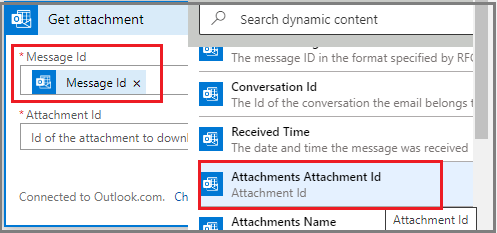

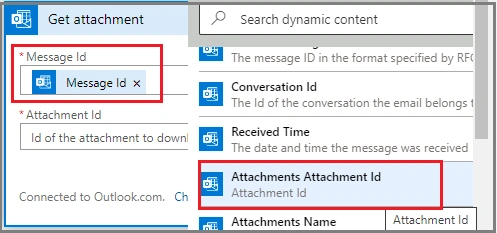

  • Now, choose the Message ID and Attachment ID.
    Attachments ID

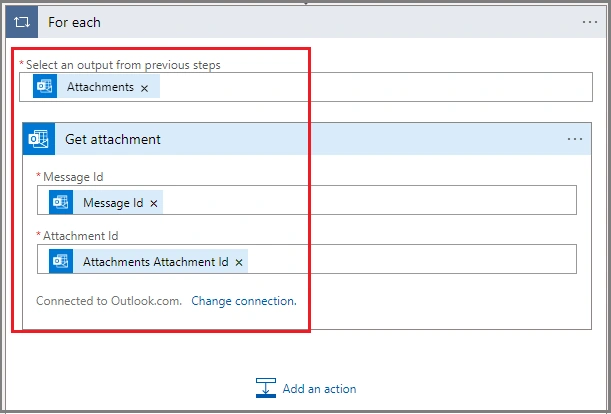

    Attachments

Step 7

Configure Blob Storage

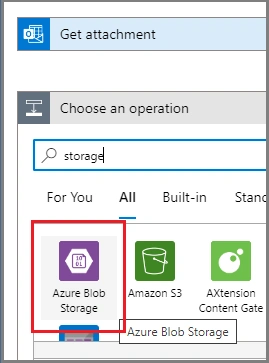

  • Then, choose an operation such as Blob storage.
    Azure blob storage

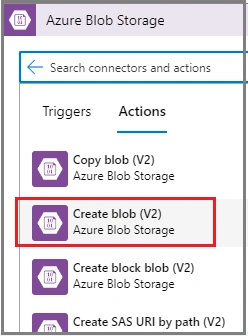

  • Choose to create blob
    Create blob(V2)

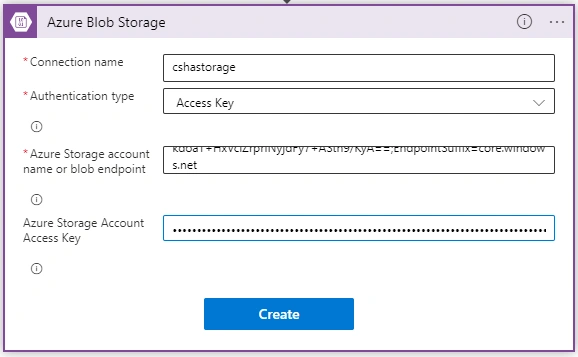

  • Connect the Blob storage account with this logic app.
    Azure Blob Storage create
  • Then, choose the Attachment ID, Folder path, Blob name, and Blob content.

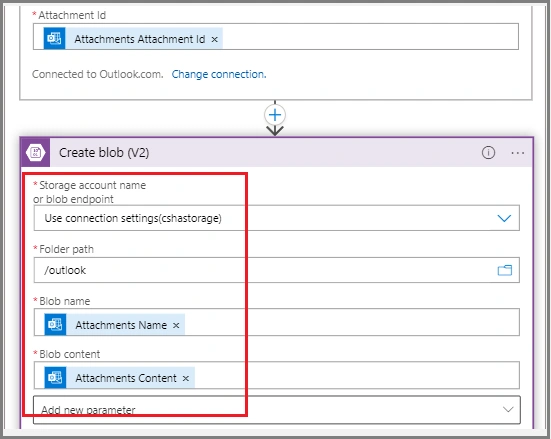

    Create blob

Step 8

The final workflow will be like this.

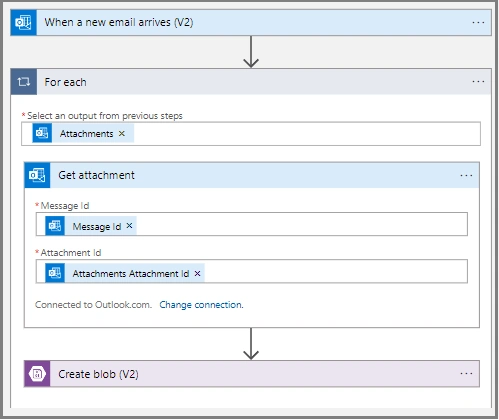

Final workflow

Now, let us save and run the workflow.

Output

Run the Logic App

Run

It's successfully run.

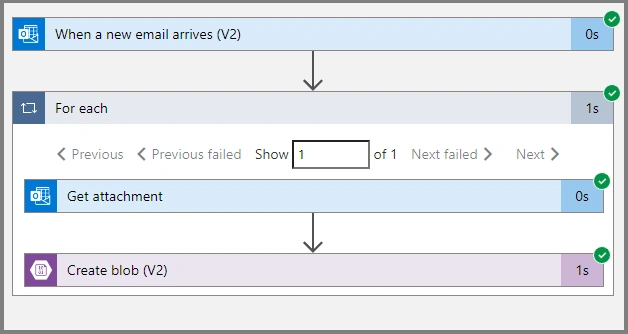

Run Logic App

Just send the demo mail with a specific keyword and refresh it to see the result.

Sales

Now, I received the email.

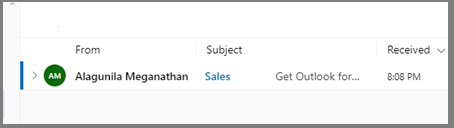

Received Email

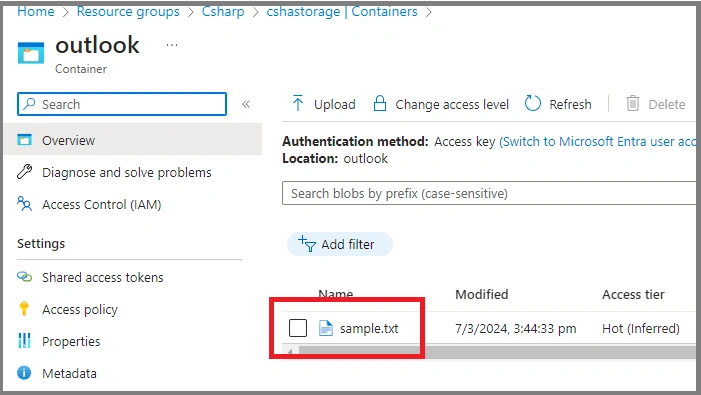

Finally, it successfully runs and moves the attachment-specific email to the blob storage container folder.

Outlook

Summary

I hope you understand how to move the specific email attachment to the blob storage folder using the Azure Logic App. Stay tuned for more Logic App articles.
