PyQt5 - Simple Registration Form

Introduction



PyQt5 Registration Form is a simple Sign Up form for Python GUI applications. It contains a list of fields for getting various information from customers. Then, it controls the applications in a sophisticated and secure way to provide subscriptions and other program plans for users.



Requirement



PyQt5 – Qt Designer



Steps to be followed



Step 1 - Create a New Form

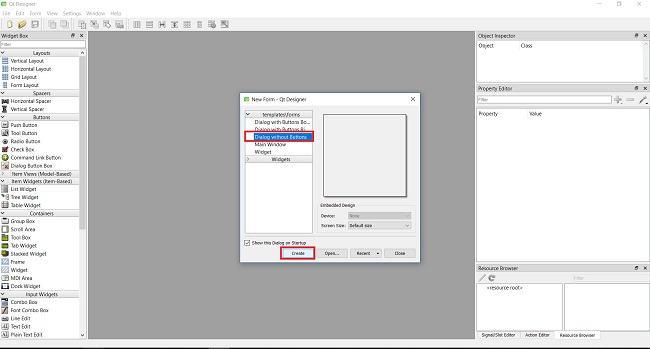

In this Qt Designer Environment, we can choose the “Dialog without button” template. It will continue the form without having any widgets or new plain form.







Step 2 - Change Form background



After opening the new form, we can change the form background by following the below instructions.

• Go to Properties >> stylesheet
• Edit Style sheet >> Add color >> Background color

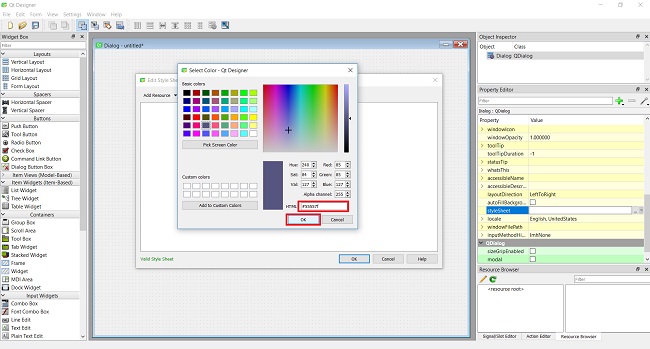

After choosing the “background-color” option, the available color palate will show with the HTML code.

• Select color >> OK.

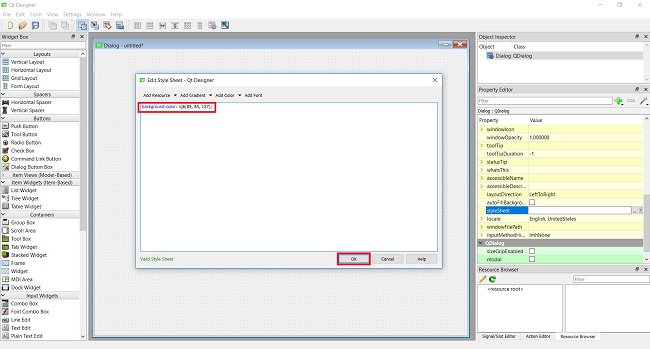

In the Edit Stylesheet editor, our desired color code will be generated. If we want to modify anything on that manually, that’s also available there.

• Verify and click “Ok”.





Now, our desired colored form will display like below image.







Step 3 - Setup User image



Creating label (QLabel) for add image

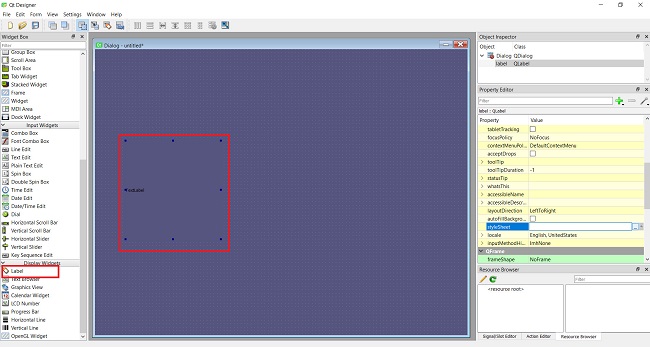

Let’s create a new label for displaying an image on the form. Choose the “label” under Display widgets and drag-drop on the Form (QDialog).



Under “properties”, we need to click on “style sheet”. Then the Edit style sheet window will appear, click on “Add resource” and choose “background-image”.

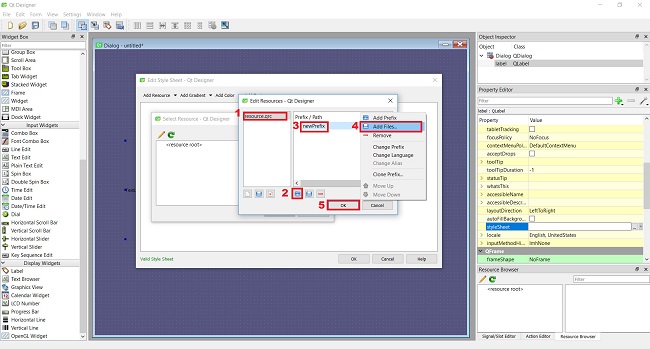

Adding new Resource



In PyQt5, the Qt designer requires a Resource file for fetching and displaying an image on the form. After choosing the background-image option, we need to follow the below instructions to find the resource file and display it on the form.

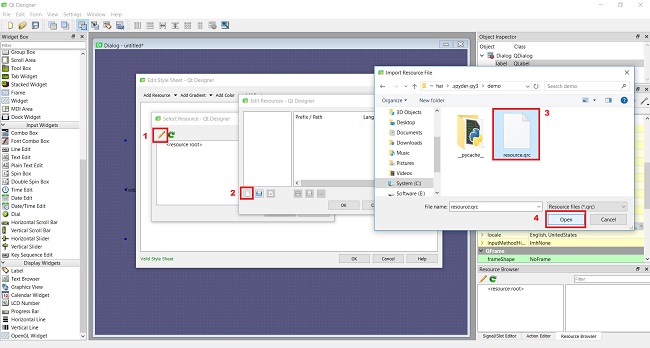

• Select Resources >> Edit resources (pencil icon).
• Edit Resources >> New resource file.
• Import Resource File >> resource.qrc >> open.





After successfully importing the Resource file at the Edit Resource window, let’s move on to creating a new prefix process.

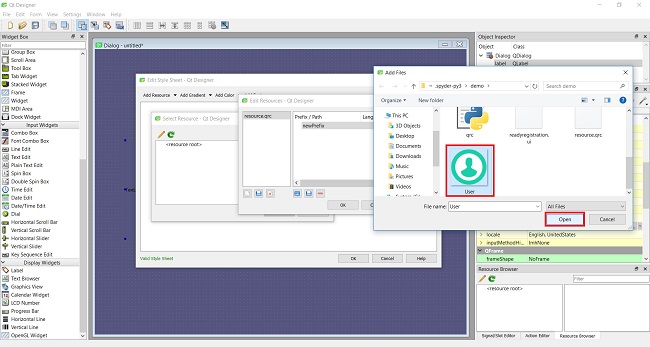

• Edit Resources >> resource.qrc >> add prefix (I will give name as “newPrefix”) >> Add Files>> user.png >> Open

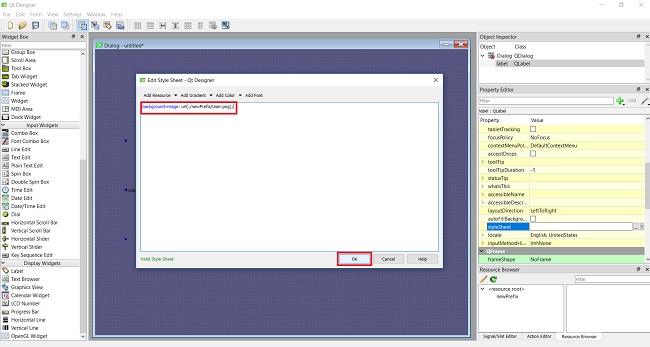

After adding an image with the corresponding resource file, the Edit style sheet editor will show you a few lines of code.

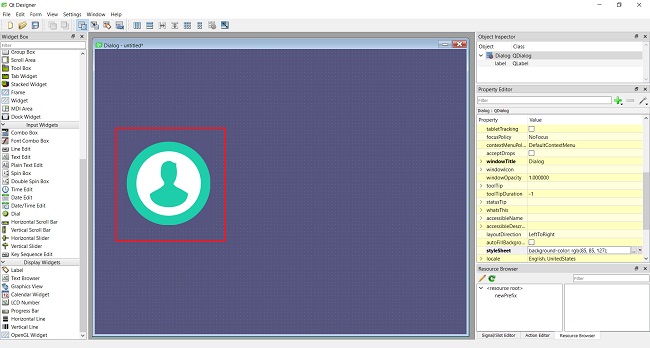

Now, we successfully added an image to the QLabel box. Given below

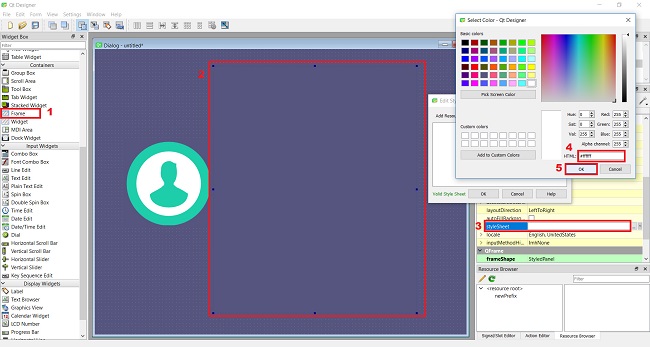

Step 4 - Creating Frame (QFrame)



Under containers, click on the “Frame” widget to drag and drop on the QDialog. Then click on “stylesheet” under properties to choose a color for how your frame looks attractive.







Step 5 - Creating QLabel (Label) for giving form name

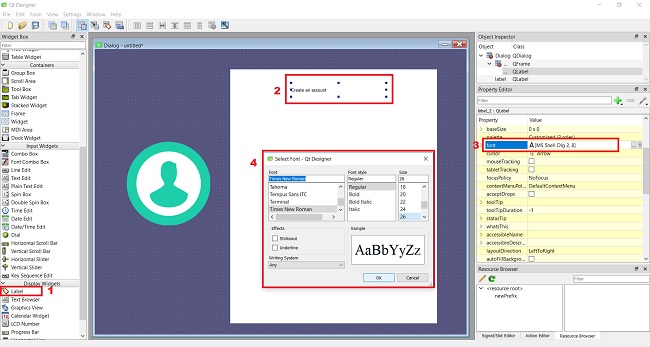

Under Display Widgets, choose “Label” to drag and drop on the Frame then change the name as “Create an account” by Font property.

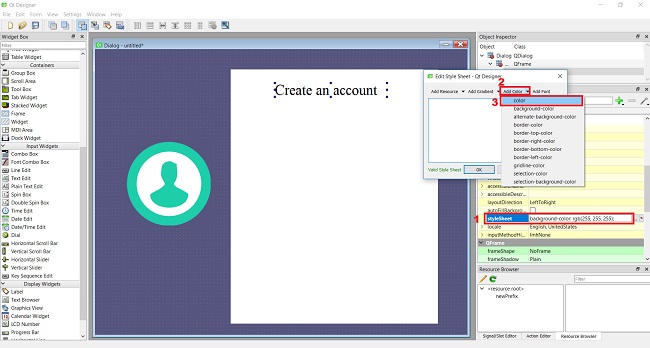

In the Edit style Sheet from properties, to change the Font color by doing a few steps. Given below

• Edit style Sheet >> Add color >> color >> pic screen color >> Ok







Step 6 - Creating Line Edits



In this Registration form, we will need to create a list of fields for gathering customer information. By the way,  I create four Line edits as one by one, under Input Widgets choose “Line Edit” to drag and drop on the frame.







Step 7 - Creating Radio Button

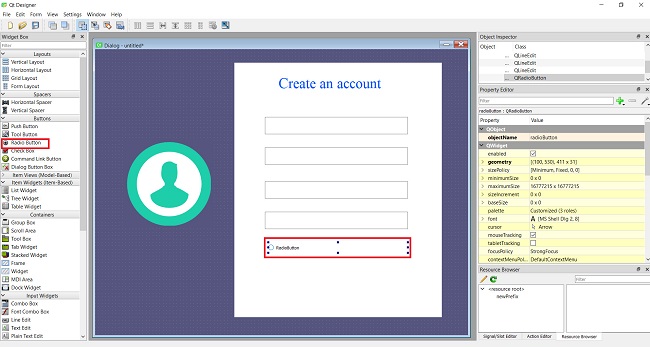

Let’s create a Radio Button for customers who will accept the agreements by doing a single click. Choose “Radio Button” under Buttons Widget to place on the form area.







Step 8 - Creating Push Button



Now, we create a “Push Button” for submitting the above-collected information to the server or our local system. Under “Buttons” Widgets, choose “Push Button” to drag and drop on the same Form.

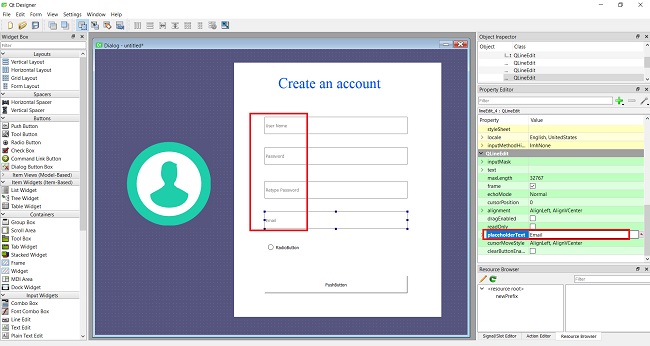

Step 9 - Giving a name for Widgets



As I desired, we created four Line Edits and one Radio Button as well as Push Button; then let’s give a name for them according to their process.



Here we need to give a name for the Line Edits that should look like hidden words.  Therefore, we will use the “place holder text property” for achieving that. Then the password Line Edit will also give a feature for hiding passwords while getting input from users. In the password Line Edit, Click on the eco mode under the QLineEdit property to change the “Password” mode.

• QLineEdit    = User Name
• QLineEdit     = Password
• QLineEdit     = Retype password
• QLineEdit    = Email







Under properties, click “Font” to customize the Radio Button and Push Button words.

• QRadio Button     = Accept the Terms and Conditions
• QPushButton    = Sign Up

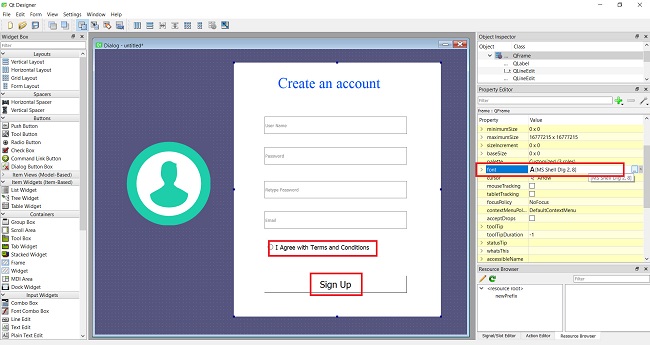

Step 10 - Changing Widgets Background



In similar step 2, to hold the cursor on the require widgets follow the instruction given below.

• Properties >> stylesheet >> Edit Style Sheet >> Add color >> Background-color >> Select screen color>> Ok

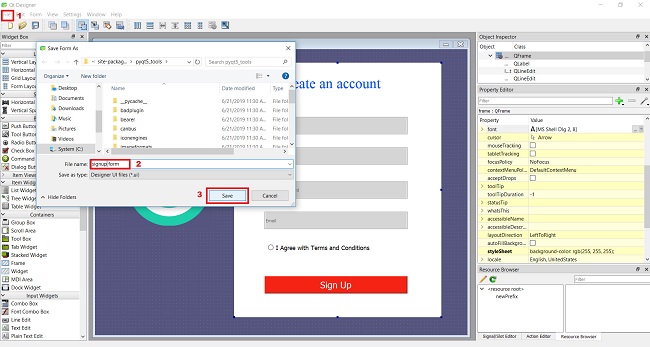

Step 11 - Save and Preview



Now, we almost did the registration form, so let’s move to save the project. Go to the File which is at the top right side of the Qt Designer Environment and click save.





Now, the time to preview our project.

• Form >> Preview

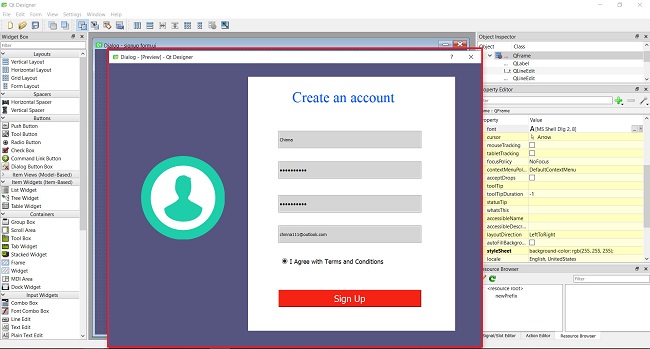

Finally, we test our Registration form. Given below





Summary



In this article, we learned how to create a simple and attractive registration form by using Qt Designer. I hope you understood this very well. If you have any difficulties while doing the above,  please leave a comment below.
