Introduction
PRIMEREACT UI framework that has Over 80 React UI Components with top-notch quality to help you implement all your UI requirements in style.
Dock is a navigation component consisting of menu items.
Preconditions
- Javascript
- Basic knowledge of React js
- Node.js
- V.S. Code,Visual Studio
We cover the below things,
- Create React application
- Installation of Primeface
- How to Apply Dock of Primeface in React js
Step 1
npx create-react-app prime-app
cd prime-app
npm start
Step 2
Run the below command for installing PrimeReact
npm install primereact primeicons
Step 3
Add the below code in the App.js
import 'primeicons/primeicons.css';
import 'primereact/resources/themes/lara-light-indigo/theme.css';
import 'primereact/resources/primereact.css';
import 'primeflex/primeflex.css';
import ReactDOM from 'react-dom';
import React, { useState, useEffect, useRef } from 'react';
import PrimeReact from 'primereact/api';
import { Dock } from 'primereact/dock';
import { Tooltip } from 'primereact/tooltip';
import { Dialog } from 'primereact/dialog';
import { Terminal } from 'primereact/terminal';
import { TerminalService } from 'primereact/terminalservice';
import { Galleria } from 'primereact/galleria';
import { Toast } from 'primereact/toast';
import { Tree } from 'primereact/tree';
import { Menubar } from 'primereact/menubar';
import { NodeService } from './CountryService';
import { PhotoService } from './CountryService';
import './App.css';
function App() {
const [displayTerminal, setDisplayTerminal] = useState(false);
const [displayFinder, setDisplayFinder] = useState(false);
const [images, setImages] = useState(null);
const [nodes, setNodes] = useState(null);
const toast = useRef(null);
const toast2 = useRef(null);
const galleria = useRef(null);
const imgPath = 'images/dock';
const imgErrorPath = 'https://www.primefaces.org/wp-content/uploads/2020/05/placeholder.png';
const dockItems = [
{
label: 'Finder',
icon: () => <img alt="Finder" src="https://www.primefaces.org/primereact/images/dock/finder.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
setDisplayFinder(true);
}
},
{
label: 'Terminal',
icon: () => <img alt="Finder" src="https://www.primefaces.org/primereact/images/dock/terminal.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
setDisplayTerminal(true);
}
},
{
label: 'App Store',
icon: () => <img alt="App Store" src="https://www.primefaces.org/primereact/images/dock/appstore.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
toast2.current.show({ severity: 'error', summary: 'An unexpected error occurred while signing in.', detail: 'UNTRUSTED_CERT_TITLE' });
}
},
{
label: 'Safari',
icon: () => <img alt="Finder" src=" https://www.primefaces.org/primereact/images/dock/safari.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
toast2.current.show({ severity: 'warn', summary: 'Safari has stopped working' });
}
},
{
label: 'Photos',
icon: () => <img alt="Photos" src="https://www.primefaces.org/primereact/images/dock/photos.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
galleria.current.show();
}
},
{
label: 'GitHub',
icon: () => <img alt="Settings" src="https://www.primefaces.org/primereact/images/dock/github.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
},
{
label: 'Trash',
icon: () => <img alt="trash" src="https://www.primefaces.org/primereact/images/dock/trash.png" onError={(e) => e.target.src = imgErrorPath} width="100%" />,
command: () => {
toast.current.show({ severity: 'info', summary: 'Empty Trash' });
}
}
];
const dockBasicItems = [
{
label: 'Finder',
icon: () => <img alt="Finder" src="https://www.primefaces.org/primereact/images/dock/finder.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />
},
{
label: 'App Store',
icon: () => <img alt="App Store" src="https://www.primefaces.org/primereact/images/dock/appstore.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />
},
{
label: 'Photos',
icon: () => <img alt="Photos" src="https://www.primefaces.org/primereact/images/dock/photos.svg" onError={(e) => e.target.src = imgErrorPath} width="100%" />
},
{
label: 'Trash',
icon: () => <img alt="trash" src="https://www.primefaces.org/primereact/images/dock/trash.png" onError={(e) => e.target.src = imgErrorPath} width="100%" />
}
];
const menubarItems = [
{
label: 'Finder',
className: 'menubar-root'
},
{
label: 'File',
items: [
{
label: 'New',
icon: 'pi pi-fw pi-plus',
items: [
{
label: 'Bookmark',
icon: 'pi pi-fw pi-bookmark'
},
{
label: 'Video',
icon: 'pi pi-fw pi-video'
},
]
},
{
label: 'Delete',
icon: 'pi pi-fw pi-trash'
},
{
separator: true
},
{
label: 'Export',
icon: 'pi pi-fw pi-external-link'
}
]
},
{
label: 'Edit',
items: [
{
label: 'Left',
icon: 'pi pi-fw pi-align-left'
},
{
label: 'Right',
icon: 'pi pi-fw pi-align-right'
},
{
label: 'Center',
icon: 'pi pi-fw pi-align-center'
},
{
label: 'Justify',
icon: 'pi pi-fw pi-align-justify'
},
]
},
{
label: 'Users',
items: [
{
label: 'New',
icon: 'pi pi-fw pi-user-plus',
},
{
label: 'Delete',
icon: 'pi pi-fw pi-user-minus',
},
{
label: 'Search',
icon: 'pi pi-fw pi-users',
items: [
{
label: 'Filter',
icon: 'pi pi-fw pi-filter',
items: [
{
label: 'Print',
icon: 'pi pi-fw pi-print'
}
]
},
{
icon: 'pi pi-fw pi-bars',
label: 'List'
}
]
}
]
},
{
label: 'Events',
items: [
{
label: 'Edit',
icon: 'pi pi-fw pi-pencil',
items: [
{
label: 'Save',
icon: 'pi pi-fw pi-calendar-plus'
},
{
label: 'Delete',
icon: 'pi pi-fw pi-calendar-minus'
}
]
},
{
label: 'Archieve',
icon: 'pi pi-fw pi-calendar-times',
items: [
{
label: 'Remove',
icon: 'pi pi-fw pi-calendar-minus'
}
]
}
]
},
{
label: 'Quit'
}
];
const responsiveOptions = [
{
breakpoint: '1024px',
numVisible: 3
},
{
breakpoint: '768px',
numVisible: 2
},
{
breakpoint: '560px',
numVisible: 1
}
];
const itemTemplate = (item) => {
return <img src={item.itemImageSrc} alt={item.alt} style={{ width: '100%', display: 'block' }} />;
}
const commandHandler = (text) => {
let response;
let argsIndex = text.indexOf(' ');
let command = argsIndex !== -1 ? text.substring(0, argsIndex) : text;
switch (command) {
case 'date':
response = 'Today is ' + new Date().toDateString();
break;
case 'greet':
response = 'Hola ' + text.substring(argsIndex + 1) + '!';
break;
case 'random':
response = Math.floor(Math.random() * 100);
break;
case 'clear':
response = null;
break;
default:
response = 'Unknown command: ' + command;
break;
}
if (response) {
TerminalService.emit('response', response);
}
else {
TerminalService.emit('clear');
}
}
useEffect(() => {
TerminalService.on('command', commandHandler);
const nodeService = new NodeService();
const galleriaService = new PhotoService();
galleriaService.getImages().then(data => setImages(data));
nodeService.getTreeNodes().then(data => setNodes(data));
PrimeReact.appendTo = 'self';
return () => {
TerminalService.off('command', commandHandler);
// reset
PrimeReact.appendTo = null;
}
}, [])
const start = <i className="pi pi-apple"></i>;
const end = (
<React.Fragment>
<i className="pi pi-video" />
<i className="pi pi-wifi" />
<i className="pi pi-volume-up" />
<span>Fri 13:07</span>
<i className="pi pi-search" />
<i className="pi pi-bars" />
</React.Fragment>
);
return (
<>
<div className="dock-demo">

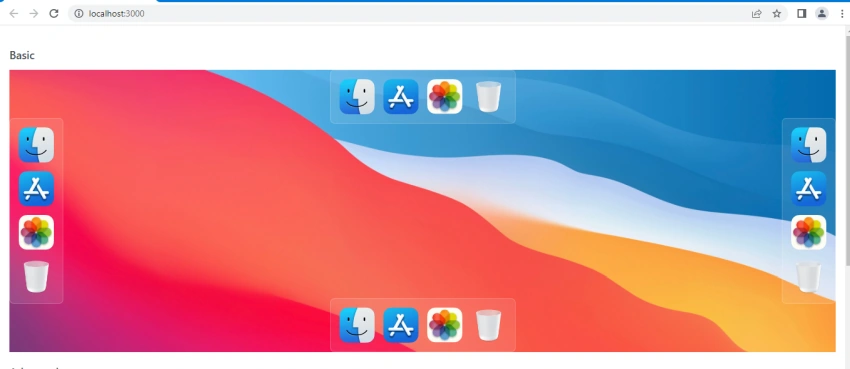

<h5>Basic</h5>
<div className="dock-window">
<Dock model={dockBasicItems} position="bottom" />
<Dock model={dockBasicItems} position="top" />
<Dock model={dockBasicItems} position="left" />
<Dock model={dockBasicItems} position="right" />
</div>

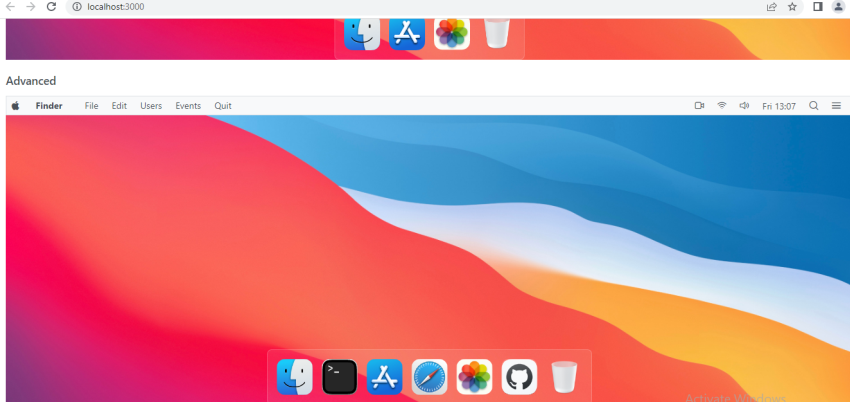

<h5>Advanced</h5>
<Tooltip className="dark-tooltip" target=".dock-advanced .p-dock-action" my="center+15 bottom-15" at="center top" showDelay={150} />
<Menubar model={menubarItems} start={start} end={end} />
<div className="dock-window dock-advanced">
<Toast ref={toast} />
<Toast ref={toast2} position="top-center" />
<Dock model={dockItems} />
<Dialog visible={displayTerminal} breakpoints={{ '960px': '50vw' }} style={{ width: '30vw' }} onHide={() => setDisplayTerminal(false)} maximizable blockScroll={false}>
<Terminal welcomeMessage="Welcome to PrimeReact (cmd: 'date', 'greet {0}', 'random' and 'clear')" prompt="primereact $" />
</Dialog>
<Dialog visible={displayFinder} breakpoints={{ '960px': '50vw' }} style={{ width: '30vw', height: '18rem' }} onHide={() => setDisplayFinder(false)} maximizable blockScroll={false}>
<Tree value={nodes} />
</Dialog>
<Galleria ref={galleria} value={images} responsiveOptions={responsiveOptions} numVisible={2} style={{ width: '400px' }}
circular fullScreen showThumbnails={false} showItemNavigators item={itemTemplate} />
</div>
</div>
</>
);
}
export default App;
Step 4
Add the below code in index,html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8" />
<link rel="icon" href="%PUBLIC_URL%/favicon.ico" />
<meta name="viewport" content="width=device-width, initial-scale=1" />
<meta name="theme-color" content="#000000" />
<meta
name="description"
content="Web site created using create-react-app"
/>
<link rel="apple-touch-icon" href="%PUBLIC_URL%/logo192.png" />
<!-- PrimeReact -->
<link rel="stylesheet" href="https://unpkg.com/primeicons/primeicons.css" />
<link rel="stylesheet" href="https://unpkg.com/primereact/resources/themes/lara-light-indigo/theme.css" />
<link rel="stylesheet" href="https://unpkg.com/primereact/resources/primereact.min.css" />
<link rel="stylesheet" href="https://unpkg.com/[email protected]/primeflex.min.css" />
<!-- Dependencies -->
<script src="https://unpkg.com/react/umd/react.production.min.js"></script>
<script src="https://unpkg.com/react-dom/umd/react-dom.production.min.js"></script>
<script src="https://unpkg.com/@babel/standalone/babel.min.js"></script>
<script src="https://unpkg.com/[email protected]/dist/react-transition-group.js"></script>
<!-- Demo -->
<script src="./GoogleMaps.js"></script>
<script src="https://unpkg.com/primereact/core/core.min.js"></script>
<script src="https://unpkg.com/primereact/gmap/gmap.min.js"></script>
<script src="https://unpkg.com/primereact/toast/toast.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
<script src="https://maps.googleapis.com/maps/api/js?v=3.exp&sensor=false&callback=initialize"></script>
<link rel="manifest" href="%PUBLIC_URL%/manifest.json" />
<title>React App</title>
</head>
<body>
<noscript>You need to enable JavaScript to run this app.</noscript>
<div id="root"></div>
</body>
</html>
Step 5
Add the below code in App.css
.App {
text-align: center;
}
.App-logo {
height: 40vmin;
pointer-events: none;
}
@media (prefers-reduced-motion: no-preference) {
.App-logo {
animation: App-logo-spin infinite 20s linear;
}
}
.App-header {
background-color: #282c34;
min-height: 100vh;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
font-size: calc(10px + 2vmin);
color: white;
}
.App-link {
color: #61dafb;
}
@keyframes App-logo-spin {
from {
transform: rotate(0deg);
}
to {
transform: rotate(360deg);
}
}
.dock-demo .dock-window {
width: 100%;
height: 450px;
position: relative;
background-image: url('https://www.primefaces.org/primereact/images/dock/window.jpg');
background-repeat: no-repeat;
background-size: cover;
}
.dock-demo .p-dock {
z-index: 1000;
}
.dock-demo .dock-advanced .p-dialog-mask, .dock-demo .dock-advanced .p-galleria-mask, .dock-demo .dock-advanced .p-galleria-mask .p-galleria-item-nav, .dock-demo .dock-advanced .p-toast {
position: absolute;
}
.dock-demo .dock-advanced .p-dialog .p-dialog-header {
padding: 0.2rem;
}
.dock-demo .dock-advanced .p-dialog .p-dialog-content {
padding: 0;
}
.dock-demo .dock-advanced .p-dialog p {
margin-top: 0;
}
.dock-demo .dock-advanced .p-dialog .p-terminal {
background-color: #212121;
color: #fff;
border: 0 none;
min-height: 18rem;
height: 100%;
}
.dock-demo .dock-advanced .p-dialog .p-terminal .p-terminal-command {
color: #80cbc4;
}
.dock-demo .dock-advanced .p-dialog .p-terminal .p-terminal-prompt {
color: #ffd54f;
}
.dock-demo .dock-advanced .p-dialog .p-terminal .p-terminal-response {
color: #9fa8da;
}
.dock-demo .dock-advanced .p-dialog .p-tree {
height: 100%;
border-radius: 0;
border-left-width: 0;
border-right-width: 0;
border-bottom-width: 0;
}
.dock-demo .dock-advanced .p-toast {
top: 20px;
}
.dock-demo .p-menubar {
padding-top: 0;
padding-bottom: 0;
border-radius: 0;
}
.dock-demo .p-menubar .menubar-root {
font-weight: bold;
padding: 0 1rem;
}
.dock-demo .p-menubar .p-menuitem-link {
padding: 0.5rem 0.75rem;
}
.dock-demo .p-menubar .p-menubar-root-list > .p-menuitem > .p-menuitem-link {
padding: 0.5rem 0.75rem;
}
.dock-demo .p-menubar .p-menubar-root-list > .p-menuitem > .p-menuitem-link > .p-submenu-icon {
display: none;
}
.dock-demo .p-menubar .p-menubar-end span, .dock-demo .p-menubar .p-menubar-end i {
padding: 0 0.75rem;
}
.dark-tooltip .p-tooltip .p-tooltip-arrow {
border-top-color: var(--surface-900);
}
.dark-tooltip .p-tooltip .p-tooltip-text {
background-color: var(--surface-900);
}
Step 6
Add the below code in the CountryService.js
import data from './contires.json';
export class CountryService {
getCountries() {
const result = [];
data.map((datas)=>{
result.push(datas)
});
return result;
}
}
export class NodeService {
getTreeTableNodes() {
return fetch('data/treetablenodes.json').then(res => res.json())
.then(d => d.root);
}
getTreeNodes() {
return fetch('data/treenodes.json').then(res => res.json())
.then(d => d.root);
}
}
export class PhotoService {
getImages() {
return fetch('data/photos.json').then(res => res.json())
.then(d => d.data);
}
}
Step 7
Add the following code in package.json,
{
"name": "prime-demo",
"version": "0.1.0",
"private": true,
"dependencies": {
"@testing-library/jest-dom": "^5.16.4",
"@testing-library/react": "^13.3.0",
"@testing-library/user-event": "^13.5.0",
"primeicons": "^5.0.0",
"primereact": "^8.1.1",
"react": "^18.1.0",
"react-dom": "^18.1.0",
"react-redux": "^8.0.2",
"react-scripts": "^2.1.3",
"redux": "^4.2.0",
"web-vitals": "^2.1.4",
"primeflex": "^3.1.0",
"react-transition-group": "^4.4.1"
},
"scripts": {
"start": "react-scripts start",
"build": "react-scripts build",
"test": "react-scripts test",
"eject": "react-scripts eject"
},
"eslintConfig": {
"extends": [
"react-app",
"react-app/jest"
]
},
"browserslist": {
"production": [
">0.2%",
"not dead",
"not op_mini all"
],
"development": [
"last 1 chrome version",
"last 1 firefox version",
"last 1 safari version"
]
}
}
Step 8
Run the following commands
npm i
npm start
Summary
In this article, we learned how to create react project, set PrimeReact UI, and add dock menu UI widgets.
