Pivoting Angular Table

Introduction

In this article, I am going to explain how to create Pivoting table in Angular. In this article, I will give example for pivoting table for better understanding.

Pivoting allows you to take columns values and turn them into columns. For example, you can pivot on Student marksheet to make columns for Subject like Math, English, Hindi, Science, etc.

Pivot Mode

Pivot mode is needed to be True on for pivoting to work.

Pivot Columns

To pivot rows by a particular column, we should allow pivot=true to the column you want to group with. You can set n number of columns that the grid can pivot by.

<ag-grid-angular
    [columnDefs]="columnDefs"
    /* other grid options ... */>
</ag-grid-angular>

this.columnDefs = [
    { field: "country", pivot: true },
    { field: "sport", pivot: true }
];

Pivot Column Groups

Multiple group columns will be shown in the grid when there is more than one active pivot column. These columns can be collapsed, expanded or fixed as described in the sections below:

Expandable Pivot Column Groups

When there is more than one active pivot column, multiple group columns will appear in a collapsed state by default. Each value column will be aggregated based on the configured colDef.aggFunc at each column group level.

Example

import { HttpClient } from '@angular/common/http';
import { Component } from '@angular/core';
import { ColDef, GridReadyEvent } from 'ag-grid-community';
import 'ag-grid-community/dist/styles/ag-grid.css';
import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
import 'ag-grid-enterprise';

@Component({
  selector: 'my-app',
  template: `<ag-grid-angular
    style="width: 100%; height: 100%;"
    class="ag-theme-alpine"
    [columnDefs]="columnDefs"
    [defaultColDef]="defaultColDef"
    [autoGroupColumnDef]="autoGroupColumnDef"
    [pivotMode]="true"
    [rowData]="rowData"
    (gridReady)="onGridReady($event)"
  ></ag-grid-angular>`,
})
export class AppComponent {
  public columnDefs: ColDef[] = [
    { field: 'country', rowGroup: true, enableRowGroup: true },
    { field: 'athlete' },
    { field: 'sport', pivot: true, enablePivot: true },
    { field: 'year', pivot: true, enablePivot: true },
    { field: 'gold', aggFunc: 'sum' },
    { field: 'silver', aggFunc: 'sum' },
    { field: 'bronze', aggFunc: 'sum' },
  ];
  public defaultColDef: ColDef = {
    maxWidth: 140,
    filter: true,
    resizable: true,
  };
  public autoGroupColumnDef: ColDef = {
    minWidth: 180,
  };
  public rowData!: any[];

  constructor(private http: HttpClient) {}

  onGridReady(params: GridReadyEvent) {
    this.http
      .get<any[]>('https://www.ag-grid.com/example-assets/olympic-winners.json')
      .subscribe((data) => (this.rowData = data));
  }
}

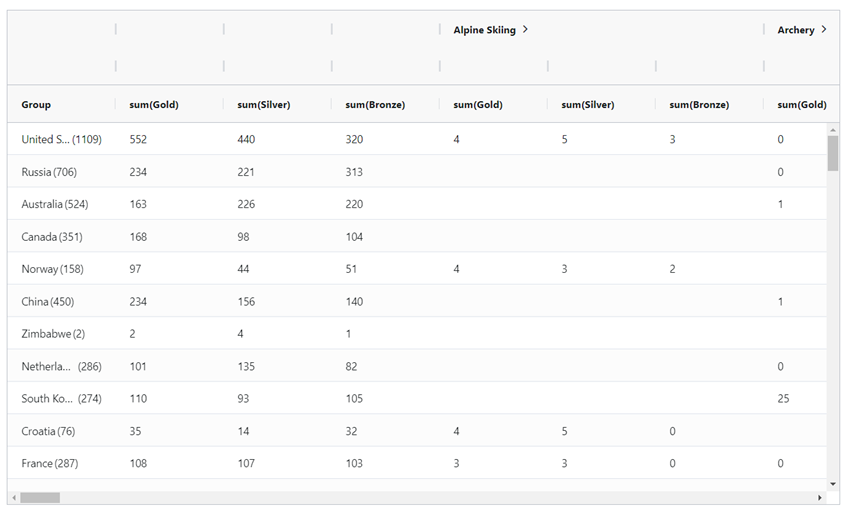

Pivoting Angular Table

Fixed Pivot Column Groups

To fix the pivot column groups without the ability to expand and collapse the column groups, enable the following grid option property: suppressExpandablePivotGroups=true.

Example

import { HttpClient } from '@angular/common/http';
import { Component } from '@angular/core';
import { ColDef, GridReadyEvent } from 'ag-grid-community';
import 'ag-grid-community/dist/styles/ag-grid.css';
import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
import 'ag-grid-enterprise';

@Component({
  selector: 'my-app',
  template: `<ag-grid-angular
    style="width: 100%; height: 100%;"
    class="ag-theme-alpine"
    [columnDefs]="columnDefs"
    [defaultColDef]="defaultColDef"
    [autoGroupColumnDef]="autoGroupColumnDef"
    [pivotMode]="true"
    [suppressExpandablePivotGroups]="true"
    [rowData]="rowData"
    (gridReady)="onGridReady($event)"
  ></ag-grid-angular>`,
})
export class AppComponent {
  public columnDefs: ColDef[] = [
    { field: 'country', rowGroup: true, enableRowGroup: true },
    { field: 'athlete' },
    { field: 'sport', pivot: true, enablePivot: true },
    { field: 'year', pivot: true, enablePivot: true },
    { field: 'gold', aggFunc: 'sum' },
    { field: 'silver', aggFunc: 'sum' },
    { field: 'bronze', aggFunc: 'sum' },
  ];
  public defaultColDef: ColDef = {
    maxWidth: 140,
    filter: true,
    resizable: true,
  };
  public autoGroupColumnDef: ColDef = {
    minWidth: 180,
  };
  public rowData!: any[];

  constructor(private http: HttpClient) {}

  onGridReady(params: GridReadyEvent) {
    this.http
      .get<any[]>('https://www.ag-grid.com/example-assets/olympic-winners.json')
      .subscribe((data) => (this.rowData = data));
  }
}

Pivoting Angular Table

Pivot Row Totals

When in pivot mode you can also include automatically calculated Row Total Columns. These total columns will use the provided aggregation function on the value columns to 'roll-up' each group level. To enable Pivot Row Totals, declare the following property: gridOption.pivotRowTotals = 'before' | 'after'. The values before and after are used to control the position of the row total columns relative to the other pivot columns.

import { HttpClient } from '@angular/common/http';
import { Component } from '@angular/core';
import { ColDef, GridReadyEvent } from 'ag-grid-community';
import 'ag-grid-community/dist/styles/ag-grid.css';
import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
import 'ag-grid-enterprise';

@Component({
  selector: 'my-app',
  template: `<ag-grid-angular
    style="width: 100%; height: 100%;"
    class="ag-theme-alpine"
    [columnDefs]="columnDefs"
    [defaultColDef]="defaultColDef"
    [autoGroupColumnDef]="autoGroupColumnDef"
    [pivotMode]="true"
    [pivotRowTotals]="pivotRowTotals"
    [rowData]="rowData"
    (gridReady)="onGridReady($event)"
  ></ag-grid-angular>`,
})
export class AppComponent {
  public columnDefs: ColDef[] = [
    { field: 'country', rowGroup: true, enableRowGroup: true },
    { field: 'athlete' },
    { field: 'sport', pivot: true, enablePivot: true },
    { field: 'year', pivot: true, enablePivot: true },
    { field: 'gold', aggFunc: 'sum' },
    { field: 'silver', aggFunc: 'sum' },
    { field: 'bronze', aggFunc: 'sum' },
  ];
  public defaultColDef: ColDef = {
    maxWidth: 140,
    filter: true,
    resizable: true,
  };
  public autoGroupColumnDef: ColDef = {
    minWidth: 180,
  };
  public pivotRowTotals = 'before';
  public rowData!: any[];

  constructor(private http: HttpClient) {}

  onGridReady(params: GridReadyEvent) {
    this.http
      .get<any[]>('https://www.ag-grid.com/example-assets/olympic-winners.json')
      .subscribe((data) => (this.rowData = data));
  }
}

Pivoting Angular Table

Pivot Column Group Totals

When in pivot mode you can also include automatically calculated total pivot columns. These total columns will use the provided aggregation function on the value columns to 'roll-up' each group level. Pivot column groups that contain more than one child will have a total column included. Expanding this group will reveal the columns that make up this total value. To enable total columns set gridOptions.pivotColumnGroupTotals = 'before' | 'after'.

The values before and after are used to control the relative position of the total column when the group is expanded.

Example

import { HttpClient } from '@angular/common/http';
import { Component } from '@angular/core';
import { ColDef, GridReadyEvent } from 'ag-grid-community';
import 'ag-grid-community/dist/styles/ag-grid.css';
import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
import 'ag-grid-enterprise';

@Component({
  selector: 'my-app',
  template: `<ag-grid-angular
    style="width: 100%; height: 100%;"
    class="ag-theme-alpine"
    [columnDefs]="columnDefs"
    [defaultColDef]="defaultColDef"
    [autoGroupColumnDef]="autoGroupColumnDef"
    [pivotMode]="true"
    [pivotColumnGroupTotals]="pivotColumnGroupTotals"
    [rowData]="rowData"
    (gridReady)="onGridReady($event)"
  ></ag-grid-angular>`,
})
export class AppComponent {
  public columnDefs: ColDef[] = [
    { field: 'country', rowGroup: true, enableRowGroup: true },
    { field: 'athlete' },
    { field: 'sport', pivot: true, enablePivot: true },
    { field: 'year', pivot: true, enablePivot: true },
    { field: 'gold', aggFunc: 'sum' },
    { field: 'silver', aggFunc: 'sum' },
    { field: 'bronze', aggFunc: 'sum' },
  ];
  public defaultColDef: ColDef = {
    maxWidth: 140,
    filter: true,
    resizable: true,
  };
  public autoGroupColumnDef: ColDef = {
    minWidth: 180,
  };
  public pivotColumnGroupTotals = 'before';
  public rowData!: any[];

  constructor(private http: HttpClient) {}

  onGridReady(params: GridReadyEvent) {
    this.http
      .get<any[]>('https://www.ag-grid.com/example-assets/olympic-winners.json')
      .subscribe((data) => (this.rowData = data));
  }
}

Pivoting Angular Table

Summary

In this article, I have discussed how to create Pivoting table in angular.

Reference

https://www.ag-grid.com/angular-data-grid/pivoting/#pivot-column-group-totals
