Overview of Essential Networking Devices

Introduction

Networking devices are important parts that help computers and other devices talk to each other and manage data traffic in a network. They have different jobs, such as sending data, connecting devices, providing wireless access, keeping the network safe, and sending data through wires or wirelessly. Common examples of networking devices are routers, switches, access points, modems, firewalls, Ethernet cables, and wireless adapters. These devices work together to allow smooth communication between computers, servers, and other connected devices.

What is Networking?

Networking is when computers and other devices are connected so they can talk to each other and share information. This helps devices like computers, phones, and printers send and receive things like emails, files, and websites. Networking can use cables (like Ethernet) or be wireless (like Wi-Fi). It's what makes the internet work by connecting people and devices everywhere.

Networking

What are Networking devices?

Networking devices refer to hardware components essential for facilitating communication and managing data traffic within a computer network. Examples include routers, switches, access points, modems, firewalls, Ethernet cables, and wireless adapters. These devices serve specific functions such as routing data packets, connecting devices, providing wireless connectivity, ensuring network security, and transmitting data over physical cables or wireless signals, thereby enabling communication and data transfer between computers, servers, and other networked devices.

Networking devices

Network Interface Card (NIC)

The network adapter, whether in the form of an expansion card, USB device, or integrated into the motherboard of your network device, furnishes the physical and electrical connections to the network media, facilitating communication.

Importance

Network Interface Cards (NICs) are vital as they enable devices tof join the network, exemplified by components like your computer's Ethernet card or Wi-Fi adapter.

Interface Card

Hubs

Hubs, once prevalent in early networks, serve as multi-port repeaters broadcasting incoming traffic to all other ports, operating at OSI Layer 1 and causing increased collision errors, but have become obsolete with the advent of more efficient switches.

Hubs

Switch

A switch functions similarly to a hub but is an intelligent OSI Layer 2 network device that memorizes MAC addresses, pays attention to source and destination MAC addresses during communication, and utilizes Application-Specific Integrated Circuitry (ASIC) for high-speed performance, effectively breaking up collision domains and ensuring high bandwidth, making it a standard component in modern network infrastructure.

Importance

Switches are important for making sure data moves smoothly in a network, like in an office where they help computers, printers, and servers talk to each other without problems.

Switch

Wireless Access Point (WAP)

A wireless access point (AP) is like a bridge between wired networks and devices like laptops, smartphones, and tablets that use Wi-Fi. It helps these devices connect to the internet or other resources on the network without needing cables. It's basically a way for wireless gadgets to talk to the network.

Importance

Wireless Access Points (APs) are crucial for extending wireless coverage, enabling devices to connect without cables, as seen in locations like coffee shops, airports, or corporate offices.

Wireless Access Point

Router

A router connects different networks together by routing traffic between them using IP addresses, making intelligent decisions with routing protocols to find the best path for transferring packets of information from one network to another, and it also breaks up broadcast domains.

Importance

Routers are essential for linking various networks, like connecting a LAN to the Internet, sharing one Internet connection, and managing traffic, with home routers enabling multiple devices to access the Internet at once.

OSI Layer 3 Device

  • Layer 3 = Router
  • Layer 2 = Switch
  • Layer 1 = Hub

Router

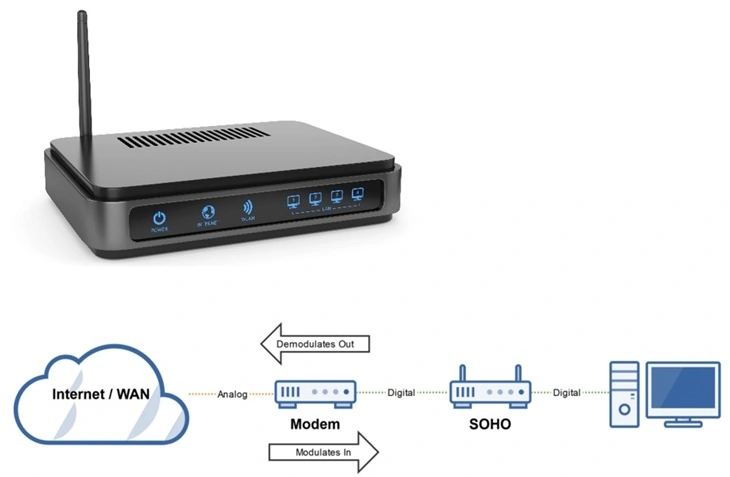

Modem

A modem is a device that modulates and demodulates signals to enable communication between computers or other digital devices over analog or digital communication lines.

Modem

Firewalls

Firewalls are essential for protecting your network from online threats and stopping unauthorized access. They work by checking data as it travels through them and can be either a separate device or software on a computer.

Importance

Firewalls are crucial for protecting networks by managing traffic, blocking unauthorized access, and identifying threats, as demonstrated by enterprise firewalls securing sensitive data and preventing malicious traffic.

Firewalls

Conclusion

Networking devices are important for helping computers, servers, and other devices communicate with each other. Each device has a specific job, like managing data, connecting devices, providing wireless access, or keeping the network safe. Routers, switches, access points, and firewalls work together to make sure the network runs smoothly and stays secure. Knowing how these devices work helps us build and maintain strong networks for homes, businesses, and other places.
