Optimizing Networks with Minimum Spanning Tree in C#

Introduction

In the age of computer science and graph theory, the Minimum Spanning Tree (MST) algorithm plays a pivotal role in solving optimization problems involving weighted graphs. The MST algorithm seeks to find a subset of the edges that connects all the vertices in the graph without any cycles and with the minimum possible total edge weight. This algorithm is particularly useful in various real-world applications, including network design, electrical grid optimization, and even transportation systems. In this article, we will explore a real-world example of using the MST algorithm in C# to optimize a transportation network, demonstrating its practical utility and implementation.

Minimum Spanning Tree Algorithm

Before diving into the real-world example, let's briefly understand the MST algorithm. There are several algorithms to find the MST of a graph, with Kruskal's and Prim's algorithms being the most prominent ones.

• Kruskal's Algorithm: It sorts all the edges in a non-decreasing order of their weight. It then picks the smallest edge and checks if it forms a cycle with the spanning tree formed so far. If no cycle is formed, it includes this edge in the spanning tree. The process continues until there are (V-1) edges in the spanning tree.
• Prim's Algorithm: It starts with a single vertex and grows the spanning tree by adding the smallest edge that connects the tree to a vertex not yet in the tree.

For this example, we will use Kruskal's algorithm to find the MST of a transportation network.

Example. Optimizing a Transportation Network

Consider a scenario where a city planner needs to optimize the road network to minimize the cost of connecting various locations within a city. The goal is to ensure all locations are connected with the minimum total road construction cost. The city can be represented as a graph where intersections are vertices, and roads between them are edges with weights corresponding to the construction costs.

Step 1. Graph Representation

We begin by representing the city's road network as a graph. Each intersection is a vertex, and each road is an edge with a weight.

using System;
using System.Collections.Generic;

public class Edge : IComparable<Edge>
{
    public int Source { get; set; }
    public int Destination { get; set; }
    public int Weight { get; set; }

    public int CompareTo(Edge other)
    {
        return this.Weight.CompareTo(other.Weight);
    }
}

public class Graph
{
    public int Vertices { get; set; }
    public List<Edge> Edges { get; set; }

    public Graph(int vertices)
    {
        Vertices = vertices;
        Edges = new List<Edge>();
    }

    public void AddEdge(int source, int destination, int weight)
    {
        Edges.Add(new Edge { Source = source, Destination = destination, Weight = weight });
    }
}

Step 2. Kruskal's Algorithm Implementation

We implement Kruskal's algorithm to find the MST of the graph. We need a disjoint-set data structure to efficiently manage the connected components of the graph.

public class DisjointSet
{
    private int[] parent;
    private int[] rank;

    public DisjointSet(int n)
    {
        parent = new int[n];
        rank = new int[n];

        for (int i = 0; i < n; i++)
        {
            parent[i] = i;
            rank[i] = 0;
        }
    }

    public int Find(int i)
    {
        if (parent[i] != i)
        {
            parent[i] = Find(parent[i]);
        }
        return parent[i];
    }

    public void Union(int x, int y)
    {
        int rootX = Find(x);
        int rootY = Find(y);

        if (rootX != rootY)
        {
            if (rank[rootX] > rank[rootY])
            {
                parent[rootY] = rootX;
            }
            else if (rank[rootX] < rank[rootY])
            {
                parent[rootX] = rootY;
            }
            else
            {
                parent[rootY] = rootX;
                rank[rootX]++;
            }
        }
    }
}

Step 3. Constructing the MST

The graph and disjoint-set data structures are used to construct the MST using Kruskal's algorithm.

public class KruskalMST
{
    public static List<Edge> GetMinimumSpanningTree(Graph graph)
    {
        List<Edge> result = new List<Edge>();
        int vertices = graph.Vertices;
        DisjointSet disjointSet = new DisjointSet(vertices);

        graph.Edges.Sort();

        foreach (var edge in graph.Edges)
        {
            int rootSource = disjointSet.Find(edge.Source);
            int rootDestination = disjointSet.Find(edge.destination);

            if (rootSource != rootDestination)
            {
                result.Add(edge);
                disjointSet.Union(rootSource, rootDestination);
            }
        }

        return result;
    }
}

Step 4. Example Usage

Demonstrate the usage of the MST algorithm with an example road network.

class Program
{
    static void Main(string[] args)
    {
        Graph graph = new Graph(4);
        graph.AddEdge(0, 1, 10);
        graph.AddEdge(0, 2, 6);
        graph.AddEdge(0, 3, 5);
        graph.AddEdge(1, 3, 15);
        graph.AddEdge(2, 3, 4);

        List<Edge> mst = KruskalMST.GetMinimumSpanningTree(graph);

        Console.WriteLine("Edges in the Minimum Spanning Tree:");
        foreach (var edge in mst)
        {
            Console.WriteLine($"Source: {edge.Source}, Destination: {edge.Destination}, Weight: {edge.Weight}");
        }
    }
}

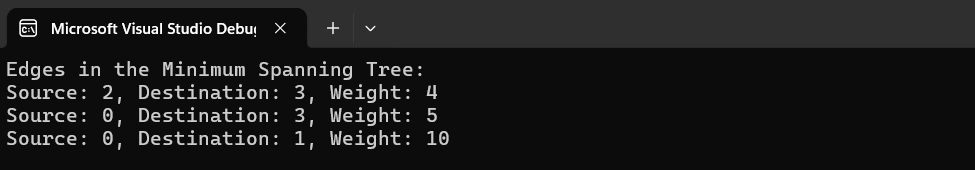

Step 5. Sample Output

The MST algorithm successfully finds the minimum-cost roads to connect all intersections within the city.

Conclusion

The Minimum Spanning Tree algorithm is a powerful tool in graph theory, providing efficient solutions to optimization problems in various fields. By using Kruskal's algorithm in C#, we demonstrated how to optimize a transportation network, reducing construction costs while ensuring connectivity. This approach can be applied to numerous real-world scenarios, from network design to resource allocation, showcasing the versatility and practicality of the MST algorithm. Understanding and implementing such algorithms empower developers and planners to create efficient, cost-effective solutions for complex problems.
