Ngx-Bootstrap DateRange Picker And Date Picker

Introduction


In this article we are going to learn the use of Ngx-Bootstrap DateRange Picker and Date Picker in Angular 8.

Ngx-Bootstrap has released a package of open-source tools which is native Angular directives for Bootstrap 3 and 4. It contains all core components powered by Angular. In this article we will learn about DatePicker component which is a cool feature of Ngx-bootstrap.

Prerequisites
  • Basic knowledge of Angular
  • Visual Studio Code must be installed
  • Angular CLI must be installed
  • Node JS must be installed
Step 1

Let's create a new Angular project using the following NPM command,
  1. ng new datepicker
Step 2

Now, let's create a new component by using the following command,
  1. ng g c ngx-bootstrap-datepicker
Step 3

Install ngx-bootstrap from npm by using the folowing command.
  1. npm install ngx-bootstrap --save
Or,
  1. ng add ngx-bootstrap --component datepicker
Step 4

Now let's add bootstrap styles in our index.html file .

For Bootstrap 3,
  1. <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
For Bootstrap 4,
  1. <link href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css" rel="stylesheet">
Step 5

Let add the template in our ngx-bootstrap-datepicker.component.html.
  1. <div class="card">
  2.   <div class="card-body pb-0">
  3.     <h4 style="text-align: center;">Example of Date Picker and Date Range Picker</h4>
  4.     <div class="row">
  5.       <div class="col-12 col-md-12">
  6.         <div class="card">
  7.           <nav class="navbar navbar-expand navbar-light bg-white topbar mb-4 static-top nav-kc">
  8.
  9.             <div class="col-md-6">
  10.               <div class="input-group">
  11.                 <input type="text" name="daterange" autocomplete="off" bsDaterangepicker
  12.                   [bsConfig]="{ rangeInputFormat : 'MMMM Do YYYY', dateInputFormat: 'MMMM Do YYYY', showWeekNumbers: false }"
  13.                   id="DateOfBirth" placeholder="Date Range" (bsValueChange)="dateRangeCreated($event)"
  14.                   class="form-control" />
  15.               </div>
  16.             </div>
  17.             <div class="col-md-3">
  18.               <div class="input-group">
  19.                 <input type="text" name="daterange" autocomplete="off" bsDatepicker
  20.                   [bsConfig]="{ dateInputFormat: 'MMMM Do YYYY', showWeekNumbers: false }" id="DateOfBirth"
  21.                   placeholder="Date" (bsValueChange)="dateCreated($event)" class="form-control" />
  22.               </div>
  23.             </div>
  24.           </nav>
  25.           <div class="card-body position-relative">
  26.             <div class="table-responsive cnstr-record product-tbl">
  27.               <table class="table table-bordered heading-hvr">
  28.                 <thead>
  29.                   <tr>
  30.                     <th>ArtNo.</th>
  31.                     <th>Brand</th>
  32.                     <th>
  33.                       Price/Unit</th>
  34.                     <th>Provider</th>
  35.                     <th>P. Art. N</th>
  36.                     <th>S. A/C</th>
  37.                     <th>Buy A/C</th>
  38.                     <th>Created Date</th>
  39.                   </tr>
  40.                 </thead>
  41.
  42.                 <tbody *ngFor="let product of products; let i = index">
  43.
  44.                   <tr>
  45.                     <td align="center">{{product.ArtNo}}</td>
  46.                     <td>{{product.Brand}}</td>
  47.                     <td>{{product.Price }}</td>
  48.                     <td>{{product.Provider}}</td>
  49.                     <td>{{product.ProviderArtNo}}</td>
  50.                     <td>{{product.SalesAccount}}</td>
  51.                     <td>{{product.BuyAccount}}</td>
  52.                     <td>{{product.CreatedDate}}</td>
  53.                   </tr>
  54.                 </tbody>
  55.               </table>
  56.             </div>
  57.           </div>
  58.         </div>
  59.       </div>
  60.     </div>
  61.   </div>
  62. </div>
In bsConfig method we can format the date and time. showWeekNumbers is a boolean value which is true by default and displays the number of the week .

Also we can select the min date. max date, etc.
  1. <input type="text" name="daterange" autocomplete="off" bsDatepicker
  2.                   [bsConfig]="{ dateInputFormat: 'MMMM Do YYYY', showWeekNumbers: false }" id="DateOfBirth"
  3.                   placeholder="Date" (bsValueChange)="dateCreated($event)" class="form-control" />
Step 6

Now, open the ngx-bootstrap-datepicker.component.ts file and add the following code in this file.
  1. import { Component, OnInit } from '@angular/core';
  2. import { DatePickerService } from '../datepicker.service';
  3.
  4. @Component({
  5.   selector: 'app-ngx-bootstrap-datepicker',
  6.   templateUrl: './ngx-bootstrap-datepicker.component.html',
  7.   styleUrls: ['./ngx-bootstrap-datepicker.component.css']
  8. })
  9. export class NgxBootstrapDatepickerComponent implements OnInit {
  10.   products = [];
  11.   tempproducts=[];
  12.   constructor(private datepickerService: DatePickerService) { }
  13.
  14.   ngOnInit() {
  15.     this.getProducts();
  16.   }
  17.   getProducts() {
  18.     this.products = this.datepickerService.getAllProducts();
  19.     this.tempproducts = this.datepickerService.getAllProducts();
  20.
  21.   }
  22.   dateCreated($event){
  23.     this.products = this.tempproducts;
  24.     this.products = this.products.filter(x => x.CreatedDate == $event.toJSON().split('T')[0]);
  25.   }
  26.   dateRangeCreated($event) {
  27.     this.products = this.tempproducts;
  28.     let startDate = $event[0].toJSON().split('T')[0];
  29.     let endDate = $event[1].toJSON().split('T')[0];
  30.     this.products = this.products.filter(
  31.       m => new Date(m.CreatedDate) >= new Date(startDate) && new Date(m.CreatedDate) <= new Date(endDate)
  32.     );
  33.
  34.   }
  35. }
Step 7

Create a service dataservice using the following NPM command
  1. ng g service data
Now, open the data.service.ts file and add the following code,
  1. import { Injectable } from '@angular/core';
  2.
  3. @Injectable()
  4.
  5. export class DataService {
  6.   employees: any[];
  7.
  8.   getAllProducts() {
  9.     return this.employees = [
  10.       {
  11.         ProductId: 1,
  12.         ArtNo: "100",
  13.         Provider: "OppoProvider",
  14.         ProviderArtNo: "1Yu",
  15.         Brand: "Oppo",
  16.         Price: 7810.23,
  17.         BuyAccount: "123",
  18.         SalesAccount: "321",
  19.         CreatedDate: "2020-04-17"
  20.       },
  21.       {
  22.         ProductId: 1,
  23.         ArtNo: "101",
  24.         Provider: "OppoProvider",
  25.         ProviderArtNo: "1Yu",
  26.         Brand: "Oppo",
  27.         Price: 2310.23,
  28.         BuyAccount: "123",
  29.         SalesAccount: "321",
  30.         CreatedDate: "2020-04-15"
  31.       },
  32.       {
  33.         ProductId: 1,
  34.         ArtNo: "102",
  35.         Provider: "OppoProvider",
  36.         ProviderArtNo: "1Yu",
  37.         Brand: "Oppo",
  38.         Price: 7810.23,
  39.         BuyAccount: "123",
  40.         SalesAccount: "321",
  41.         CreatedDate: "2020-04-11"
  42.       },
  43.       {
  44.         ProductId: 1,
  45.         ArtNo: "103",
  46.         Provider: "OppoProvider",
  47.         ProviderArtNo: "1Yu",
  48.         Brand: "Oppo",
  49.         Price: 5810.23,
  50.         BuyAccount: "123",
  51.         SalesAccount: "321",
  52.         CreatedDate: "2020-03-21"
  53.       },
  54.       {
  55.         ProductId: 1,
  56.         ArtNo: "104",
  57.         Provider: "OppoProvider",
  58.         ProviderArtNo: "1Yu",
  59.         Brand: "Oppo",
  60.         Price: 4770.23,
  61.         BuyAccount: "143",
  62.         SalesAccount: "211",
  63.         CreatedDate: "2020-03-01"
  64.       },
  65.     ];
  66.   }
  67.
  68. }
Step 8

Now, open the app.component.html file and add the following code in the file,
  1. <app-ngx-bootstrap-datepicker></app-ngx-bootstrap-datepicker>
Step 9

Let's open app.module.ts file and add the following code in the file,
  1. import { BrowserModule } from '@angular/platform-browser';
  2. import { NgModule } from '@angular/core';
  3. import { FormsModule} from '@angular/forms';
  4. import { AppComponent } from './app.component';
  5. import { BsDatepickerModule } from 'ngx-bootstrap/datepicker';
  6. import { NgxBootstrapDatepickerComponent } from './ngx-bootstrap-datepicker/ngx-bootstrap-datepicker.component';
  7.
  8. @NgModule({
  9.    declarations: [
  10.    AppComponent,
  11.    NgxBootstrapDatepickerComponent
  12. ],
  13. imports: [
  14.    BrowserModule,
  15.    FormsModule,
  16.    BsDatepickerModule.forRoot()
  17.    ],
  18.    bootstrap: [AppComponent]
  19. })
  20. export class AppModule { }

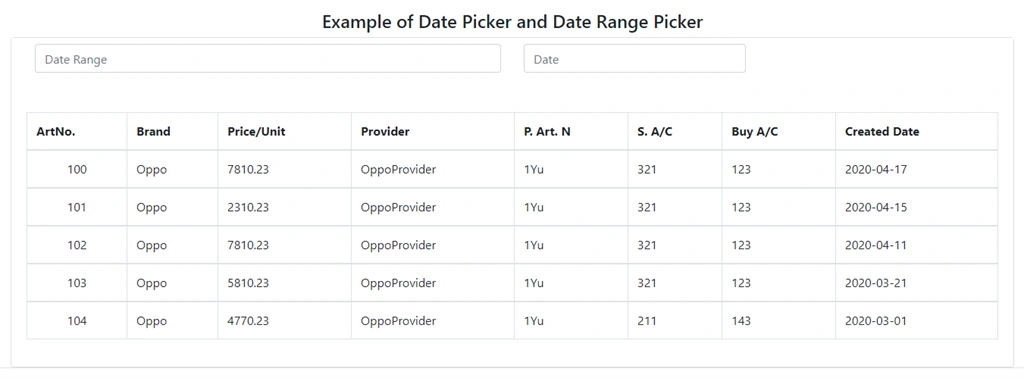

Now it's time for the output,

Ngx-Bootstrap DateRange Picker And Date Picker
Ngx-Bootstrap DateRange Picker And Date Picker

Date range picker is where we can select a range of datess. After selecting date one event will fire which is an array,

Ngx-Bootstrap DateRange Picker And Date Picker

The below image shows that it will fetch only those data which comes in the range from April 1 to April 14.

Ngx-Bootstrap DateRange Picker And Date Picker

The below image shows the normal ngx-bootstrap datepicker.

Ngx-Bootstrap DateRange Picker And Date Picker
Ngx-Bootstrap DateRange Picker And Date Picker


Conclusion


I hope you have enjoyed this article as much as I have enjoyed writing and coding the examples.

Please let me know how to improve it.
