MVVM with Clean Architecture in Android Development

In modern Android development, designing scalable, testable, and maintainable applications is crucial. Two popular concepts that help achieve this are MVVM (Model-View-ViewModel) and Clean Architecture. When combined, they provide a powerful and flexible structure for developing robust Android apps.

What is MVVM?

MVVM (Model-View-ViewModel) is a design pattern that separates UI logic from business logic.

MVVM Architechture layers

  1. Model: Represents the data layer (e.g., local database, remote API).
  2. View: The UI layer (Activity/Fragment/Compose UI) that displays data and handles user interaction.
  3. ViewModel: Connects View to Model. It holds UI-related data and contains logic to transform raw data into UI-friendly form.

What is Clean Architecture?

Clean Architecture is introduced by Robert C. Martin, also known as Uncle Bob, and promotes the separation of concerns by dividing code into layers with clear responsibilities.

Clean Architecture Layers

  1. Presentation Layer: UI & ViewModel.
  2. Domain Layer: Business logic.
  3. Data Layer: Implements repositories, data sources.

MVVM + Clean Architecture: How They Work Together

When combining MVVM and Clean Architecture?

  • View (Activity/Fragment/Jetpack Compose) lives in the Presentation Layer.
  • ViewModel also stays in the Presentation Layer, but acts as the connector between UI and the Domain Layer.
  • UseCase live in the Domain Layer and define application-specific business rules.
  • Repositories and Data Sources live in the Data Layer, handling API calls or database operations.

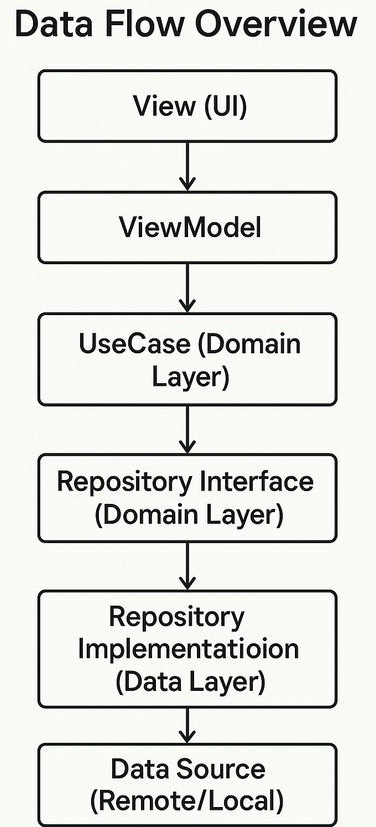

Data FLow Overview

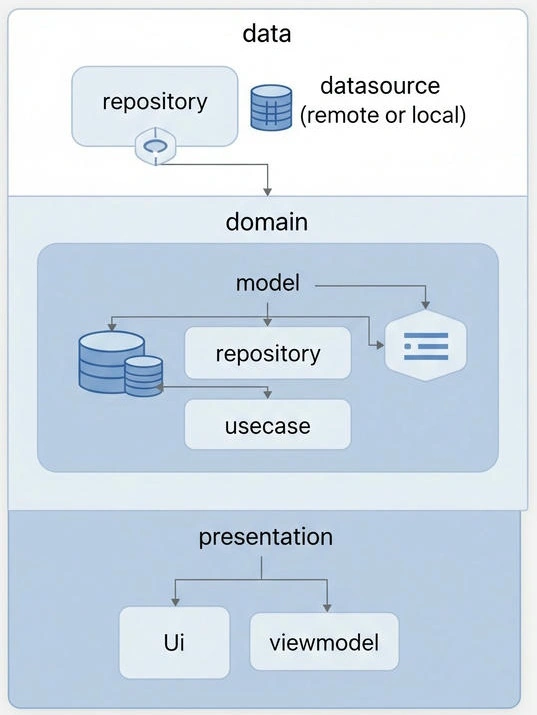

Project Structure Example

Project Structure Example

Benefits of Using MVVM with Clean Architecture

  1. Separation of Concerns: Each layer has a clear responsibility.
  2. Testability: Business logic in UseCases can be unit tested without UI dependencies.
  3. Scalability: Easy to add features and scale without tightly coupling components.
  4. Maintainability: Isolated layers make refactoring and debugging easier.
  5. Reusability: Usecase and repositories can be reused across different UIs or platforms (e.g., Android & Web).

Tools & Libraries Often Used

  • Kotlin Coroutines / Flow for asynchronous operations
  • Hilt / Dagger for dependency injection
  • Room / Retrofit for data handling
  • Jetpack Compose / XML for UI
  • Navigation Component for screen navigation

Conclusion

Combining MVVM with Clean Architecture brings discipline and clarity to Android development. It creates a clear boundary between UI and business logic, making the codebase modular, scalable, and testable.
