Modifying The Body In SharePoint List Form

Introduction


This is continuation of the article series, customizing SharePoint list forms using JSON which contains following
In this series, we will try to modify the body section

  • by adding sections to the forms
  • by applying conditional formatting

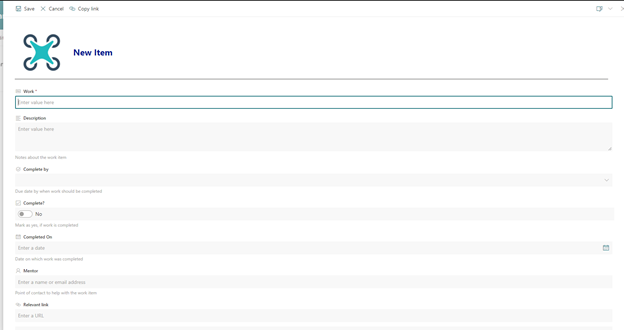

Currently, the form looks like below, where we have added header from previous series.

Modifying the Body in SharePoint List Form


Adding sections to the form


Step1

For this demo, let's add multiple lines of text called ‘Mentor Comments’. We will use this in our conditional formatting section.

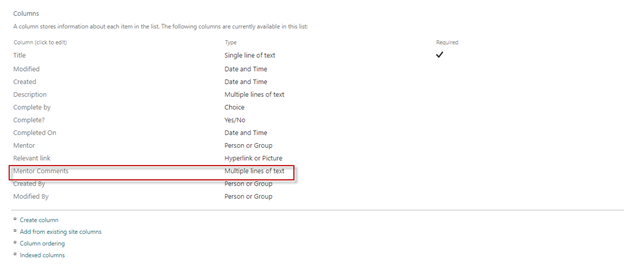

When going to list settings you should see the following columns after adding Mentor Comments.

Modifying the Body in SharePoint List Form

Step 2

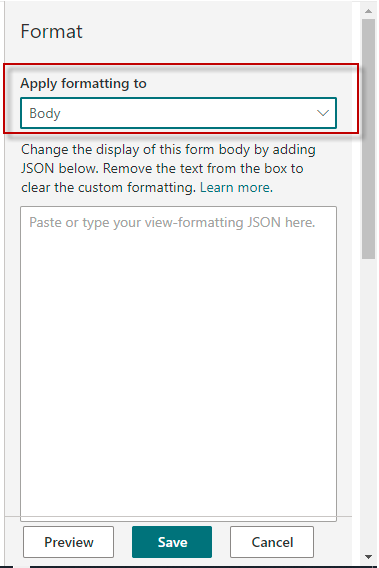

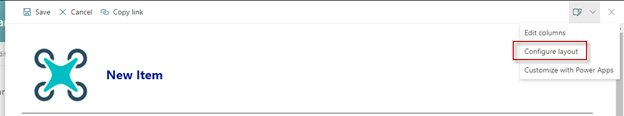

Now we will apply sections to our form, so that the columns are arranged side by side. Click on new form and go to configure layout, and make sure body is selected.

Modifying the Body in SharePoint List Form

Modifying the Body in SharePoint List Form

Just copy and paste the below code in the body section
  1. {
  2.     "sections": [
  3.         {
  4.             "displayname""Information",
  5.             "fields": [
  6.                 "Work",
  7.                 "Description"
  8.             ]
  9.         },
  10.         {
  11.             "displayname""Details",
  12.             "fields": [
  13.                 "Complete by",
  14.                 "Complete?",
  15.                 "Completed On"
  16.             ]
  17.         },
  18.         {
  19.             "displayname""Additional Info",
  20.             "fields": [
  21.                 "Mentor",
  22.                 "Mentor Comments",
  23.                 "Relevant link",
  24.                 "Relevant files"
  25.             ]
  26.         }
  27.     ]
  28. }
Step 3

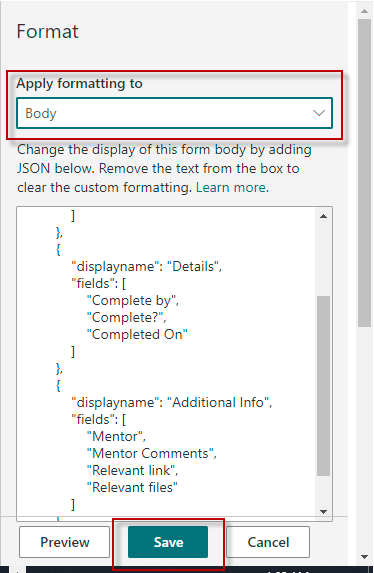

It should look something like below and hit on ‘Save’.

Modifying the Body in SharePoint List Form

Step 4

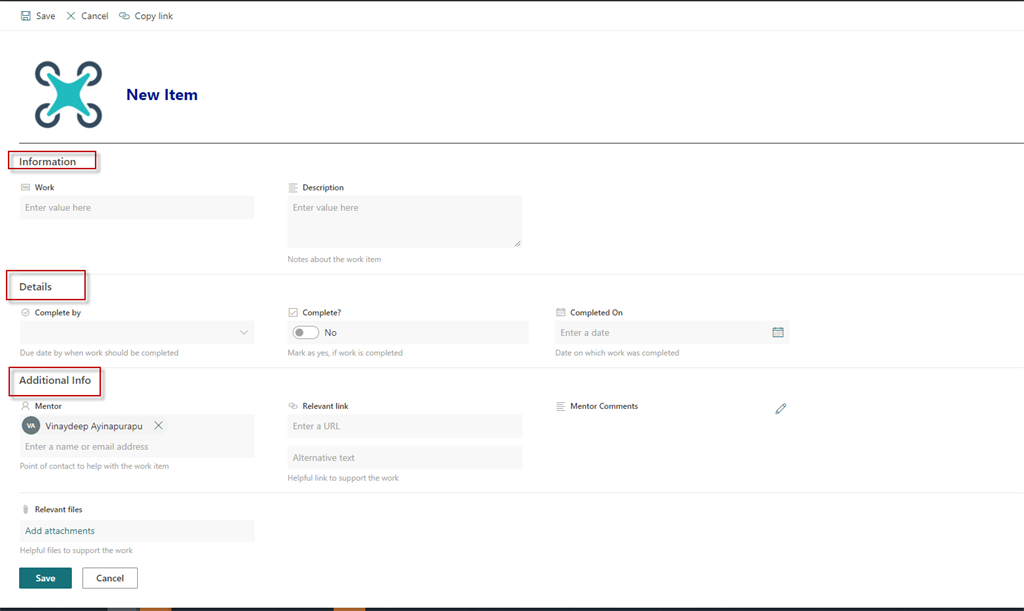

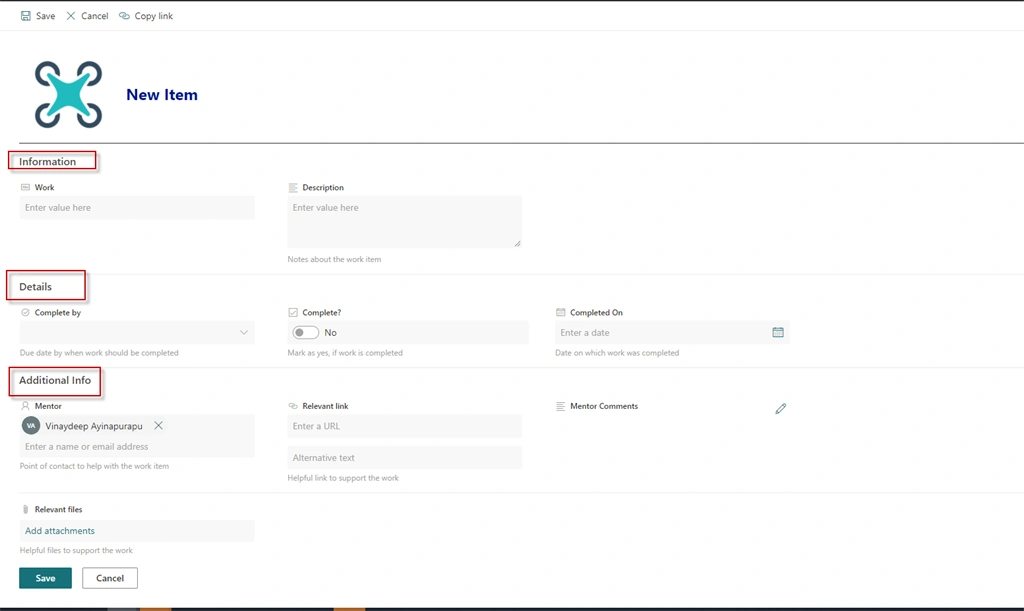

Validate the form, it should show something like below. You should see all the relevant sections are added.

Modifying the Body in SharePoint List Form


Adding Conditional Formatting


For the conditional formatting, we will hide the ‘Mentor Comments’ if it is not assigned to yourself. In other words, Mentor Comments will be visible to Mentor only. Let’s see how we can do that.

Step 1

Click on ‘New Form’ and now select ‘Edit Columns’.

Modifying the Body in SharePoint List Form

Step 2

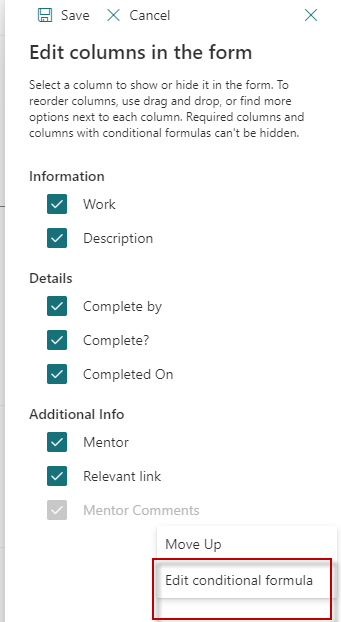

Hover on ‘Mentor Comments’ and click on ‘Vertical Elipses’ and select ‘Conditional Formula’.

Modifying the Body in SharePoint List Form

Step 3

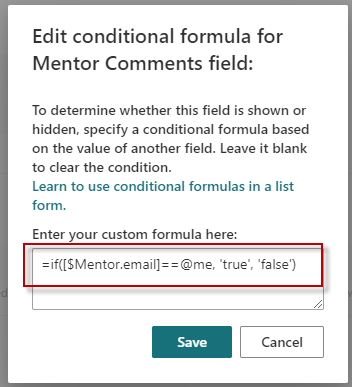

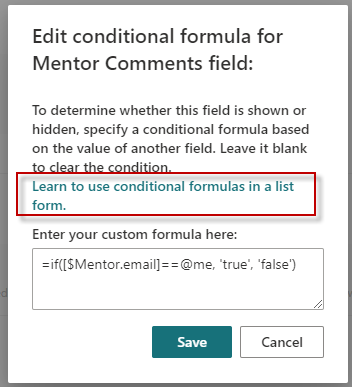

Copy and paste the below formula and click on ‘Save’.

=if([$Mentor.email]==@me, 'true', 'false')

Modifying the Body in SharePoint List Form

Note
you can replace @me to any specific org email address.

Let's break down the formula. Custom formula is similar to excel, it starts with “=”. “if checks condition and basically hides or shows. The field Mentor should be internal name of the field. Since this is people picker, .email gets the email of the Mentor. The @me takes the current user context and validates against the email ID of the Mentor in this scenario.

You can also refer to MSFT documentation from the link ‘Learn to use conditional formulas in a list form’ where the formulas are defined for different field types.

Modifying the Body in SharePoint List Form

Step 4

Validate the form, you should see in the new form ‘Mentor Comments’ are hidden. Once you put your email ID in mentor, the Mentor comments should appear
New form where Mentor Comments is hidden when Mentor field is empty.

Modifying the Body in SharePoint List Form

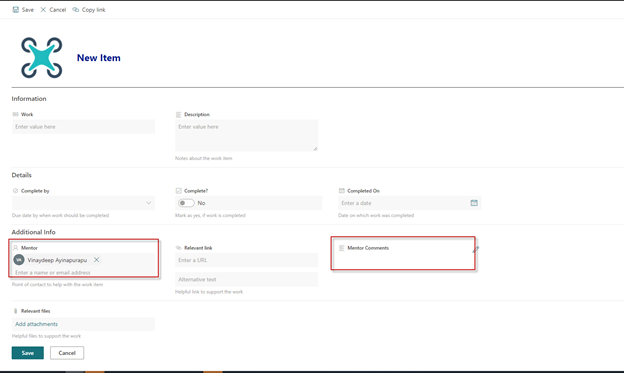

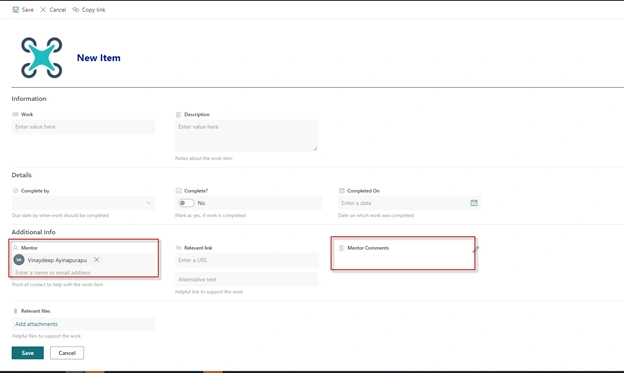

New form where Mentor Comments are shown.

Modifying the Body in SharePoint List Form


Conclusion


Thus in this article, we have seen how to add section to form, and how to apply conditional formatting to fields.

References
  • https://docs.microsoft.com/en-us/sharepoint/dev/declarative-customization/list-form-conditional-show-hide
  • https://github.com/vayin/ListFormatting/blob/main/SimpleBody
