Mastering .NET Architecture

What is .NET?

.NET is a software development platform created by Microsoft that provides a comprehensive environment for building and running applications. It supports multiple programming languages (like C#, F#, and VB.NET) and is used to develop a wide range of applications, from desktop and web apps to cloud services and mobile apps.

What is .NET Architecture?

.NET Architecture is the foundational structure of the .NET platform. It is designed to help in building, running, and managing a wide range of applications, such as web apps, APIs, desktop software, mobile apps, and cloud-based solutions.

At its core, .NET follows a layered, component-based architecture that separates concerns and promotes modularity. Each layer in this architecture plays a specific role in the application's lifecycle.

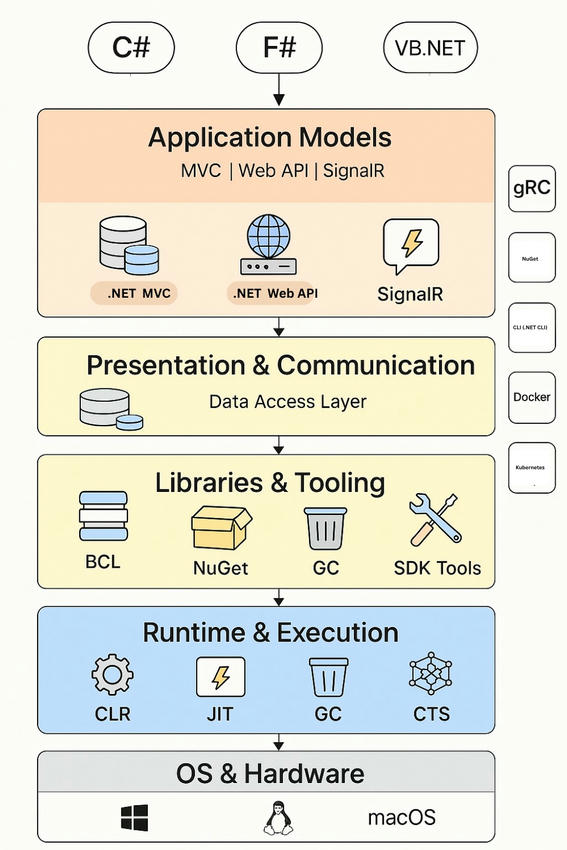

Layers in .NET Architecture

Layer Purpose
1. Operating System & Hardware Provides the base environment (Windows, Linux, macOS, cloud, containers)
2. Runtime & Execution (CLR) Manages code execution, memory, JIT, garbage collection, and type safety
3. Libraries & Tooling Offers reusable APIs (BCL), SDKs, compilers, IDEs, and package management (NuGet)
4. Data Access Layer (DAL) Handles interaction with data sources via ADO.NET, EF, LINQ, Dapper, etc.
5. Presentation & Communication Accepts input and delivers output via UI, API, and real-time tools like SignalR
6. Application Models Determines the app type: Web, Desktop, Mobile, Cloud, Console, Microservices, IoT

Models

1. Operating System & Hardware (Foundation Layer)

This layer hosts the .NET runtime (CLR) and enables applications to interact with the system’s hardware and kernel. It ensures that the .NET application has access to required OS services, files, memory, and processing resources. This is the environment that supports application execution. It handles.

  • Resource management (CPU, memory, I/O)
  • File systems and networking
  • Process scheduling and security boundaries

Think of this as the physical factory floor and the electric grid that powers everything. Without land, electricity, and raw materials, no production (execution) can happen — similarly, .NET applications cannot run without this layer.

Example Use Cases

  • Hosting an ASP.NET Core app on Linux Docker containers in Azure Kubernetes Service
  • Running a WPF desktop app directly on Windows 11
  • Deploying a .NET microservice to AWS EC2 with Ubuntu OS
  • Hardware refers to the physical components that make execution possible:
    • CPU (executes instructions)
    • RAM (stores application data temporarily)
    • Storage (holds app binaries and data)
    • Network interfaces (for data transfer and APIs)

2. Runtime & Execution Layer (.NET Execution Engine)

The Runtime & Execution layer is the core engine that makes .NET applications run. It takes the compiled code and executes it safely and efficiently, handling essential services like memory management, code compilation, type checking, and exception handling. The Runtime & Execution layer in .NET is the powerhouse that brings our application to life. It’s responsible for loading, executing, managing, and cleaning up our code when our app runs.

Components of the Runtime & Execution Layer.

Component Description Example
CLR (Common Language Runtime) The heart of the .NET runtime engine that loads and executes compiled IL code. It manages memory, type safety, and security. Like an operations manager who controls everything in a factory—workers, safety, and processes.
JIT (Just-In-Time Compiler) Converts Intermediate Language (IL) code into machine code just before execution. Like a translator who only translates sentences as they're needed in a conversation.
GC (Garbage Collector) Automatically handles memory allocation and cleanup to avoid memory leaks. Like a janitor who cleans up unused items so the workspace remains efficient and clutter-free.
CTS (Common Type System) Ensures consistent data types across all .NET languages (C#, VB.NET, F#). Like having a universal format for all departments, so everyone understands the same data types.
Exception Handling Engine Handles runtime errors (exceptions) in a unified, safe, and recoverable way. Like a fire safety system that catches emergencies and routes them to the proper safety protocol.
using System;

class Program
{
    static void Main()
    {
        Console.WriteLine("Hello, C# Community!");
    }
}

What happens when running this code in .NET?

  1. Compilation to IL (Intermediate Language): The C# compiler (csc.exe) compiles your code into IL code and stores it in an assembly (like Program.exe). This IL is platform-independent.
  2. CLR Loads the Assembly: When you run the program, the CLR kicks in. It loads the IL code and reads the metadata (info about types, methods, etc.).
  3. JIT Compilation: The Just-In-Time (JIT) compiler, part of the CLR, converts the IL into native machine code specific to your OS and CPU.
  4. Execution & Services: The CLR executes the native code and provides services like.
  5. Garbage Collection (automatic memory cleanup)
  6. Security checks
  7. Exception handling
  8. Thread management
  9. Output: You see, Hello, CLR! printed on the console.

This layer ensures our app doesn’t just compile—it lives, breathes, and adapts during execution.

3. Libraries & Tooling Layer

The Libraries & Tooling Layer in the .NET architecture is like the “developer’s toolbox”—it provides the ready-made components and instruments you need to build, run, and manage applications efficiently.

Libraries: The .NET Building Blocks

Component Description Example
Base Class Library (BCL) Prebuilt types and APIs for common tasks like file I/O, networking, data structures, regex, etc. Like a shelf full of reusable machines and tools in a workshop
System.IO Namespace for file operations File cabinet or drawer
System.Net Tools for network communication Telephone or messaging system
System.Collections.Generic Provides generic collections like List<T>, Dictionary<K,V> Storage bins or toolboxes for organizing materials
System.Text.RegularExpressions Enables text pattern matching and parsing Pattern stencils or filters for checking forms

Example: Use File.ReadAllText("path") to read a file—directly available in the BCL.

Tooling: Developer Experience and Infrastructure

Tool Description Example
.NET SDK Includes compilers (csc), CLI tools, templates, and runtime installers Full workshop starter kit
.NET CLI (dotnet) Command-line interface to build, run, and publish .NET apps Remote control or dashboard panel
NuGet .NET’s package manager for external or internal library management App store or parts warehouse
Roslyn Compiler Open-source C# and VB.NET compiler with deep IDE tooling support Smart assistant or mechanic that diagnoses and fixes code
Visual Studio Full-featured IDE with advanced debugging, testing, and analysis tools Main control room or technician desk
Visual Studio Code Lightweight code editor with extension and CLI integration Portable toolkit with plug-and-play tools

Example: If the Runtime is your car engine and the Application Layer is your journey, this layer is the toolkit in your trunk, plus the dashboard and GPS guiding the way and helping fix problems.

4. Data Access Layer (DAL)

The Data Access Layer (DAL) in the .NET architecture is the layer that connects our application to data sources like databases, XML files, or web services. It handles all data retrieval, storage, and update operations in a clean, reusable, and maintainable way.

Key Technologies in .NET DAL:

Technology Description Example Type
ADO.NET Low-level data access using SQL commands, connections, and data readers Like writing raw SQL manually for full control Manual (Fine-grained)
Entity Framework (EF) Core ORM that maps C# classes to database tables automatically Like hiring a translator to speak SQL on your behalf ORM (High-level)
LINQ to SQL / LINQ to Entities Query syntax integrated into C# to filter and project data Like using plain English to request data without knowing SQL Language-based
Dapper Lightweight ORM from the Stack Overflow team for fast data access Like a speedy clerk who just hands over the requested data Micro ORM
Stored Procedures Predefined SQL scripts stored in the database and called from code Like fixed forms, the warehouse follows every time Database-side

Imagine a hospital system where doctors need access to patient records:

  1. A doctor clicks "Get Patient Info" in the app UI.
  2. The Controller calls PatientService.
  3. The service invokes PatientRepository.GetById(id) in the DAL.
  4. The DAL uses Entity Framework to query the SQL database.
  5. Results are returned to the service, then to the UI.

The doctor never sees the database—DAL does the heavy lifting behind the scenes.

5. Presentation & Communication Layer

The Presentation & Communication Layer in .NET is the face of our application. It’s responsible for interacting with users (via UI) and external clients (via APIs or real-time messages). This is where input enters the system and output is returned.

Presentation Layer

This is the user-facing front of our application—what users see and interact with.

Technologies

  • ASP.NET Core MVC: For building websites using HTML + C# logic.
  • Blazor: For interactive web UIs with C# instead of JavaScript.
  • MAUI / WPF / WinForms: For desktop and cross-platform apps.

Example

A hospital management system’s appointment booking screen—buttons, forms, and date pickers—are all part of the presentation layer.

Communication Layer

Handles interactions with other systems, like APIs, services, or other applications.

Technologies

  • ASP.NET Core Web API: Builds RESTful services (JSON over HTTP).
  • gRPC: High-performance RPC communication between microservices.
  • SignalR: For real-time features (chat, notifications, live dashboards).
  • WCF (legacy): SOAP-based service communication.

Example

When the booking system sends a confirmation email via an external notification service or fetches a list of available doctors from a remote API, those calls happen in the communication layer.

This layer

  1. Receives incoming requests (from users or systems)
  2. Routes them through business logic and down to the database
  3. Formats and sends back the response

Think of it as the bridge between humans, machines, and the application’s inner logic.

6. Application Models Layer

This layer defines how and where the application is deployed and run. In the .NET architecture, the Application Models Layer represents the types of applications we build on top of the platform. This is the topmost layer—the layer that directly delivers functionality to end users or other systems.

Application Models in .NET

Application Model Description Example Technologies Real-World Analogy
Web Applications Applications that run in browsers and serve HTML, CSS, JS, or Blazor UI ASP.NET Core MVC, Blazor A public website or online banking portal
Desktop Applications Applications installed on a computer with a graphical interface WPF, WinForms Microsoft Word, Calculator
Mobile Applications Apps for mobile devices using cross-platform C# .NET MAUI WhatsApp, LinkedIn mobile app
Cloud Applications Scalable services running on cloud platforms Azure Functions, App Services Google Drive, Office 365
Microservices Modular and independently deployable services gRPC, ASP.NET Minimal APIs A food delivery system where each part is a module
Console Applications Command-line utilities without UI Console App ( .NET) dotnet build, CLI utilities like Git
IoT & Embedded Apps running on small hardware devices .NET on Raspberry Pi Smart thermostat, fitness tracker

Why .NET Architecture?

  • Provides a clear layered structure (UI, logic, data, runtime)
  • Supports cross-platform development (Windows, Linux, macOS, cloud)
  • Offers built-in libraries and tools (BCL, SDK, NuGet)
  • Ensures high performance and memory management via CLR
  • Scales easily from small apps to enterprise-level systems
  • Supports multiple languages (C#, F#, VB.NET) under one runtime
  • Encourages clean, modular, and testable code
  • Backed by Microsoft and a strong community ecosystem

Conclusion

Understanding the .NET architecture is more than knowing where each layer fits—it's about recognizing how they interact to create secure, high-performing, and user-centric applications. By aligning practical scenarios with architectural principles, we gain the confidence to build solutions that are both technically sound and business-ready. As the .NET ecosystem continues to evolve, this layered approach will remain our roadmap to clarity, adaptability, and innovation.
