Learn To Draw Simple ASP.NET Core Blazor Bar Chart Using Canvas Extensions



If you are new to ASP.NET Core Blazor then check out my other article. Here I have planned to write a series of article. In each article I will explain in detail about how to draw our own chart for ASP.NET Core Blazor Web Application using HTML5 Canvas Blazor Extensions.

In this series we will see one by one in detail starting from:

1. Dynamic Bar Chart using Blazor Canvas Extentoins
2. Dynamic Line Chart using Blazor Canvas Extentoins
3. Dynamic Bar & Line Chart using Blazor Canvas Extentoins
4. Dynamic Bubble Chart using Blazor Canvas Extentoins

Prerequisites

• Visual Studio 2019 16.3or later
• .NET Core 3.0 SDK

Create ASP.NET Core Blazor Server Application

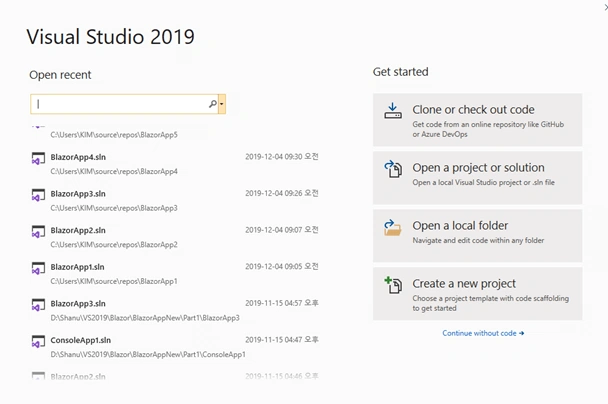

After installing all the prerequisites listed above, click Start >> Programs >> Visual Studio 2019 >> Visual Studio 2019 on your desktop. Click New >> Project.

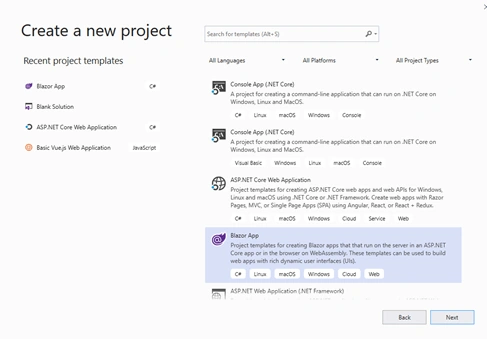

Select Blazor App and click Next button.

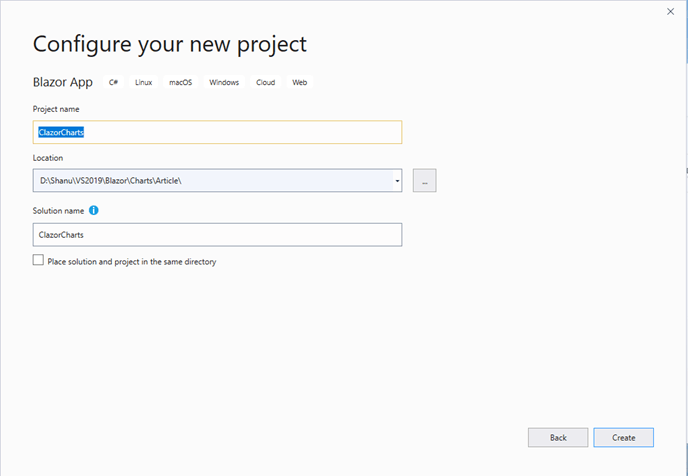

Select your project folder and Enter your Project name and then click Create button.

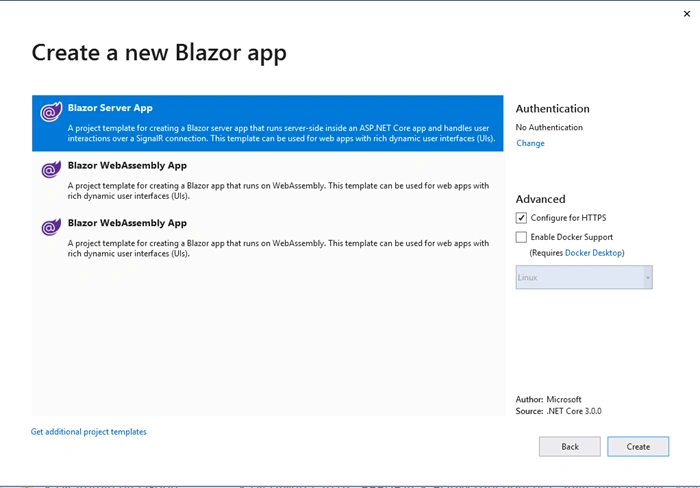

Select Blazor Server App







After creating ASP.NET Core Blazor Server Application, wait for a few seconds. You will see the below structure in solution explorer.







In the Data folder we can add all our Model, DBContext Class, Services and Controller, we will see that in this article.



In the Pages folder we can add all our component files.component file all should have the .razor extension with the file name.



In the Shared folder we can add all left menu form NavMenu.razor file and change the main content from the MainLayout.razor file.



In the _Imports.razor file we can see all set of imports has been added in order to use in all component pages.



In the App.razor file we will add our main component to be displayed by default when run in browser.Appsertings.json can be used to add the connection string.



Startup.cs file is an important file where we add all our endpoints, like Controller end points, HTTP Client, add services and dbcontext to be used in startup Configuration method.



Run to test the application

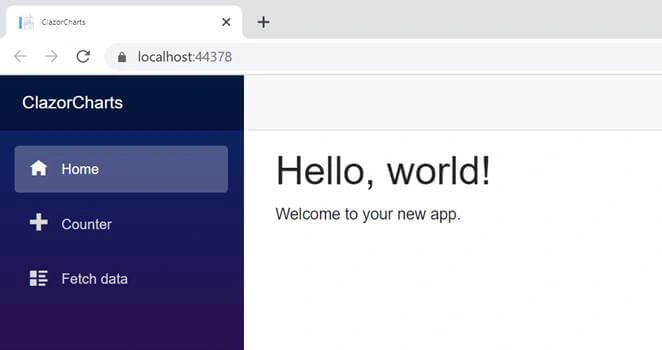

When we run the application, we can see that the left side has navigation and the right side contains the data. We can see that the default sample pages and menus will be displayed in our Blazor web site. We can use the pages or remove them and start with our own page.







Step 2 Install the Packages



To use the Blazor Canvas Extension in our Blazor Application we need to install the below packages



Blazor.Extensions.Canvas

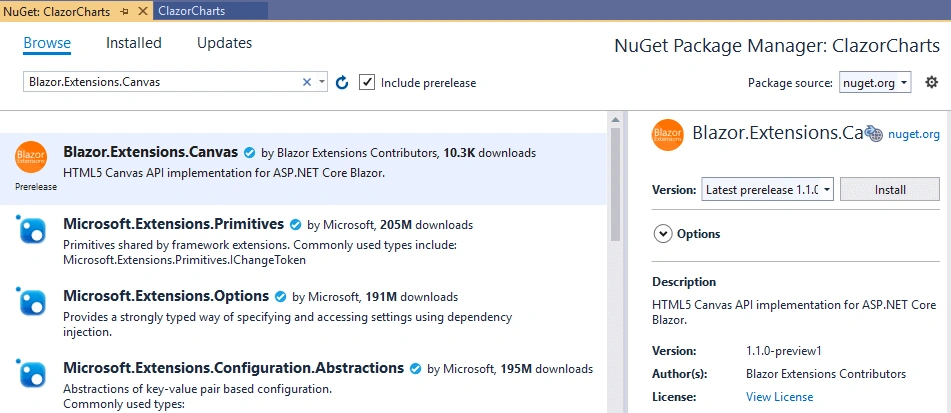

Right click the solution and click on the Manage Nuget package. Search for all the packages and install all the needed packages like the below image.

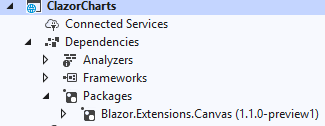

After installing the package, we can confirm it from Dependencies Packages.







Note
Add the blazor.extensions.canvas.js File.

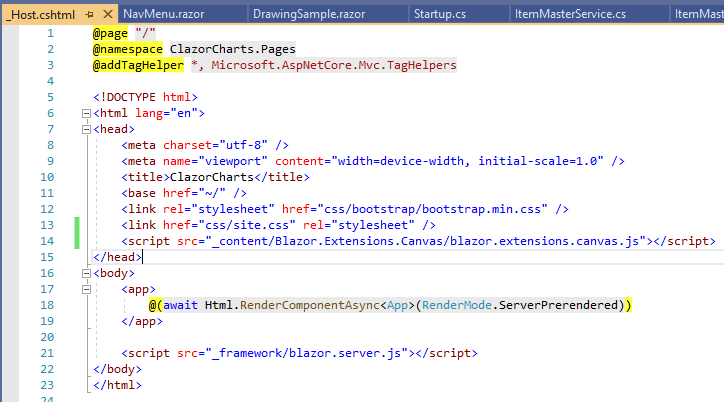

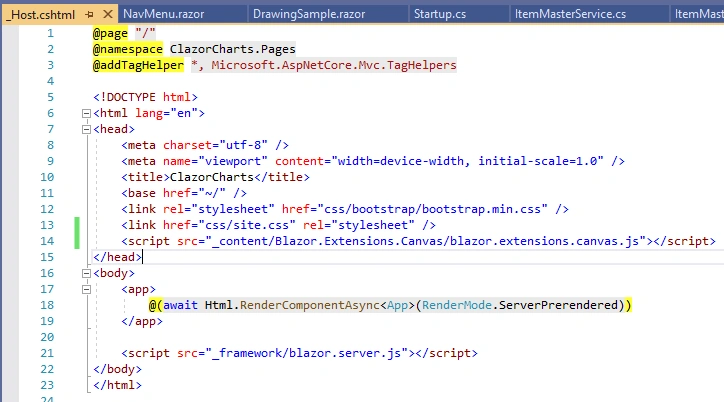

Open the _Host.cshtml file and add the below code inside the head tag.

<script src="_content/Blazor.Extensions.Canvas/blazor.extensions.canvas.js"></script>





Step 3 Create Model Class



Next, we need to create the Model class for use in our application for binding the Item name And Item count in the Bar Chart.

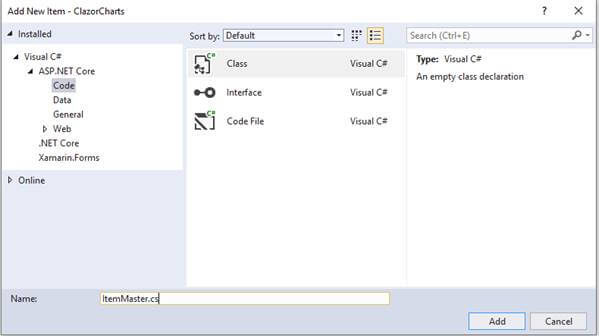

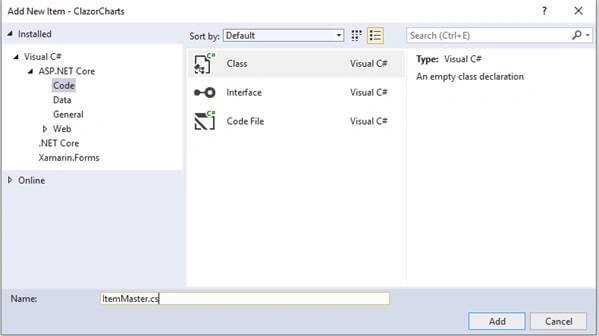

Right Click the Data Folder and create new class file as “ItemMaster.cs”







In the class we add the property field name as in the below code.

public String ItemName { get; set; }
   public int SaleCount { get; set; }

Creating Service Class

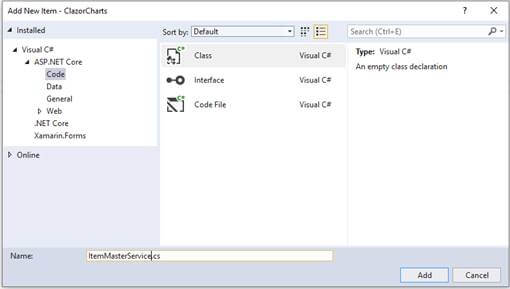

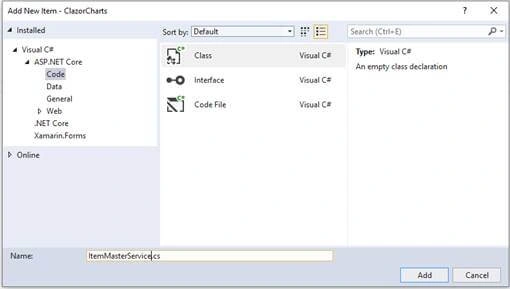

Next we create the ItemMasterService class in order to bind the result in chart with sample Item details with the Item Name and Sale Count per each item. For this we right click on the Data folder and click on Add New Item to add our ItemMasterService class.







In this class we create a method to get the ItemMaster details with sample 5 records of Items with item Name and Sale count per each item as random values.

public class ItemMasterService
    {
        public Task<ItemMaster[]> GetItemMasters()
        {
            var rng = new Random();
            int ivale = 0;
            return Task.FromResult(Enumerable.Range(1, 5).Select(index => new ItemMaster
            {
                ItemName = "itm" + rng.Next(1, 100),
                SaleCount = rng.Next(20, 100),
            }).ToArray()); ;
        }
    }

Step 4 - Add the Service to the Startup.cs



We need to add the services created by us to the Startup.cs ConfigureServices method.



services.AddSingleton<ItemMasterService>();



Step 5 - Working with Client Project



First, we need to add the Razor Component page



Add Razor Component

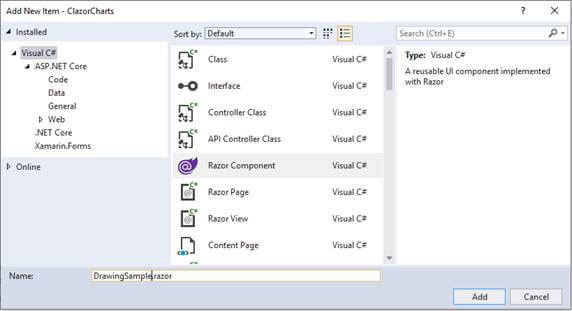

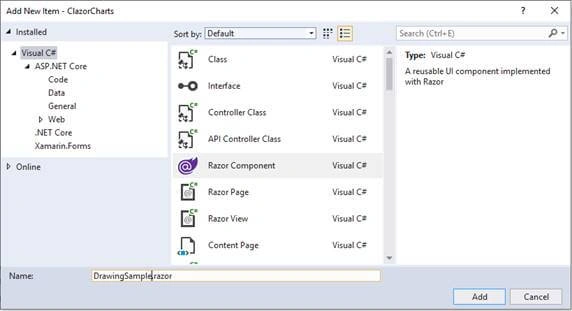

To add the Razor Component page right click the Pages folder from the Client project. Click on Add >> New Item >> Select Razor Component >> Enter your component name. Here we have given the name as DrawingSample.razor



Note all the component files need to have the extentions as .razor.







In Razor Component Page we have 3 parts of code. First is the iingmport part where we import all the references and models for using in the component, HTML design and data bind part and finally we have the function part to call all the web API to bind in our HTML page and also to perform client-side business logic to be displayed in Component page.



Import part



First, we import all the needed support files and references in our Razor View page. Here we have first imported our Model class to be used in our view and also imported Blazor Canvas Extension for drawing our own chart control for Blazor applications.

@page "/drawingsample"
@using Blazor.Extensions.Canvas
@using Blazor.Extensions;
@using Blazor.Extensions.Canvas.Canvas2D;
@using ClazorCharts.Data
@inject ItemMasterService MasterService

HTML design and data Bind part



Next, we design our DrawingSample details page to display the Bar Chart with item name and Sales count per each item. Here we have added the Blazor Extension Canvaz HTML5 canvas in our Blazor HTML design part for drawing the bar chart.

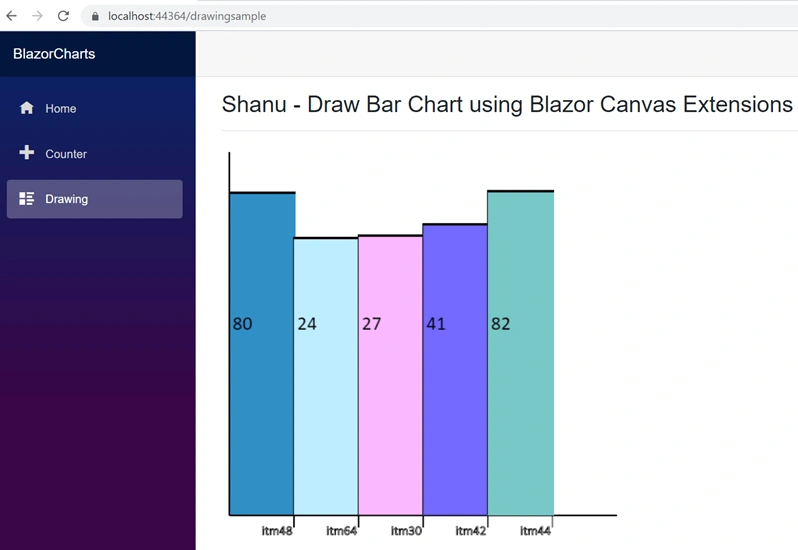

<h3>Shanu - Draw Bar Chart using Blazor Canvas Extensions</h3>
<hr />
<BECanvas Width="500" Height="500" @ref="_canvasReference"></BECanvas>

Function Part



Function part to get the Service result and bind the result in array and to draw and plot the values for displaying the bar chart.



Here first we declare the ItemsArray to get bind the result of Item Mater in BarChart.



Next we create a string array as pirChartColor to draw each bar with different color from the array.



In OnInitializedAsync we get the ItemMasterService result and bind the result in the ItemsArrys.



In OnAfterRenderAsync Method we draw the Bar Chart using C# draw objects to the Canvas.

@code {
    private Canvas2DContext _context;
    protected BECanvasComponent _canvasReference;
    ItemMaster[] itemsArrys;
    private static readonly string[] pirChartColor = new [] {
        "#3090C7",
        "#BDEDFF",
        "#F9B7FF",
        "#736AFF",
        "#78C7C7",
        "#B048B5",
        "#4E387E",
        "#7FFFD4",
        "#3EA99F",
        "#EBF4FA",
        "#F9B7FF",
        "#8BB381",
        //"#6CBB3C", "#F87217", "#EAC117", "#EDDA74", "#CD7F32", "#CCFB5D", "#FDD017", "#9DC209", "#E67451", "#728C00","#617C58", "#64E986"
    };
    protected override async Task OnInitializedAsync() {
        itemsArrys = await MasterService.GetItemMasters();
    }
    protected override async Task OnAfterRenderAsync(bool firstRender) {
        int lastend = 0;
        int xSpace = 10;
        int XvalPosition = xSpace;
        int maxDataVal = itemsArrys.Max(row => row.SaleCount);
        int widthcalculation = (Convert.ToInt32(_canvasReference.Width) - 100) / itemsArrys.Length;
        int chartHeight = Convert.ToInt32(_canvasReference.Height) - 40;
        this._context = await this._canvasReference.CreateCanvas2DAsync();
        int colorval = 0;
        // Draw the axises
        await this._context.BeginPathAsync();
        await this._context.MoveToAsync(xSpace, xSpace);
        // first Draw Y Axis
        await this._context.LineToAsync(xSpace, chartHeight);
        // Next draw the X-Axis
    }
}
}

Navigation Menu



Now we need to add this newly added DrawingSample Razor page to our left Navigation. For adding this, open the Shared Folder and open the NavMenu.cshtml page and add the menu.

<li class="nav-item px-3">
            <NavLink class="nav-link" href="DrawingSample">
                <span class="oi oi-list-rich" aria-hidden="true"></span> Bar Chart
            </NavLink>
        </li>

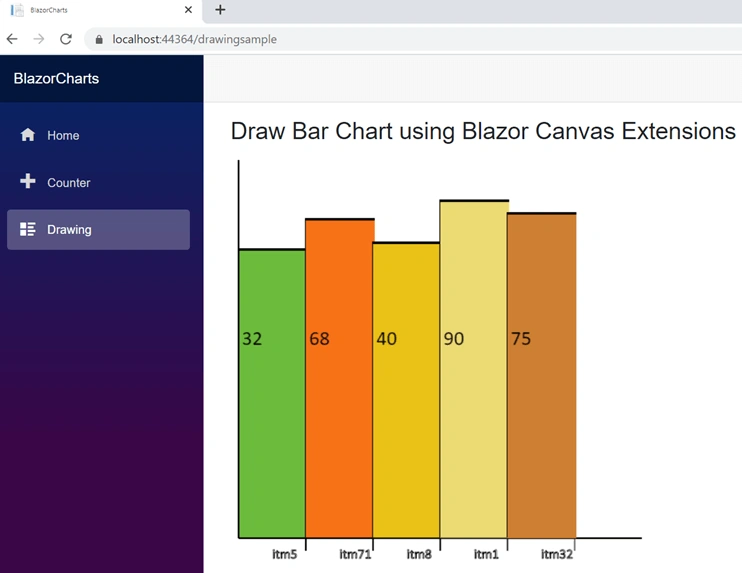

Build and Run the Application,







Conclusion



In this sample we have used a simple method to display the barchart with in 0 to 100 range values. In order to use for any scale, we can find the ratio of each bar and draw the chart. Also we can extend this chart to draw the Legend and other details. As this is our own Chart we can add any functions as per our need.
