Learn about Navigation in SwiftUI

Introduction

In this article, we will create a simple demo of navigating to different screens using SwiftUI.

If you are new to SwiftUI, please have a look at my article Getting Started with SwiftUI as well.

Pre-requisites

• MacOS
• XCode

Creating a SwiftUI Project to learn about Navigation

So, let's start by creating a SwiftUI Project.

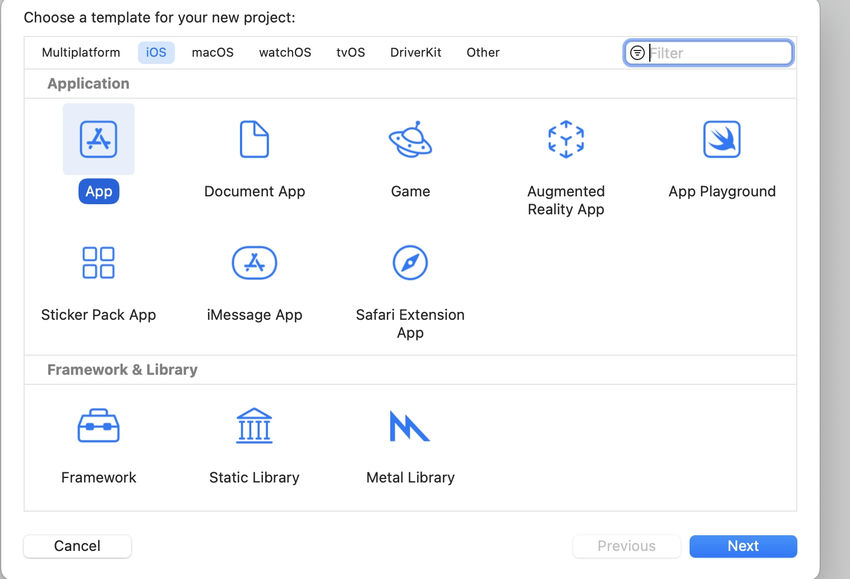

Open XCode -> Select iOS -> App -> Click Next -> Name your project, select Interface as SwiftUI, select Language as Swift -> Save your project to a desired location.

Once you create the project, you will land to the ContentView file which contains the default code of 'Hello World' with a globe image.

Remove all the code inside the 'var body' loop.

Now, let's begin by creating a NavigationStack.

NavigationStack is used to present a stack of views over the main view or root view. We will be adding a NavigationLink inside the NavigationStack to make our screens navigate.

So, let's add NavigationStack inside the body.

struct ContentView: View {
    var body: some View {
        NavigationStack {

        }
    }
}

Next, we will be adding NavigationLinks inside the Navigation Stack. Before that, we create some views we will use in our apps to display when the navigation takes place.

In this App, I will be displaying 3 screens when I click on their respective links.

To create a new view, right-click on the Project Name in the Project Navigator -> click on New File -> Click on SwiftUI View under User Interface -> Click Next -> Name the file -> Click on Create.

You can also create a new view by following this step: File -> New -> File -> Click on SwiftUI View under User Interface -> Click Next -> Name the file -> Click on Create.

Following the above steps, I have created 3 files with the names FirstScreenView, SecondScreenView and ThirdScreenView.

Replace the 'Hello World' code with the below code in the respective ScreenView files.

import SwiftUI

struct FirstScreenView: View {
    var body: some View {
        VStack {
            Text("Hello! You are on First Screen")
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .background(Color.yellow)

    }
}

struct FirstScreenView_Previews: PreviewProvider {
    static var previews: some View {
        FirstScreenView()
    }
}

import SwiftUI

struct SecondScreenView: View {
    var body: some View {
        VStack {
            Text("Hello! You are on Second Screen")
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .background(Color.green)
    }
}

struct SecondScreenView_Previews: PreviewProvider {
    static var previews: some View {
        SecondScreenView()
    }
}

import SwiftUI

struct ThirdScreenView: View {
    var body: some View {
        VStack {
            Text("Hello! You are on Third Screen")
        }
        .frame(maxWidth: .infinity, maxHeight: .infinity)
        .background(Color.pink)
    }
}

struct ThirdScreenView_Previews: PreviewProvider {
    static var previews: some View {
        ThirdScreenView()
    }
}

So now, let's add the NavigationLinks with some texts. NavigationLink controls the navigation presentation.

Add the below code in the ContentView file:

 struct ContentView: View {
    var body: some View {
        NavigationStack {
                NavigationLink("Go to First Screen") {
                    FirstScreenView()
                }
                NavigationLink("Go to Second Screen") {
                    SecondScreenView()
                }
                NavigationLink("Go to Third Screen") {
                    ThirdScreenView()
                }
        }
    }
}

In the above code, the texts are passed to the 'title' parameter of the NavigationLink whereas the name of the files are considered as the destination of the NavigationLinks.

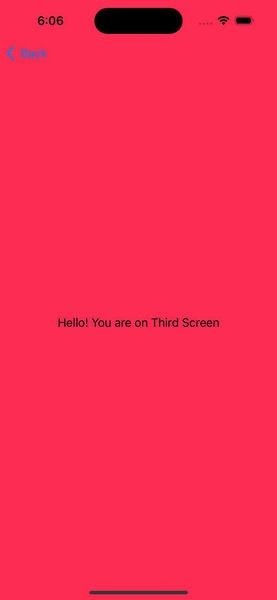

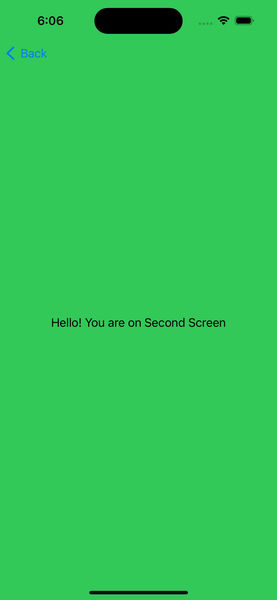

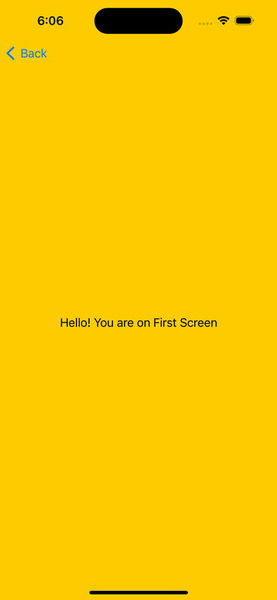

Run the code and check if the Navigation works properly.

The Navigation works successfully! So now, let's make our UI better by giving a good look and feel to the first screen. For that, we will be adding the navigation links into a List.

List is used to display rows of arranged data in a single column providing the ability to select one or more members. It is similiar to the TableView that we used to create in the storyboards.

struct ContentView: View {
    var body: some View {
        NavigationStack {
            List {
                NavigationLink("Go to First Screen") {
                    FirstScreenView()
                }
                NavigationLink("Go to Second Screen") {
                    SecondScreenView()
                }
                NavigationLink("Go to Third Screen") {
                    ThirdScreenView()
                }
            }
            .navigationTitle("Screens")
        }
    }
}

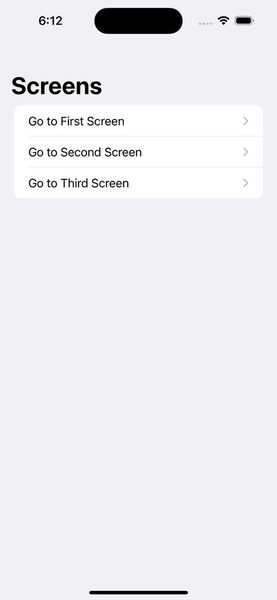

Run the code and observe the output.

This article was just a demo to understand how the navigation works in SwiftUI. You can optimise your code as per your needs and requirements. Hope you found this article useful.

Happy Coding!
