Learn About Dynamic EntryComponent in Angular

Introduction


Angular is an open-source Javascript framework to build web applications in HTML and Javascript. It will provide us a great deal of flexibility and power when building our apps.


Entry component


A bootstrap component is an entry component that Angular loads into a DOM Module at application lunch and other root components are loaded dynamically into entry components.

There are two main kinds of entry components:
  • The bootstrapped root component. (Router)
  • A component you specify in a route definition. (Entry Component)
In the below example, the App Component is a root component so Angular loads this dynamically:



Example:
  • Create a New Project
Create a new folder named DynamicComponentsInAngular9 and select this folder in Visual Studio Code
  • Install Angular 9
Open Terminal windows in Visual Studio Code install Angular 9, as shown below:

To install the CLI using npm, use the command: npm install -g @angular/cli

To create a sample project with CLI, use the command: ng new DynamicComponents

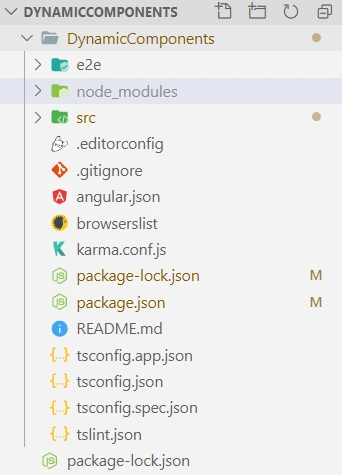

Structure of Project



  • Create Children Components
Create a new folder named components in src\app folder. In this folder, create children components as shown below:

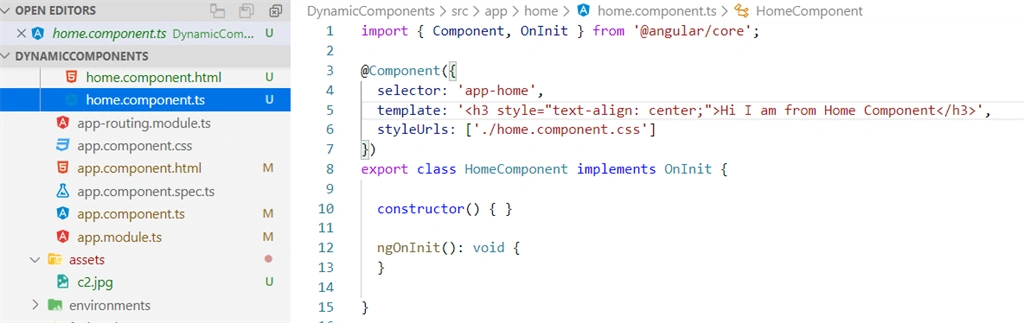

Home Component


Create a new folder named hi in src\app\components folder. In this folder, create a new file named Home.component.ts

ng g c Home --skipTests=true

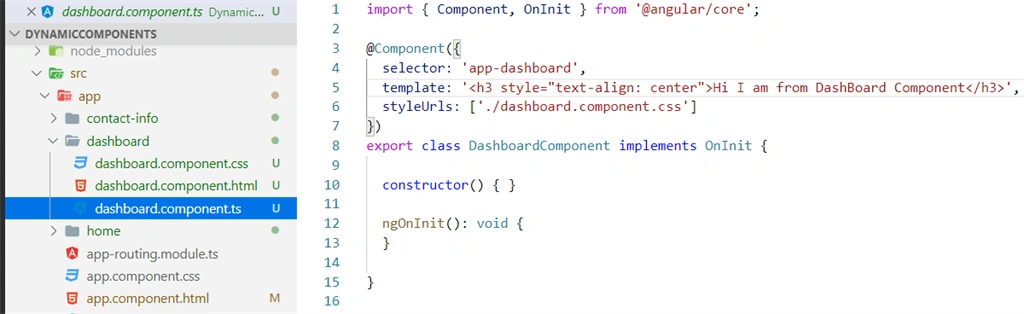

Dashboard Component


Create a new folder named hi in src\app\components folder. In this folder, create a new file named Dashboard.component.ts

ng g c Dashboard --skipTests=true

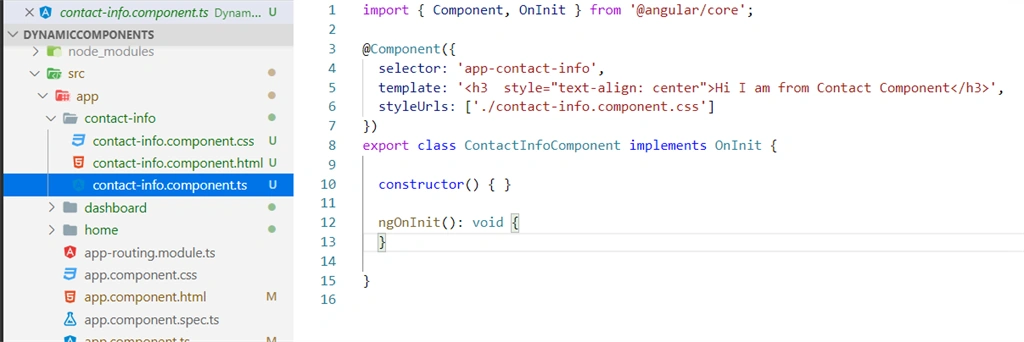

ContactInfo Component


Create a new folder named hi in the src\app\components folder. In this folder, create a new file named ContactInfo.component.ts

ng g c ContactInfo--skipTests=true


Open Main Component
  1. import {
  2.     Component,
  3.     OnInit
  4. } from '@angular/core';
  5. import {
  6.     HomeComponent
  7. } from './home/home.component';
  8. import {
  9.     DashboardComponent
  10. } from './dashboard/dashboard.component';
  11. import {
  12.     ContactInfoComponent
  13. } from './contact-info/contact-info.component';
  14. @Component({
  15.     selector: 'app-root',
  16.     templateUrl: './app.component.html',
  17.     styleUrls: ['./app.component.css']
  18. })
  19. export class AppComponent implements OnInit {
  20.     title = 'DynamicComponents';
  21.     dynamicCom: any;
  22.     ngOnInit() {
  23.         this.dynamicCom = HomeComponent;
  24.     }
  25.     dynamicDash() {
  26.         this.dynamicCom = DashboardComponent;
  27.     }
  28.     dynamicContact() {
  29.         this.dynamicCom = ContactInfoComponent;
  30.     }
  31.     dynamicHome() {
  32.         this.dynamicCom = HomeComponent;
  33.     }
  34. }
  35. // Root Component html
  36. <div class="container ml-10 mt-2" style="width:100;">
  37.     <a class="navbar-brand" href="#">
  38.         <img src="assets/c2.jpg" width="1111" height="200">
  39.         </a>
  40.         <h2 style="text-align:center;text-decoration:dotted;background-color:gainsboro;">Dynamic Entry Components </h2>
  41.         <nav class="navbar navbar-expand-lg navbar-white bg-white pt-4">
  42.             <button class="btn btn-outline-primary col offset-1" (click)="dynamicHome()" type="submit">Home</button>
  43.             <button class="btn btn-outline-primary col offset-1" (click)="dynamicDash()" type="submit">Dashboard</button>
  44.             <button class="btn btn-outline-primary col offset-1" (click)="dynamicContact()" type="submit">ContactInfo</button>
  45.         </nav>
  46.         <div class="pt-5">
  47.             <ng-container *ngComponentOutlet="dynamicCom"></ng-container>
  48.         </div>
  49.     </div>

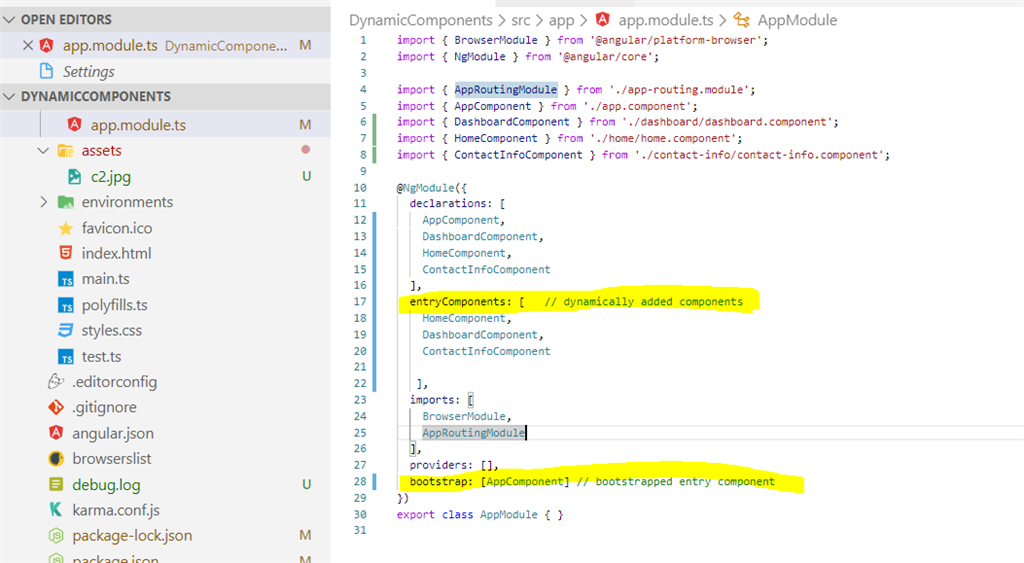

Open Component to Module and see that the Child components are added:
  1. import {
  2.     BrowserModule
  3. } from '@angular/platform-browser';
  4. import {
  5.     NgModule
  6. } from '@angular/core';
  7. import {
  8.     AppRoutingModule
  9. } from './app-routing.module';
  10. import {
  11.     AppComponent
  12. } from './app.component';
  13. import {
  14.     DashboardComponent
  15. } from './dashboard/dashboard.component';
  16. import {
  17.     HomeComponent
  18. } from './home/home.component';
  19. import {
  20.     ContactInfoComponent
  21. } from './contact-info/contact-info.component';
  22. @NgModule({
  23.     declarations: [
  24.         AppComponent,
  25.         DashboardComponent,
  26.         HomeComponent,
  27.         ContactInfoComponent
  28.     ],
  29.     entryComponents: [
  30.         HomeComponent,
  31.         DashboardComponent,
  32.         ContactInfoComponent
  33.     ], // dynamically added components
  34.     imports: [
  35.         BrowserModule,
  36.         AppRoutingModule
  37.     ],
  38.     providers: [],
  39.     bootstrap: [AppComponent] // bootstrapped entry component
  40. })
  41. export class AppModule {}


Run Application


In Terminal windows in Visual Studio Code, type: ng serve --open, program. It will open the URL http://localhost:4200/ in the browser.

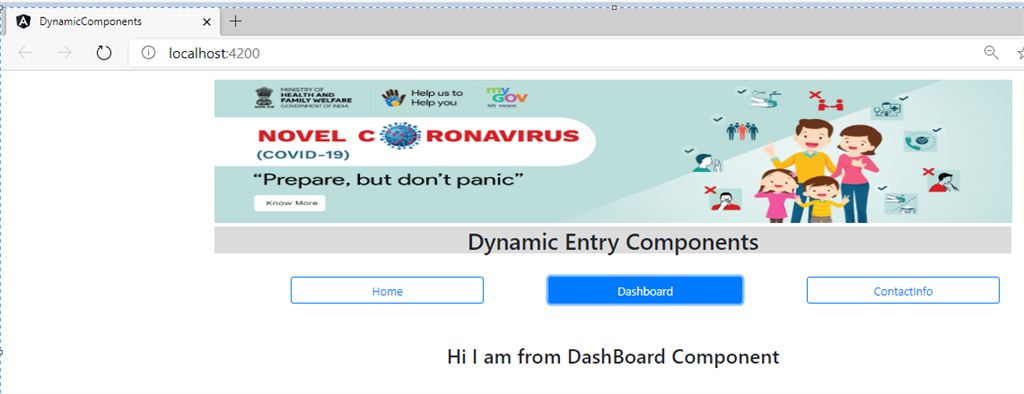

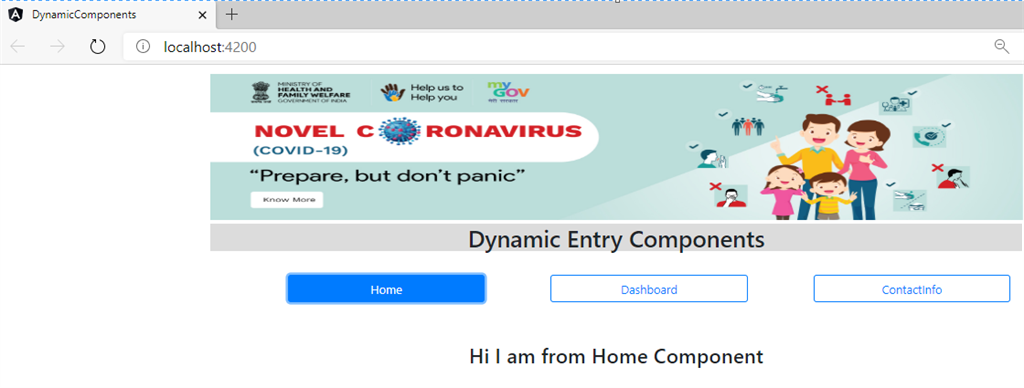

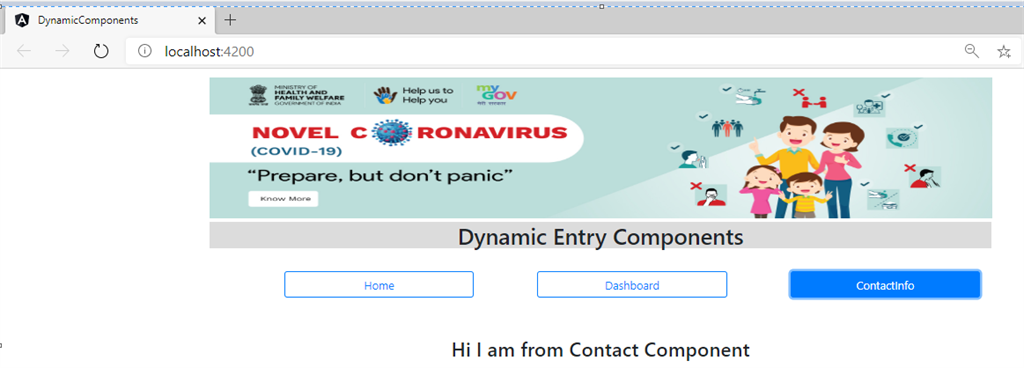

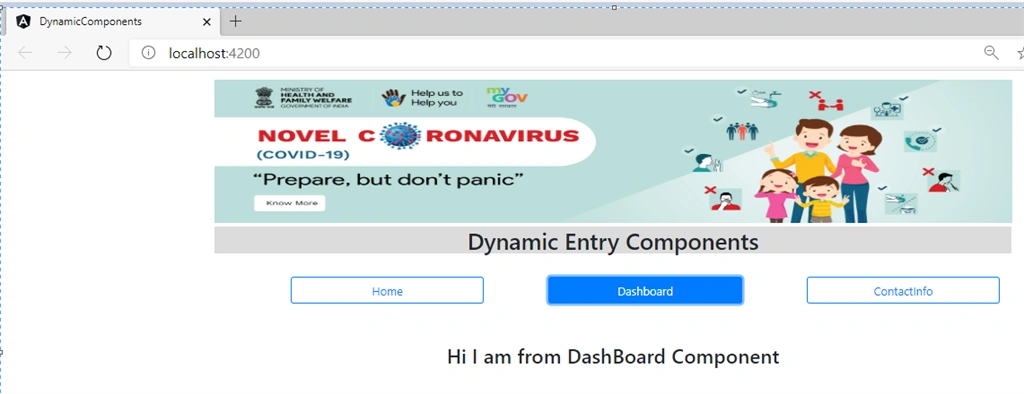

Output
