Introduction To MongoDB

Introduction

This is the first part and as we are new to MongoDB and No-SQL. I would like to start with the definition of NoSQL.

NoSQL

NoSQL stands for Not Only SQL. NoSQL is a not relational based database. NoSQL databases does not follow the rules of RDMS and NoSQL databases does not use SQL to query the data.

NoSQL databases can be divided in to four categories

  1. Document Store
  2. Graph Store
  3. Column Value Store
  4. Key-Value Store

MongoDB comes under Document Store database

Document Store Databases: In Document Store Database, Data is stored in form of documents. it extends the Key value Store Database Concept.

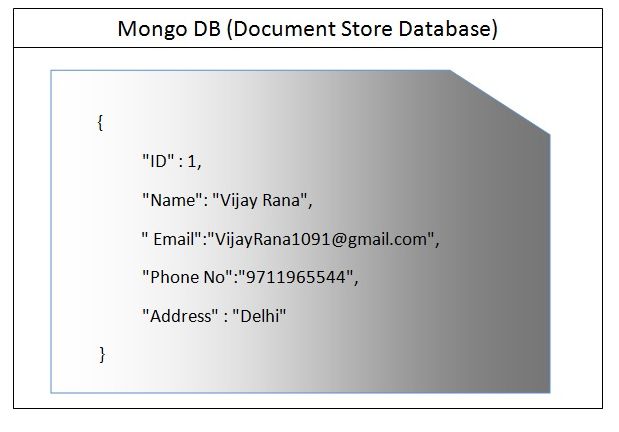

Mongo DB and Couch DB are two main Document Store Databases .Mongo DB stores data in form of Documents. Here is an example of sample document.

Mongo DB

Set up Mongo DB on Machine

Download MongoDB from below MongoDB official Site (Download MSI file as per your Operating System).

Install MSI file (In case of Window Operation System,Default Location is (C:\Program Files\MongoDB)

Copy this folder and Place this in your C Drive or any other drive and Create a Folder in C drive named data and a Folder named db inside data folder.

So In C Drive we have two folders now,

  1. MongoDB (Copied from Installation Location)
  2. data/db (Create a folder named data and a folder named db inside data Folder)

Start Mongo DB

Go to the bin folder inside MongoDB folder which we placed in c Drive.

In my case bin Folder is inside MongoDB folder(It can be inside server folder as well as below) C:\Program Files\MongoDB\Server\3.0\bin and double click on the Mongod.exe (It will open a command Prompt and it will start the MongoDB server).

Last line should say "Waiting for connections..." as below it means our Mongo DB server has been started successfully

Waiting for connections

Download RoboMongo

RoboMongo. Shell-centric cross-platform open source MongoDB management tool (i.e.... Admin GUI). [It] embeds the same JavaScript engine (based on Mozilla SpiderMonkey), that powers MongoDB's mongo shell. It means that you can reuse your existing skills of MongoDB Shell in Robomongo

We can download Robomongo from Robomongo Original Site named Robomongo.org.

Once download. Run the exe and Go to the File-->Connect (Make sure your mongodb server is up and running which we ran in last step through Mongod.exe)

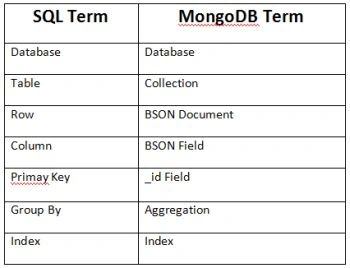

MongoDB Terminology

Before going foreword we should know the terminology of MongoDB,

Operation In SQL In MongoDB
Create Insert Insert
Read Select Find
Update Update Update
Delete Delete Remove
Table Table Collection
Row Row Document

Key points of MongoDB

  1. MongoDB Stores Data in Json Format(We call it BSON(Binary JSON)).

  2. JSON stands for JavaScript Object Notations and looks like {“Name”:”Vijay”}.

  3. JSON documents store data in Key Value Pair like {“X”:1,”Y”:2,”Z”:3}.

  4. There are two basic structure inside JSON is,

    a. Array - List of things is represented in List of Items [……..]
    b. Dictionaries - Associate Maps {key:Value}

    For example {Name : ‘Vijay’,City : ‘Shamli’,interest : ["Sports" ,"Music" ]}

    Name and city is dictionary and Interest is an Array.

  5. Mongo Db is Schema less , Schema Less means two documents don’t need to be same schema.

    First Document in a collection can be - {Name:"Vijay",Email:"[email protected]"}
    Second Document in same collection can be - {Name:"Vijay",Email:"[email protected]",Address : "Delhi"}

  6. MongoDB does not support Joins.

  7. Mongo DB does not support Transactions.

It's Query Time

We will see here some of the queries which we run in Sql server on a daily basis and equivalent queries in Mongo DB.
For this I created a table in SQL server with below schema and a same collection (Remember table is a collection in MongoDB) in MongoDB.

Query Time

We will create the same table  in MongoDB and different operations on this table using MongoDB.

Operation SQL MongoDB
Select Database use Test use Test

Select Database

We will get a message "switched to db Test",

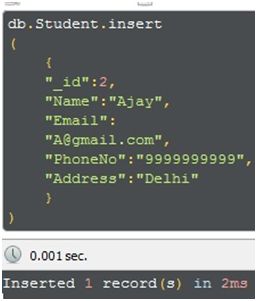

Insert RecordInsert into
Student Values(1,'Vijay',
'[email protected]',
'9711965544','Delhi')		db.Student.insert(
{"_id":1,"Name":"Vijay","Email":"[email protected]",
"PhoneNo":"9711965544","Address":"Delhi"}
)

Insert Record

Note: _id works as a primary key in MongoDb. if we will not insert any value in this column then MongoDB will automatically insert a unique ID in Table.

Inserting some more records in both Sql Server and in MongoDB (Attaching Sql script and MongoDB script).

Download InsertRecord.zip from top of this article.

After Running scripts we have below data in Student table (Sql server and in MongoDB) databases.

 table

Select Select all Columns

select * from student

Select few Column

select ID,Name from Student		Select all Columns

db.Student.find()

Select few Column

db.Student.find({},{"Name":true})

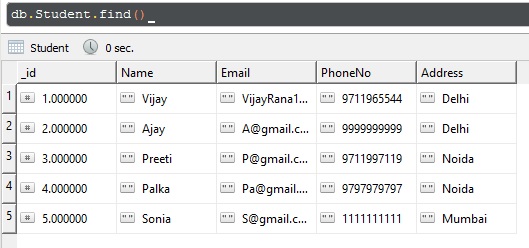

We use find() Method to pull all the records from the table.

select

Where Clause select * from student where Name='Vijay'db.Student.find({Name:"Vijay"})

where

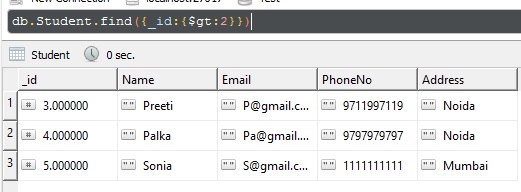

Greater Than and Less Than select * from student where ID>2
select * from student where ID>=2
select * from student where ID<2
select * from student where ID<=2		db.Student.find({_id:{$gt:2}})
db.Student.find({_id:{$gte:2}})
db.Student.find({_id:{$lt:2}})
db.Student.find({_id:{$lte:2}})

We use $gt/$gte for Greater Than/Greater Than Equal and $lt/$lte for Less Than/Less Than Equal


greater

Like Below query will Find all the records where letter P exist somewhere in Name Column,

select * from student where Name like '%P%'

Suppose we want to find all the records where Name ends with letter 'a'

select * from student where Name like '%a'

Suppose we want to fetch all the records where Name starts with Letter 'P'

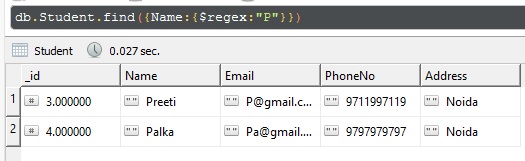

select * from student where Name like 'p%'		In Mongo DB we use $regex operator to check whether letter 'P' exist somewhere in Name Column.

db.Student.find({Name:{$regex:"P"}})

Below query will Fetch all the records where Name ends with letter 'a'

db.Student.find({Name:{$regex:"a$"}})

Below query will Fetch all the records where Name starts with letter 'P'

db.Student.find({Name:{$regex:"^P"}})

like

And/OrAnd

select * from Student
where Name ='Vijay'
and phoneNo='9711965544'

Or

select * from Student
where Name ='Vijay'

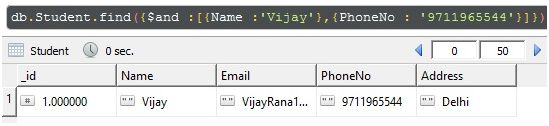

or phoneNo='9711997119' 		And - db.Student.find({$and :[{Name :'Vijay'},{PhoneNo : '9711965544'}]})

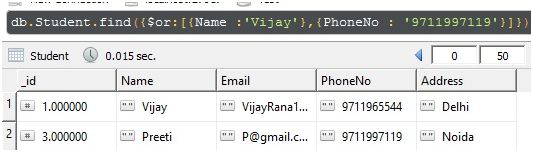

Or - db.Student.find({$or:[{Name :'Vijay'},{PhoneNo : '9711997119'}]})

Or

And

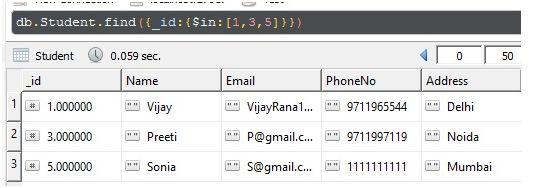

in select * from Student where id in(1,3,5)db.Student.find({_id:{$in:[1,3,5]}})

select

Count/Sort Count all the records

select count(*) from Student

Sort Records in ascending order

 select * from student order by Name

Sort in descending order

select * from student order by Name desc		Count all the records

db.Student.find().count()

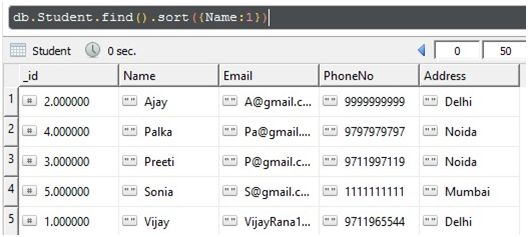

Sort Records in ascending order

 db.Student.find().sort({Name:1})

Sort in descending order

db.Student.find().sort({Name:-1})

Count all the records

Count

Update update student set phoneNo='2222222222',
Address='USA'
where ID=4 		db.Student.update({_id:4},{$set:{PhoneNo:'2222222222',Address:'USA'}})

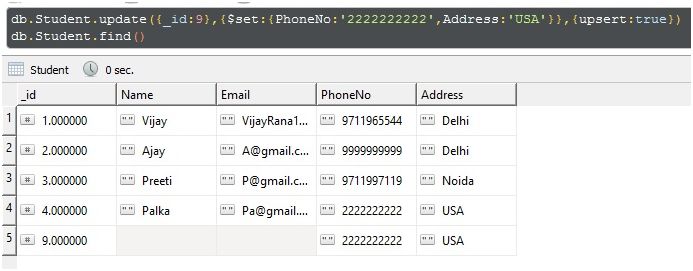

Upsert

db.Student.update({_id:9},{$set:{PhoneNo:'2222222222',Address:'USA'}},{upsert:true})
above query will search a document where _id is 9. it there will be a _id with 9 it will update phoneNo and Address otherwise it will insert a new document where _id is 9.

Multi

Suppose we execute below query.

db.Student.update({Name:"Vijay"},{$set:{PhoneNo:'2222222222',Address:'USA'}})

It will update only one record(remember only first Match where name is "Vijay"). But if we want to update all the records where Name is "Vijay" then we will pass multi argument also
db.Student.update({Name:"Vijay"},{$set:{PhoneNo:'2222222222',Address:'USA'}},{multi:true})



Delete/Remove/Drop Delete with Condition

Delete from student where ID=5

Delete all the records

Delete from Student

Drop

drop table Student 		Delete with Condition

db.Student.remove({_id:5})

Delete all the records

db.Student.remove({})

Drop

 db.Student.drop()

Remove

Top select Top 2* from StudentLimit

db.Student.find().limit(2)

Skip

db.Student.find().skip(2).limit(2)

As name suggest skip will skip the number of documents and limit will limit the number of records.

distinct select distinct Name from Student db.Student.distinct("Name")

Backup BACKUP DATABASE Test
TO DISK = 'C:\Vijay\Test.Bak'
WITH FORMAT,
MEDIANAME = 'Z_SQLServerBackups',
NAME = 'Full Backup of Test Database';		Go to the command Prompt and run the below command (assuming your mongodump exe is inside bin folder, if it is a different location then change this location accordingly)
C:\Program Files\MongoDB\Server\3.0\bin\mongodump --db Test

MongoDB Functions

In MongoDB databases we can create functions like in Sql Server. MongoDB provides us a collection named as System.js for this.

System.js collection contains two keys

1. _id - _id is the function name.

2. value - value contains actual function defination.

For example, suppose we want to create a function which will accept two parameters named firstname and lastname and will return full name.

  1. db.system.js.save
  2. ({
  3.     _id: "FullName",
  4.     value: function(FirstName, LastName)
  5.     {
  6.         return FirstName + ' ' + LastName;
  7.     }
  8. })
In order to call this function we need to load server scripts first, and than we can call this function as below,
  1. db.loadServerScripts();
  2. FullName('Vijay', 'Rana')
Vijay Rana will be the result when we will call this function.

Auto Increment ID( Identity in Sql Server) in MongoDB

In MongoDB _id works as a primary key. If we don't insert any value in _id field then MongoDB automatically inserts a unique hexadecimal value in this column. But if we want to enter auto increment integer value (Like Identity in Sql Server or Sequence in Oracle) in this field then there is no direct way to do so. For this we need to follow the below steps

Step 1 - Create a collection( Identity in my case) which will hold the counter.

  1. db.createCollection("Identity") // Identity is my collection Name
Step 2 - Insert a document in this collection with intial counter value,
  1. db.Identity.insert
  2. ({
  3.     _id: "incrementID",
  4.     sequence_value: 0
  5. })
Step 3 - Create a function which will increment this sequence_value and add that function in system.js as below,
  1. db.system.js.save
  2. ({
  3.     _id: "getNextIdentity",
  4.     value: function getNextIdentity(sequenceName)
  5.     {
  6.         var sequenceDocument = db.Identity.findAndModify
  7.         ({
  8.             query:
  9.             {
  10.                 _id: sequenceName
  11.             },
  12.             update:
  13.             {
  14.                 $inc:
  15.                 {
  16.                     sequence_value: 1
  17.                 }
  18.             },
  19.             new: true
  20.         });
  21.         return sequenceDocument.sequence_value;
  22.     }
  23. })
Step 4 - While inserting a document we can call this function, which will return a incremented value as below,
  1. db.Employee.insert
  2. ({
  3.     "_id": getNextIdentity("incrementID"),
  4.     "EmpName": "Vijay",
  5.     "Age": "30"
  6. })
In the next article I will talk about the rest of the MongoDB commands, How we will Generate Auto Increment ID as we normally do in Sql Server(Identity Column) and we will see the connectivity of .Net with MongoDB.
