Introduction To Flexbox: A Powerful Layout Model

Flexbox is a powerful CSS layout model that empowers developers to create dynamic and responsive layouts with ease. It offers a flexible and efficient way to arrange and align elements within a container, making it a cornerstone of modern web design.

Benefits of Using Flexbox

  • Responsive Design: Easily create layouts that adapt to different screen sizes.
  • Dynamic Layouts: Position and align elements in various ways without complex positioning techniques.
  • Efficient Development: Simplify layout creation and reduce the need for media queries.
  • Cross-Browser Compatibility: Widely supported across modern browsers.

Let me explain with an example.

Step 1. Create an index.html file & index.css file.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Flex Container</title>
    <link rel="stylesheet" href="index.css">
</head>
<body>
    <div class="container">
        <div class="flex-item item1">HTML</div>
        <div class="flex-item item2">CSS</div>
        <div class="flex-item item3">JavaScript</div>
        <div class="flex-item item4">React</div>
        <div class="flex-item item5">Angular</div>
        <div class="flex-item item6">Vue</div>
    </div>
</body>
</html>

Step 2. Add the following code in the index.css

.container {
    border: 2px solid black;
}

.flex-item {
    padding: 1rem;
    text-align: center;
    font-size: medium;
}

.item1 {
    background-color: violet;
}

.item2 {
    background-color: indigo;
}

.item3 {
    background-color: blue;
}

.item4 {
    background-color: green;
}

.item5 {
    background-color: yellow;
}

.item6 {
    background-color: orange;
}

.item7 {
    background-color: red;
}

Each item is given an individual color.

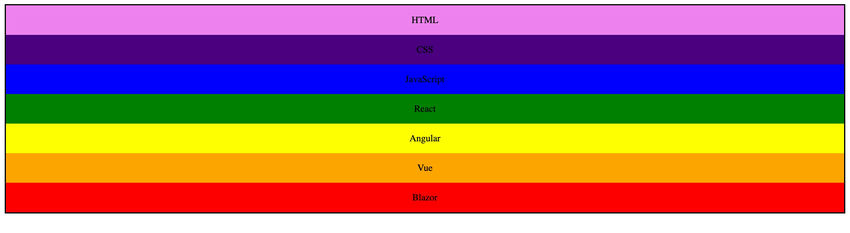

Step 3. Run the index.html in the browser.

Browser

A div is a block-level element, meaning it takes up the entire width available within its parent container, stretching from one side to the other.

Step 4. Now, let's add the display as a flex in the container class.

.container{
    display: flex;
    border: 2px solid black;
}

In CSS, display: flex is a declaration that establishes a flexible layout model for arranging elements within a container. This model, often referred to as Flexbox, empowers you to create dynamic and responsive layouts that adapt to different screen sizes and orientations.

How does it work?

  1. Flex Container
    • Applying display: flex to a container element transforms it into a flex container.
    • This container acts as a parent element that controls the layout of its direct child elements, known as flex items.
  2. Flex Items
    • The direct children of a flex container become flex items.
    • These items are arranged and aligned within the container according to the flexbox properties.

Step 5. Open the index.html in a browser.

Open File

Unlike block-level elements, flex items are arranged horizontally, each maintaining its individual width and not expanding to fill the container.

How can I eliminate the empty space that sometimes appears to the right of the last flex item?

By setting the container's display property to inline-flex, the container will shrink to match the total width of its flex items, removing any unnecessary space.

Step 6. Set the display as inline-flex.

.container{
    border: 2px solid black;
    display: inline-flex;
}

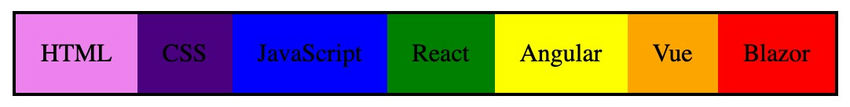

Step 7. Open the index.html in a browser.

Flexbox

Mastering these core concepts and properties empowers you to create elegant, responsive web designs with Flexbox.

Happy Coding!
