Introduction
VMware vSAN (Virtual SAN) is a software-defined storage solution that integrates seamlessly with VMware vSphere, providing a scalable, high-performance, and resilient storage platform. It enables organizations to manage storage in a virtualized environment efficiently, eliminating the need for traditional storage arrays. As a key component of a hyper-converged infrastructure (HCI), vSAN consolidates compute and storage resources, simplifying data center operations and reducing costs.
![]()
The Evolution of Storage Solutions
Traditionally, data centers have relied on dedicated storage hardware such as SAN (Storage Area Network) and NAS (Network Attached Storage). These solutions, while reliable, often come with high costs, complexity, and scalability issues. The advent of virtualization revolutionized compute resources, and the same principles are now being applied to storage with solutions like VMware vSAN.

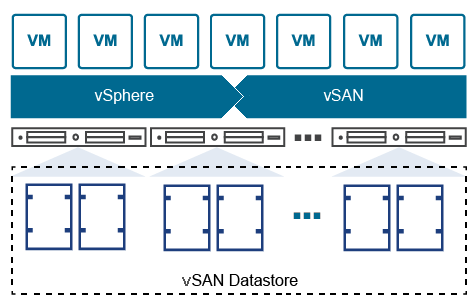

![vSAN Datastore]()
Related Image:© VMware
VMware vSAN Architecture
VMware vSAN operates by pooling direct-attached storage devices from multiple servers into a shared data store that all hosts in a vSphere cluster can access. This architecture is comprised of several key components:
- vSphere Hypervisor: The underlying virtualization layer that runs on each host.
- vSAN Datastore: A single distributed datastore created by aggregating the local storage resources of the ESXi hosts.
- Storage Policy-Based Management (SPBM): Allows administrators to define storage policies that ensure VMs meet specific performance, availability, and redundancy requirements.
- Disk Groups: Consist of a cache tier (using SSDs) and a capacity tier (using HDDs or SSDs), providing a balance of performance and storage capacity.
Key Features of VMware vSAN
VMware vSAN offers a range of features that make it a compelling choice for modern data centers:
- Ease of Deployment: Integrates with existing VMware environments without the need for additional hardware.
- Scalability: Easily scales out by adding more hosts and scales up by adding more disks to existing hosts.
- High Performance: Utilizes SSDs for caching and optimization, delivering fast read and write speeds.
- Resiliency and Availability: Provides built-in data protection features such as mirroring, erasure coding, and stretched clusters for disaster recovery.
- Automated Management: Simplifies storage management with SPBM, allowing for automated provisioning and compliance.
vSAN Use Cases
VMware vSAN is versatile and can be applied to various scenarios within the data center:
- Virtual Desktop Infrastructure (VDI): Provides the necessary performance and scalability to support large-scale VDI deployments.
- Business-Critical Applications: Supports databases and enterprise applications with high availability and performance requirements.
- Remote Office/Branch Office (ROBO): Simplifies infrastructure management in remote locations with limited IT resources.
- Disaster Recovery: Facilitates disaster recovery solutions with features like stretched clusters and vSphere Replication.
Benefits of VMware vSAN
Adopting VMware vSAN can bring several advantages to an organization:
- Cost Efficiency: Reduces CapEx and OpEx by eliminating the need for expensive storage arrays and simplifying management.
- Operational Simplicity: Streamlines operations through integration with vSphere and automation of storage tasks.
- Flexibility and Agility: Enables rapid provisioning and scaling of storage resources to meet dynamic business needs.
- Enhanced Performance: Improves application performance with SSD caching and optimized data placement.
- Robust Security: Ensures data integrity and security with features like encryption and access controls.
Implementing VMware vSAN
To implement VMware vSAN, organizations should follow these steps:
- Planning and Design: Assess current infrastructure, define storage requirements, and plan the vSAN deployment.
- Hardware Selection: Choose compatible servers, network components, and storage devices. VMware provides a vSAN Compatibility Guide to aid in this process.
- Installation and Configuration: Install vSphere on hosts, configure networking, and set up the vSAN cluster through the vSphere Web Client.
- Policy Creation and Assignment: Define and apply storage policies using SPBM to ensure VMs adhere to required performance and availability criteria.
- Monitoring and Maintenance: Use tools like vRealize Operations and vSAN Health Service to monitor performance, manage capacity, and perform routine maintenance.
Challenges and Considerations
While VMware vSAN offers numerous benefits, there are considerations to keep in mind:
- Initial Setup Complexity: Proper planning and design are crucial to avoid potential issues during deployment.
- Network Requirements: High-performance networking is essential for optimal vSAN performance, particularly in stretched cluster configurations.
- Ongoing Management: Regular monitoring and maintenance are necessary to ensure the vSAN environment remains healthy and performant.
Future of VMware vSAN
As data centers continue to evolve, VMware vSAN is poised to play a significant role in the future of storage. Emerging trends such as hybrid cloud environments, edge computing, and AI/ML workloads will drive further innovations in vSAN, enhancing its capabilities and expanding its use cases.
Conclusion
VMware vSAN is a powerful and flexible software-defined storage solution that integrates seamlessly with VMware vSphere. By providing a hyper-converged infrastructure, vSAN simplifies storage management, improves scalability, and reduces costs. Whether supporting VDI, business-critical applications, or disaster recovery solutions, VMware vSAN is well-suited to meet the demands of modern data centers.
