Integrating IoT with Azure IoT Using AMQP

Introduction

In the dynamic era of the Internet of Things (IoT), the significance of edge computing is on the rise. Edge computing involves processing data in close proximity to its source, resulting in quicker operations, enhanced data security, and optimized internet resource utilization. To make edge computing effective, seamless communication among devices is paramount. One notable solution for achieving this is through AMQP (Advanced Message Queuing Protocol). When AMQP seamlessly integrates with Microsoft's Azure IoT Edge, a world of exciting possibilities unfolds.

Power of AMQP in IoT Edge Computing

AMQP is a sophisticated messaging protocol that facilitates communication between distributed systems while ensuring reliability, interoperability, and scalability. It operates on a client-server model, allowing devices or clients to establish connections with a central message broker. This broker manages the communication flow, delivering messages to the intended recipients.

Azure IoT Edge extends IoT capabilities to edge devices, enabling data processing, analytics, and decision-making closer to the data source. When AMQP is combined with Azure IoT Edge, it enhances the communication between devices and edge nodes, enabling seamless data exchange and real-time insights.

Benefits of AMQP and Azure IoT Edge Integration

• Efficient Data Transfer: AMQP's lightweight nature ensures efficient data transfer between edge devices and IoT Edge modules. This efficiency is vital for edge computing scenarios where limited bandwidth and resources are a concern.
• Reliable Communication: AMQP's reliable messaging pattern guarantees that messages are delivered and acknowledged, ensuring the integrity of data transmission. This reliability is crucial in critical applications where data accuracy is paramount.
• Interoperability: AMQP's standardized protocol allows for interoperability between devices and edge nodes. Azure IoT Edge modules can seamlessly communicate with devices regardless of their manufacturer or technology stack.
• Real-time Processing: Azure IoT Edge processes data locally, reducing the latency associated with sending data to the cloud for processing. AMQP ensures that the processed data is efficiently sent back to devices or forwarded to the cloud as required.

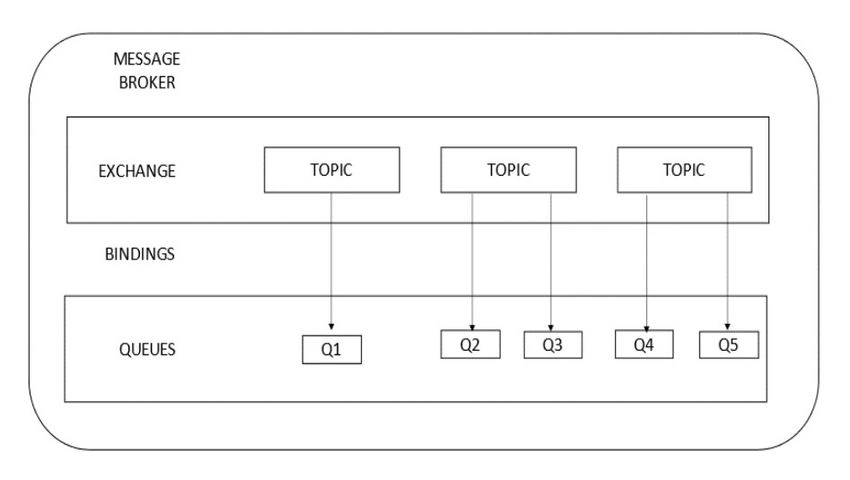

Architecture

• Producers: These are the devices or applications that generate messages or data. They send messages to a message broker for distribution.
• Message Broker: The central component of the architecture is the message broker. It acts as an intermediary that receives messages from producers and delivers them to consumers. The message broker ensures that messages are efficiently routed to the appropriate destinations.
• Exchanges: Exchanges receive messages from producers and determine how these messages should be distributed to different queues. There are different types of exchanges, such as direct, topic, fanout, and headers, each with different routing behaviors.
• Queues: Queues are storage areas where messages are temporarily stored until they are consumed. Consumers retrieve messages from queues in a first-in, first-out (FIFO) manner.
• Bindings: Bindings define the relationship between exchanges and queues. They specify how messages from an exchange should be routed to one or more queues.
• Consumers: Consumers are the devices or applications that receive and process messages. They connect to queues and retrieve messages for processing.

A producer sends a message to the message broker through an exchange. The exchange uses bindings to determine which queues the message should be routed to. The message is stored in the appropriate queue. Consumers connect to the queue and retrieve messages for processing. Once a message is consumed, it is removed from the queue.

Ports Compatible With AMQP

Azure IoT leverages AMQP over WebSockets for secure and reliable communication. Here are the key port numbers associated with AMQP in Azure IoT.

• Port 443 (TLS/SSL): In the Azure IoT ecosystem, AMQP over WebSockets operates over port 443, which is the standard port for secure communication using HTTPS. This port is used to establish a secure WebSocket connection between the device or client and the Azure IoT Hub.
• Port 5671 (TLS/SSL): AMQP typically operates over port 5671 when used in non-browser scenarios. This port is designated for secure AMQP communication using TLS/SSL encryption.
• Port 443 (HTTP/HTTPS): While AMQP itself does not use port 443 for non-WebSocket communication, Azure IoT may utilize port 443 for HTTP-based communication and management operations.

The choice of port depends on the specific communication method and security requirements. When using AMQP over WebSockets, port 443 is essential to establish a secure and encrypted connection between devices and Azure IoT Hub. This ensures that data transmitted between devices and the cloud remains confidential and protected from unauthorized access.

Conclusion

The fusion of AMQP with Azure IoT Edge represents the future of edge computing in the IoT landscape. AMQP's reliability, efficiency, and interoperability align perfectly with the objectives of edge computing, while Azure IoT Edge provides the platform to realize its potential. Together, they enable organizations to deploy intelligent and responsive IoT solutions that operate seamlessly at the edge.
