Image Rendition In SharePoint Server 2013

Image rendition

  • Image rendition helps to display the image with a different height and width of the same image on different pages in a publishing site.
  • When you create an image rendition, you specify the width and/or height for all the images, which uses the image rendition.
  • Image renditions are available for all the images upload into Sharepoint libraries.

Prerequisites for image renditions

Blob cache

Now, let’s go and see how to enable cache settings for a Web Application

Open IIS Manager.

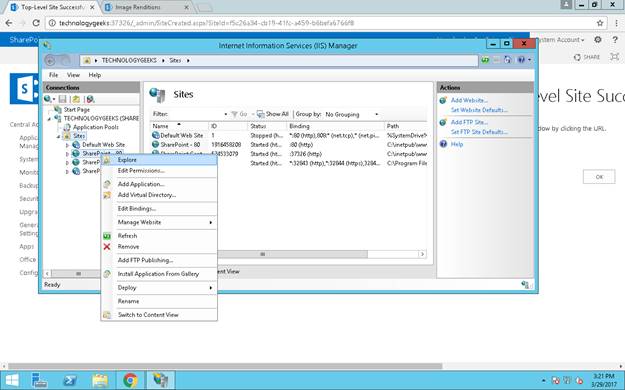

Navigate to IIS Web site -> Click Explore

sharepoint

Open Web.config file.

Find the line given beelow.

  1. <BlobCache location="C:\BlobCache\14" path="\.(gif|jpg|jpeg|jpe|jfif|bmp|dib|tif|tiff|themedbmp|themedcss|themedgif|themedjpg|themedpng|ico|png|wdp|hdp|css|js|asf|avi|flv|m4v|mov|mp3|mp4|mpeg|mpg|rm|rmvb|wma|wmv|ogg|ogv|oga|webm|xap)$" maxSize="10" enabled="false" />

Set Enable = “True”

  1. <BlobCache location="C:\BlobCache\14" path="\.(gif|jpg|jpeg|jpe|jfif|bmp|dib|tif|tiff|themedbmp|themedcss|themedgif|themedjpg|themedpng|ico|png|wdp|hdp|css|js|asf|avi|flv|m4v|mov|mp3|mp4|mpeg|mpg|rm|rmvb|wma|wmv|ogg|ogv|oga|webm|xap)$" maxSize="10" enabled="true" />

Now, the cache settings is successfully enabled under the Web Application.

Publishing Site Collection/ publishing feature enabled site

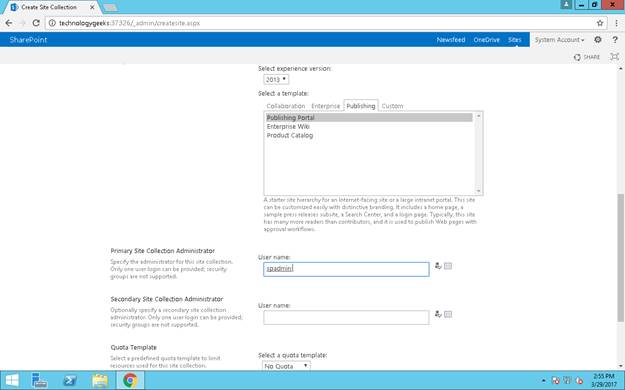

First step is to create a publishing Site Collection.

sharepoint

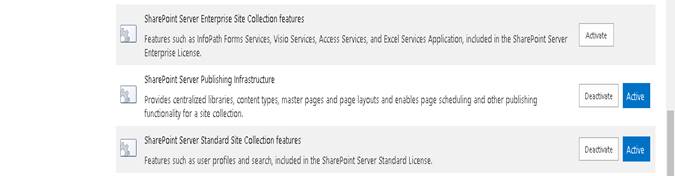

After successful creation of publishing Site Collection, enable Sharepoint publishing features under Site Collection features and manage Site Collection feature.


sharepoint

Asset library

Asset library is useful to stor riche media assets. For example; these are images, videos and audio files

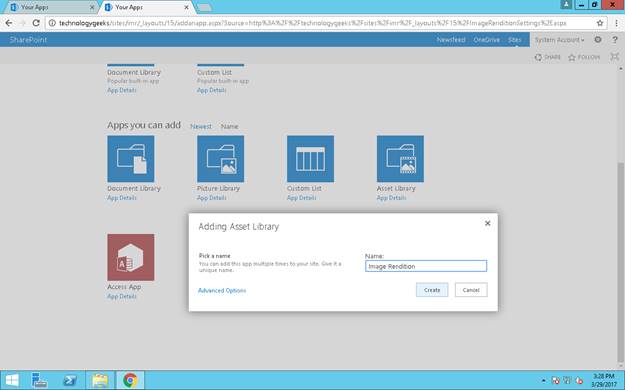

On site settings -> Click Add an app -> Pick Asset library template app.

sharepoint

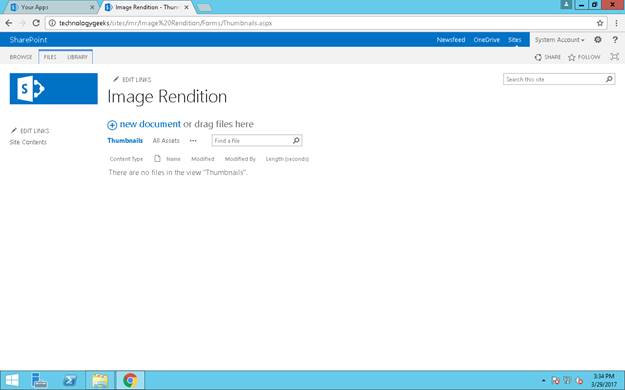

Click Create.

sharepoint

Next step is to let’s go and create image rendition.

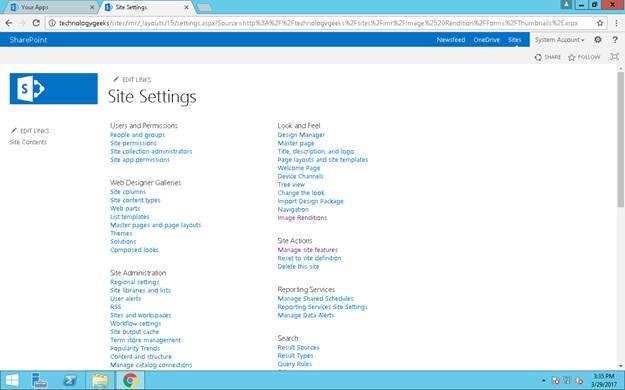

Open site settings -> Under look and feel -> click Image rendition

sharepoint

Click New.

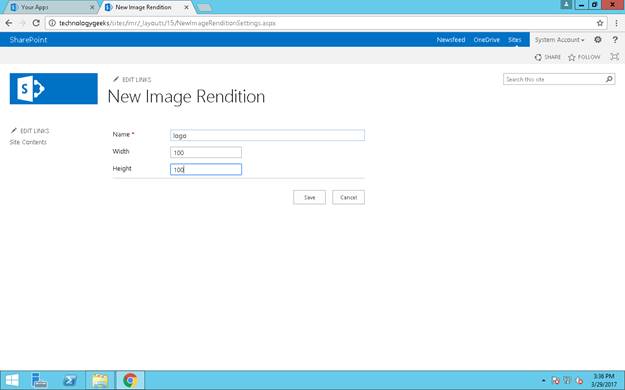

Provide the width and height of image rendition.

sharepoint

Click Save.

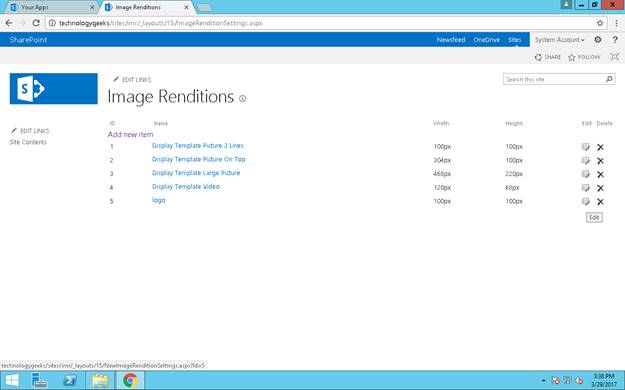

Thus, the Image rendition has been created successfully.

sharepoint

“logo” has been successfully created.

Edit Image rendition

Click Edit icon.

sharepoint

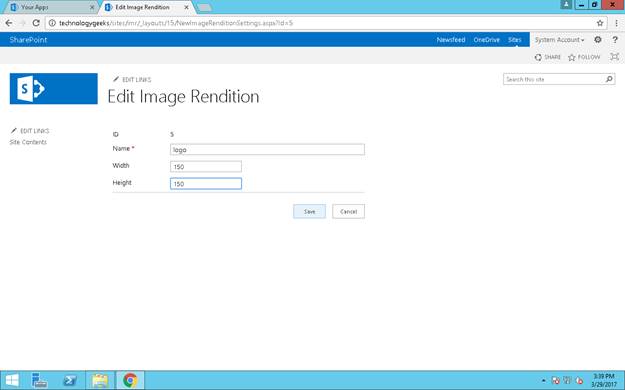

Change the given width and height of the created rendition and click Save.

sharepoint

Now, the image rendition has been edited successfully.

sharepoint

Let’s go and upload a sample image into asset library and pick the rendition.

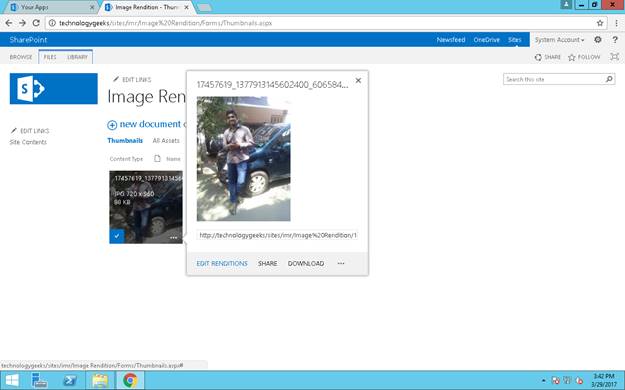

After successful upload of an image -> click Edit renditions.

sharepoint

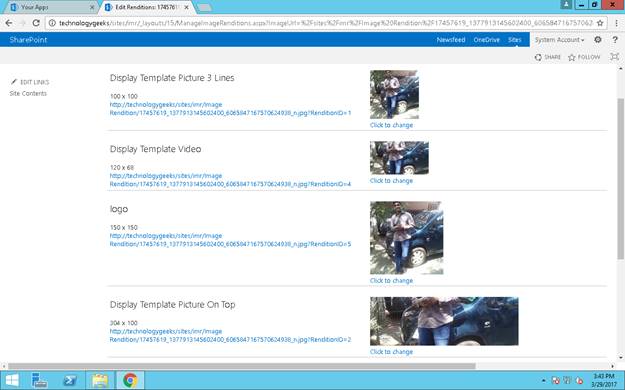

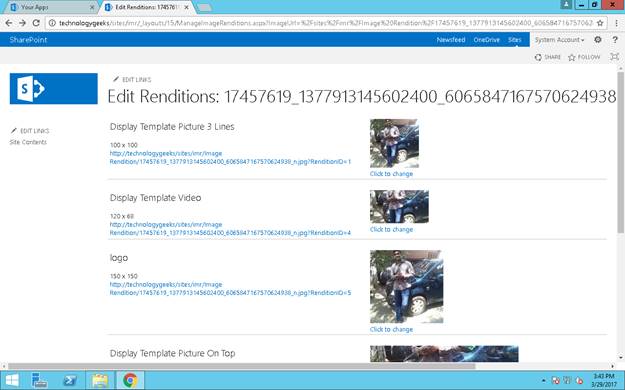

Thus, rendition has been created successfully to upload an image automatically

sharepoint

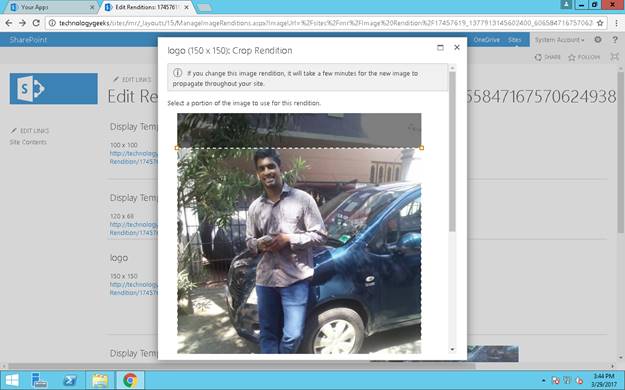

You can also crop the image, using click to change the option given below.

sharepoint

sharepoint

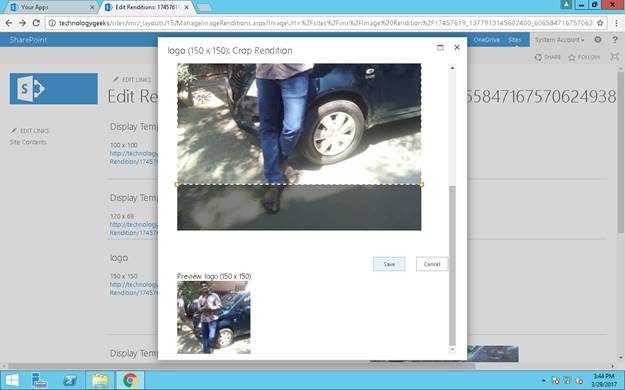

Crop it and click Save.

sharepoint

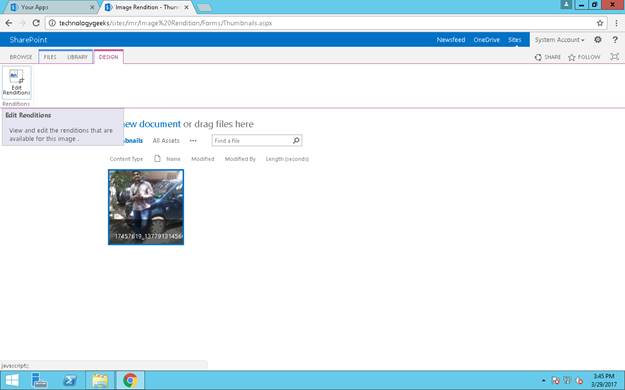

In the ribbon tab also, you can edit rendition option while selecting the image.

sharepoint

Next step is how to use image rendition in SharePoint page

Click Site action gear icon -> Add page.

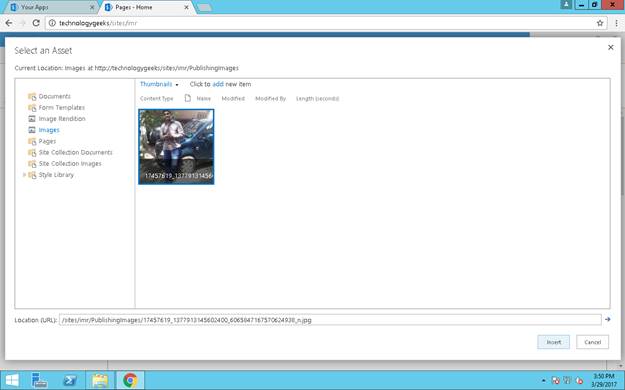

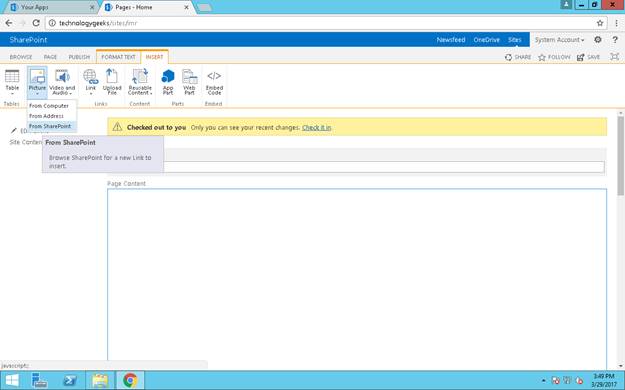

On the page content, click on the top ribbon to insert picture from the options given below.


sharepoint

sharepoint

Click Insert.

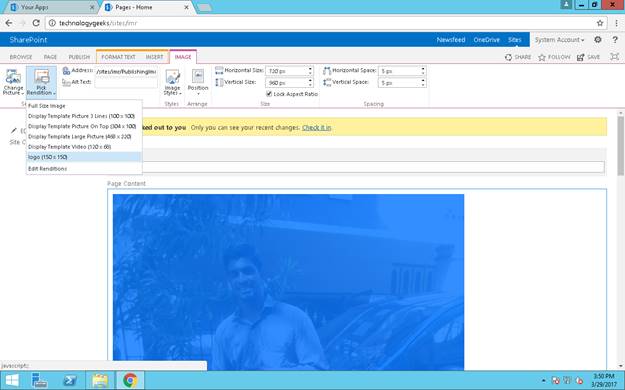

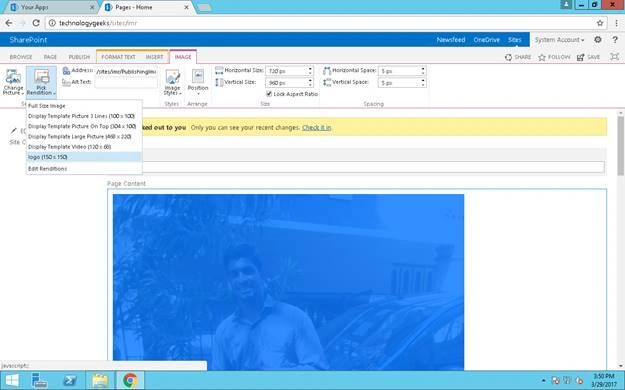

On the Image tab -> Pick Rendition.

sharepoint

Click Save -> Publish.

As of now, you are able to use the same image with different height and width on different pages, using this feature.

How to use image rendition on image tag

Code

<img src=” /sites/imr/PublishingImages/17457619_1377913145602400_6065847167570624938_n.jpg?RenditionID=5” />

Happy learning.
