How To Use Ag-Grid In ReactJS

Introduction


In this article, we will learn how to use ag-grid in a React.js application. ag-Grid  is a component used for showing data in tabular format. By using ag-Grid, developers can easily extend functionality according to their requirements.

Prerequisites
  • Basic knowledge of React.js
  • Visual Studio Code IDE should be installed on your system.
  • Basic knowledge of Bootstrap and HTML.

Create ReactJS project


First, let's create a React application with the following command.
  1. npx create-react-app reduxparttwo
Open the newly created project in Visual Studio Code and install ag-Grid using the  following command.
  1. npm install --save ag-grid-community ag-grid-react
Now install bootstrap in this project by using the following command.
  1. npm install --save bootstrap
Now, open the index.js file and add import Bootstrap.
  1. import 'bootstrap/dist/css/bootstrap.min.css';
Now go to the src folder and add a new component, named 'Aggriddemo.js'.

Add ag grid and style reference in this component, add the following lines in this component.
  1. import { AgGridReact } from 'ag-grid-react';
  2. import 'ag-grid-community/dist/styles/ag-grid.css';
  3. import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
ag-Grid has differenct themes. We can customize these themes. Add the following code in this component:
  1. import React, { Component } from 'react'
  2. import { AgGridReact } from 'ag-grid-react';
  3. import 'ag-grid-community/dist/styles/ag-grid.css';
  4. import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
  5. export class Aggriddemo extends Component {
  6.     constructor(props) {
  7.         super(props);
  8.         this.state = {
  9.             columnDefs: [
  10.                 { headerName: "Id", field: "Id", sortable: true, filter: true },
  11.                 { headerName: "Name", field: "Name", sortable: true, filter: true },
  12.                 { headerName: "Age", field: "Age", sortable: true, filter: true },
  13.                 { headerName: "Address", field: "Address", sortable: true, filter: true },
  14.                 { headerName: "City", field: "City", sortable: true, filter: true },
  15.                 { headerName: "Salary", field: "Salary", sortable: true, filter: true },
  16.                 { headerName: "Department", field: "Department", sortable: true, filter: true }
  17.
  18.
  19.
  20.             ],
  21.             rowData: [
  22.                 {
  23.                     Id: "100",
  24.                     Name: "Sanwar",
  25.                     Age: "25",
  26.                     Address: "Jaipur",
  27.                     City: "Jaipur",
  28.                     Salary: "500000",
  29.                     Department: "IT",
  30.
  31.                 },
  32.                 {
  33.                     Id: "2",
  34.                     Name: "Nisha",
  35.                     Age: "25",
  36.                     Address: "C-Scheme",
  37.                     City: "Jaipur",
  38.                     Salary: "500000",
  39.                     Department: "IT",
  40.                 },
  41.                 {
  42.                     Id: "3",
  43.                     Name: "David",
  44.                     Age: "25",
  45.                     Address: "C-Scheme",
  46.                     City: "Jaipur",
  47.                     Salary: "500000",
  48.                     Department: "IT",
  49.                 },
  50.                 {
  51.                     Id: "4",
  52.                     Name: "Sam",
  53.                     Age: "25",
  54.                     Address: "C-Scheme",
  55.                     City: "Jaipur",
  56.                     Salary: "500000",
  57.                     Department: "IT",
  58.                 },
  59.                 {
  60.                     Id: "5",
  61.                     Name: "Jyotsna",
  62.                     Age: "25",
  63.                     Address: "C-Scheme",
  64.                     City: "Mumbai",
  65.                     Salary: "500000",
  66.                     Department: "IT",
  67.                 },
  68.                 {
  69.                     Id: "6",
  70.                     Name: "Sid",
  71.                     Age: "25",
  72.                     Address: "C-Scheme",
  73.                     City: "Bangalore",
  74.                     Salary: "500000",
  75.                     Department: "IT",
  76.                 },
  77.                 {
  78.                     Id: "7",
  79.                     Name: "Chavi",
  80.                     Age: "25",
  81.                     Address: "C-Scheme",
  82.                     City: "Noida",
  83.                     Salary: "500000",
  84.                     Department: "IT",
  85.                 },
  86.                 {
  87.                     Id: "8",
  88.                     Name: "Nisha",
  89.                     Age: "25",
  90.                     Address: "C-Scheme",
  91.                     City: "Delhi",
  92.                     Salary: "500000",
  93.                     Department: "IT",
  94.                 }
  95.             ]
  96.         }
  97.     }
  98.
  99.     render() {
  100.         return (
  101.             <>
  102.             <div class="row" style={{marginTop:"10px"}}>
  103.     <div class="col-sm-12 btn btn-info">
  104.     Add ag-Grid to ReactJS App
  105.     </div>
  106.   </div>
  107.             <div class="row">
  108.                 <div class="col-md-12">
  109.                     <div class="card">
  110.                         <div class="card-body position-relative">
  111.                             <div className="ag-theme-alpine" style={{ height: "550px" }}>
  112.                                 <AgGridReact
  113.                                     columnDefs={this.state.columnDefs}
  114.                                     rowData={this.state.rowData}
  115.                                     >
  116.                                 </AgGridReact>
  117.                             </div>
  118.                         </div>
  119.                     </div>
  120.                 </div>
  121.             </div>
  122.             </>
  123.
  124.         );
  125.     }
  126. }
  127. export default Aggriddemo
Add  reference of this component in the app.js file, and add the following code in the app.js file.
  1. import React from 'react';
  2. import logo from './logo.svg';
  3. import './App.css';
  4. import Aggriddemo from './Aggriddemo'
  5. function App() {
  6.   return (
  7.     <div className="App">
  8.    <Aggriddemo/>
  9.     </div>
  10.   );
  11. }
  12.
  13. export default App;

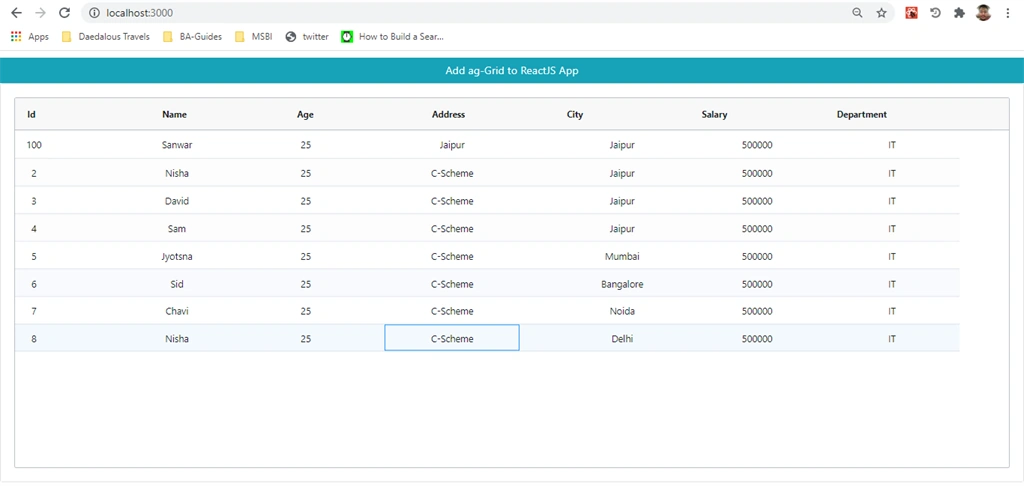

Now, run the project by using 'npm start' command and check the result.

How To Use Ag-Grid In ReactJS

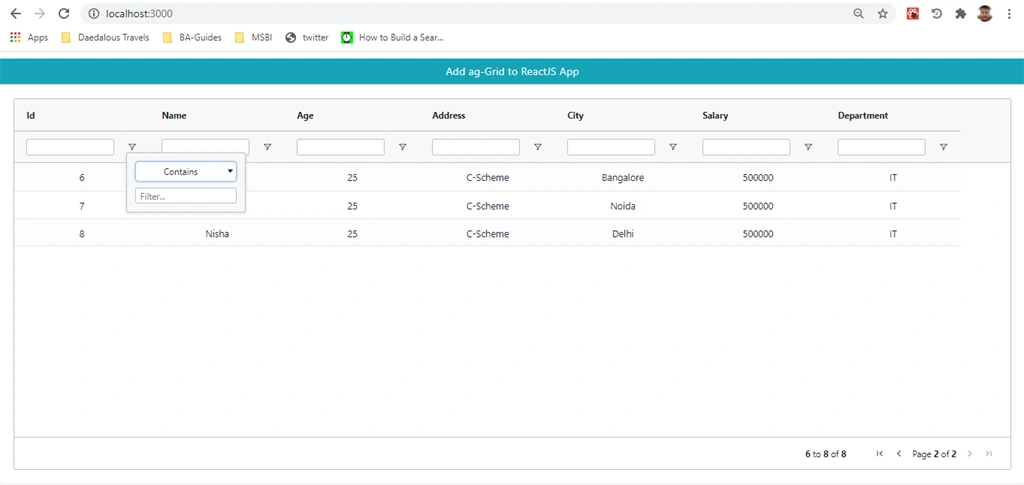

We can also add pagination, sorting and filtering  in ag-grid. To add filtering shorting and pagination add the following property in ag grid.
  1. pagination="true"  paginationPageSize="5" floatingFilter="true"
 Add the following code in the component and check the result:
  1. import React, { Component } from 'react'
  2. import { AgGridReact } from 'ag-grid-react';
  3. import 'ag-grid-community/dist/styles/ag-grid.css';
  4. import 'ag-grid-community/dist/styles/ag-theme-alpine.css';
  5. export class Aggriddemo extends Component {
  6.     constructor(props) {
  7.         super(props);
  8.         this.state = {
  9.             columnDefs: [
  10.                 { headerName: "Id", field: "Id", sortable: true, filter: true },
  11.                 { headerName: "Name", field: "Name", sortable: true, filter: true },
  12.                 { headerName: "Age", field: "Age", sortable: true, filter: true },
  13.                 { headerName: "Address", field: "Address", sortable: true, filter: true },
  14.                 { headerName: "City", field: "City", sortable: true, filter: true },
  15.                 { headerName: "Salary", field: "Salary", sortable: true, filter: true },
  16.                 { headerName: "Department", field: "Department", sortable: true, filter: true }
  17.
  18.
  19.
  20.             ],
  21.             rowData: [
  22.                 {
  23.                     Id: "100",
  24.                     Name: "Sanwar",
  25.                     Age: "25",
  26.                     Address: "Jaipur",
  27.                     City: "Jaipur",
  28.                     Salary: "500000",
  29.                     Department: "IT",
  30.
  31.                 },
  32.                 {
  33.                     Id: "2",
  34.                     Name: "Nisha",
  35.                     Age: "25",
  36.                     Address: "C-Scheme",
  37.                     City: "Jaipur",
  38.                     Salary: "500000",
  39.                     Department: "IT",
  40.                 },
  41.                 {
  42.                     Id: "3",
  43.                     Name: "David",
  44.                     Age: "25",
  45.                     Address: "C-Scheme",
  46.                     City: "Jaipur",
  47.                     Salary: "500000",
  48.                     Department: "IT",
  49.                 },
  50.                 {
  51.                     Id: "4",
  52.                     Name: "Sam",
  53.                     Age: "25",
  54.                     Address: "C-Scheme",
  55.                     City: "Jaipur",
  56.                     Salary: "500000",
  57.                     Department: "IT",
  58.                 },
  59.                 {
  60.                     Id: "5",
  61.                     Name: "Jyotsna",
  62.                     Age: "25",
  63.                     Address: "C-Scheme",
  64.                     City: "Mumbai",
  65.                     Salary: "500000",
  66.                     Department: "IT",
  67.                 },
  68.                 {
  69.                     Id: "6",
  70.                     Name: "Sid",
  71.                     Age: "25",
  72.                     Address: "C-Scheme",
  73.                     City: "Bangalore",
  74.                     Salary: "500000",
  75.                     Department: "IT",
  76.                 },
  77.                 {
  78.                     Id: "7",
  79.                     Name: "Chavi",
  80.                     Age: "25",
  81.                     Address: "C-Scheme",
  82.                     City: "Noida",
  83.                     Salary: "500000",
  84.                     Department: "IT",
  85.                 },
  86.                 {
  87.                     Id: "8",
  88.                     Name: "Nisha",
  89.                     Age: "25",
  90.                     Address: "C-Scheme",
  91.                     City: "Delhi",
  92.                     Salary: "500000",
  93.                     Department: "IT",
  94.                 }
  95.             ]
  96.         }
  97.     }
  98.
  99.     render() {
  100.         return (
  101.             <>
  102.             <div class="row" style={{marginTop:"10px"}}>
  103.     <div class="col-sm-12 btn btn-info">
  104.     Add ag-Grid to ReactJS App
  105.     </div>
  106.   </div>
  107.             <div class="row">
  108.                 <div class="col-md-12">
  109.                     <div class="card">
  110.                         <div class="card-body position-relative">
  111.                             <div className="ag-theme-alpine" style={{ height: "550px" }}>
  112.                                 <AgGridReact
  113.                                     columnDefs={this.state.columnDefs}
  114.                                     rowData={this.state.rowData}
  115.                                     pagination="true"  paginationPageSize="5" floatingFilter="true" >
  116.                                 </AgGridReact>
  117.                             </div>
  118.                         </div>
  119.                     </div>
  120.                 </div>
  121.             </div>
  122.             </>
  123.
  124.         );
  125.     }
  126. }
  127. export default Aggriddemo
How To Use Ag-Grid In ReactJS


Summary


In this article, we learned  how to use ag-grid in a React.js application.


Similar Articles
