How To Rotate And Flip The Image In UWP App

Prerequisites

• Visual Studio 2015

Now let's get started with the following steps:

Step 1 : Create Windows Universal Project

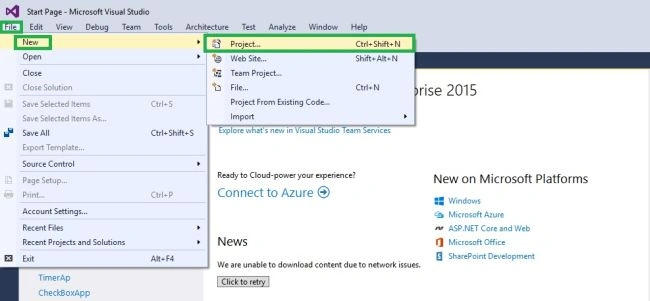

Open Visual Studio 2015 and Click File -> New -> Project Option for New Universal App.



Step 2: Giving the Project Name

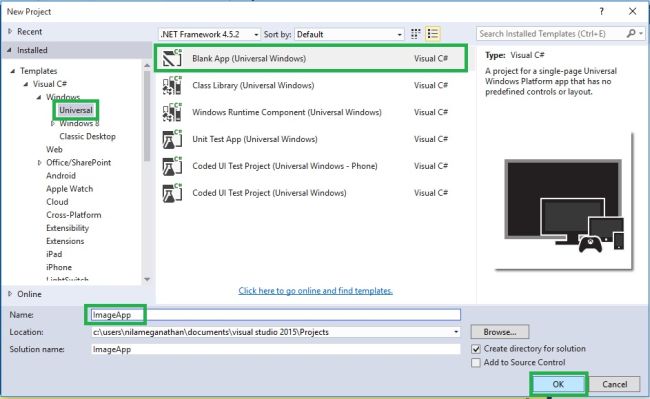

Then, New Project Window will open, there you can select an Installed -> Template -> Visual C# -> Windows -> Universal and select a Blank App (Universal Windows).

Type Project Name ImageApp and click the OK button



Step 3: Setting the platform Versions

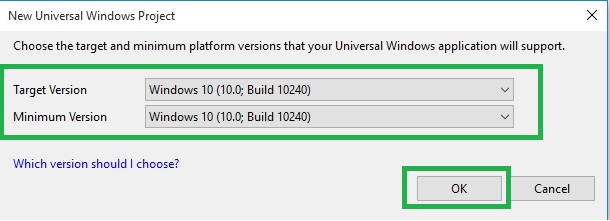

Here, we choose the Target Version and Minimum Version for our Universal Windows application and click OK button



Step 4: Choose Designer Window

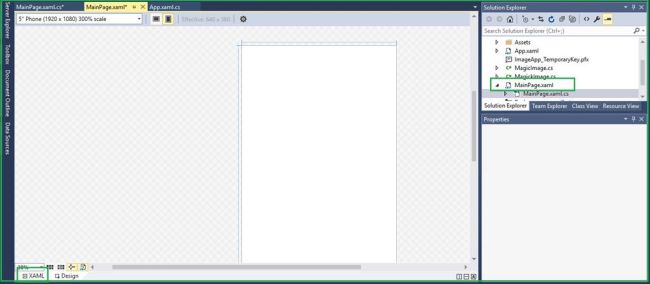

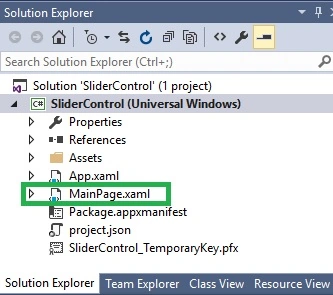

Now we go to the Solution Explorer and select MainPage.xaml



Step 5: Designing the App

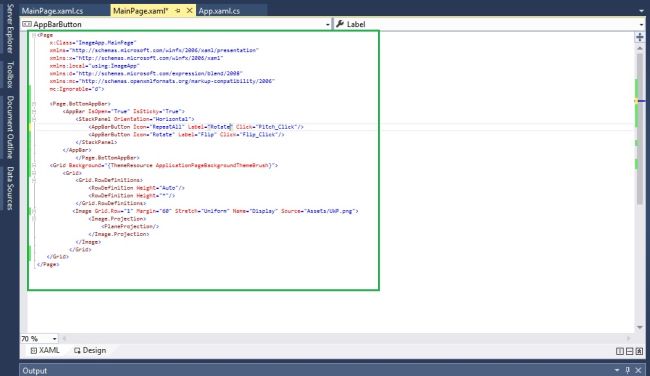

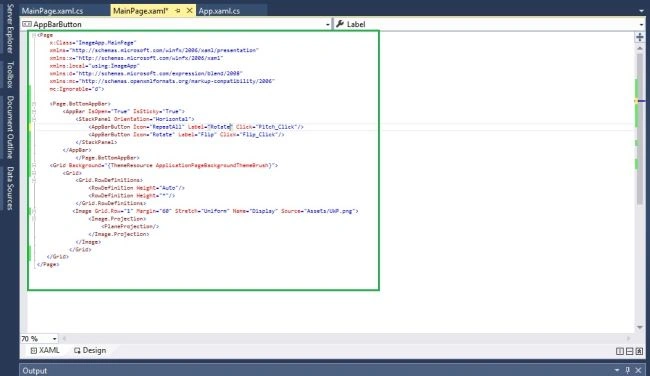

Click on the XAML file and Add the following coding



The Window looks like this,

<Page.BottomAppBar>
    <AppBar IsOpen="True" IsSticky="True">
        <StackPanel Orientation="Horizontal">
            <AppBarButton Icon="RepeatAll" Label="Rotate" Click="Pitch_Click" />
            <AppBarButton Icon="Rotate" Label="Flip" Click="Flip_Click" /> </StackPanel>
    </AppBar>
</Page.BottomAppBar>
<Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="*" /> </Grid.RowDefinitions>
        <Image Grid.Row="1" Margin="60" Stretch="Uniform" Name="Display" Source="Assets/UWP.png">
            <Image.Projection>
                <PlaneProjection/> </Image.Projection>
        </Image>
    </Grid>
</Grid>
</Page>

Step 6: Add the Coding

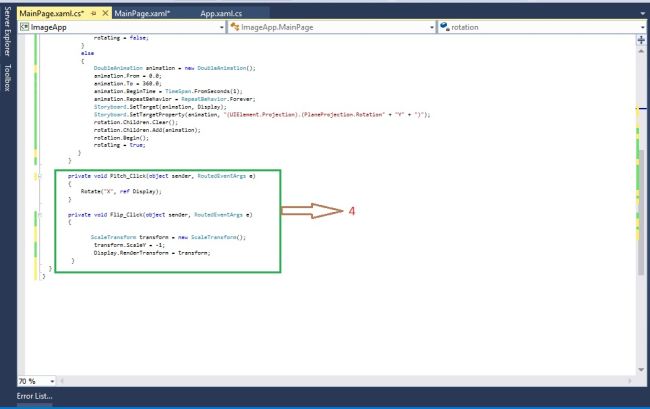

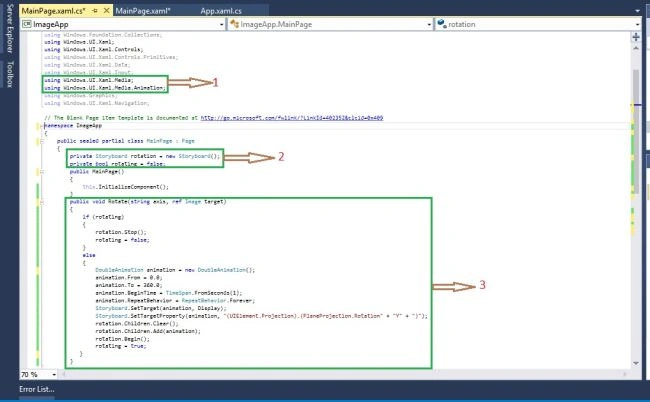

Now we want to rotate and flip the Image. Add the following code in the MainPage.xaml.cs. Add the following code.

using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Media.Animation;

private Storyboard rotation = new Storyboard();
private bool rotating = false;

public void Rotate(string axis, ref Image target) {
    if (rotating) {
        rotation.Stop();
        rotating = false;
    } else {
        DoubleAnimation animation = new DoubleAnimation();
        animation.From = 0.0;
        animation.To = 360.0;
        animation.BeginTime = TimeSpan.FromSeconds(1);
        animation.RepeatBehavior = RepeatBehavior.Forever;
        Storyboard.SetTarget(animation, Display);
        Storyboard.SetTargetProperty(animation, "(UIElement.Projection).(PlaneProjection.Rotation" + "Y" + ")");
        rotation.Children.Clear();
        rotation.Children.Add(animation);
        rotation.Begin();
        rotating = true;
    }
}

private void Pitch_Click(object sender, RoutedEventArgs e) {
    Rotate("X", ref Display);
}
private void Flip_Click(object sender, RoutedEventArgs e) {
    ScaleTransform transform = new ScaleTransform();
    transform.ScaleY = -1;
    Display.RenderTransform = transform;
}

Step 7: Run the Application

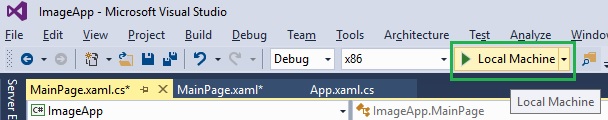

Now we are ready to run our Project, So Click the Local Machine for running the Application.



Output

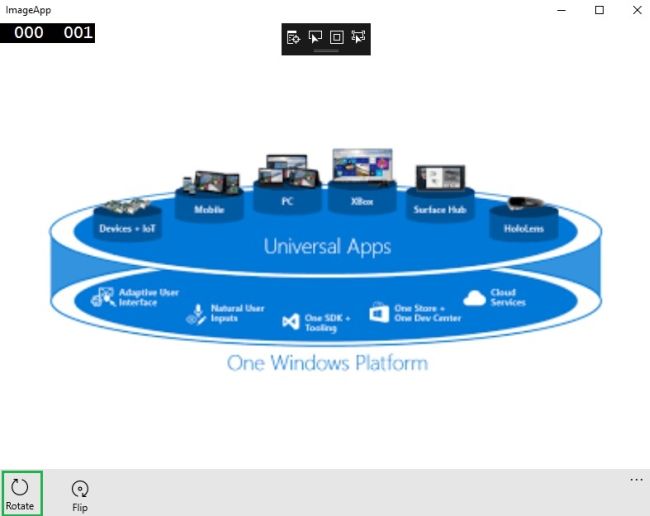

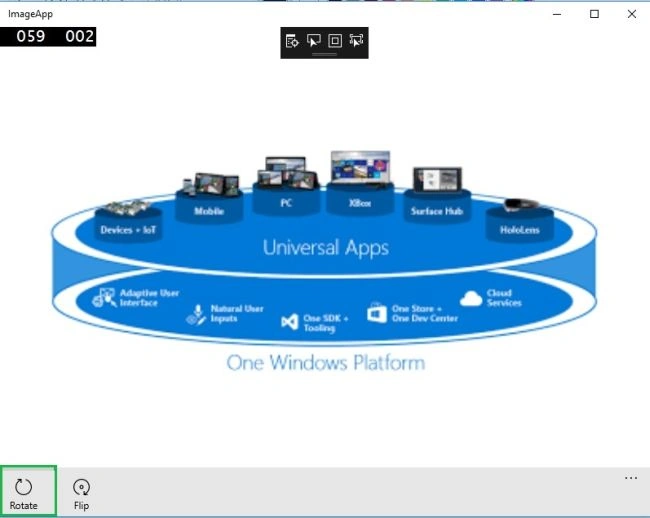

1. Click on the Rotate Button,

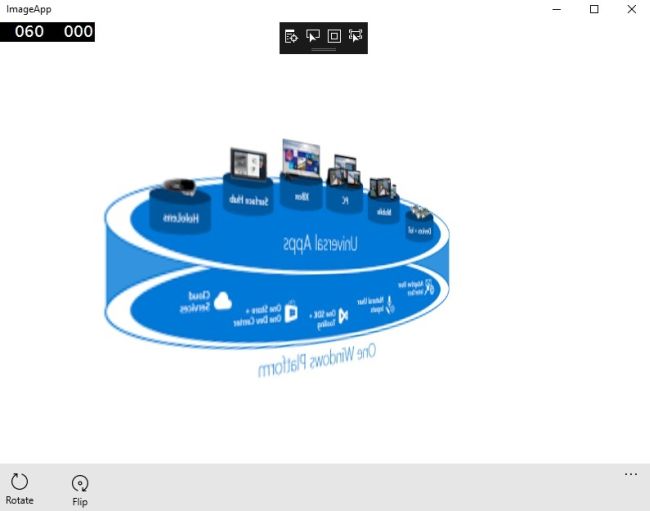

2. It Rotates,




3. Next, Stop the Rotation by again clicking on the rotate button,

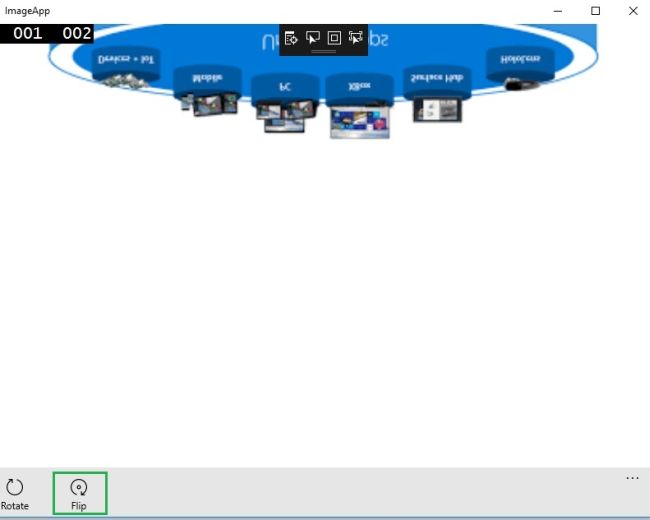

4. Now Click on the Flip Button,

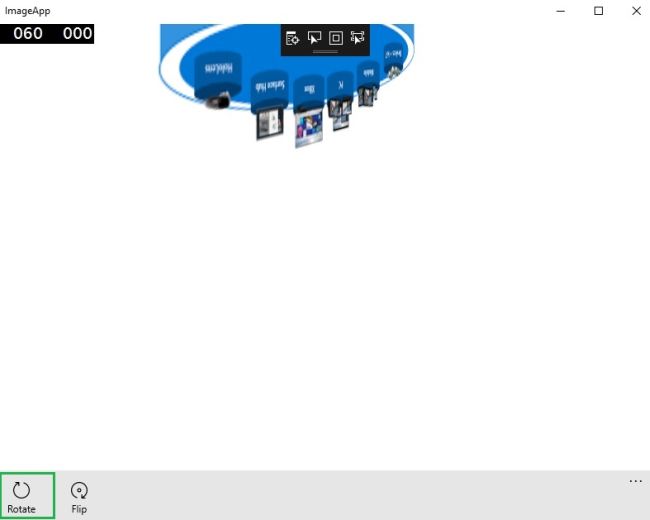

5. Next Click on the Rotate button, it rotates in the Flip position.




Conclusion: I hope you understood how to rotate and Flip the Image in Universal Windows and how to run it.
