How To Display Message On LCD Using Serial Monitor Of Ardunio

Introduction


In this article, we are going to link hardware and software of Arduino with the LCD. We are going to display typed Message on LCD 16/2 display using Serial Monitor, see where you can gather information on how to work with Serial Monitor, and how to work with 16/2 LCD display and also gain the pleasure of technical knowledge.

REQUIREMENTS
  1. LCD 16/2 display
  2. Arduino Software
  3. Arduino UNO R3
  4. Connecting wires
  5. Bread Board
  6. Data Cable
Steps to follow

Step 1

Open Arduino software. I have the latest version of the Arduino software. You can download Arduino software from www.Arduino.cc official website of Arduino.

IoT

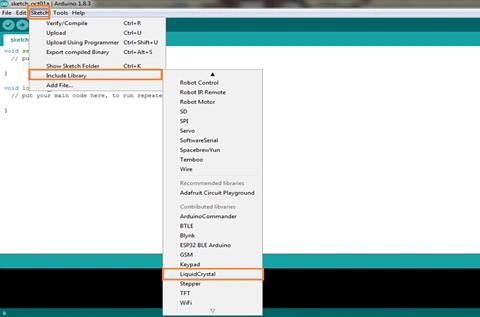

Step 2

Include the Header file for the liquid crystal. Overview on 16/2 LCD display is given in my article “Working with 16/2 LCD display.”   Tools>> Include Library>> Liquid crystal.

IoT

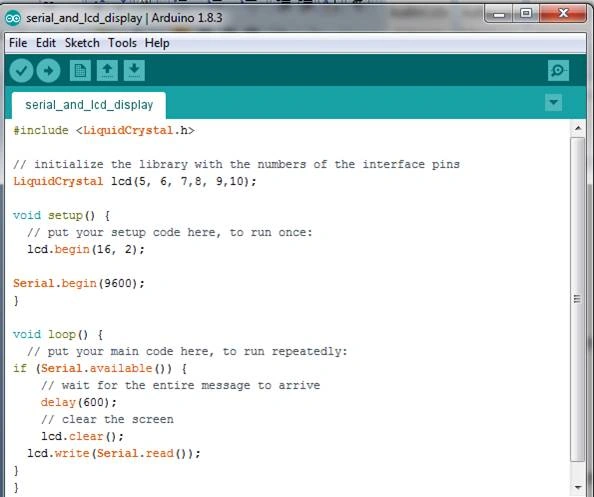

Step 3

Write the given codings in the Arduino Software…

IoT

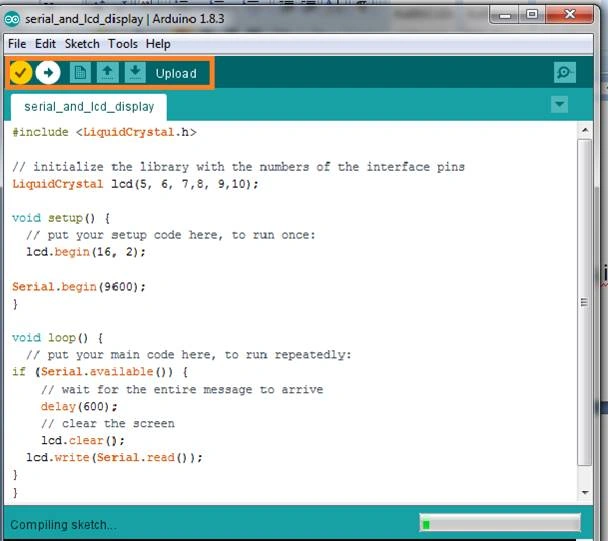

Step 4

Compile and Upload the code to the Arduino.

IoT

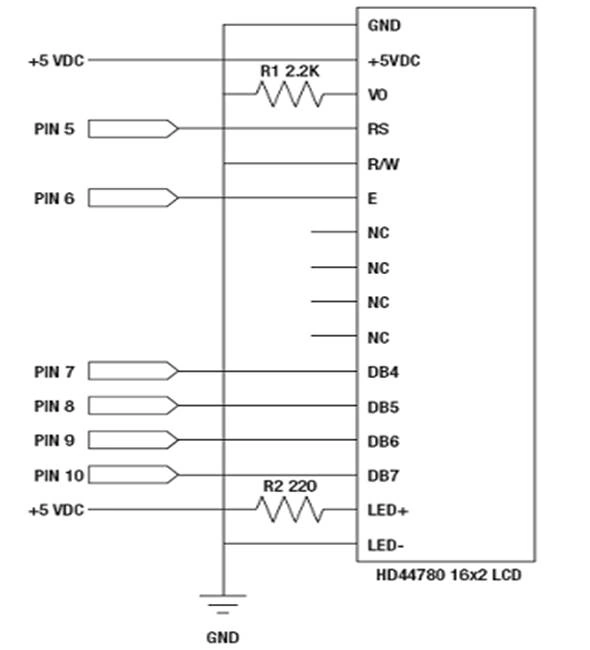

Step 5

Follow the circuit diagram for a circuit connection. You can also change the pins of the Arduino.

IoT

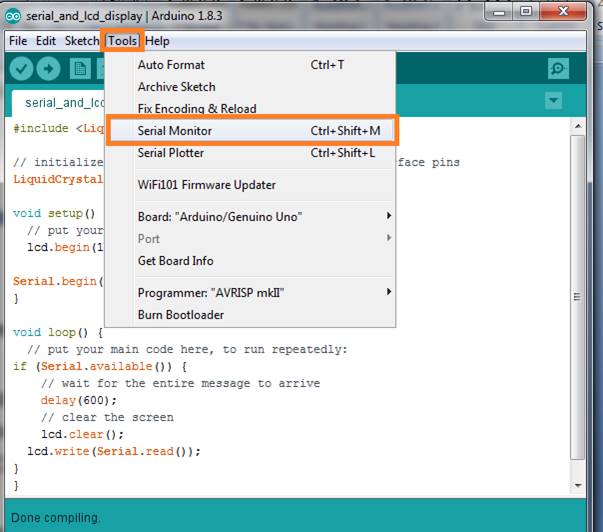

Step 6

Open Serial Monitor of your Arduino Software.

IoT

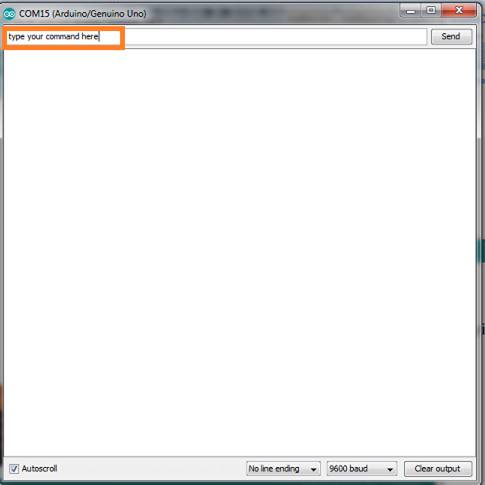

Step 7

Enter the command which you want to display in the 16/2 LCD display.

IoT

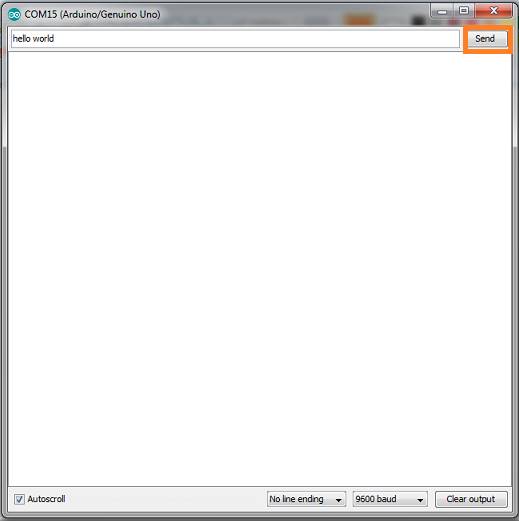

Step 8

Click OK or SEND to send an option from the Serial Monitor to the Serial Monitor.

IoT

Step 9

The .hex file of Arduino will search for the Arduino board if Connected to the Laptop or system. If a device is found it will boot and command  Arduino and Arduino will command LCD to display.

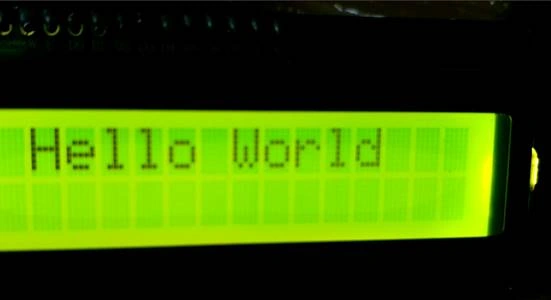

Step 10

The output will be displayed on your 16/2 LCD display. You can change your output as per your command as per your requirements.

IoT


Summary


In this article, we learned how to work on the Serial monitor of Arduino and also work with a 16x2 LCD display to display a message.
