Deploying .NET Core Background Service On Windows

Configure your .NET Core project

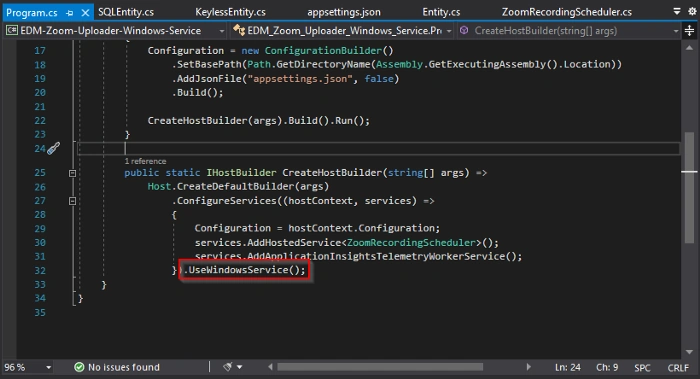

When trying to deploy on a Windows Service, make sure you already configure your Program.cs accordingly. On the Program.cs add this config,

Image by Author


Configure your Windows Server


Downloading the required packages

Install the required packages before configuration.
Downloading the dotnet SDK

Deployments only need runtime, but if you want to have a more flexible environment that allows you to build and publish dll files rather than only running it you would want to install the latest .NET Core SDK, here.

Install the Azure Artifacts Credential Provider

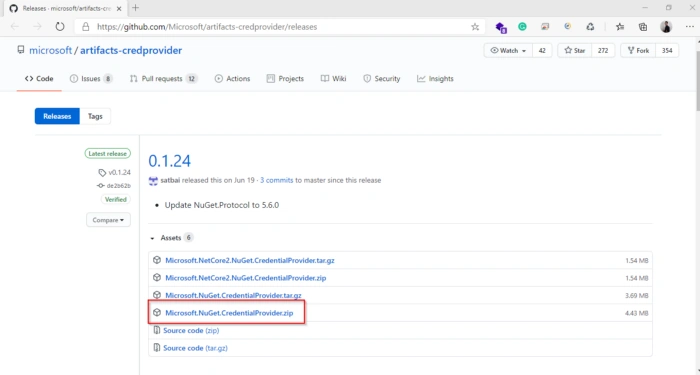

If you use private NuGet packages you might want to install Azure Artifacts Credentials. You can find the latest release here and download the .zip package.

Image by Author

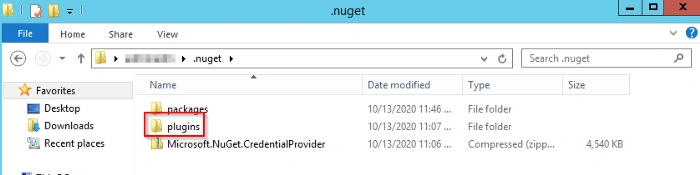

After downloading the zip archive, copy the plugins folder to %USERPROFILE%/.nuget.

Image by Author

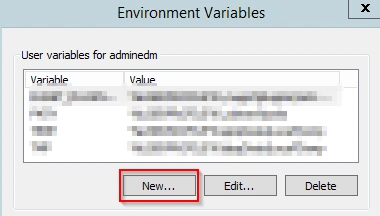

Set your environment variables, open User Variable, and create a new entry.

Image by Author

Set the variable name to NUGET_PLUGIN_PATHS and because in this case, we are going to be using the azure credential provider, so set the value to

%USERPROFILE%\.nuget\plugins\netcore\CredentialProvider.Microsoft\CredentialProvider.Microsoft.dll

Image by Author
Then finish the setup by clicking OK on the Environment Variables dialog. Install the Azure Artifacts Credential Provider, full instructions can be seen here.


Publish your .NET Core application


Pull the project using Git

Get into the directory where you want to put the application.

Image by Author

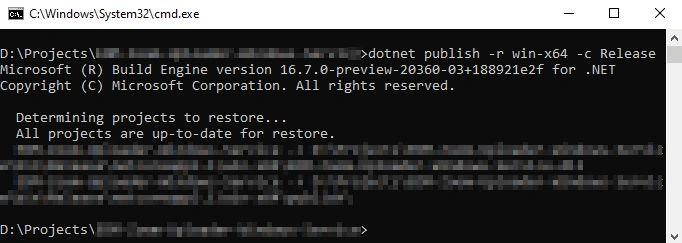

Get inside the newly formed folder and run the dotnet publish command. Do dotnet publish -r win-x64 -c Release to make a windows installer on publishing.

Image by Author

If an authorization prompt to https://microsoft.com/devicelogin pops up, login using the Microsoft account and enter the code shown in the window.

Otherwise, it should show a successful build like so,

Image by Author

In this case, let’s assume D:\Projects\api.test\bin\Release\netcoreapp3.1\publish\zoom-service.exe is the physical path.


Run your .NET Core Service


Create the Service

First, create a Windows Service using the sc create command and enter the service name, in this case, would be ZoomService, and add the physical path to the BinPath.

An example command would be: sc create ZoomService BinPath=D:\Projects\api.test\bin\Release\netcoreapp3.1\publish\zoom-service.exe

Image by Author

Start the Service

After creating the Windows Service start it by using the sc start command. An example command would be: sc start ZoomService.

Image by Author

Make the Service auto initialize on Startup

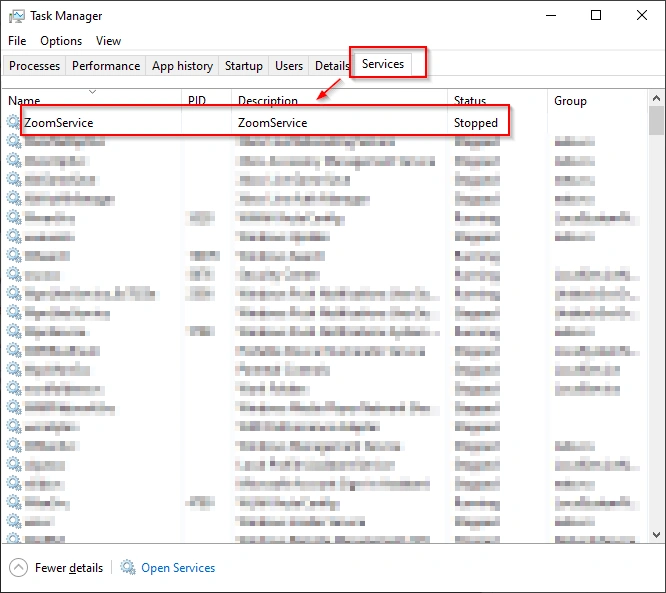

Go to the Task Manager, and open the services tab, and right-click on your newly created service

Image by Author

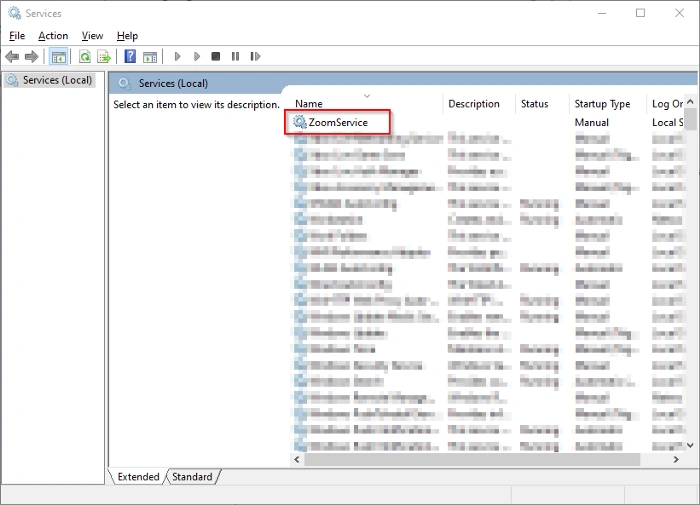

Then click the Open Services option.

Image by Author

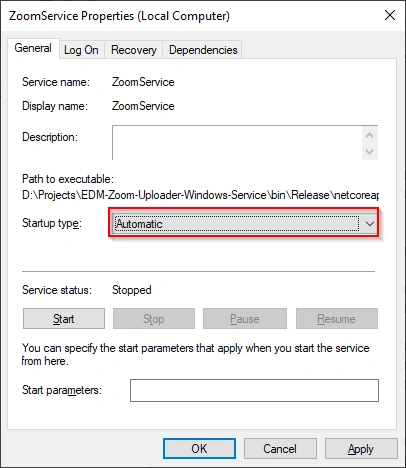

Right-click on the newly created service and choose Properties.

Image by Author

Change the Startup type from Manual to Automatic.

Finally, click Apply and then click OK.


Summary


In this tutorial, you have learned how to serve a .NET Core application Windows service. To recap what we have done:
  • We have configured our .NET Core project as a Windows service.
  • We installed the required dotnet SDKs and the corresponding Azure authentication providers.
  • We have deployed the project as a Windows service.
You now have an open playbook to use when you want to deploy .NET Core applications as a service. Hope this tutorial was of help and have a nice day!
