How To Create Carousel For Components Using Simple CSS

In this article, you will see how to create a carousel using CSS. Yes, you heard it right, no jQuery, no JavaScript, and no angular routing animations.

Let’s get started!

Step 1

Create the angular project,

ng new CSSCarousel

Step 2

Create parent component,

ng generate component parent

Step 3

Create child component1,

ng generate component component1

Step 4

Create child component2,

ng generate component component2

To open the source code in Visual studio enter the command Code.  in command prompt.

Step 5

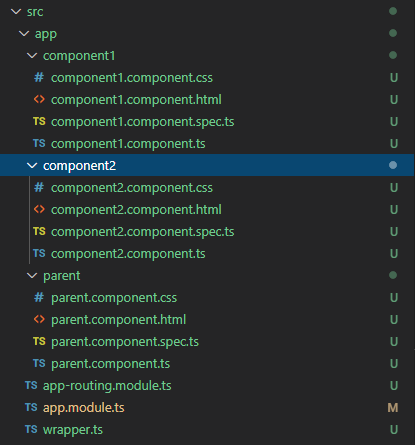

Add a wrapper file named wrapper.ts in the app folder as shown in the below picture along with created components,


Step 6

Make changes to wrapper.ts,
  1. import {Component} from '@angular/core';
  2. @Component({
  3.    selector:'wrapper-app',
  4.    template:'<router-outlet></router-outlet>'
  5. })
  6. export class WrapperComponent{ }
Step 7

Make changes to app.module.ts,
  1. import { BrowserModule } from '@angular/platform-browser';
  2. import { NgModule } from '@angular/core';
  3. import { AppRoutingModule } from './app-routing.module';
  4. import { ParentComponent } from './parent/parent.component';
  5. import { Component1Component } from './component1/component1.component';
  6. import { Component2Component } from './component2/component2.component';
  7. import { WrapperComponent } from "src/app/wrapper";
  8. @NgModule({
  9.    declarations: [ ParentComponent, Component1Component, Component2Component, WrapperComponent ],
  10.    imports: [ BrowserModule, AppRoutingModule ],
  11.    providers: [], bootstrap: [WrapperComponent]
  12. })
  13. export class AppModule { }
Step 8

Make changes to index.html,
  1. <!doctype html>
  2. <html lang="en">
  3.    <head>
  4.       <meta charset="utf-8">
  5.          <title>CSSCarousel</title>
  6.          <base href="/">
  7.       <meta name="viewport" content="width=device-width, initial-scale=1">
  8.       <link rel="icon" type="image/x-icon" href="favicon.ico">
  9.    </head>
  10.    <body>
  11.       <wrapper-app></wrapper-app>
  12.    </body>
  13. </html>
Step 9

Make changes to component1.html
  1. <div>
  2.    <h1 style="background-color: coral; opacity:0.5; text-align: center;">Component 1 Component 1 Component 1 </h1>
  3. </div>
Step 10

Make changes to component2.html,
  1. <div>
  2.    <h1 style="background-color:crimson; opacity:0.5; text-align: center;">Component 2 Component 2 Component 2</h1>
  3. </div>
Step 11

Make changes to parent component.html,
  1. <div class="container">
  2.     <div class="col-md-12">
  3.         <button class="right-button" (click)="moveRight()">Right</button>
  4.         <button class="left-button" (click)="moveLeft()">Left</button>
  5.         <div *ngIf="isRefresh" class="component-container">
  6.             <app-component1></app-component1>
  7.         </div>
  8.         <div *ngIf="buttonClicked==='left'" class="component-container">
  9.             <app-component1 [ngClass]="{'left-active':!isLeft,'left':isLeft}"></app-component1>
  10.         </div>
  11.         <div *ngIf="buttonClicked==='left'" class="component-container">
  12.             <app-component2 [ngClass]="{'left-active':isLeft,'left':!isLeft}"></app-component2>
  13.         </div>
  14.         <div *ngIf="buttonClicked==='right'" class="component-container">
  15.             <app-component1 [ngClass]="{'right-active':isRight,'right':!isRight}"></app-component1>
  16.         </div>
  17.         <div *ngIf="buttonClicked==='right'" class="component-container">
  18.             <app-component2 [ngClass]="{'right-active':!isRight,'right':isRight}"></app-component2>
  19.         </div>
  20.     </div>
  21. </div>
Step 12

Make changes to parent component.ts,
  1. import {
  2.     Component,
  3.     OnInit
  4. } from '@angular/core';
  5. @Component({
  6.     selector: 'app-parent',
  7.     templateUrl: './parent.component.html',
  8.     styleUrls: ['./parent.component.css']
  9. })
  10. export class ParentComponent implements OnInit {
  11.     buttonClicked = "";
  12.     isLeft: boolean = false;
  13.     isRight: boolean = true;
  14.     isRefresh: boolean = false;
  15.     ngOnInit() {
  16.         this.isRefresh = true;
  17.     }
  18.     moveLeft() {
  19.         this.buttonClicked = "left";
  20.         this.isLeft = !this.isLeft;
  21.         this.isRefresh = false;
  22.     }
  23.     moveRight() {
  24.         this.buttonClicked = "right";
  25.         this.isRight = !this.isRight;
  26.         this.isRefresh = false;
  27.     }
  28. }
Step 13

Make changes to parent component.css,
  1. .right - button {
  2.     float: right;
  3.     cursor: pointer!important;
  4.     position: fixed;
  5.     top: 50 % ;right: 0;
  6.     z - index: 999;
  7.     width: 100 px;
  8.     height: 50 px;
  9.     background - color: darkmagenta;
  10. }.left - button {
  11.     cursor: pointer!important;
  12.     position: fixed;
  13.     top: 50 % ;
  14.     left: 0;
  15.     z - index: 999;
  16.     width: 100 px;
  17.     height: 50 px;
  18.     background - color: darkmagenta;
  19. }.component - container {
  20.     width: 100 % ;
  21.     height: 120 vh;
  22.     overflow: hidden;
  23.     position: absolute;
  24.     top: 10 px;
  25.     left: 0;
  26.     z - index: 0;
  27. }.left {
  28.     position: relative;
  29.     animation: slideLeftNone 1 s;
  30.     opacity: 0;
  31.     left: -100 % ;
  32.     top: 0;
  33. }.left - active {
  34.     position: relative;
  35.     opacity: 1;
  36.     animation: slideLeftBlock 1 s;
  37.     top: 0;
  38.     left: 0 % ;
  39. }.right {
  40.     position: relative;
  41.     animation: slideRightNone 1 s;
  42.     opacity: 0;
  43.     left: 100 % ;
  44.     top: 0;
  45. }.right - active {
  46.     position: relative;
  47.     opacity: 1;
  48.     animation: slideRightBlock 1 s;
  49.     left: 0 % ;
  50.     top: 0;
  51. }
  52. @keyframes slideLeftNone {
  53.     from {
  54.         left: 0 % ;opacity: 1;
  55.     }
  56.     to {
  57.         left: -100 % ;opacity: 0;
  58.     }
  59. }
  60. @keyframes slideRightNone {
  61.     from {
  62.         left: 0 % ;opacity: 1;
  63.     }
  64.     to {
  65.         left: 100 % ;opacity: 0;
  66.     }
  67. }
  68. @keyframes slideRightBlock {
  69.     from {
  70.         left: -100 % ;
  71.     }
  72.     to {
  73.         left: 0 % ;
  74.     }
  75. }
  76. @keyframes slideLeftBlock {
  77.     from {
  78.         left: 100 % ;
  79.     }
  80.     to {
  81.         left: 0 % ;
  82.     }
  83. }
Step 14

Make changes to app-routing.module.ts,
  1. import { NgModule } from '@angular/core';
  2. import { Routes, RouterModule } from '@angular/router';
  3. import { ParentComponent } from './parent/parent.component';
  4. const routes: Routes = [{
  5.     path: '',
  6.     component: ParentComponent,
  7.     pathMatch: 'full'
  8. }, {
  9.     path: '**',
  10.     redirectTo: '',
  11.     pathMatch: 'full'
  12. }];
  13. @NgModule({
  14.     imports: [RouterModule.forRoot(routes)],
  15.     exports: [RouterModule]
  16. })
  17. export class AppRoutingModule {}
Note
Remove app.component.html, app.component.ts, and app.component.css files from the solution before executing Step 15.

Step 15

Run ng-serve to check the output on http://localhost:4200/

The below picture depicts the end result of the CSSCarousel. If you click on the buttons, Component 1 and Component 2 will keep sliding as a carousel.


Download the GitHub repository here.
