How To Create and Trigger Schedulers in MuleSoft

This article is the continued part in the MuleSoft articles series; if you would like to understand the basics of MuleSoft, refer to these articles before going next.

• Getting Started MuleSoft
• How To Connect to Azure SQL Database with MuleSoft
• Load Data from S3 Bucket Using MuleSoft S3 Connector
• How To Call Stored Procedure with MuleSoft
• How To Post Data Using Stored Procedure with MuleSoft
• How To Set Variable and Payload in MuleSoft
• Fetch MySQL Data Using Database Connector in MuleSoft
• Retrieve Data From Database Based On Conditions In MuleSoft
• Create and Write CSV Files Using File Connector in MuleSoft
• Read Files Using File Connector in MuleSoft
• Default Error Handling Behavior of a Mule Application
• Basic Internal Error Handlers in Mule application
• Global Error Handling in Mule Application
• How To Invoke REST Web Service in MuleSoft
• How To Invoke SOAP Web Service in MuleSoft

What are Schedulers in MuleSoft and Why?

In MuleSoft, schedulers play a crucial role in managing and controlling the execution of various tasks within an integration application. A scheduler is a mechanism that allows you to schedule the automatic execution of certain operations or flows at predefined intervals. MuleSoft provides a Scheduler component that you can use in your Mule applications to implement scheduling functionality.

Key aspects of schedulers in MuleSoft

1. Automated Execution: Schedulers enable the automatic execution of specific tasks or flows in your Mule application at predefined intervals. This is useful for automating repetitive or time-sensitive processes.
2. Time-Based Triggering: You can configure schedulers to trigger at specific time intervals, such as every minute, hourly, daily, or at custom intervals. This flexibility allows you to design integration flows that align with your business requirements.
3. Flow Execution: Schedulers are often used to trigger the execution of specific integration flows. This is beneficial for scenarios where certain tasks need to be performed at regular intervals, such as data synchronization, data polling, or file processing.
4. Cron Expressions: MuleSoft schedulers support the use of cron expressions, which provide a powerful and flexible way to define complex schedules. Cron expressions allow you to specify precise timings for your scheduled tasks.
5. Use Cases: Schedulers are employed in various use cases, such as fetching data from external systems at regular intervals, triggering data backups, sending notifications, and performing housekeeping tasks. They are particularly valuable in scenarios where automation and periodic execution are required.

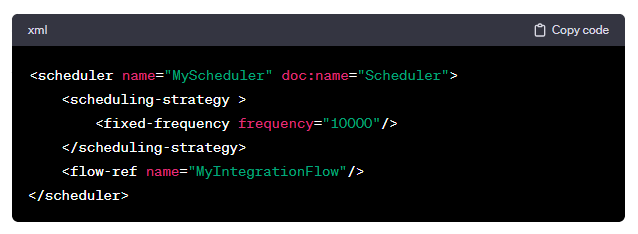

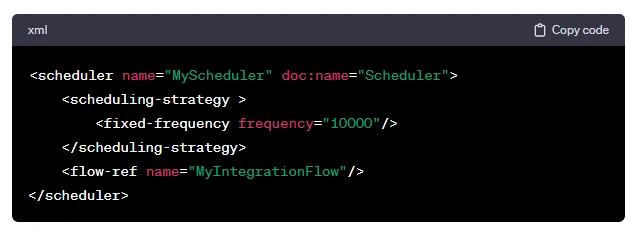

Here's a basic example of using a scheduler in MuleSoft's XML configuration:

In this example, the scheduler named "MyScheduler" triggers the "MyIntegrationFlow" every 10 seconds.

In summary, schedulers in MuleSoft provide a way to automate and schedule the execution of integration flows, making it easier to handle recurring tasks, data synchronization, and other time-sensitive operations in your Mule applications. They contribute to the overall efficiency and reliability of your integration solutions.

Getting Started with Anypoint Studio

Let's do a quick project setup and include the required global config files; these are the quick steps:

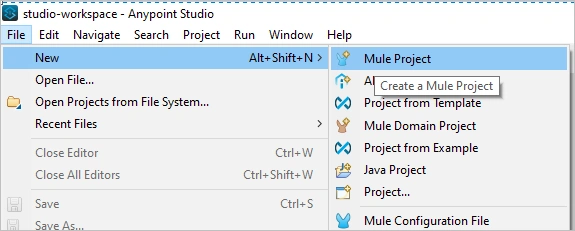

First, open Anypoint Studio and Create a New Mule Project.

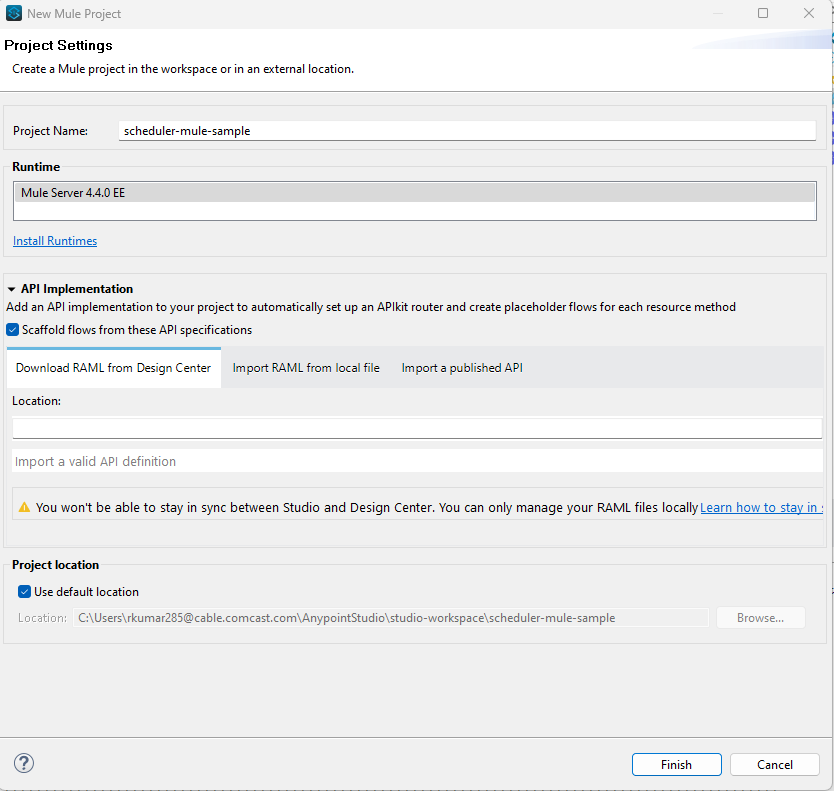

Enter the project name, select runtime and project location, and click the Finish button.

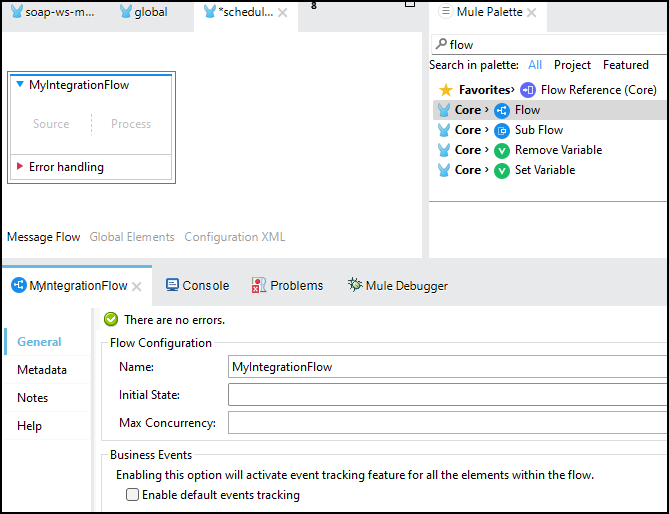

Let’s drag and drop a flow component from the mule palette and trigger the flow after a certain time frame, which will be assigned by the scheduler.

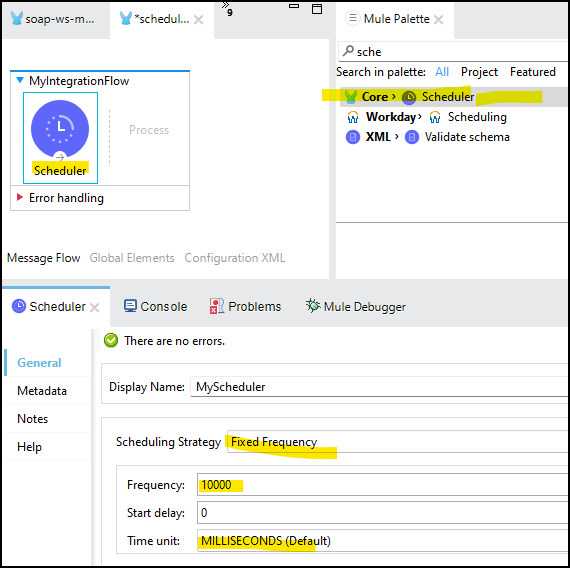

Now let’s drag and drop the Scheduler component inside the flow source from Mule Palette.

So, the requirement of this sample is writing some text in a file after every 10 seconds.

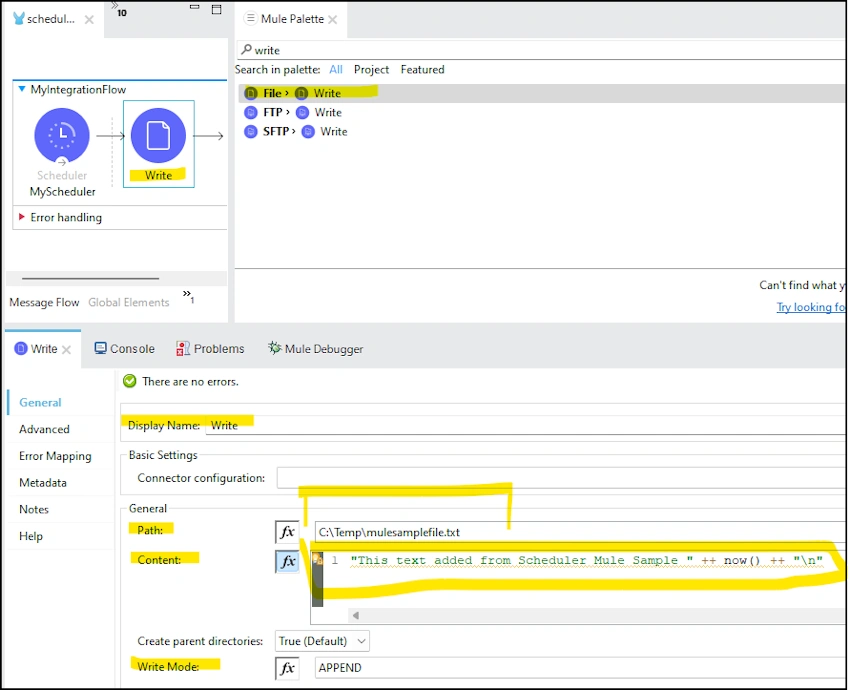

Now let’s drag and drop the Write component into the Process flow from File Mule Palette.

Provide name, file path, content, and write mode. I am adding some static text in the file with the current date and time, and I am appending text in the file.

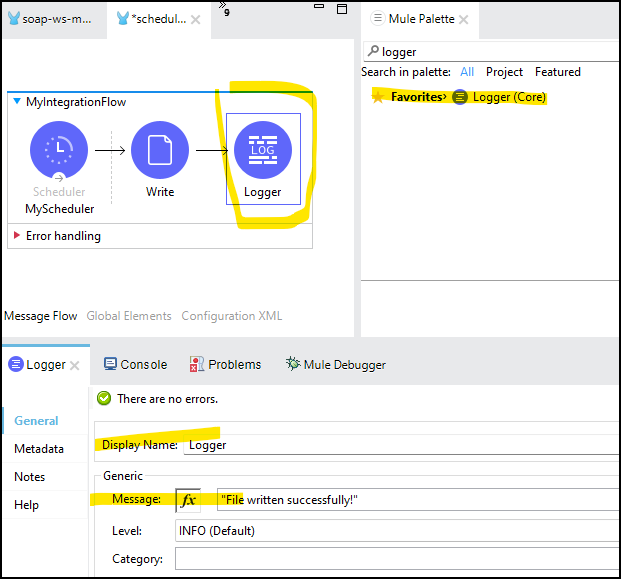

At last, let’s drag and drop a Logger for logging and debugging purposes.

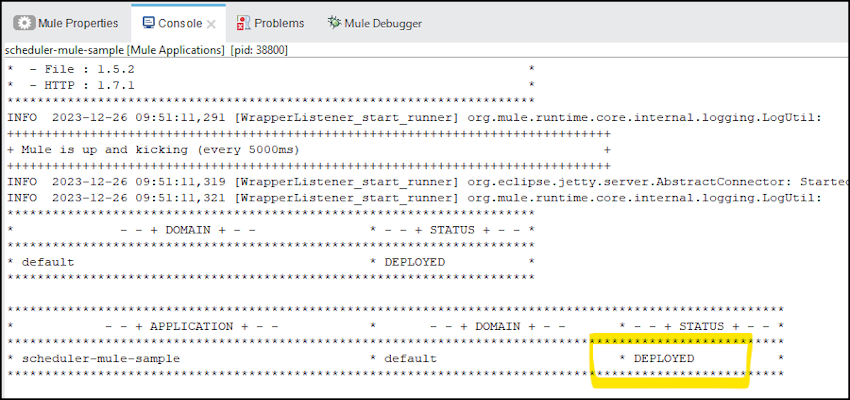

Let's run the application to see the result; right-click on the file and click Run as Mule Application. Once you see the message Deployed, everything is good, and the application is deployed.

As the application deployed successfully without any errors, let’s check the logger messages and file text.

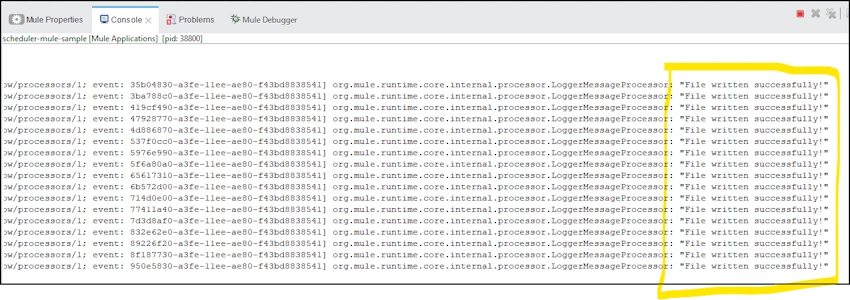

Logging messages

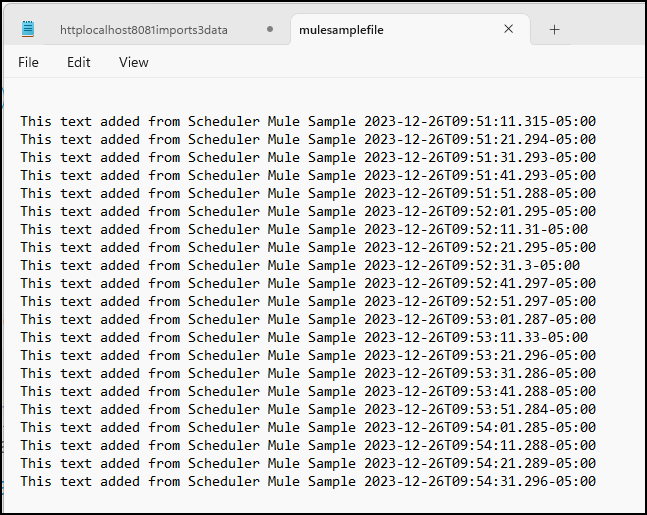

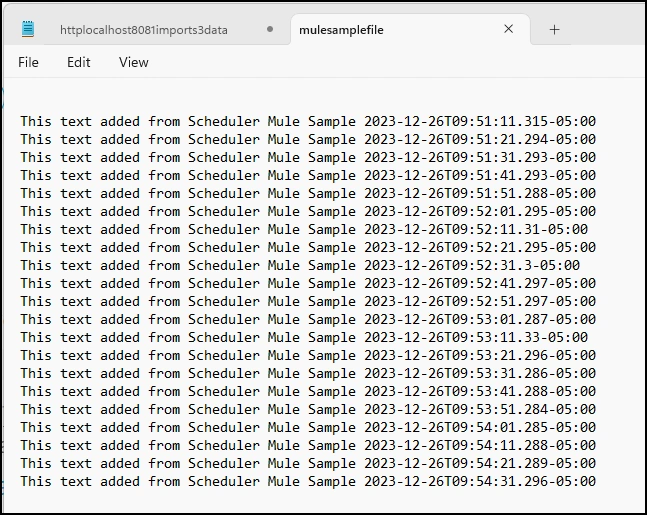

File text

Conclusion

In this article, we learned how to create and trigger the scheduler and append the file text after certain intervals in the MuleSoft application.
