How To Create A Small App Engine Application Deployment On Google Cloud Platform

Overview



In this article, I’m going to describe how to create a small App Engine application deployment on Google Cloud Platform.



In this session you will:

• Download starter code from a GitHub.
• Run your application locally from a Cloud Shell.
• Deploy your application with Google App Engine.

Prerequisites

• Google cloud platform subscription.

Step 1



Login to here.



Step 2

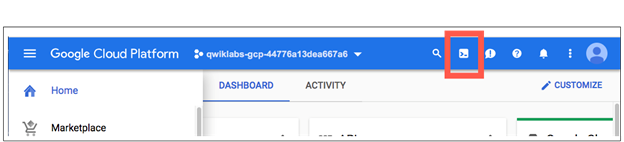

Activate Cloud shell.



Click the right corner of the cloud shell button.

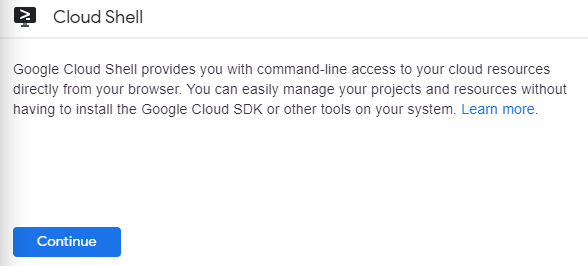

Click Continue.





Step 3



Enable Google App Engine Admin API,

1. Click  Navigation Menu > APIs & Services > Library.

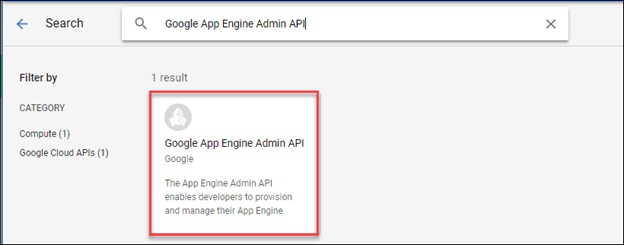

2. Type "App Engine Admin API" in the search box.
3. Click App Engine Admin API.

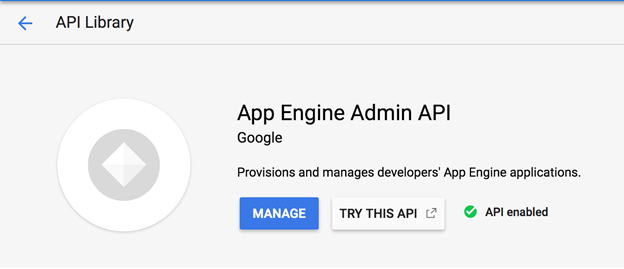

4. Enabled window




Step 4



Download the Hello world app



Run the following command in cloud shell



git clone



Step 5



Then go to the directory in the following command



d getting-started-java/appengine-standard-java8/helloworld



Step 6



Test the application using the application development server



Maven command to download and install Maven and run the app in the following command in cloud shell:



mvn.appengine:run



Output



[INFO]GCLOUD : INFO dev app server is now running.



View the app Click Web preview button > Preview on port 8080

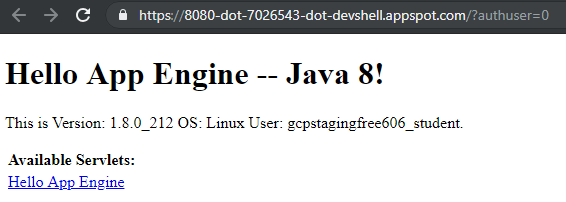

Page should reassemble the following,





Step 7 - Deploy the app



Create an application on an App Engine with the following command



gcloud app create



Output





Do not use gcloud app deploy command as begun in the output to deploy the app, instead, run the following command to deploy the application.



mvn:appengine:deploy

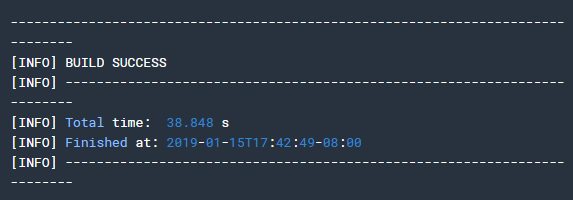

You should get the following output,





Step 8 - View the application



Launch the browser in the following command,



gcloud app browse



OUTPUT





The application is deployed and displays the short message in the browser.
