How to Convert varbinary to Base64 String in SQL Server

Introduction

In SQL Server, there may be scenarios where you need to convert binary data stored as varbinary into a Base64 string. This is useful for various applications such as web development, where binary data like images needs to be transferred over HTTP in a text format. This article will guide you through the process with a detailed explanation and examples.

Understanding the Conversion Process

To convert varbinary to a Base64 string in SQL Server, we can utilize the XML functions. SQL Server provides built-in support for XML and its data types, which can be leveraged to perform the conversion. The CAST function and the value() method of XML data type come in handy for this purpose.

Step 1. Create a Sample Table

First, let's create a sample table to store binary data. We'll use a table named Users with a ProfileImage column of type varbinary(MAX).

CREATE TABLE Users (
    UserID INT PRIMARY KEY,
    UserName NVARCHAR(50),
    ProfileImage VARBINARY(MAX)
);

Step 2. Insert Sample Data

Next, insert some sample data into the table. For the purpose of this example, we'll insert a dummy binary data.

INSERT INTO Users (UserID, UserName, ProfileImage)
VALUES (1, 'JohnDoe', 0x89504E470D0A1A0A0000000D4948445200000001000000010806000000);
INSERT INTO Users (UserID, UserName, ProfileImage)
VALUES (2, 'JaneDoe', 0x89504E470D0A1A0A0000000D4948445200000002000000020806000000);

Step 3. Convert varbinary to Base64

Now, let's convert the varbinary data in the ProfileImage column to a Base64 string. The following SQL query demonstrates how to perform the conversion using the CAST function and XML methods.

SELECT
    UserID,
    UserName,
    CAST('' AS XML).value('xs:base64Binary(sql:column("ProfileImage"))', 'VARCHAR(MAX)') AS ProfileImageBase64
FROM Users;

Explanation

  • CAST('' AS XML): Creates an empty XML value.
  • .value('xs:base64Binary(sql:column("ProfileImage"))', 'VARCHAR(MAX)'): Converts the binary data to a Base64 string.
    • xs:base64Binary(): A function that converts binary data to Base64.
    • SQL:column("ProfileImage"): References the ProfileImage column from the table.

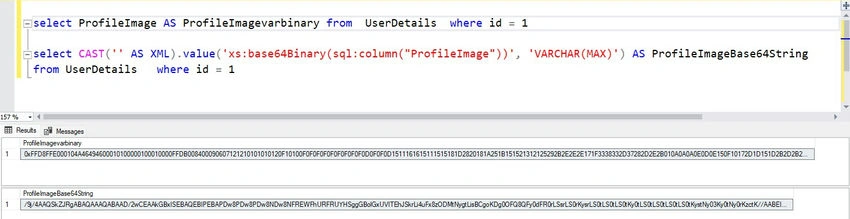

      ProfileImage column

Conclusion

Converting varbinary data to a Base64 string in SQL Server is straightforward using XML functions. This method is particularly useful for web applications where binary data needs to be encoded into a text format for transmission. By following the steps outlined in this article, you can easily convert binary data to Base64 strings in your SQL Server database.

Additional Tips

  • Ensure that your varbinary data is correctly formatted and stored.
  • Use this technique to convert other binary data types to Base64 as needed.
  • Consider performance implications when working with large binary data and Base64 conversions in SQL Server.

This guide provides a clear and practical approach to converting binary data to Base64 strings in SQL Server, enhancing data handling and transmission capabilities in your applications.
