How to Configure Security Groups in AWS VPC

Introduction

In Amazon Web Services (AWS), a Security Group is a virtual firewall that controls inbound and outbound traffic for AWS resources such as EC2 instances, RDS databases, and other services. Security groups are critical for securing resources within a Virtual Private Cloud (VPC), allowing you to define rules that permit or deny traffic based on IP addresses, ports, and protocols.

Security groups work at the instance level and are associated with resources like EC2 instances, load balancers, and other services running within a VPC. They allow or block network traffic based on predefined rules and are stateful, meaning if you allow incoming traffic, the response traffic is automatically allowed, regardless of outbound rules.

This article covers configuring security groups in a VPC, with practical examples and use cases to help secure your AWS infrastructure.

Key Concepts

Before diving into configuration, here are some essential concepts you should understand.

• Inbound Rules: Define the allowed incoming traffic to a resource.
• Outbound Rules: Define the allowed outgoing traffic from a resource.
• Stateful: If you allow incoming traffic, the outgoing traffic in response is automatically allowed.
• Default Security Group: Each VPC comes with a default security group that allows all outbound traffic but no inbound traffic.

Step 1. Access the VPC Dashboard

To get started, sign in to your AWS Management Console.

1. Go to the AWS Console.

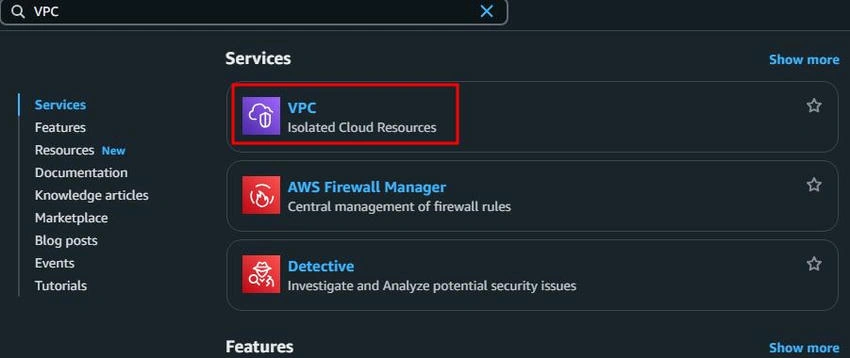

2. In the search bar, type VPC and select VPC to navigate to the VPC dashboard.


Step 2. Navigate to Security Groups

Security groups are managed within the VPC dashboard.

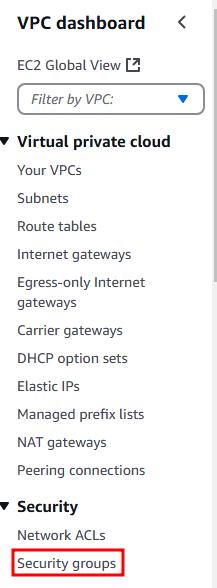

1. In the VPC dashboard, under the Security section on the left-hand menu, click Security Groups.

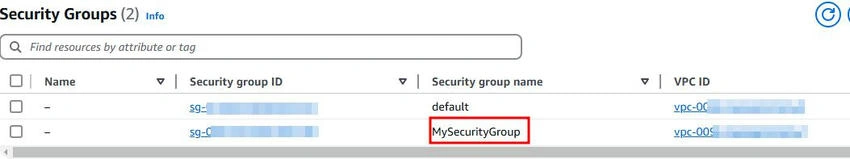

2. You’ll be taken to the list of security groups associated with your VPC. From here, you can create new security groups or modify existing ones.


Step 3. Create a New Security Group

To create a new security group, follow these steps.

1. Click Create Security Group.

2. Security group name: Provide a descriptive name for the security group.

3. Description: Add a brief description to explain the purpose of the security group.

4. VPC: Select the VPC to which the security group will be associated.


Step 4. Configure Inbound Rules

Inbound rules control the traffic allowed to enter resources associated with the security group.

For example, to allow HTTP and HTTPS traffic to a web server.

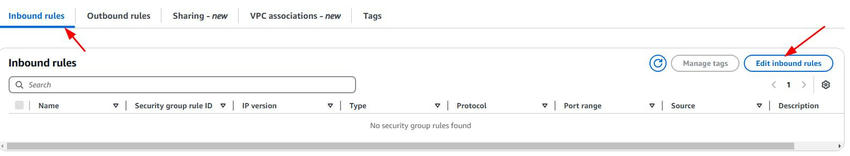

1. Under the Inbound Rules tab, click Edit Inbound Rules.

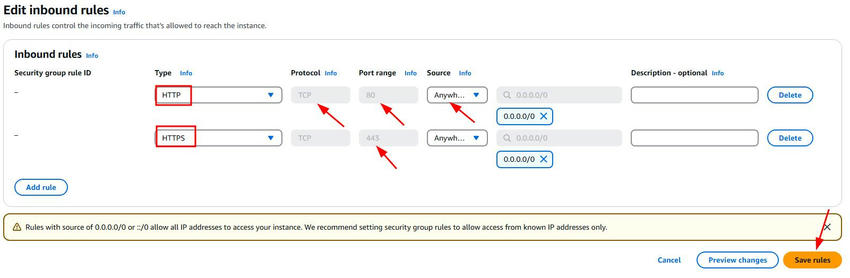

2. Add the following rules.
   • Type: Select HTTP from the dropdown.
   • Protocol: Automatically set to TCP.
   • Port range: Automatically set to 80.
   • Source: Select Anywhere (0.0.0.0/0) for open access or specify a range of IP addresses for restricted access.
   • Click Add rule to add an HTTPS rule with similar settings, but choose Port range 443.
   • Click Save Rules to apply the changes.


Here’s an example of inbound rules for a web server.

• HTTP (Port 80) from anywhere (0.0.0.0/0).
• HTTPS (Port 443) from anywhere (0.0.0.0/0).

Important Consideration: Restrict inbound access to sensitive resources. For example, use a limited IP range (e.g., 10.0.0.0/24 or a specific IP address) to restrict access to database servers or SSH.

Step 5. Configure Outbound Rules

Outbound rules control the traffic allowed to leave resources associated with the security group.

By default, security groups allow all outbound traffic. However, if you want to restrict outbound traffic, follow these steps.

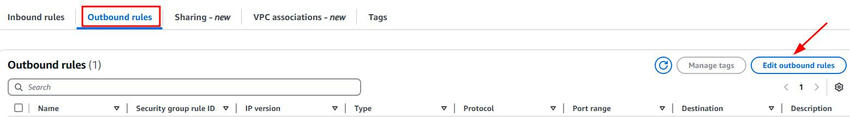

Under the Outbound Rules tab, click Edit Outbound Rules.

By default, All traffic is allowed to all destinations. To restrict it, modify the rules based on your needs.

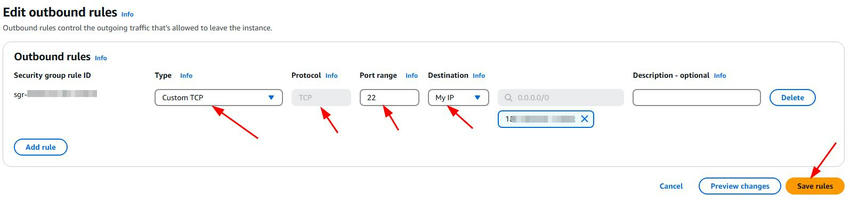

For example, to only allow traffic to specific IP addresses or subnets, add a new rule.

1. Type: Select All traffic or a specific type.
2. Protocol: Define the protocol (e.g., TCP).
3. Port range: Specify the ports (e.g., 22 for SSH).
4. Destination: Set the destination to a specific IP or subnet.
5. Click Save rules.


Step 6. Associate the Security Group with Resources

Once the security group is created and configured, it needs to be associated with resources (e.g., EC2 instances, RDS databases).

To associate a security group with an EC2 instance.

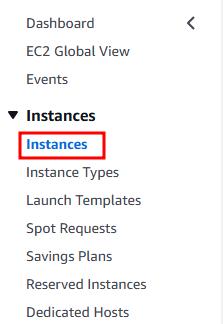

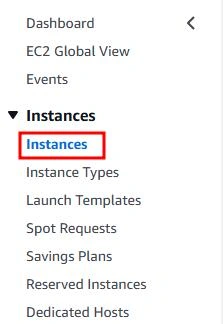

1. Go to EC2 Dashboard and select Instances from the left menu.

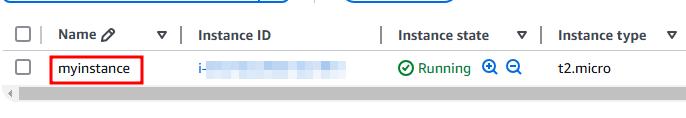

2. Select the instance to which you want to apply the security group.

3. In the Description tab, click Security Groups.

4. Click Edit inbound rules to modify the rules if necessary.

You can also specify security groups during the instance creation process under Configure Instance > Security Group.

Step 7. Modify Security Groups When Necessary

If the need arises to modify the rules of a security group, AWS allows you to make changes at any time. Simply navigate to the security group, select it, and edit the inbound or outbound rules as required. Security groups are applied instantly to all associated resources.

Conclusion

Configuring security groups in AWS is a fundamental task to secure your resources and ensure they are accessible only to authorized users. By defining strict inbound and outbound rules, you can isolate your instances and protect them from unauthorized access. Additionally, combining multiple security groups for different layers of your architecture can enhance security and ensure that only necessary traffic flows between resources.

By following the steps, you can effectively configure security groups in AWS to safeguard your infrastructure within your VPC.
