How to Configure and Onboarding VMs to Azure Arc Hybrid

Introduction

Azure Arc is a Microsoft offering that extends Azure services and management capabilities to resources outside of the Azure cloud. It allows organizations to manage and govern resources across different environments, including on-premises, other public clouds, and the edge. With Azure Arc, you can bring Azure services like resource management, policy enforcement, monitoring, security, and automation to your non-Azure environments, providing a unified management experience.

Prerequisites

• Azure Subscription
• On-premises or other cloud-provided VMs
• Virtual machines Administrator privileges

Use cases

1. Hybrid Cloud Management
2. Multi-Cloud Management
3. Edge Computing
4. Azure Data Services Anywhere
5. Governance and Compliance
6. Application Modernization

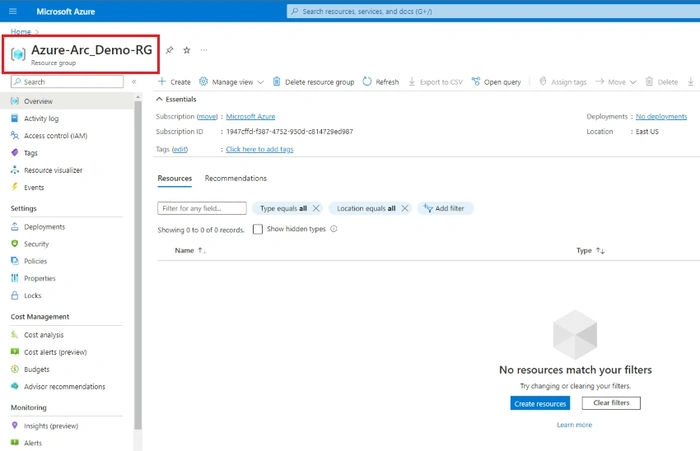

Step 1.  This is my Resource Group

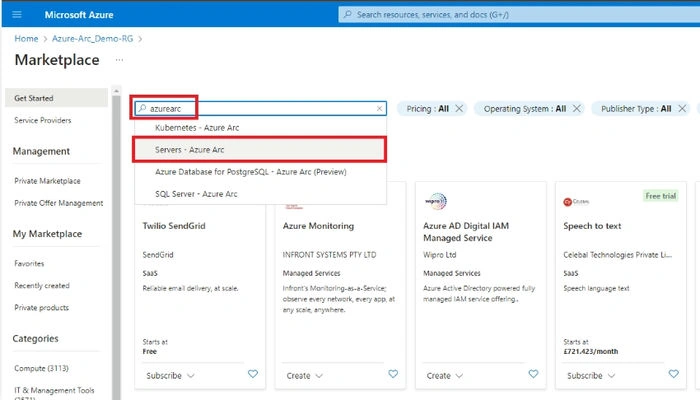

Step 2. Search Azure Arc on Azure Marketplace

Note. There are a few options you can see here select Servers -Azure Arc

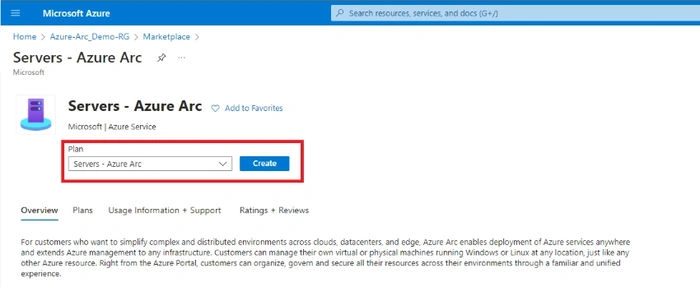

Step 3. Hit the create button.

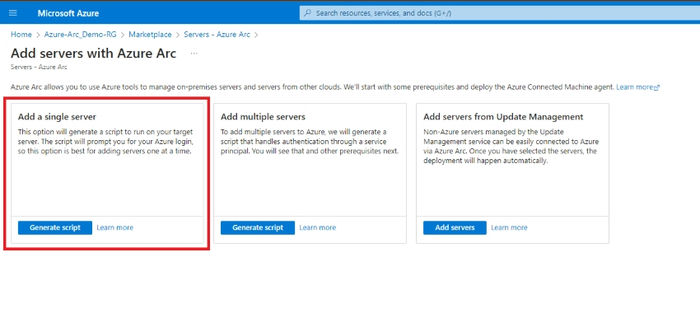

Step 4. Now you can see here multiple options, and as per your requirement, you can choose the option. In my case, I’m going to pick Add a single server option. And generate the scripts and run them on your on-premises server.

Note. You must have Administrator or Enterprise administrator privileges on the server

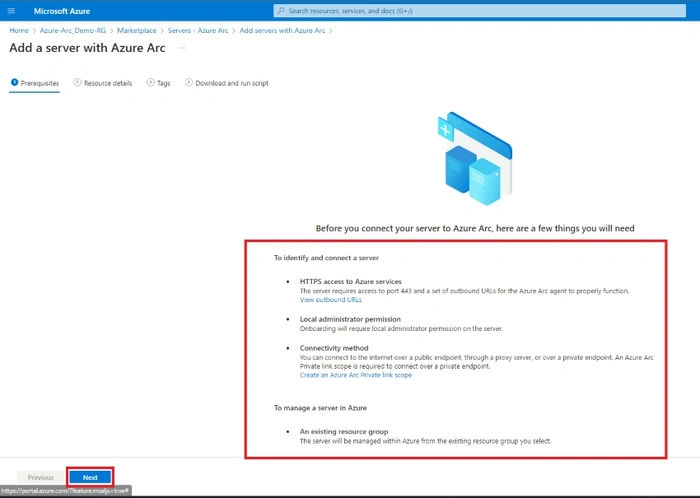

Step 5. Certain ports need to be enabled on your on-premises infrastructure.

Please learn more about Allow Ports

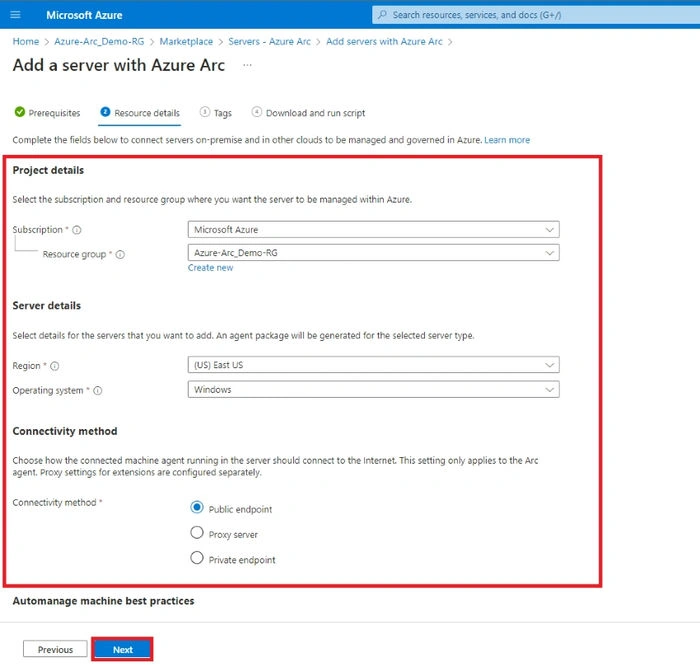

Step 6. Make sure the project details are correct, and click next.

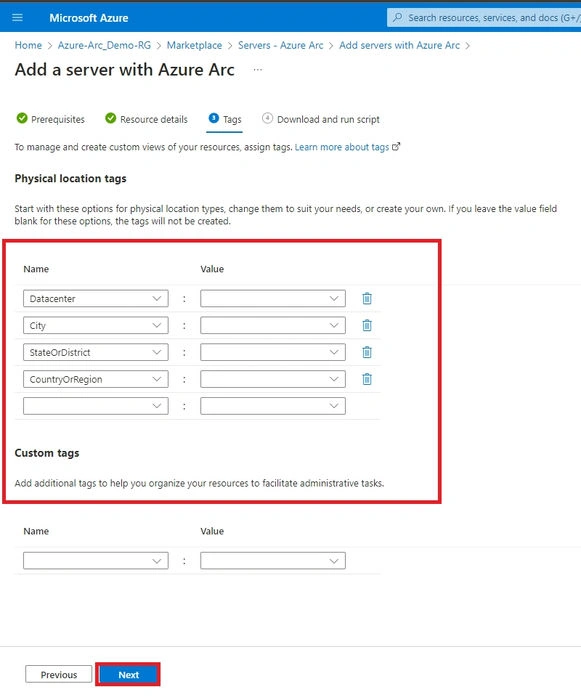

Step 7. Leave the default tags as it is.

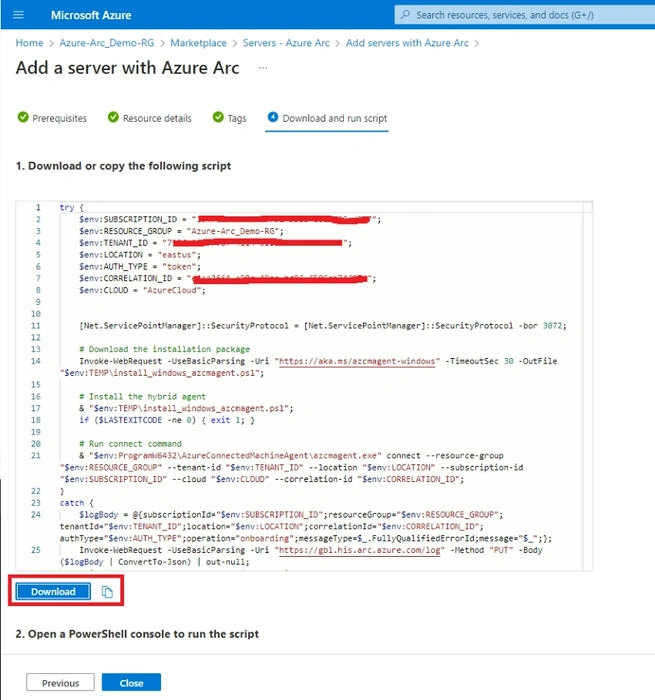

Step 8. Now you can download or copy the scripts here.

Installation of Azure Arc agent on your VM

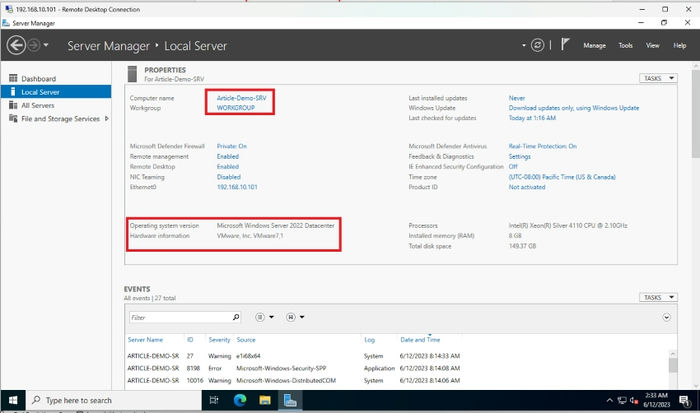

Step 1. This is my On-premises VM Hoisted by VMware

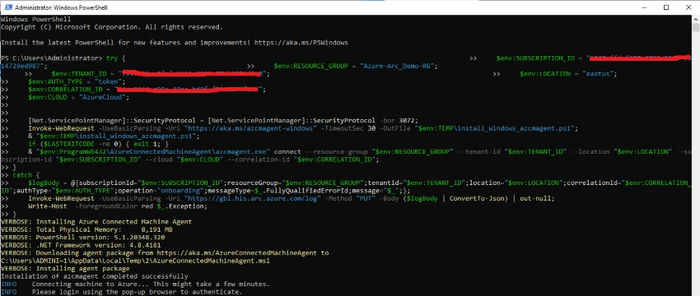

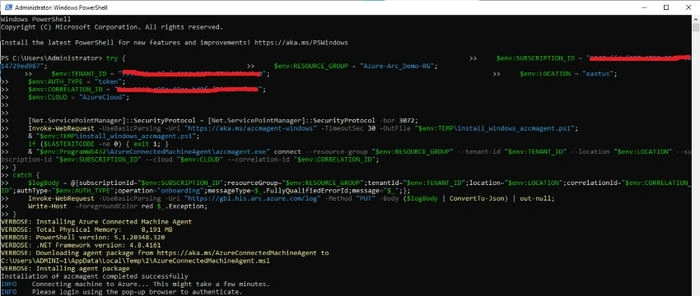

Step 2. Please run the script from your VMs or Physical servers

Note. PowerShell opens as an administrator, and it will run and automatically ask you to sign in with Azure AD credentials.

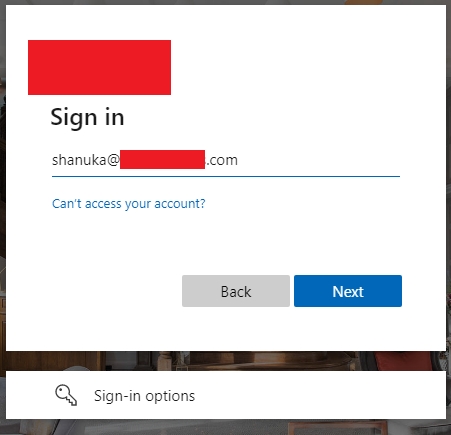

Step 3. It automatically pops up for you to sign in.

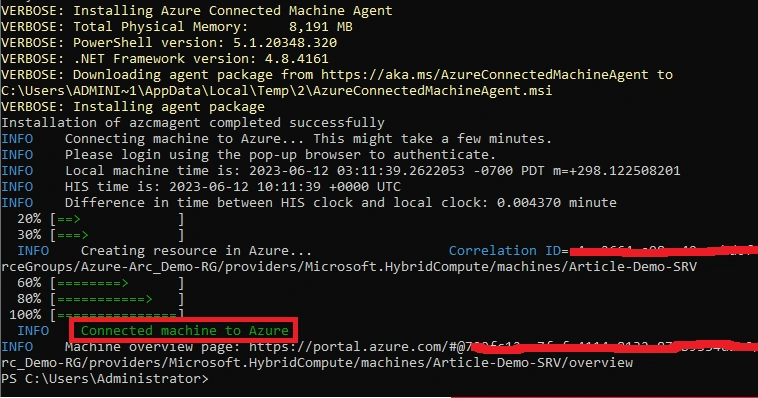

Step 4. Once you are done with the correct sign-in, you can be able to see the Connected machine to Azure.

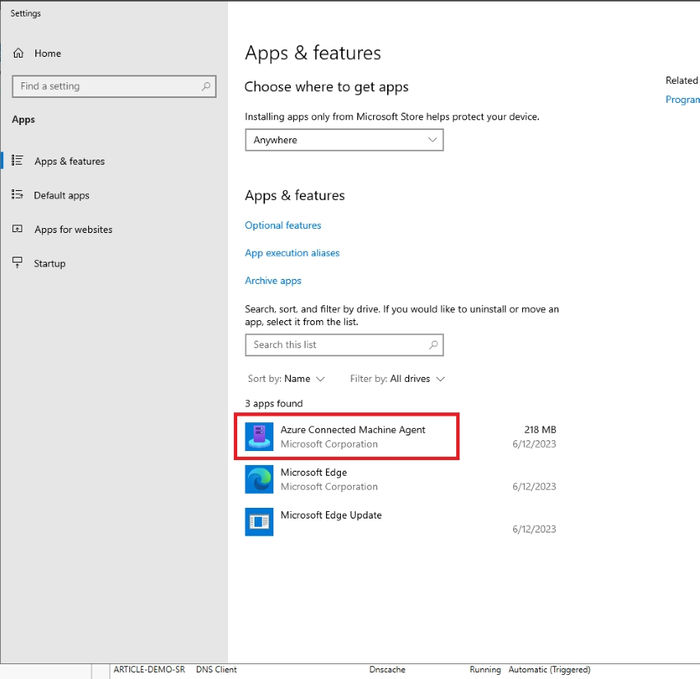

Step 5. You can see the Azure Arc Agent on your VM.

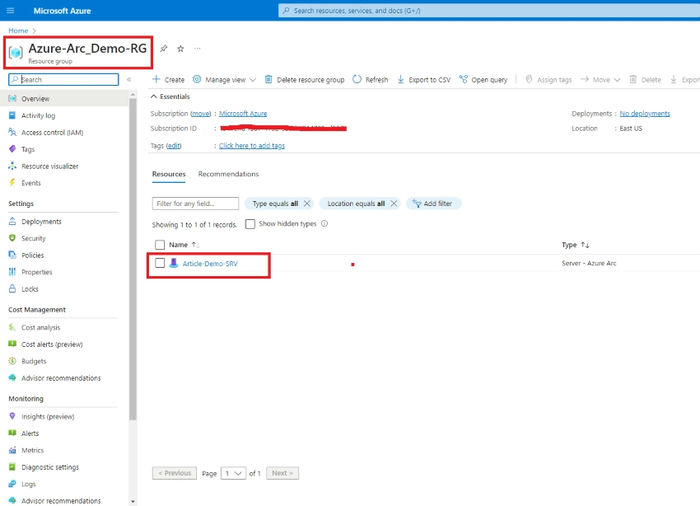

Step 6. My On-premises VM is located under my Resource Group

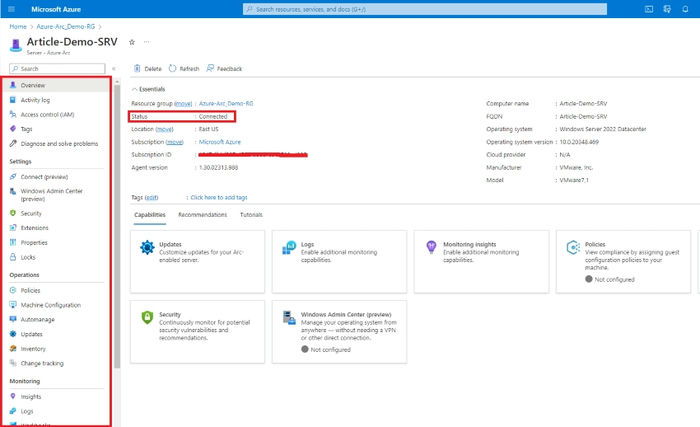

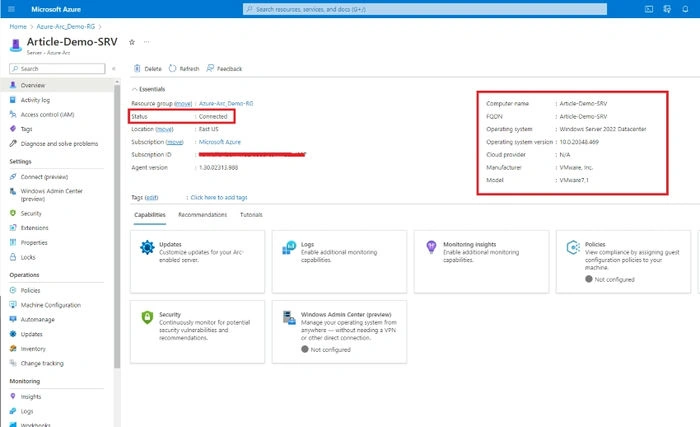

Step 7. Successfully Onboarded my on-premises VM to Azure Portal.

Step 7. Now you can manage all the operations to the VM using the Azure portal.

For example, If you want to install any application, you can execute from extensions

Conclusion

This article taught us how to configure a VM running on VMware as an Arc-enabled server. If you have any questions, don't hesitate to comment below.
