How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

Introduction

In this part of the article, we learn how to create .Net Core API for the KendoUI Curd Operations. Also here we learn the multilayer architecture of .Net Core API.

Preconditions

  • Basic knowledge of Angular CLI
  • Basic knowledge of Dot Net core
  • Basic knowledge of SQL server
  • Bootstrap
  • Node.js
  • V.S. Code,Visual Studio

We cover the below things

  • Create Dot Net Core API
  • Create Angular application
  • Angular Routing
  • Kendo UI setup
  • Bind KendoUI grid

Add this script to the database to create table.

Create Database KendoUIDb

CREATE TABLE [dbo].[Users](
	[UserId] [int] primary key IDENTITY(1,1) NOT NULL,
	[UserName] [nvarchar](56) NOT NULL,
	[FullName] [nvarchar](200) NULL,
	[EmailId] [nvarchar](200) NULL,
	[Contactno] [nvarchar](10) NULL,
	[Password] [nvarchar](200) NULL,
	[Createdby] [int] NULL,
	[CreatedDate] [datetime] NULL,
	[Status] [bit] NULL,
	[imagename] [varchar](100) NULL
)

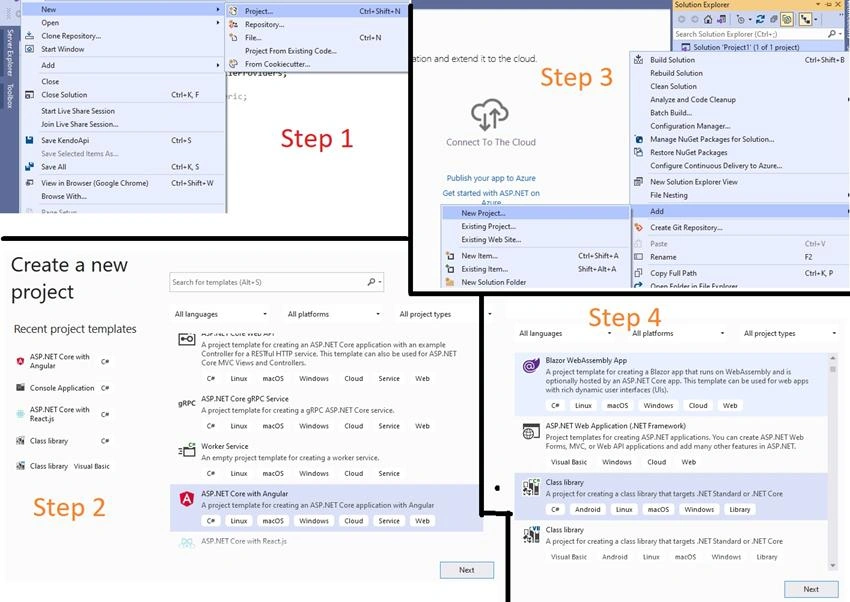

Now let's create a .Net API Project in visual studio using the following steps.

How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

We have to create four libraries mentioned in the below image.

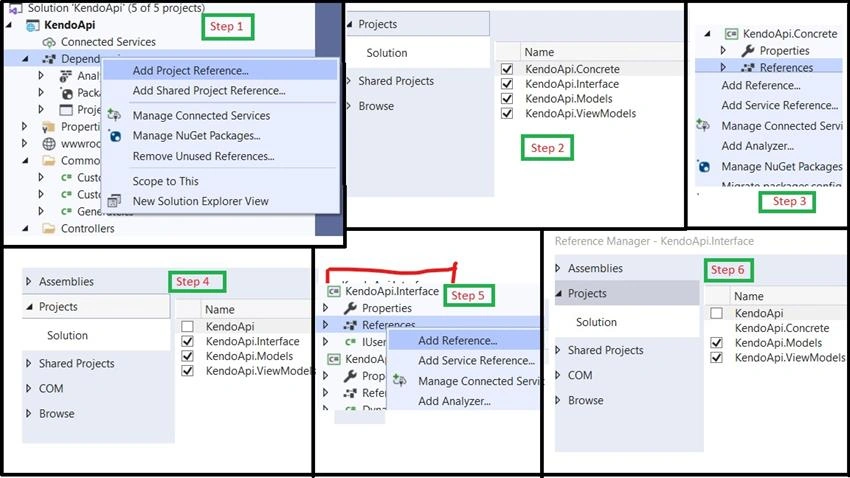

Now we add the references of project for interconnect.

How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

Now we will create the following files according to the below images.

How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

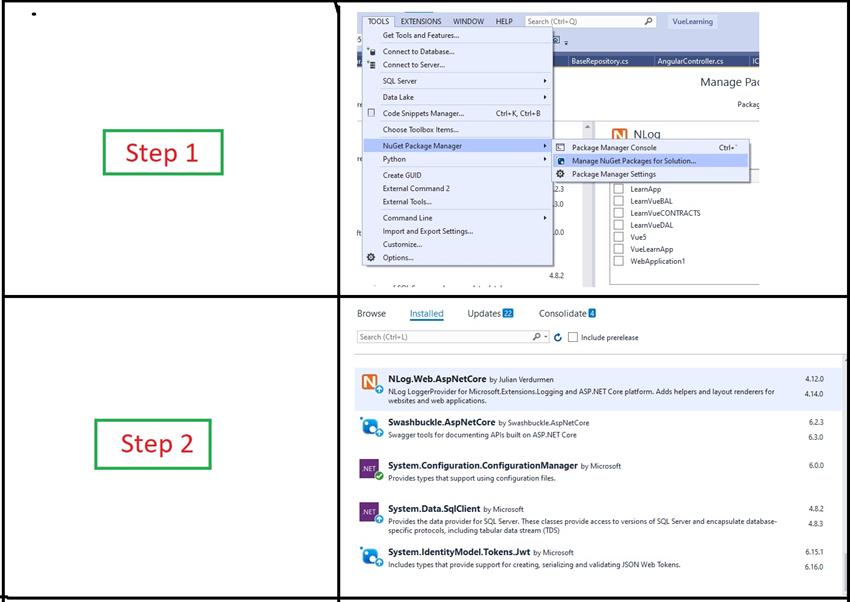

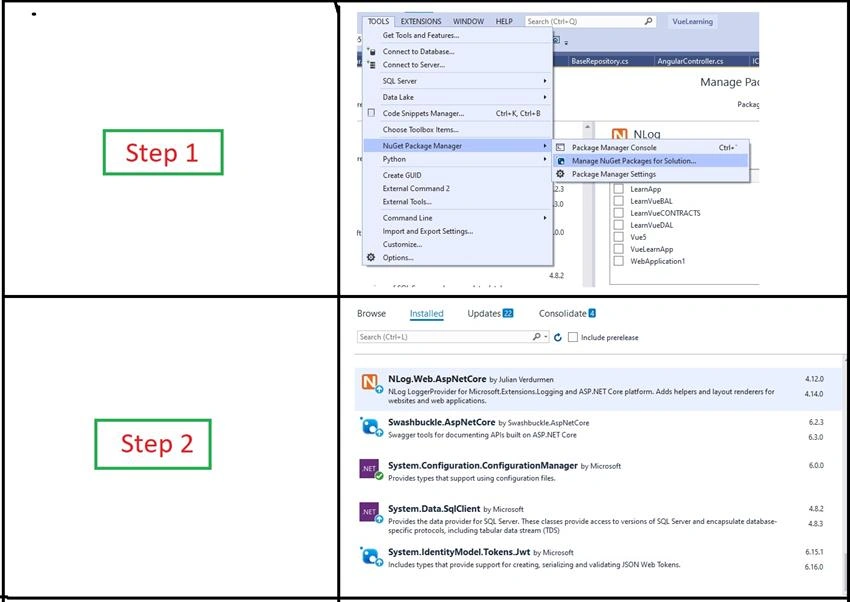

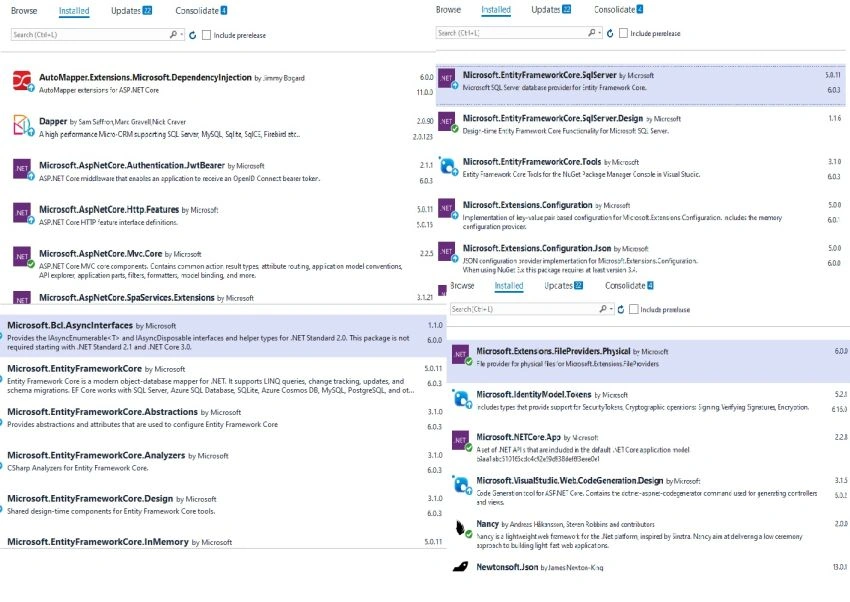

Now add the following packages from nuget package manager.

How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

How To Add KendoUI Grid In Angular With .NET Core API With Multilayer Architecture

Now add the below code in the Custom.cs file.

using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.FileProviders;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using KendoApi.ViewModels;
namespace KendoApi.Common {
    public class Custom {
        public static string UploadImage(UsersViewModel users, IHostingEnvironment _environment, string routePath = "") {
            string filesName = "";
            if (users.file != null) {
                //Getting FileName
                var fileName = Path.GetFileName(users.file.FileName);
                //Assigning Unique Filename (Guid)
                var myUniqueFileName = Convert.ToString(Guid.NewGuid());
                //Getting file Extension
                var fileExtension = Path.GetExtension(fileName);
                // concatenating  FileName + FileExtension
                var newFileName = String.Concat(myUniqueFileName, fileExtension);
                filesName = newFileName;
                // Combines two strings into a path.
                var filepath = new PhysicalFileProvider(Path.Combine(Directory.GetCurrentDirectory(), "wwwroot", "Images")).Root + $ @ "\{newFileName}";
                using(FileStream fs = System.IO.File.Create(filepath)) {
                    users.file.CopyTo(fs);
                    fs.Flush();
                }
            } else {
                if (users.imagename == null) {
                    filesName = "";
                } else {
                    filesName = users.imagename != "" ? users.imagename.Replace("http://" + routePath + "/images/", "") : null;
                }
            }
            return filesName;
        }
    }
}

Now add the below code in the CustomExceptionFilterAttribute.cs file.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.Filters;
using Microsoft.AspNetCore.Routing;
namespace KendoApi.Common {
    public class CustomExceptionFilterAttribute: ExceptionFilterAttribute {
        private readonly IHostingEnvironment _hostingEnvironment;
        public CustomExceptionFilterAttribute(IHostingEnvironment hostingEnvironment) {
            _hostingEnvironment = hostingEnvironment;
        }
        public override void OnException(ExceptionContext context) {
            string strLogText = "";
            Exception ex = context.Exception;
            context.ExceptionHandled = true;
            var objClass = context;
            strLogText += "Message ---\n{0}" + ex.Message;
            if (context.HttpContext.Request.Headers["x-requested-with"] == "XMLHttpRequest") {
                strLogText += Environment.NewLine + ".Net Error ---\n{0}" + "Check MVC Ajax Code For Error";
            }
            strLogText += Environment.NewLine + "Source ---\n{0}" + ex.Source;
            strLogText += Environment.NewLine + "StackTrace ---\n{0}" + ex.StackTrace;
            strLogText += Environment.NewLine + "TargetSite ---\n{0}" + ex.TargetSite;
            if (ex.InnerException != null) {
                strLogText += Environment.NewLine + "Inner Exception is {0}" + ex.InnerException;
                //error prone
            }
            if (ex.HelpLink != null) {
                strLogText += Environment.NewLine + "HelpLink ---\n{0}" + ex.HelpLink; //error prone
            }
            StreamWriter log;
            string timestamp = DateTime.Now.ToString("d-MMMM-yyyy", new CultureInfo("en-GB"));
            string errorFolder = Path.Combine(_hostingEnvironment.WebRootPath, "ErrorLog");
            if (!System.IO.Directory.Exists(errorFolder)) {
                System.IO.Directory.CreateDirectory(errorFolder);
            }
            // ReSharper disable once ConvertIfStatementToConditionalTernaryExpression
            if (!File.Exists($ @ "{errorFolder}\Log_{timestamp}.txt")) {
                log = new StreamWriter($ @ "{errorFolder}\Log_{timestamp}.txt");
            } else {
                log = File.AppendText($ @ "{errorFolder}\Log_{timestamp}.txt");
            }
            var controllerName = (string) context.RouteData.Values["controller"];
            var actionName = (string) context.RouteData.Values["action"];
            // Write to the file:
            log.WriteLine(Environment.NewLine + DateTime.Now);
            log.WriteLine("------------------------------------------------------------------------------------------------");
            log.WriteLine("Controller Name :- " + controllerName);
            log.WriteLine("Action Method Name :- " + actionName);
            log.WriteLine("------------------------------------------------------------------------------------------------");
            log.WriteLine(objClass);
            log.WriteLine(strLogText);
            log.WriteLine();
            // Close the stream:
            log.Close();
            if (!_hostingEnvironment.IsDevelopment()) {
                // do nothing
                return;
            }
            var result = new RedirectToRouteResult(new RouteValueDictionary {
                {
                    "controller",
                    "Errorview"
                }, {
                    "action",
                    "Error"
                }
            });
            // TODO: Pass additional detailed data via ViewData
            context.Result = result;
        }
    }
}

Now add the below code in the Generate.cs file.

using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Security.Cryptography;
using System.Text;
using System.Threading.Tasks;
namespace KendoApi.Common {
    public class EncryptionLibrary {
        public static byte[] AES_Encrypt(byte[] bytesToBeEncrypted, byte[] passwordBytes) {
            byte[] encryptedBytes = null;
            // Set your salt here, change it to meet your flavor:
            // The salt bytes must be at least 8 bytes.
            byte[] saltBytes = new byte[] {
                1,
                2,
                3,
                4,
                5,
                6,
                7,
                8
            };
            using(MemoryStream ms = new MemoryStream()) {
                using(RijndaelManaged aes = new RijndaelManaged()) {
                    aes.KeySize = 256;
                    aes.BlockSize = 128;
                    var key = new Rfc2898DeriveBytes(passwordBytes, saltBytes, 1000);
                    aes.Key = key.GetBytes(aes.KeySize / 8);
                    aes.IV = key.GetBytes(aes.BlockSize / 8);
                    aes.Mode = CipherMode.CBC;
                    using(var cs = new CryptoStream(ms, aes.CreateEncryptor(), CryptoStreamMode.Write)) {
                        cs.Write(bytesToBeEncrypted, 0, bytesToBeEncrypted.Length);
                        cs.Close();
                    }
                    encryptedBytes = ms.ToArray();
                }
            }
            return encryptedBytes;
        }
        public static byte[] AES_Decrypt(byte[] bytesToBeDecrypted, byte[] passwordBytes) {
            try {
                byte[] decryptedBytes = null;
                // Set your salt here, change it to meet your flavor:
                // The salt bytes must be at least 8 bytes.
                byte[] saltBytes = new byte[] {
                    1,
                    2,
                    3,
                    4,
                    5,
                    6,
                    7,
                    8
                };
                using(MemoryStream ms = new MemoryStream()) {
                    using(RijndaelManaged AES = new RijndaelManaged()) {
                        AES.KeySize = 256;
                        AES.BlockSize = 128;
                        var key = new Rfc2898DeriveBytes(passwordBytes, saltBytes, 1000);
                        AES.Key = key.GetBytes(AES.KeySize / 8);
                        AES.IV = key.GetBytes(AES.BlockSize / 8);
                        AES.Mode = CipherMode.CBC;
                        using(var cs = new CryptoStream(ms, AES.CreateDecryptor(), CryptoStreamMode.Write)) {
                            cs.Write(bytesToBeDecrypted, 0, bytesToBeDecrypted.Length);
                            cs.Close();
                        }
                        decryptedBytes = ms.ToArray();
                    }
                }
                return decryptedBytes;
            } catch (Exception) {
                throw;
            }
        }
        public static string EncryptText(string input, string password = "E6t187^D43%F") {
            try {
                // Get the bytes of the string
                byte[] bytesToBeEncrypted = Encoding.UTF8.GetBytes(input);
                byte[] passwordBytes = Encoding.UTF8.GetBytes(password);
                // Hash the password with SHA256
                passwordBytes = SHA256.Create().ComputeHash(passwordBytes);
                byte[] bytesEncrypted = AES_Encrypt(bytesToBeEncrypted, passwordBytes);
                string result = Convert.ToBase64String(bytesEncrypted);
                return result;
            } catch (Exception) {
                throw;
            }
        }
        public static string DecryptText(string input, string password = "E6t187^D43%F") {
            try {
                // Get the bytes of the string
                byte[] bytesToBeDecrypted = Convert.FromBase64String(input);
                byte[] passwordBytes = Encoding.UTF8.GetBytes(password);
                passwordBytes = SHA256.Create().ComputeHash(passwordBytes);
                byte[] bytesDecrypted = AES_Decrypt(bytesToBeDecrypted, passwordBytes);
                string result = Encoding.UTF8.GetString(bytesDecrypted);
                return result;
            } catch (Exception) {
                throw;
            }
        }
    }
}

Now add the below code in the UserController.cs file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Security.Claims;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Newtonsoft.Json;
using KendoApi.Common;
using KendoApi.Interface;
using KendoApi.Models;
using KendoApi.ViewModels;
using System.Web;
using Microsoft.AspNetCore.Hosting;
using System.IO;
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
using AutoMapper;
namespace KendoApi.Controllers {
    //[Authorize]
    [Route("api/[controller]")]
    [ApiController]
    public class UserController: ControllerBase {
        private readonly IUsers _users;
        private readonly IHostingEnvironment _environment;
        private readonly IHttpContextAccessor _httpContextAccessor;
        public UserController(IUsers users, IHostingEnvironment environment, IHttpContextAccessor httpContextAccessor) {
            _users = users;
            _environment = environment;
            _httpContextAccessor = httpContextAccessor;
        }
        // GET: api/User
        [HttpGet]
        public IEnumerable < Users > Get() {
            var path = _httpContextAccessor.HttpContext.Request.Host.ToString();
            var UserData = _users.GetAllUsers(path);
            return UserData;
        }
        // GET: api/User/5
        [HttpGet]
        [Route("GetByUserName")]
        public Users GetByUserName(string username = "") {
            var path = _httpContextAccessor.HttpContext.Request.Host.ToString();
            var UserData = _users.GetByUserName(username, path);
            return UserData;
        }
        // GET: api/User/5
        [HttpGet("{id}", Name = "GetUsers")]
        public Users Get(int id) {
                var UserData = _users.GetUsersbyId(id);
                var password = EncryptionLibrary.DecryptText(UserData.Password);
                return UserData;
            }
            [HttpPost]
        public IActionResult Post([FromForm] UsersViewModel users) {
            var path = _httpContextAccessor.HttpContext.Request.Host.ToString();
            var Result = Custom.UploadImage(users, _environment, path);
            string imagepath = "http://" + path + "/images/";
            var _rootPath = _environment.WebRootPath;
            if (ModelState.IsValid) {
                if (_users.CheckUsersExits(users.UserName)) {
                    var response = new HttpResponseModel() {
                        StatusCode = (int) HttpStatusCode.Conflict,
                            data = ""
                    };
                    return Ok(response);
                } else {
                    var userId = this.User.FindFirstValue(ClaimTypes.Name);
                    var tempUsers = AutoMapper.Mapper.Map < Users > (users);
                    tempUsers.UserName = users.UserName;
                    tempUsers.imagename = users.file != null ? users.file.FileName : "";
                    tempUsers.CreatedDate = DateTime.Now;
                    tempUsers.imagename = Result;
                    tempUsers.Createdby = Convert.ToInt32(userId);
                    tempUsers.Password = EncryptionLibrary.EncryptText(users.Password);
                    _users.InsertUsers(tempUsers);
                    var response = new HttpResponseModel() {
                        StatusCode = (int) HttpStatusCode.OK,
                            data = imagepath + tempUsers.imagename
                    };
                    return Ok(response);
                }
            } else {
                var Results = ModelState.Values.ToList()[0].Errors.Count().ToString();
                var response = new HttpResponseModel() {
                    StatusCode = (int) HttpStatusCode.BadRequest,
                        data = ""
                };
                return Ok(Results);
            }
        }
        // PUT: api/User/5
        [HttpPut("{id}")]
        public IActionResult Put(int id, [FromForm] UsersViewModel users) {
            if (ModelState.IsValid) {
                var path = _httpContextAccessor.HttpContext.Request.Host.ToString();
                string imagepath = "http://" + path + "/images/";
                var Result = Custom.UploadImage(users, _environment, path);
                users.Password = EncryptionLibrary.EncryptText(users.Password);
                var tempUsers = AutoMapper.Mapper.Map < Users > (users);
                tempUsers.UserId = id;
                tempUsers.CreatedDate = DateTime.Now;
                tempUsers.imagename = Result;
                _users.UpdateUsers(tempUsers);
                var response = new HttpResponseModel() {
                    StatusCode = (int)(HttpStatusCode.OK),
                        data = imagepath + tempUsers.imagename
                };
                return Ok(response);
            } else {
                var response = new HttpResponseModel() {
                    StatusCode = (int) HttpStatusCode.BadRequest,
                        data = ""
                };
                return Ok(response);
            }
        }
        // DELETE: api/ApiWithActions/5
        [HttpDelete("{id}")]
        public HttpResponseMessage Delete(int id) {
            var result = _users.DeleteUsers(id);
            if (result) {
                var response = new HttpResponseMessage() {
                    StatusCode = HttpStatusCode.OK
                };
                return response;
            } else {
                var response = new HttpResponseMessage() {
                    StatusCode = HttpStatusCode.BadRequest
                };
                return response;
            }
        }
    }
}

Now add the below code in the MappingProfile.cs file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using AutoMapper;
using KendoApi.Models;
using KendoApi.ViewModels;

namespace KendoApi.Mappings
{
    public class MappingProfile : Profile
    {
        public MappingProfile()
        {

            CreateMap<UsersViewModel, Users>()
                .ForMember(dest => dest.UserName, opt => opt.MapFrom(src => src.UserName))
                .ForMember(dest => dest.Contactno, opt => opt.MapFrom(src => src.Contactno))
                .ForMember(dest => dest.EmailId, opt => opt.MapFrom(src => src.EmailId))
                .ForMember(dest => dest.FullName, opt => opt.MapFrom(src => src.FullName))
                .ForMember(dest => dest.Password, opt => opt.MapFrom(src => src.Password))
                .ForMember(dest => dest.UserId, opt => opt.MapFrom(src => src.Id))
                .ForMember(dest => dest.Status, opt => opt.MapFrom(src => src.Status));
        }
    }
}

Now add the below code in the AppSettings.cs file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace KendoApi.Models {
    public class AppSettings {
        public string Secret {
            get;
            set;
        }
    }
}

Now add the below code in the AppSettings.cs file.

{
    "AppSettings": {
        "Secret": "6XJCIEJO41PQZNWJC4RR"
    },
    "Logging": {
        "LogLevel": {
            "Default": "Warning"
        }
    },
    "AllowedHosts": "*",
    "ConnectionStrings": {
        "DatabaseConnection": "Data Source=DESKTOP-13P092J\\SA; UID=sa; Password=sa123;Database=KendoUIDb;"
    }
}

Now add the below code in the Startup.cs file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using AutoMapper;
using Microsoft.AspNetCore.Authentication.JwtBearer;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Http.Features;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.Infrastructure;
using Microsoft.AspNetCore.Mvc.Routing;
using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.IdentityModel.Tokens;
using KendoApi.Common;
using KendoApi.Concrete;
using KendoApi.Interface;
using KendoApi.Mappings;
using KendoApi.Models;
namespace KendoApi {
    public class Startup {
        public Startup(IConfiguration configuration) {
            Configuration = configuration;
        }
        public IConfiguration Configuration {
            get;
        }
        // This method gets called by the runtime. Use this method to add services to the container.
        public void ConfigureServices(IServiceCollection services) {
            services.Configure < CookiePolicyOptions > (options => {
                // This lambda determines whether user consent for non-essential cookies is needed for a given request.
                options.CheckConsentNeeded = context => true;
                options.MinimumSameSitePolicy = SameSiteMode.None;
            });
            #region MyRegion
            var connection = Configuration.GetConnectionString("DatabaseConnection");
            services.AddDbContext < DatabaseContext > (options => options.UseSqlServer(connection, b => b.UseRowNumberForPaging()));
            var appSettingsSection = Configuration.GetSection("AppSettings");
            services.Configure < AppSettings > (appSettingsSection);
            // configure jwt authentication
            var appSettings = appSettingsSection.Get < AppSettings > ();
            var key = Encoding.ASCII.GetBytes(appSettings.Secret);
            services.AddAuthentication(x => {
                x.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
                x.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
            }).AddJwtBearer(x => {
                x.RequireHttpsMetadata = false;
                x.SaveToken = true;
                x.TokenValidationParameters = new TokenValidationParameters {
                    ValidateIssuerSigningKey = true,
                        IssuerSigningKey = new SymmetricSecurityKey(key),
                        ValidateIssuer = false,
                        ValidateAudience = false
                };
            });
            services.AddSingleton < IConfiguration > (Configuration);
            services.AddTransient < IUsers, UsersConcrete > ();
            services.AddSingleton < IActionContextAccessor, ActionContextAccessor > ();
            services.AddScoped < IUrlHelper > (implementationFactory => {
                var actionContext = implementationFactory.GetService < IActionContextAccessor > ().ActionContext;
                return new UrlHelper(actionContext);
            });
            #endregion
            services.AddSingleton < IHttpContextAccessor, HttpContextAccessor > ();
            services.AddHttpContextAccessor();
            // Start Registering and Initializing AutoMapper
            Mapper.Initialize(cfg => cfg.AddProfile < MappingProfile > ());
            services.AddAutoMapper();
            // End Registering and Initializing AutoMapper
            services.Configure < FormOptions > (options => {
                options.ValueCountLimit = 200; //default 1024
                options.ValueLengthLimit = 1024 * 1024 * 100; //not recommended value
                options.MultipartBodyLengthLimit = long.MaxValue; //not recommended value
            });
            services.AddMvc(options => {
                options.Filters.Add(typeof(CustomExceptionFilterAttribute));
            }).SetCompatibilityVersion(CompatibilityVersion.Version_2_1).AddJsonOptions(options => {
                options.SerializerSettings.ContractResolver = new Newtonsoft.Json.Serialization.DefaultContractResolver();
            });
            services.AddCors(options => {
                options.AddPolicy("CorsPolicy", builder => builder.AllowAnyOrigin().AllowAnyMethod().AllowAnyHeader().AllowCredentials().WithExposedHeaders("X-Pagination"));
            });
        }
        // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
        public void Configure(IApplicationBuilder app, IHostingEnvironment env) {
            if (env.IsDevelopment()) {
                app.UseDeveloperExceptionPage();
            } else {
                app.UseExceptionHandler("/Home/Error");
            }
            app.UseStaticFiles();
            app.UseCookiePolicy();
            app.UseAuthentication();
            app.UseCors("CorsPolicy");
            app.UseMvc(routes => {
                routes.MapRoute(name: "default", template: "{controller=Home}/{action=Index}/{id?}");
            });
        }
    }
}

Now add the below code in the DatabaseContext.cs file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Microsoft.EntityFrameworkCore;
using KendoApi.Models;
namespace KendoApi.Concrete {
    public class DatabaseContext: DbContext {
        public DatabaseContext(DbContextOptions < DatabaseContext > options): base(options) {}
        public DbSet < Users > Users {
            get;
            set;
        }
    }
}

Now add the below code in the UsersConcrete.cs file.

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Dapper;
using KendoApi.Common;
using KendoApi.Interface;
using KendoApi.Models;
using KendoApi.ViewModels;
using Microsoft.Extensions.Configuration;
namespace KendoApi.Concrete {
    public class UsersConcrete: IUsers {
        private readonly IConfiguration _configuration;
        private readonly DatabaseContext _context;
        //private readonly MemberRegistrationConcrete _entitycontext;
        //public UsersConcrete(DatabaseContext context, MemberRegistrationConcrete entitycontext)
        public UsersConcrete(DatabaseContext context, IConfiguration configuration) {
            _context = context;
            _configuration = configuration;
        }
        public bool CheckUsersExits(string username) {
            var result = (from user in _context.Users where user.UserName == username select user).Count();
            return result > 0 ? true : false;
        }
        public bool AuthenticateUsers(string username, string password) {
            var result = (from user in _context.Users where user.UserName == username && user.Password == password select user).Count();
            return result > 0 ? true : false;
        }
        public bool DeleteUsers(int userId) {
            var removeuser = (from user in _context.Users where user.UserId == userId select user).FirstOrDefault();
            if (removeuser != null) {
                _context.Users.Remove(removeuser);
                var result = _context.SaveChanges();
                if (result > 0) {
                    return true;
                } else {
                    return false;
                }
            } else {
                return false;
            }
        }
        public List < Users > GetAllUsers(string rootpath = "") {
            var result = (from user in _context.Users where user.Status == true select user).ToList();
            foreach(var item in result) {
                item.Password = EncryptionLibrary.DecryptText(item.Password);
                if (item.imagename != "" && item.imagename != null && item.imagename != "null") {
                    item.imagename = "http://" + rootpath + "/images/" + item.imagename;
                }
            }
            return result;
        }
        public Users GetUsersbyId(int userId) {
            var result = (from user in _context.Users where user.UserId == userId select user).FirstOrDefault();
            return result;
        }
        public Users GetByUserName(string username, string rootpath) {
            var result = (from user in _context.Users where user.UserName == username select user).FirstOrDefault();
            result.imagename = "http://" + rootpath + "/images/" + result.imagename;
            result.Password = EncryptionLibrary.DecryptText(result.Password);
            return result;
        }
        public bool InsertUsers(Users user) {
            _context.Users.Add(user);
            var result = _context.SaveChanges();
            if (result > 0) {
                return true;
            } else {
                return false;
            }
        }
        public bool UpdateUsers(Users user) {
            _context.Entry(user).Property(x => x.EmailId).IsModified = true;
            _context.Entry(user).Property(x => x.Contactno).IsModified = true;
            _context.Entry(user).Property(x => x.Status).IsModified = true;
            _context.Entry(user).Property(x => x.FullName).IsModified = true;
            _context.Entry(user).Property(x => x.Password).IsModified = true;
            //_context.Entry(user).Property(x => x.UserName).IsModified = true;
            _context.Entry(user).Property(x => x.imagename).IsModified = true;
            var result = _context.SaveChanges();
            if (result > 0) {
                return true;
            } else {
                return false;
            }
        }
    }
}

Now add the below code in the IUsers.cs file.

using System;
using System.Collections.Generic;
using KendoApi.Models;
using KendoApi.ViewModels;
namespace KendoApi.Interface {
    public interface IUsers {
        bool InsertUsers(Users user);
        bool CheckUsersExits(string username);
        Users GetUsersbyId(int userid);
        bool DeleteUsers(int userid);
        bool UpdateUsers(Users role);
        List < Users > GetAllUsers(string rootpath = "");
        bool AuthenticateUsers(string username, string password);
        Users GetByUserName(string username, string rootpath);
    }
}

Now add the below code in the Users.cs file.

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace KendoApi.Models {
    [Table("Users")]
    public class Users {
        [Key]
        public int UserId {
            get;
            set;
        }
        public string UserName {
            get;
            set;
        }
        public string FullName {
            get;
            set;
        }
        public string EmailId {
            get;
            set;
        }
        public string Contactno {
            get;
            set;
        }
        public string Password {
            get;
            set;
        }
        public int ? Createdby {
            get;
            set;
        }
        public string imagename {
            get;
            set;
        }
        public DateTime ? CreatedDate {
            get;
            set;
        }
        public bool Status {
            get;
            set;
        }
    }
}

Now add the below code in the HttpResponseModel.cs file.

using Microsoft.AspNetCore.Http;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace KendoApi.ViewModels {
    public class HttpResponseModel {
        public string data {
            get;
            set;
        }
        public int StatusCode {
            get;
            set;
        }
    }
}

Now add the below code in the UsersViewModel.cs file.

using Microsoft.AspNetCore.Http;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace KendoApi.ViewModels {
    public class UsersViewModel {
        public int Id {
            get;
            set;
        }
        public int UserId {
            get;
            set;
        }
        //[Required]
        public string UserName {
            get;
            set;
        }
        // [Required]
        public string FullName {
            get;
            set;
        }
        // [Required]
        public string EmailId {
            get;
            set;
        }
        // [Required]
        public string Contactno {
            get;
            set;
        }
        //   [Required]
        public string Password {
            get;
            set;
        }
        public bool Status {
            get;
            set;
        }
        [NotMapped]
        public IFormFile file {
            get;
            set;
        }
        public string imagename {
            get;
            set;
        }
        //     public List<IFormFile> files { get; set; }
    }
}

We have completed the API part, now in the next part we will work on binding the KendoUI Grid with API.

Summary

In this article, we learned how to create .Net core multilayer architecture for API with curd operations.


Similar Articles
