Harris Corner Detection in OpenCV

Introduction

In the realm of computer vision, identifying key features within an image is crucial for various tasks like object recognition, motion tracking, and image registration. Harris corner detection is a powerful technique that empowers you to pinpoint these significant image features – corners. This article delves into the Harris corner detection algorithm and its implementation using OpenCV, a popular computer vision library.

Harris Corner Detection?

Harris Corner Detection is a mathematical approach to finding corners or interest points in an image. Corners are points where the intensity of the image changes significantly in multiple directions. These points are useful because they are robust to changes in lighting and perspective, making them reliable features for tasks such as image matching and motion tracking.

Working of HCD

The Harris Corner Detection algorithm can be broken down into several key steps.

  • Gradient Calculation: The algorithm starts by computing the gradients of the image in the x and y directions. These gradients capture the changes in intensity and are typically calculated using the Sobel operator.
  • Structure Tensor Calculation: For each pixel, the gradients are used to form a 2x2 structure tensor matrix, which captures the local auto-correlation of the gradients. The structure tensor is defined as.
    HCD
  • Corner Response Calculation: Using the structure tensor, a corner response function is computed for each pixel. The Harris corner response is given by.
    Corner Response

Where det(M) is the determinant of the structure tensor, trace(M) is its trace, and k is a sensitivity parameter typically set to a small constant (e.g., 0.04 to 0.06).

  • Non-Maximum Suppression: To identify the best corners, non-maximum suppression is applied. This step ensures that only the most prominent corners are retained by comparing the corner response of each pixel with its neighbors.
  • Thresholding: Finally, a threshold is applied to the corner response values to filter out weak corners.

Example

OpenCV provides a straightforward implementation of the Harris Corner Detection algorithm. Below is an example of how to use OpenCV to detect corners in an image.

import cv2
import numpy as np

# Load an image
image = cv2.imread('imageP.jpg')

gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

# Convert gray image to float32
gray = np.float32(gray)

# Apply Harris Corner Detection
dst = cv2.cornerHarris(gray, blockSize=2, ksize=3, k=0.04)

# Result is dilated for marking the corners
dst = cv2.dilate(dst, None)

# Threshold for an optimal value, it may vary depending on the image.
image[dst > 0.01 * dst.max()] = [0, 0, 255]

# Display the result
cv2.imshow('Harris Corners', image)
cv2.waitKey(0)
cv2.destroyAllWindows()

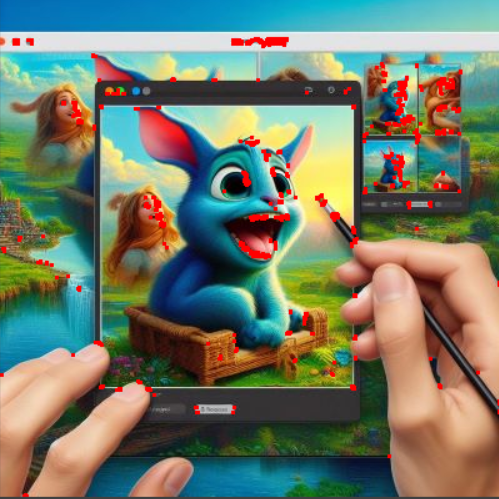

OutPut

Conclusion

Harris corner detection is a valuable tool in your computer vision toolbox. By leveraging OpenCV's functionalities, you can effectively identify these crucial image features and unlock a world of possibilities in your image analysis projects.
