Get Started With Bot Development With Microsoft Power Virtual Agents - Step By Step - Part Two

Overview


Welcome to Bot Development with the Microsoft Power Virtual Agent. During this entire article series, we will learn how to create a Chatbot using Microsoft Power Virtual Agent without writing a single line of code. From this series you will learn the complete end to end process from development to deployment.

I have divided this article series into five parts:

Use Case


In this article, we will develop a chat bot to manage our IT Admin Process. Let’s say in an organization, an employee wishes to enter a ticket for their hardware, software, device or VM related issues and needs quick help from their IT admins.

So, now let’s get started!

First, we need to create a new chat bot.

Step 1

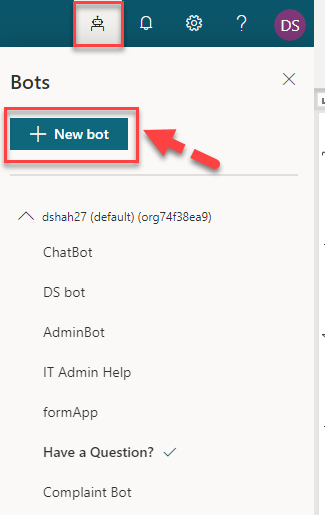

From Top Header, click on Bot Panel. Click on New Bot.

Get Started With Bot Development With Microsoft Power Virtual Agents

Step 2

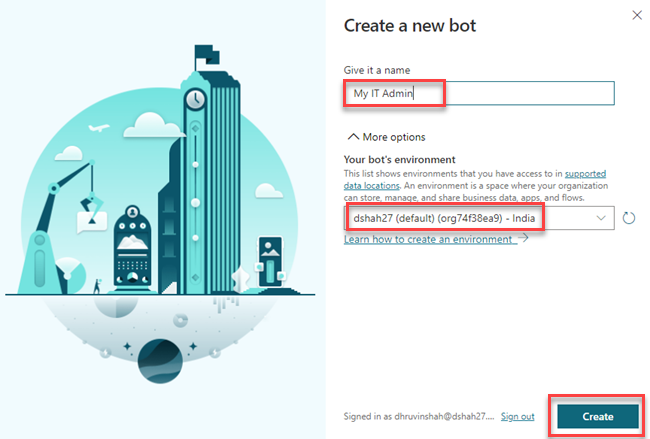

Give the name of your Chat Bot, select an environment and click on the Create button.

Get Started With Bot Development With Microsoft Power Virtual Agents

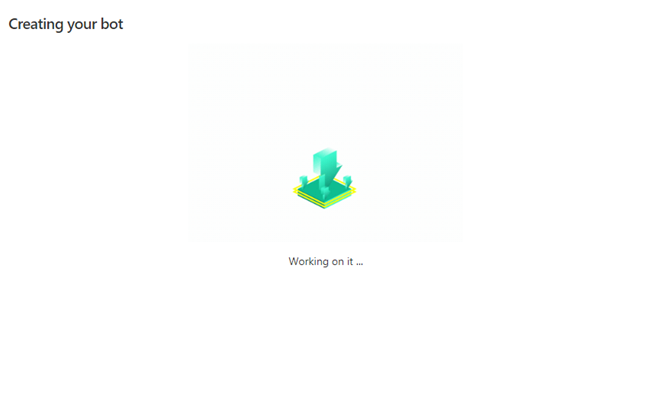

This will show the progress bar and this process will take some time.

Get Started With Bot Development With Microsoft Power Virtual Agents

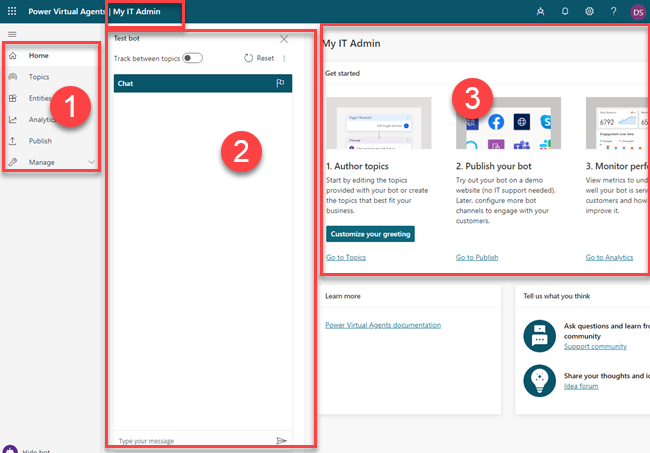

Once your chat bot is created you can see the following sections.
  • Menu bar
  • Test a Bot
  • Manage Bot steps

    • Create topics
    • Publish your bot
    • Monitor Performance
 Get Started With Bot Development With Microsoft Power Virtual Agents

Step 3

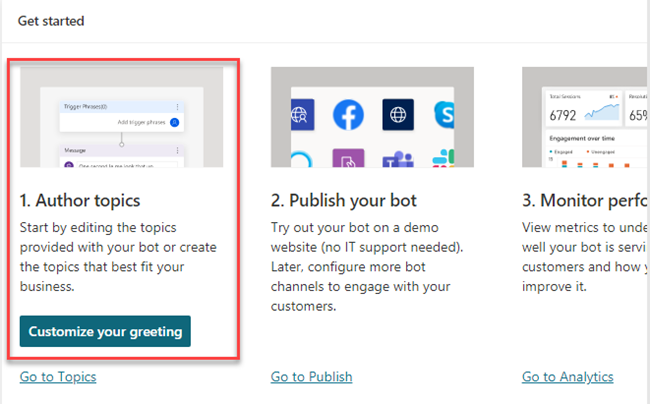

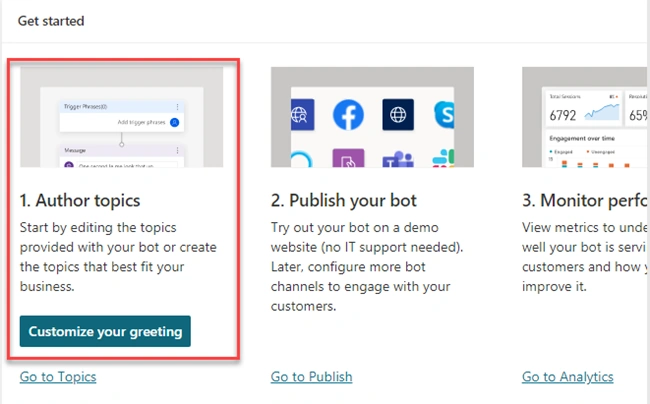

Click on Customizing your greeting option.

Get Started With Bot Development With Microsoft Power Virtual Agents

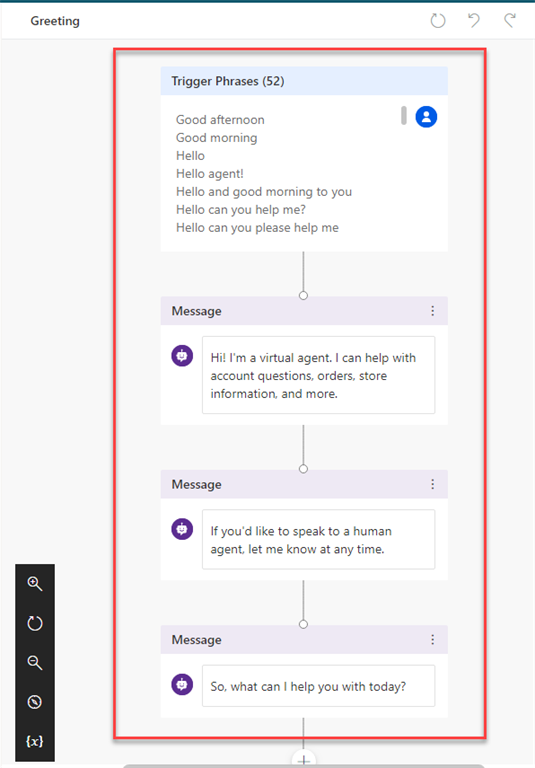

This will show the following pattern with some OOTB messages.

Get Started With Bot Development With Microsoft Power Virtual Agents

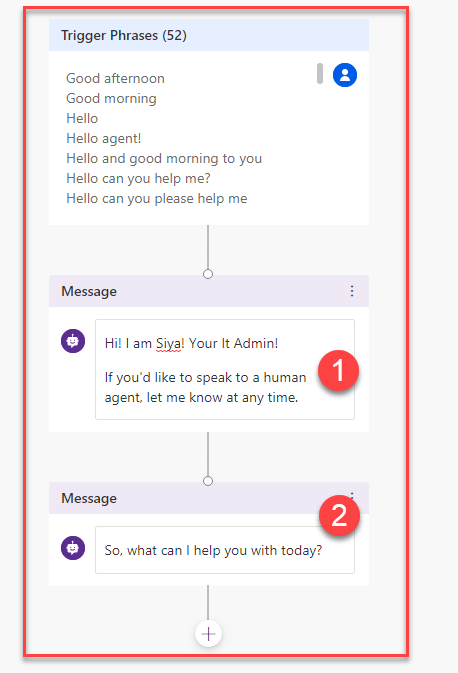

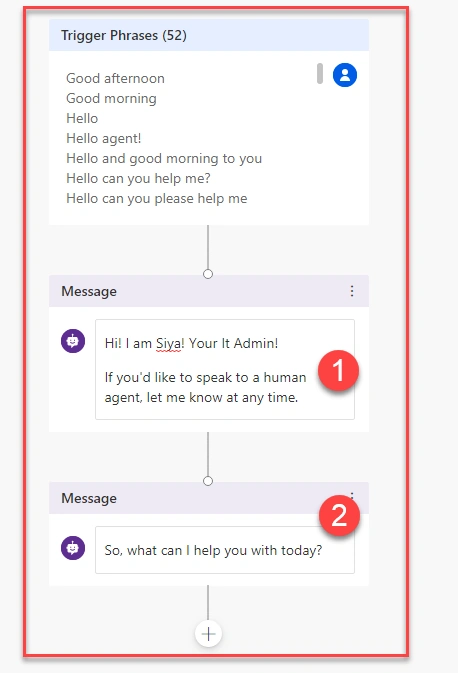

Now, let’s change the messages and delete some nodes and set greeting message like below. We changed the above two messages.

Get Started With Bot Development With Microsoft Power Virtual Agents

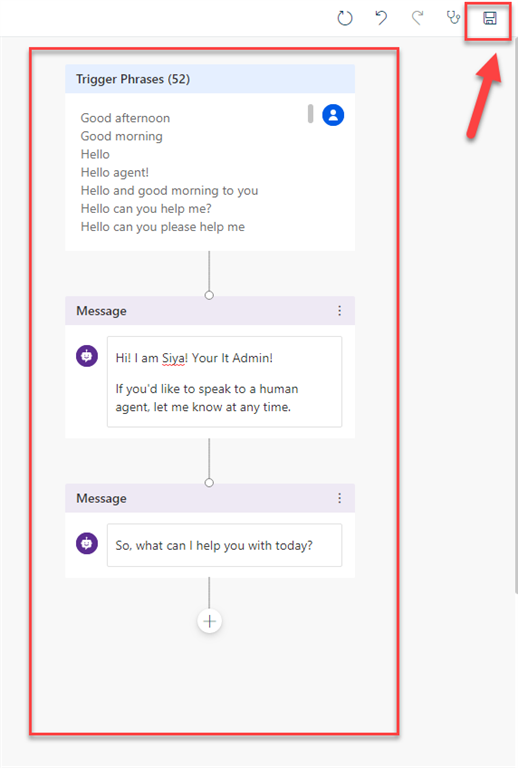

Save the Greetings message.

Get Started With Bot Development With Microsoft Power Virtual Agents

Now, let’s test the Greetings.

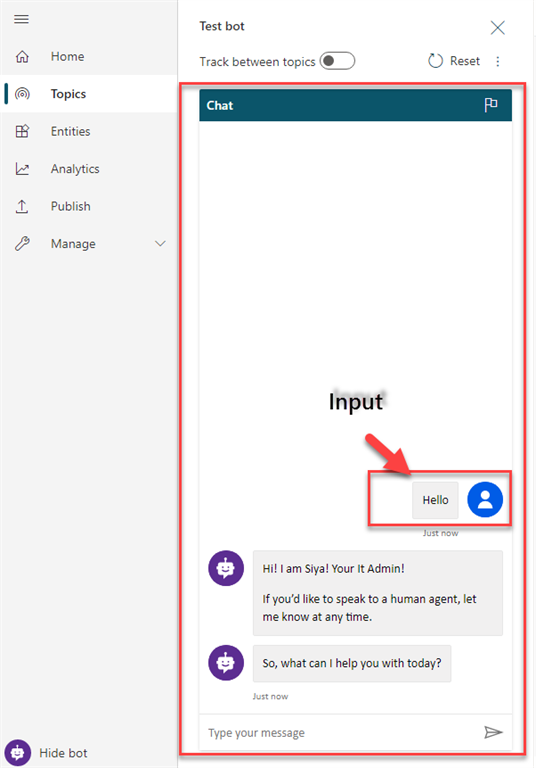

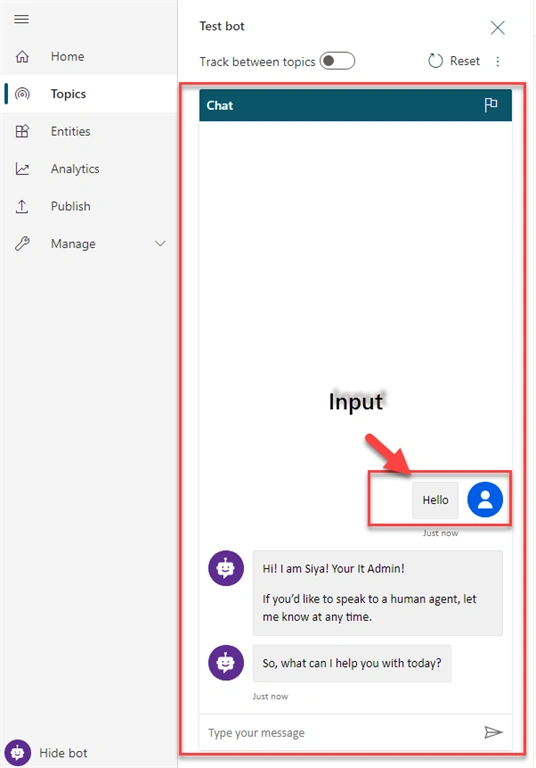

Enter “Hello” in the chat bot window.

Get Started With Bot Development With Microsoft Power Virtual Agents

This will show the updated message that we have set in the greeting section just now.

Step 4

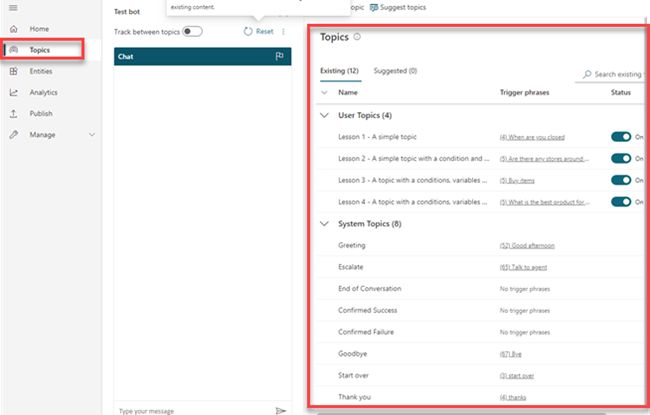

Click on the Topic option from the Menu bar to create a new topic. This will open a topic window.

Get Started With Bot Development With Microsoft Power Virtual Agents

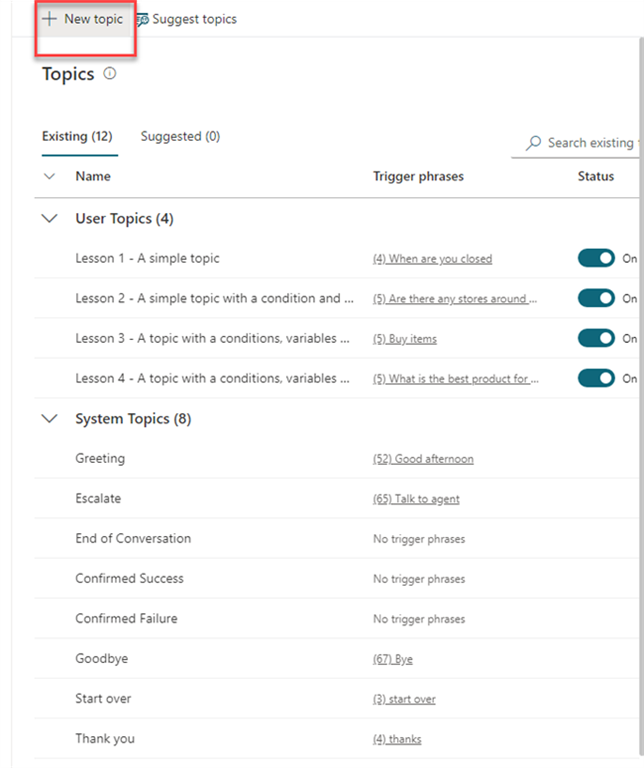

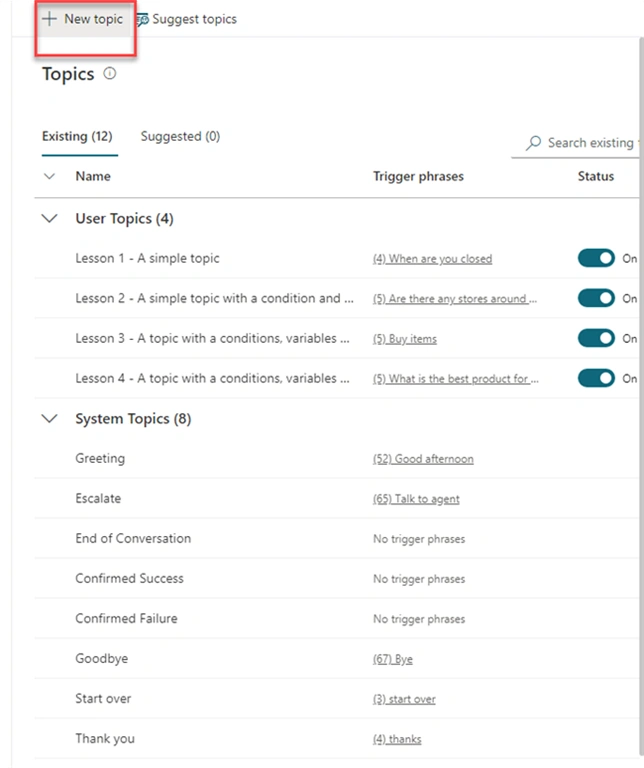

Click on New topic to create a new topic.

Get Started With Bot Development With Microsoft Power Virtual Agents

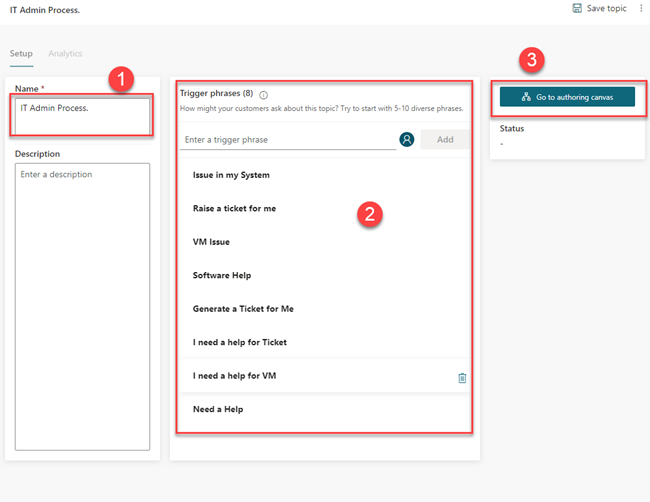

Give the name of the topic. In our example the name of topic is – “IT Admin Process.”

Get Started With Bot Development With Microsoft Power Virtual Agents

The topic should be triggered when user enters the following inputs. Check (2) from screenshot.

(Note: Here, we need to think the most used natural terms which people can use to ask a question).

Click on go to authoring canvas. (3) from the screenshot.

It will open the following Canvas chart.

 Get Started With Bot Development With Microsoft Power Virtual Agents

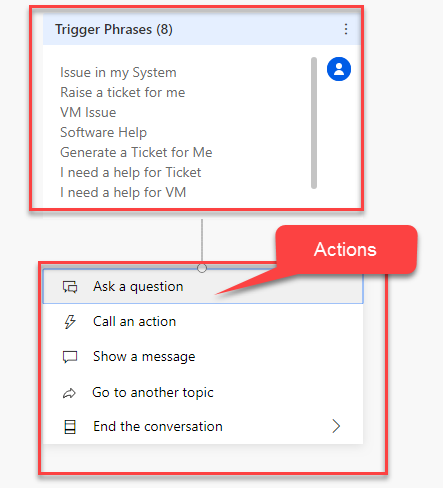

Here, we can see the steps and the  + icon on which we can have following actions.
  • Ask a Question: When we wish to take some user input and wish to give some message to end user, use this option.
  • Call an action: We can trigger the flow using this option. We will learn more about this in the third part of this article series.
  • Show a message: When we wish to show only some output result, use this option.
  • Go to another topic: Currently, we are creating a simple on topic application. Suppose, you need to divert from one topic from another, we will use this option.
  • End the conversion: This will end the chat bot conversation.

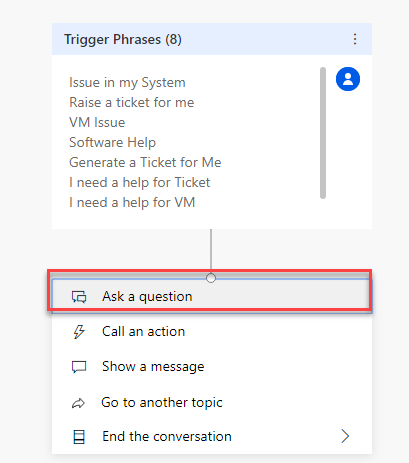

Now, click on Ask a Question option.

Get Started With Bot Development With Microsoft Power Virtual Agents

Enter a question. “Please enter your email address”.

Get Started With Bot Development With Microsoft Power Virtual Agents

Now, in Power Virtual Agent there are lots of OOTB Entities available. We will use those OOTB entities to fetch the email address from our app.

So search for the Email and select email.

This will add Email and change the variable name as Email.

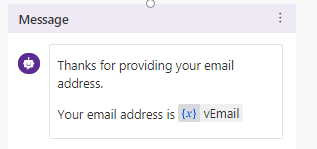

Now, in response, let’s print a simple message like – “Your email address is like this”. To do so, click on the + icon, and select “Show a message”.

Get Started With Bot Development With Microsoft Power Virtual Agents

Get Started With Bot Development With Microsoft Power Virtual Agents

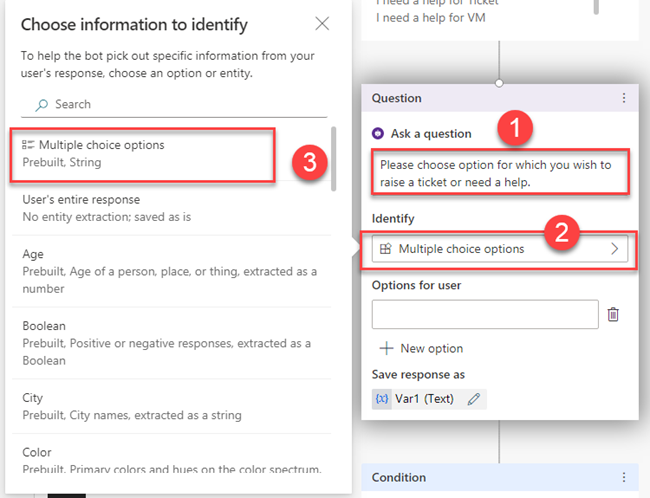

Select Multiple choice options, from type select Multiple choice option. Click on the Ask a Question option.

Get Started With Bot Development With Microsoft Power Virtual Agents

Get Started With Bot Development With Microsoft Power Virtual Agents

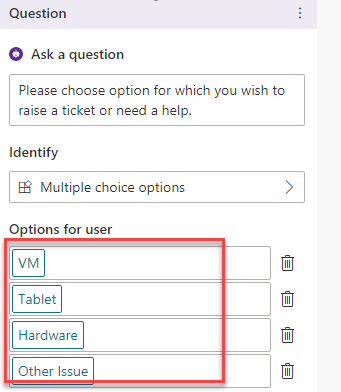

Enter a question.

Select Multiple choice options.

Enter the following options.

Get Started With Bot Development With Microsoft Power Virtual Agents

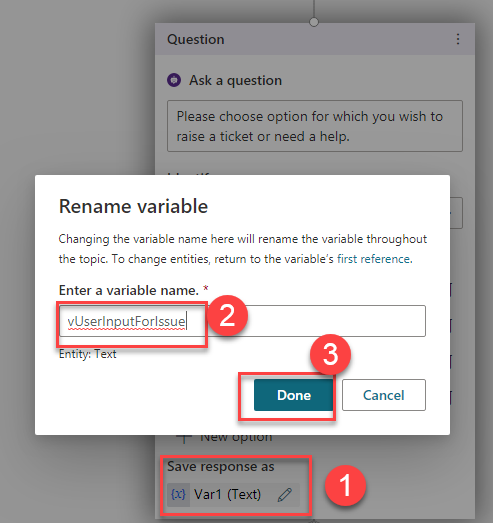

Rename the variable.

Get Started With Bot Development With Microsoft Power Virtual Agents

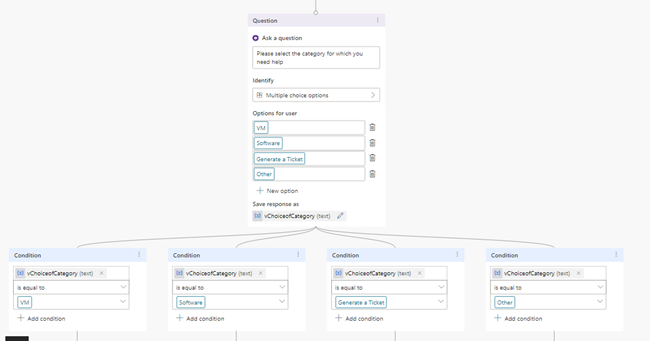

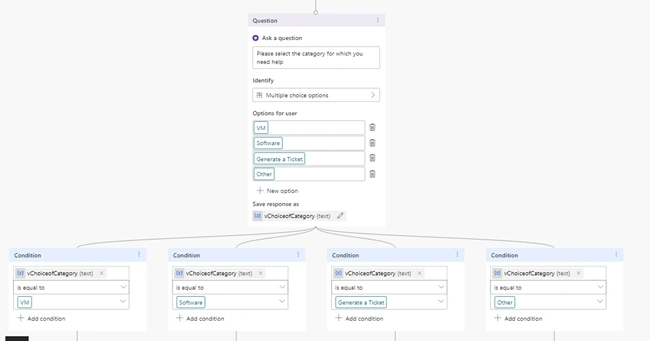

This will create the following hierarchy. Now, at the end of this second part, we have created a canvas like this.

Get Started With Bot Development With Microsoft Power Virtual Agents

Now, in my next article, we will take some input from the end users and trigger a flow to send an email notification to the IT admin about the problem so, the ticket will be generated automatically.


Conclusion


I hope you love this article! Stay connected with me for the entire chat building process.

Happy Chat Botting!!!!!
