File Transfer Between Windows And Linux Using WinSCP In C#

Introduction


In this article, we will learn how to copy files from Windows to Linux and download files from Linux to Windows. Here I am using Visual Studio 2019 and .NetFrameWork 4.7 and WinSCP. WinSCP .NET assembly winscp.dll is a .NET wrapper around WinSCP’s scripting interface that allows your code to connect to a remote machine and manipulate remote files over SFTP, SCP, and FTP sessions from .NET languages, such as C#, VB.NET, PowerShell, etc. Here I am using SFTP. SFTP is an interactive program that lets us upload and download files between a Windows and Linux Server.

For this operation, we need the following details of the Linux server.
  • HostName :
  • UserName :
  • Password :
  • SshHostKeyFingerprint :
  • SshHostKeyFingerprint looks like
    ssh-rsa 1024 xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx

    or

    ssh-rsa 2048 xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx
Step 1
  1. Open Visual Studio 2019 click on create a new project.
  2. Select Windows Form App from templates and click on “Next”.
  3. Then give the project name as “FileTransfer” and then click “Create”.
Before coding add WinSCP reference to the project.


Creating Master Form and Child Forms


Step 2

Rename the form “Form1” to “FilesTransfer” and set “IsMdiContainer” property of the form to true and create two new forms, “FileUpload” and “FileDownload”.

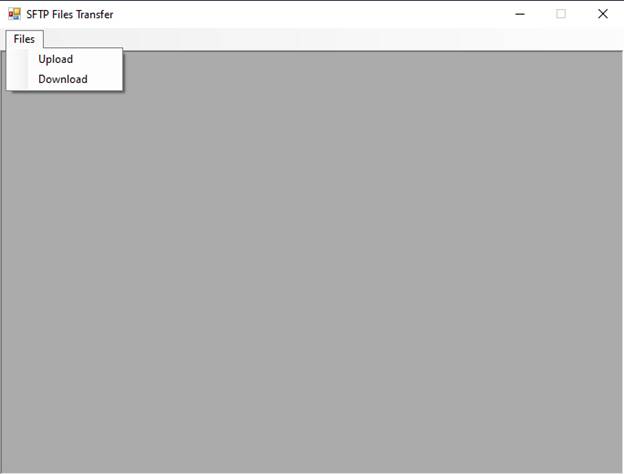

The FilesTransfer form will look like the below image,

File Transfer Between Windows And Linux Using WinSCP In C#

Code for FilesTransfer.Designer.cs
  1. namespace FileTransfer
  2. {
  3.     partial class FilesTransfer
  4.     {
  5.         /// <summary>
  6.         /// Required designer variable.
  7.         /// </summary>
  8.         private System.ComponentModel.IContainer components = null;
  9.
  10.         /// <summary>
  11.         /// Clean up any resources being used.
  12.         /// </summary>
  13.         /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
  14.         protected override void Dispose(bool disposing)
  15.         {
  16.             if (disposing && (components != null))
  17.             {
  18.                 components.Dispose();
  19.             }
  20.             base.Dispose(disposing);
  21.         }
  22.
  23.         #region Windows Form Designer generated code
  24.
  25.         /// <summary>
  26.         /// Required method for Designer support - do not modify
  27.         /// the contents of this method with the code editor.
  28.         /// </summary>
  29.         private void InitializeComponent()
  30.         {
  31.             this.menuStrip1 = new System.Windows.Forms.MenuStrip();
  32.             this.filesToolStripMenuItem = new System.Windows.Forms.ToolStripMenuItem();
  33.             this.uploadToolStripMenuItem = new System.Windows.Forms.ToolStripMenuItem();
  34.             this.downloadToolStripMenuItem = new System.Windows.Forms.ToolStripMenuItem();
  35.             this.menuStrip1.SuspendLayout();
  36.             this.SuspendLayout();
  37.             //
  38.             // menuStrip1
  39.             //
  40.             this.menuStrip1.Items.AddRange(new System.Windows.Forms.ToolStripItem[] {
  41.             this.filesToolStripMenuItem});
  42.             this.menuStrip1.Location = new System.Drawing.Point(0, 0);
  43.             this.menuStrip1.Name = "menuStrip1";
  44.             this.menuStrip1.Size = new System.Drawing.Size(684, 24);
  45.             this.menuStrip1.TabIndex = 1;
  46.             this.menuStrip1.Text = "menuStrip1";
  47.             //
  48.             // filesToolStripMenuItem
  49.             //
  50.             this.filesToolStripMenuItem.DropDownItems.AddRange(new System.Windows.Forms.ToolStripItem[] {
  51.             this.uploadToolStripMenuItem,
  52.             this.downloadToolStripMenuItem});
  53.             this.filesToolStripMenuItem.Name = "filesToolStripMenuItem";
  54.             this.filesToolStripMenuItem.Size = new System.Drawing.Size(42, 20);
  55.             this.filesToolStripMenuItem.Text = "Files";
  56.             //
  57.             // uploadToolStripMenuItem
  58.             //
  59.             this.uploadToolStripMenuItem.Name = "uploadToolStripMenuItem";
  60.             this.uploadToolStripMenuItem.Size = new System.Drawing.Size(180, 22);
  61.             this.uploadToolStripMenuItem.Text = "Upload";
  62.             this.uploadToolStripMenuItem.Click += new System.EventHandler(this.UploadToolStripMenuItem_Click);
  63.             //
  64.             // downloadToolStripMenuItem
  65.             //
  66.             this.downloadToolStripMenuItem.Name = "downloadToolStripMenuItem";
  67.             this.downloadToolStripMenuItem.Size = new System.Drawing.Size(180, 22);
  68.             this.downloadToolStripMenuItem.Text = "Download";
  69.             this.downloadToolStripMenuItem.Click += new System.EventHandler(this.DownloadToolStripMenuItem_Click);
  70.             //
  71.             // FilesTransfer
  72.             //
  73.             this.AutoScaleDimensions = new System.Drawing.SizeF(7F, 17F);
  74.             this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
  75.             this.ClientSize = new System.Drawing.Size(684, 490);
  76.             this.Controls.Add(this.menuStrip1);
  77.             this.Font = new System.Drawing.Font("Segoe UI", 9.75F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
  78.             this.IsMdiContainer = true;
  79.             this.MainMenuStrip = this.menuStrip1;
  80.             this.Margin = new System.Windows.Forms.Padding(3, 4, 3, 4);
  81.             this.MaximizeBox = false;
  82.             this.Name = "FilesTransfer";
  83.             this.StartPosition = System.Windows.Forms.FormStartPosition.CenterScreen;
  84.             this.Text = "SFTP Files Transfer";
  85.             this.Load += new System.EventHandler(this.FilesTransfer_Load);
  86.             this.menuStrip1.ResumeLayout(false);
  87.             this.menuStrip1.PerformLayout();
  88.             this.ResumeLayout(false);
  89.             this.PerformLayout();
  90.
  91.         }
  92.
  93.         #endregion
  94.
  95.         private System.Windows.Forms.MenuStrip menuStrip1;
  96.         private System.Windows.Forms.ToolStripMenuItem filesToolStripMenuItem;
  97.         private System.Windows.Forms.ToolStripMenuItem uploadToolStripMenuItem;
  98.         private System.Windows.Forms.ToolStripMenuItem downloadToolStripMenuItem;
  99.     }
  100. }
Code for FilesTransfer.cs
  1. using System;
  2. using System.Windows.Forms;
  3.
  4. namespace FileTransfer
  5. {
  6.     public partial class FilesTransfer : Form
  7.     {
  8.         FileUpload FU = null;
  9.         FileDownload FD = null;
  10.         public FilesTransfer()
  11.         {
  12.             InitializeComponent();
  13.         }
  14.
  15.         private void UploadToolStripMenuItem_Click(object sender, EventArgs e)
  16.         {
  17.             if (FU == null)
  18.             {
  19.                 FU = new FileUpload();
  20.                 FU.ShowDialog();
  21.             }
  22.             else if (FU.Visible == true)
  23.             {
  24.                 FU.WindowState = FormWindowState.Normal;
  25.                 FU.ShowDialog();
  26.                 FU.Focus();
  27.             }
  28.             else
  29.             {
  30.                 FU = new FileUpload();
  31.                 FU.ShowDialog();
  32.             }
  33.         }
  34.
  35.         private void DownloadToolStripMenuItem_Click(object sender, EventArgs e)
  36.         {
  37.             if (FD == null)
  38.             {
  39.                 FD = new FileDownload();
  40.                 FD.ShowDialog();
  41.             }
  42.             else if (FD.Visible == true)
  43.             {
  44.                 FD.WindowState = FormWindowState.Normal;
  45.                 FD.ShowDialog();
  46.                 FD.Focus();
  47.             }
  48.             else
  49.             {
  50.                 FD = new FileDownload();
  51.                 FD.ShowDialog();
  52.             }
  53.         }
  54.     }
  55. }
FileUpload form.

Step 3

By using “FileUpload” form we can upload files from Windows to Linux Server.

Code for FileUpload.Designer.cs
  1. namespace FileTransfer
  2. {
  3.     partial class FileUpload
  4.     {
  5.         /// <summary>
  6.         /// Required designer variable.
  7.         /// </summary>
  8.         private System.ComponentModel.IContainer components = null;
  9.
  10.         /// <summary>
  11.         /// Clean up any resources being used.
  12.         /// </summary>
  13.         /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
  14.         protected override void Dispose(bool disposing)
  15.         {
  16.             if (disposing && (components != null))
  17.             {
  18.                 components.Dispose();
  19.             }
  20.             base.Dispose(disposing);
  21.         }
  22.
  23.         #region Windows Form Designer generated code
  24.
  25.         /// <summary>
  26.         /// Required method for Designer support - do not modify
  27.         /// the contents of this method with the code editor.
  28.         /// </summary>
  29.         private void InitializeComponent()
  30.         {
  31.             this.label1 = new System.Windows.Forms.Label();
  32.             this.label2 = new System.Windows.Forms.Label();
  33.             this.label3 = new System.Windows.Forms.Label();
  34.             this.label4 = new System.Windows.Forms.Label();
  35.             this.label5 = new System.Windows.Forms.Label();
  36.             this.label6 = new System.Windows.Forms.Label();
  37.             this.lblStatus = new System.Windows.Forms.Label();
  38.             this.btnUpload = new System.Windows.Forms.Button();
  39.             this.btnClose = new System.Windows.Forms.Button();
  40.             this.txtHostName = new System.Windows.Forms.TextBox();
  41.             this.txtUserName = new System.Windows.Forms.TextBox();
  42.             this.txtPassword = new System.Windows.Forms.TextBox();
  43.             this.txtHostKey = new System.Windows.Forms.TextBox();
  44.             this.txtSourcePath = new System.Windows.Forms.TextBox();
  45.             this.txtDestinationPath = new System.Windows.Forms.TextBox();
  46.             this.SuspendLayout();
  47.             //
  48.             // label1
  49.             //
  50.             this.label1.AutoSize = true;
  51.             this.label1.Location = new System.Drawing.Point(25, 23);
  52.             this.label1.Name = "label1";
  53.             this.label1.Size = new System.Drawing.Size(74, 17);
  54.             this.label1.TabIndex = 0;
  55.             this.label1.Text = "Host Name";
  56.             //
  57.             // label2
  58.             //
  59.             this.label2.AutoSize = true;
  60.             this.label2.Location = new System.Drawing.Point(25, 56);
  61.             this.label2.Name = "label2";
  62.             this.label2.Size = new System.Drawing.Size(74, 17);
  63.             this.label2.TabIndex = 1;
  64.             this.label2.Text = "User Name";
  65.             //
  66.             // label3
  67.             //
  68.             this.label3.AutoSize = true;
  69.             this.label3.Location = new System.Drawing.Point(25, 88);
  70.             this.label3.Name = "label3";
  71.             this.label3.Size = new System.Drawing.Size(64, 17);
  72.             this.label3.TabIndex = 2;
  73.             this.label3.Text = "Password";
  74.             //
  75.             // label4
  76.             //
  77.             this.label4.AutoSize = true;
  78.             this.label4.Location = new System.Drawing.Point(25, 119);
  79.             this.label4.Name = "label4";
  80.             this.label4.Size = new System.Drawing.Size(127, 17);
  81.             this.label4.TabIndex = 3;
  82.             this.label4.Text = "Host Key Fingerprint";
  83.             //
  84.             // label5
  85.             //
  86.             this.label5.AutoSize = true;
  87.             this.label5.Location = new System.Drawing.Point(25, 154);
  88.             this.label5.Name = "label5";
  89.             this.label5.Size = new System.Drawing.Size(77, 17);
  90.             this.label5.TabIndex = 4;
  91.             this.label5.Text = "Source Path";
  92.             //
  93.             // label6
  94.             //
  95.             this.label6.AutoSize = true;
  96.             this.label6.Location = new System.Drawing.Point(25, 191);
  97.             this.label6.Name = "label6";
  98.             this.label6.Size = new System.Drawing.Size(102, 17);
  99.             this.label6.TabIndex = 5;
  100.             this.label6.Text = "Destination Path";
  101.             //
  102.             // lblStatus
  103.             //
  104.             this.lblStatus.Location = new System.Drawing.Point(25, 231);
  105.             this.lblStatus.Name = "lblStatus";
  106.             this.lblStatus.Size = new System.Drawing.Size(435, 25);
  107.             this.lblStatus.TabIndex = 6;
  108.             this.lblStatus.Text = "Status :";
  109.             this.lblStatus.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
  110.             //
  111.             // btnUpload
  112.             //
  113.             this.btnUpload.Location = new System.Drawing.Point(300, 292);
  114.             this.btnUpload.Name = "btnUpload";
  115.             this.btnUpload.Size = new System.Drawing.Size(75, 31);
  116.             this.btnUpload.TabIndex = 7;
  117.             this.btnUpload.Text = "Upload";
  118.             this.btnUpload.UseVisualStyleBackColor = true;
  119.             this.btnUpload.Click += new System.EventHandler(this.BtnUpload_Click);
  120.             //
  121.             // btnClose
  122.             //
  123.             this.btnClose.Location = new System.Drawing.Point(381, 292);
  124.             this.btnClose.Name = "btnClose";
  125.             this.btnClose.Size = new System.Drawing.Size(75, 31);
  126.             this.btnClose.TabIndex = 8;
  127.             this.btnClose.Text = "Close";
  128.             this.btnClose.UseVisualStyleBackColor = true;
  129.             this.btnClose.Click += new System.EventHandler(this.BtnClose_Click);
  130.             //
  131.             // txtHostName
  132.             //
  133.             this.txtHostName.Location = new System.Drawing.Point(156, 20);
  134.             this.txtHostName.Name = "txtHostName";
  135.             this.txtHostName.Size = new System.Drawing.Size(304, 25);
  136.             this.txtHostName.TabIndex = 9;
  137.             //
  138.             // txtUserName
  139.             //
  140.             this.txtUserName.Location = new System.Drawing.Point(156, 53);
  141.             this.txtUserName.Name = "txtUserName";
  142.             this.txtUserName.Size = new System.Drawing.Size(304, 25);
  143.             this.txtUserName.TabIndex = 10;
  144.             //
  145.             // txtPassword
  146.             //
  147.             this.txtPassword.Location = new System.Drawing.Point(156, 85);
  148.             this.txtPassword.Name = "txtPassword";
  149.             this.txtPassword.PasswordChar = '*';
  150.             this.txtPassword.Size = new System.Drawing.Size(304, 25);
  151.             this.txtPassword.TabIndex = 11;
  152.             //
  153.             // txtHostKey
  154.             //
  155.             this.txtHostKey.Location = new System.Drawing.Point(156, 116);
  156.             this.txtHostKey.Name = "txtHostKey";
  157.             this.txtHostKey.Size = new System.Drawing.Size(304, 25);
  158.             this.txtHostKey.TabIndex = 12;
  159.             //
  160.             // txtSourcePath
  161.             //
  162.             this.txtSourcePath.Location = new System.Drawing.Point(156, 151);
  163.             this.txtSourcePath.Name = "txtSourcePath";
  164.             this.txtSourcePath.Size = new System.Drawing.Size(304, 25);
  165.             this.txtSourcePath.TabIndex = 13;
  166.             //
  167.             // txtDestinationPath
  168.             //
  169.             this.txtDestinationPath.Location = new System.Drawing.Point(156, 188);
  170.             this.txtDestinationPath.Name = "txtDestinationPath";
  171.             this.txtDestinationPath.Size = new System.Drawing.Size(304, 25);
  172.             this.txtDestinationPath.TabIndex = 14;
  173.             //
  174.             // FileUpload
  175.             //
  176.             this.AutoScaleDimensions = new System.Drawing.SizeF(7F, 17F);
  177.             this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
  178.             this.ClientSize = new System.Drawing.Size(468, 335);
  179.             this.Controls.Add(this.txtDestinationPath);
  180.             this.Controls.Add(this.txtSourcePath);
  181.             this.Controls.Add(this.txtHostKey);
  182.             this.Controls.Add(this.txtPassword);
  183.             this.Controls.Add(this.txtUserName);
  184.             this.Controls.Add(this.txtHostName);
  185.             this.Controls.Add(this.btnClose);
  186.             this.Controls.Add(this.btnUpload);
  187.             this.Controls.Add(this.lblStatus);
  188.             this.Controls.Add(this.label6);
  189.             this.Controls.Add(this.label5);
  190.             this.Controls.Add(this.label4);
  191.             this.Controls.Add(this.label3);
  192.             this.Controls.Add(this.label2);
  193.             this.Controls.Add(this.label1);
  194.             this.Font = new System.Drawing.Font("Segoe UI", 9.75F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
  195.             this.FormBorderStyle = System.Windows.Forms.FormBorderStyle.FixedDialog;
  196.             this.Margin = new System.Windows.Forms.Padding(3, 4, 3, 4);
  197.             this.MaximizeBox = false;
  198.             this.MinimizeBox = false;
  199.             this.Name = "FileUpload";
  200.             this.StartPosition = System.Windows.Forms.FormStartPosition.CenterParent;
  201.             this.Text = "File Upload";
  202.             this.ResumeLayout(false);
  203.             this.PerformLayout();
  204.
  205.         }
  206.
  207.         #endregion
  208.
  209.         private System.Windows.Forms.Label label1;
  210.         private System.Windows.Forms.Label label2;
  211.         private System.Windows.Forms.Label label3;
  212.         private System.Windows.Forms.Label label4;
  213.         private System.Windows.Forms.Label label5;
  214.         private System.Windows.Forms.Label label6;
  215.         private System.Windows.Forms.Label lblStatus;
  216.         private System.Windows.Forms.Button btnUpload;
  217.         private System.Windows.Forms.Button btnClose;
  218.         private System.Windows.Forms.TextBox txtHostName;
  219.         private System.Windows.Forms.TextBox txtUserName;
  220.         private System.Windows.Forms.TextBox txtPassword;
  221.         private System.Windows.Forms.TextBox txtHostKey;
  222.         private System.Windows.Forms.TextBox txtSourcePath;
  223.         private System.Windows.Forms.TextBox txtDestinationPath;
  224.     }
  225. }
Code for FileUpload.cs
  1. using System;
  2. using System.Windows.Forms;
  3. using WinSCP;
  4.
  5. namespace FileTransfer
  6. {
  7.     public partial class FileUpload : Form
  8.     {
  9.         public FileUpload()
  10.         {
  11.             InitializeComponent();
  12.         }
  13.
  14.         private void BtnUpload_Click(object sender, EventArgs e)
  15.         {
  16.             if (string.IsNullOrEmpty(txtHostName.Text))
  17.             {
  18.                 lblStatus.Text = string.Format("Status : {0}", "Enter Host Name !");
  19.                 txtHostName.Select();
  20.             }
  21.             else if (string.IsNullOrEmpty(txtUserName.Text))
  22.             {
  23.                 lblStatus.Text = string.Format("Status : {0}", "Enter User Name !");
  24.                 txtUserName.Select();
  25.             }
  26.             else if (string.IsNullOrEmpty(txtPassword.Text))
  27.             {
  28.                 lblStatus.Text = string.Format("Status : {0}", "Enter Password !");
  29.                 txtPassword.Select();
  30.             }
  31.             else if (string.IsNullOrEmpty(txtHostKey.Text))
  32.             {
  33.                 lblStatus.Text = string.Format("Status : {0}", "Enter Host Key !");
  34.                 txtHostKey.Select();
  35.             }
  36.             else if (string.IsNullOrEmpty(txtSourcePath.Text))
  37.             {
  38.                 lblStatus.Text = string.Format("Status : {0}", "Enter Source Path !");
  39.                 txtSourcePath.Select();
  40.             }
  41.             else if (string.IsNullOrEmpty(txtDestinationPath.Text))
  42.             {
  43.                 lblStatus.Text = string.Format("Status : {0}", "Enter Destination Path !");
  44.                 txtDestinationPath.Select();
  45.             }
  46.             else
  47.             {
  48.                 lblStatus.Text = "Status : ";
  49.                 try
  50.                 {
  51.                     // Setup session options
  52.                     SessionOptions sessionOptions = new SessionOptions
  53.                     {
  54.                         Protocol = Protocol.Sftp,
  55.                         HostName = txtHostName.Text,
  56.                         UserName = txtUserName.Text,
  57.                         Password = txtPassword.Text,
  58.                         SshHostKeyFingerprint = txtHostKey.Text
  59.                     };
  60.
  61.                     using (Session session = new Session())
  62.                     {
  63.                         // Connect
  64.                         session.Open(sessionOptions);
  65.
  66.                         // Upload files
  67.                         TransferOptions transferOptions = new TransferOptions
  68.                         {
  69.                             TransferMode = TransferMode.Binary
  70.                         };
  71.
  72.                         TransferOperationResult transferResult;
  73.                         transferResult =
  74.                             session.PutFiles(txtSourcePath.Text, txtDestinationPath.Text, false, transferOptions);
  75.
  76.                         // Throw on any error
  77.                         transferResult.Check();
  78.
  79.                         // Print results
  80.                         foreach (TransferEventArgs transfer in transferResult.Transfers)
  81.                         {
  82.                             lblStatus.Text = string.Format("Upload of {0} succeeded", transfer.FileName);
  83.                         }
  84.                     }
  85.                 }
  86.                 catch (Exception ex)
  87.                 {
  88.                     lblStatus.Text = string.Format("Error: {0}", ex);
  89.                 }
  90.             }
  91.         }
  92.
  93.         private void BtnClose_Click(object sender, EventArgs e)
  94.         {
  95.             this.Close();
  96.         }
  97.     }
  98. }
The “FileUpload” form looks like the below image.

File Transfer Between Windows And Linux Using WinSCP In C#

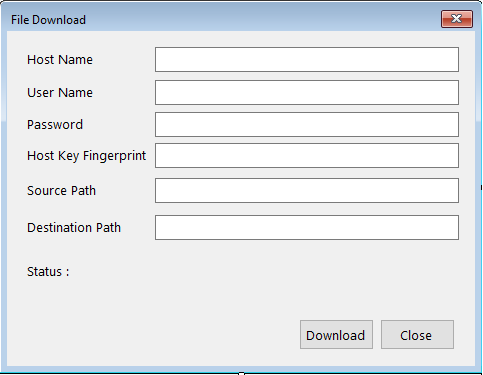

FileDownload form.

Step 4

By using "FileDownload" form we can download files from Linux to Windows.

Code for FileDownload.Designer.cs
  1. namespace FileTransfer
  2. {
  3.     partial class FileDownload
  4.     {
  5.         /// <summary>
  6.         /// Required designer variable.
  7.         /// </summary>
  8.         private System.ComponentModel.IContainer components = null;
  9.
  10.         /// <summary>
  11.         /// Clean up any resources being used.
  12.         /// </summary>
  13.         /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
  14.         protected override void Dispose(bool disposing)
  15.         {
  16.             if (disposing && (components != null))
  17.             {
  18.                 components.Dispose();
  19.             }
  20.             base.Dispose(disposing);
  21.         }
  22.
  23.         #region Windows Form Designer generated code
  24.
  25.         /// <summary>
  26.         /// Required method for Designer support - do not modify
  27.         /// the contents of this method with the code editor.
  28.         /// </summary>
  29.         private void InitializeComponent()
  30.         {
  31.             this.txtDestinationPath = new System.Windows.Forms.TextBox();
  32.             this.txtSourcePath = new System.Windows.Forms.TextBox();
  33.             this.txtHostKey = new System.Windows.Forms.TextBox();
  34.             this.txtPassword = new System.Windows.Forms.TextBox();
  35.             this.txtUserName = new System.Windows.Forms.TextBox();
  36.             this.txtHostName = new System.Windows.Forms.TextBox();
  37.             this.btnClose = new System.Windows.Forms.Button();
  38.             this.btnDownload = new System.Windows.Forms.Button();
  39.             this.lblStatus = new System.Windows.Forms.Label();
  40.             this.label6 = new System.Windows.Forms.Label();
  41.             this.label5 = new System.Windows.Forms.Label();
  42.             this.label4 = new System.Windows.Forms.Label();
  43.             this.label3 = new System.Windows.Forms.Label();
  44.             this.label2 = new System.Windows.Forms.Label();
  45.             this.label1 = new System.Windows.Forms.Label();
  46.             this.SuspendLayout();
  47.             //
  48.             // txtDestinationPath
  49.             //
  50.             this.txtDestinationPath.Location = new System.Drawing.Point(148, 184);
  51.             this.txtDestinationPath.Name = "txtDestinationPath";
  52.             this.txtDestinationPath.Size = new System.Drawing.Size(304, 25);
  53.             this.txtDestinationPath.TabIndex = 29;
  54.             //
  55.             // txtSourcePath
  56.             //
  57.             this.txtSourcePath.Location = new System.Drawing.Point(148, 147);
  58.             this.txtSourcePath.Name = "txtSourcePath";
  59.             this.txtSourcePath.Size = new System.Drawing.Size(304, 25);
  60.             this.txtSourcePath.TabIndex = 28;
  61.             //
  62.             // txtHostKey
  63.             //
  64.             this.txtHostKey.Location = new System.Drawing.Point(148, 112);
  65.             this.txtHostKey.Name = "txtHostKey";
  66.             this.txtHostKey.Size = new System.Drawing.Size(304, 25);
  67.             this.txtHostKey.TabIndex = 27;
  68.             //
  69.             // txtPassword
  70.             //
  71.             this.txtPassword.Location = new System.Drawing.Point(148, 81);
  72.             this.txtPassword.Name = "txtPassword";
  73.             this.txtPassword.PasswordChar = '*';
  74.             this.txtPassword.Size = new System.Drawing.Size(304, 25);
  75.             this.txtPassword.TabIndex = 26;
  76.             //
  77.             // txtUserName
  78.             //
  79.             this.txtUserName.Location = new System.Drawing.Point(148, 49);
  80.             this.txtUserName.Name = "txtUserName";
  81.             this.txtUserName.Size = new System.Drawing.Size(304, 25);
  82.             this.txtUserName.TabIndex = 25;
  83.             //
  84.             // txtHostName
  85.             //
  86.             this.txtHostName.Location = new System.Drawing.Point(148, 16);
  87.             this.txtHostName.Name = "txtHostName";
  88.             this.txtHostName.Size = new System.Drawing.Size(304, 25);
  89.             this.txtHostName.TabIndex = 24;
  90.             //
  91.             // btnClose
  92.             //
  93.             this.btnClose.Location = new System.Drawing.Point(373, 288);
  94.             this.btnClose.Name = "btnClose";
  95.             this.btnClose.Size = new System.Drawing.Size(75, 31);
  96.             this.btnClose.TabIndex = 23;
  97.             this.btnClose.Text = "Close";
  98.             this.btnClose.UseVisualStyleBackColor = true;
  99.             this.btnClose.Click += new System.EventHandler(this.BtnClose_Click);
  100.             //
  101.             // btnDownload
  102.             //
  103.             this.btnDownload.Location = new System.Drawing.Point(292, 288);
  104.             this.btnDownload.Name = "btnDownload";
  105.             this.btnDownload.Size = new System.Drawing.Size(75, 31);
  106.             this.btnDownload.TabIndex = 22;
  107.             this.btnDownload.Text = "Download";
  108.             this.btnDownload.UseVisualStyleBackColor = true;
  109.             this.btnDownload.Click += new System.EventHandler(this.BtnDownload_Click);
  110.             //
  111.             // lblStatus
  112.             //
  113.             this.lblStatus.Location = new System.Drawing.Point(17, 227);
  114.             this.lblStatus.Name = "lblStatus";
  115.             this.lblStatus.Size = new System.Drawing.Size(435, 25);
  116.             this.lblStatus.TabIndex = 21;
  117.             this.lblStatus.Text = "Status :";
  118.             this.lblStatus.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
  119.             //
  120.             // label6
  121.             //
  122.             this.label6.AutoSize = true;
  123.             this.label6.Location = new System.Drawing.Point(17, 187);
  124.             this.label6.Name = "label6";
  125.             this.label6.Size = new System.Drawing.Size(102, 17);
  126.             this.label6.TabIndex = 20;
  127.             this.label6.Text = "Destination Path";
  128.             //
  129.             // label5
  130.             //
  131.             this.label5.AutoSize = true;
  132.             this.label5.Location = new System.Drawing.Point(17, 150);
  133.             this.label5.Name = "label5";
  134.             this.label5.Size = new System.Drawing.Size(77, 17);
  135.             this.label5.TabIndex = 19;
  136.             this.label5.Text = "Source Path";
  137.             //
  138.             // label4
  139.             //
  140.             this.label4.AutoSize = true;
  141.             this.label4.Location = new System.Drawing.Point(17, 115);
  142.             this.label4.Name = "label4";
  143.             this.label4.Size = new System.Drawing.Size(127, 17);
  144.             this.label4.TabIndex = 18;
  145.             this.label4.Text = "Host Key Fingerprint";
  146.             //
  147.             // label3
  148.             //
  149.             this.label3.AutoSize = true;
  150.             this.label3.Location = new System.Drawing.Point(17, 84);
  151.             this.label3.Name = "label3";
  152.             this.label3.Size = new System.Drawing.Size(64, 17);
  153.             this.label3.TabIndex = 17;
  154.             this.label3.Text = "Password";
  155.             //
  156.             // label2
  157.             //
  158.             this.label2.AutoSize = true;
  159.             this.label2.Location = new System.Drawing.Point(17, 52);
  160.             this.label2.Name = "label2";
  161.             this.label2.Size = new System.Drawing.Size(74, 17);
  162.             this.label2.TabIndex = 16;
  163.             this.label2.Text = "User Name";
  164.             //
  165.             // label1
  166.             //
  167.             this.label1.AutoSize = true;
  168.             this.label1.Location = new System.Drawing.Point(17, 19);
  169.             this.label1.Name = "label1";
  170.             this.label1.Size = new System.Drawing.Size(74, 17);
  171.             this.label1.TabIndex = 15;
  172.             this.label1.Text = "Host Name";
  173.             //
  174.             // FileDownload
  175.             //
  176.             this.AutoScaleDimensions = new System.Drawing.SizeF(7F, 17F);
  177.             this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
  178.             this.ClientSize = new System.Drawing.Size(468, 335);
  179.             this.Controls.Add(this.txtDestinationPath);
  180.             this.Controls.Add(this.txtSourcePath);
  181.             this.Controls.Add(this.txtHostKey);
  182.             this.Controls.Add(this.txtPassword);
  183.             this.Controls.Add(this.txtUserName);
  184.             this.Controls.Add(this.txtHostName);
  185.             this.Controls.Add(this.btnClose);
  186.             this.Controls.Add(this.btnDownload);
  187.             this.Controls.Add(this.lblStatus);
  188.             this.Controls.Add(this.label6);
  189.             this.Controls.Add(this.label5);
  190.             this.Controls.Add(this.label4);
  191.             this.Controls.Add(this.label3);
  192.             this.Controls.Add(this.label2);
  193.             this.Controls.Add(this.label1);
  194.             this.Font = new System.Drawing.Font("Segoe UI", 9.75F, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, ((byte)(0)));
  195.             this.FormBorderStyle = System.Windows.Forms.FormBorderStyle.FixedDialog;
  196.             this.Margin = new System.Windows.Forms.Padding(3, 4, 3, 4);
  197.             this.MaximizeBox = false;
  198.             this.MinimizeBox = false;
  199.             this.Name = "FileDownload";
  200.             this.StartPosition = System.Windows.Forms.FormStartPosition.CenterParent;
  201.             this.Text = "File Download";
  202.             this.ResumeLayout(false);
  203.             this.PerformLayout();
  204.
  205.         }
  206.
  207.         #endregion
  208.
  209.         private System.Windows.Forms.TextBox txtDestinationPath;
  210.         private System.Windows.Forms.TextBox txtSourcePath;
  211.         private System.Windows.Forms.TextBox txtHostKey;
  212.         private System.Windows.Forms.TextBox txtPassword;
  213.         private System.Windows.Forms.TextBox txtUserName;
  214.         private System.Windows.Forms.TextBox txtHostName;
  215.         private System.Windows.Forms.Button btnClose;
  216.         private System.Windows.Forms.Button btnDownload;
  217.         private System.Windows.Forms.Label lblStatus;
  218.         private System.Windows.Forms.Label label6;
  219.         private System.Windows.Forms.Label label5;
  220.         private System.Windows.Forms.Label label4;
  221.         private System.Windows.Forms.Label label3;
  222.         private System.Windows.Forms.Label label2;
  223.         private System.Windows.Forms.Label label1;
  224.     }
  225. }
Code for FileDownload.cs
  1. using System;
  2. using System.Windows.Forms;
  3. using WinSCP;
  4.
  5. namespace FileTransfer
  6. {
  7.     public partial class FileDownload : Form
  8.     {
  9.         public FileDownload()
  10.         {
  11.             InitializeComponent();
  12.         }
  13.
  14.         private void BtnDownload_Click(object sender, EventArgs e)
  15.         {
  16.             if (string.IsNullOrEmpty(txtHostName.Text))
  17.             {
  18.                 lblStatus.Text = string.Format("Status : {0}", "Enter Host Name !");
  19.                 txtHostName.Select();
  20.             }
  21.             else if (string.IsNullOrEmpty(txtUserName.Text))
  22.             {
  23.                 lblStatus.Text = string.Format("Status : {0}", "Enter User Name !");
  24.                 txtUserName.Select();
  25.             }
  26.             else if (string.IsNullOrEmpty(txtPassword.Text))
  27.             {
  28.                 lblStatus.Text = string.Format("Status : {0}", "Enter Password !");
  29.                 txtPassword.Select();
  30.             }
  31.             else if (string.IsNullOrEmpty(txtHostKey.Text))
  32.             {
  33.                 lblStatus.Text = string.Format("Status : {0}", "Enter Host Key !");
  34.                 txtHostKey.Select();
  35.             }
  36.             else if (string.IsNullOrEmpty(txtSourcePath.Text))
  37.             {
  38.                 lblStatus.Text = string.Format("Status : {0}", "Enter Source Path !");
  39.                 txtSourcePath.Select();
  40.             }
  41.             else if (string.IsNullOrEmpty(txtDestinationPath.Text))
  42.             {
  43.                 lblStatus.Text = string.Format("Status : {0}", "Enter Destination Path !");
  44.                 txtDestinationPath.Select();
  45.             }
  46.             else
  47.             {
  48.                 lblStatus.Text = "Status : ";
  49.                 try
  50.                 {
  51.                     // Setup session options
  52.                     SessionOptions sessionOptions = new SessionOptions
  53.                     {
  54.                         Protocol = Protocol.Sftp,
  55.                         HostName = txtHostName.Text,
  56.                         UserName = txtUserName.Text,
  57.                         Password = txtPassword.Text,
  58.                         SshHostKeyFingerprint = txtHostKey.Text
  59.                     };
  60.
  61.                     using (Session session = new Session())
  62.                     {
  63.                         // Connect
  64.                         session.Open(sessionOptions);
  65.
  66.                         // Upload files
  67.                         TransferOptions transferOptions = new TransferOptions
  68.                         {
  69.                             TransferMode = TransferMode.Binary
  70.                         };
  71.
  72.                         TransferOperationResult transferResult;
  73.                         transferResult =
  74.                             session.GetFiles(txtSourcePath.Text, txtDestinationPath.Text, false, transferOptions);
  75.
  76.                         // Throw on any error
  77.                         transferResult.Check();
  78.
  79.                         // Print results
  80.                         foreach (TransferEventArgs transfer in transferResult.Transfers)
  81.                         {
  82.                             lblStatus.Text = string.Format("Upload of {0} succeeded", transfer.FileName);
  83.                         }
  84.                     }
  85.                 }
  86.                 catch (Exception ex)
  87.                 {
  88.                     lblStatus.Text = string.Format("Error: {0}", ex);
  89.                 }
  90.             }
  91.         }
  92.
  93.         private void BtnClose_Click(object sender, EventArgs e)
  94.         {
  95.             this.Close();
  96.         }
  97.     }
  98. }
The “FileUpload” form looks like the below image.

File Transfer Between Windows And Linux Using WinSCP In C#


Recommended Free Ebook
C# Corner Ebook

Diving Into OOP

 Download Now!
Similar Articles
