Exploring Data Integration Solutions with Azure Data Factory

Understanding data integration

Data integration is the process of combining data from different sources into a unified view, making it accessible and valuable for various business purposes. It involves combining data from disparate sources, such as databases, applications, files, and web services, and transforming it into a consistent format that can be analyzed and used effectively.

The primary goal of data integration is to provide users with a comprehensive and accurate view of data across the organization. This unified view helps businesses make informed decisions, improve operational efficiency, and gain insights that would be difficult to obtain from individual data sources.

Data integration can involve various techniques and technologies, including.

ETL
ELT
Streaming
MDM
Data Visualization

Introduction to Azure data factory

Azure Data Factory is a fully managed cloud-based data integration service that simplifies the process of building, deploying, and managing data pipelines. Service that allows you to create, schedule, and manage data-driven workflows. It enables seamless movement of data between various data stores, both on-premises and in the cloud. ADF offers robust features such as data transformation, orchestration, monitoring, and security. Its benefits include scalability, flexibility, and integration with other Azure services. It orchestrates and operationalizes processes for extract-transform-load (ETL), extract-load-transform (ELT), and data integration. Raw data lacks context and meaning. ADF refines raw data into actionable business insights by orchestrating data workflows.

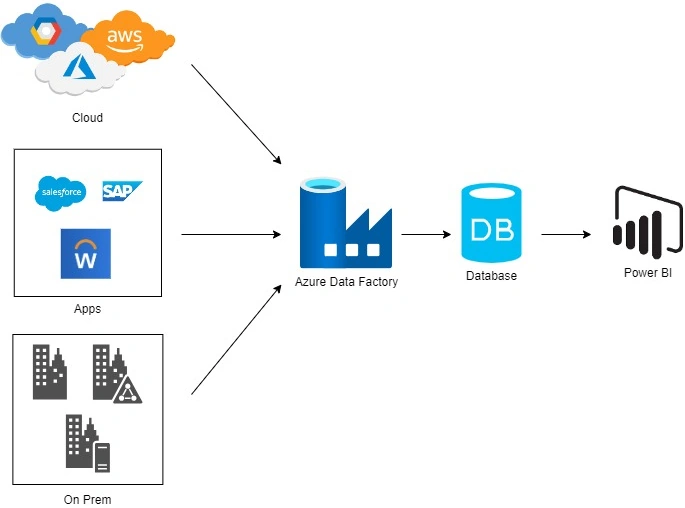

Orchestrating data

Components of Azure data factory

Pipelines
Linked Services
Datasets
Activities
Triggers
Integration Runtime

Pipelines

It’s the logical group of activities that perform a specific job.

Activities

An activity is just like a logical operation or the action that we perform on our data.

Datasets

Datasets represent designated perspectives of data, serving as pointers or references to the specific data required for your tasks, whether as inputs or outputs.

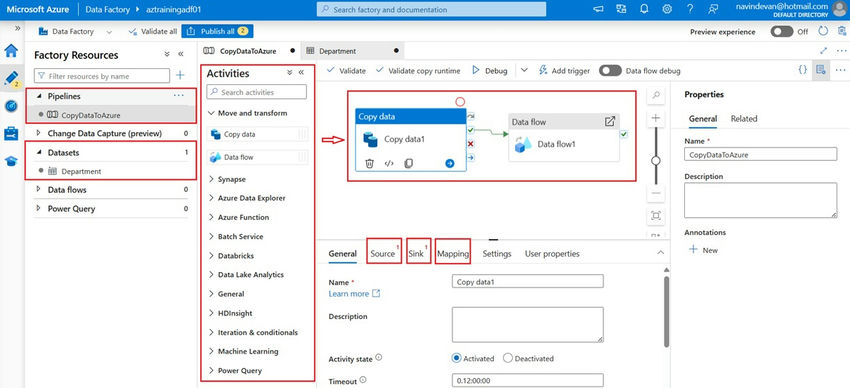

Datasets

Linked services

Linked services are a very important component to link your data store to the ADF.

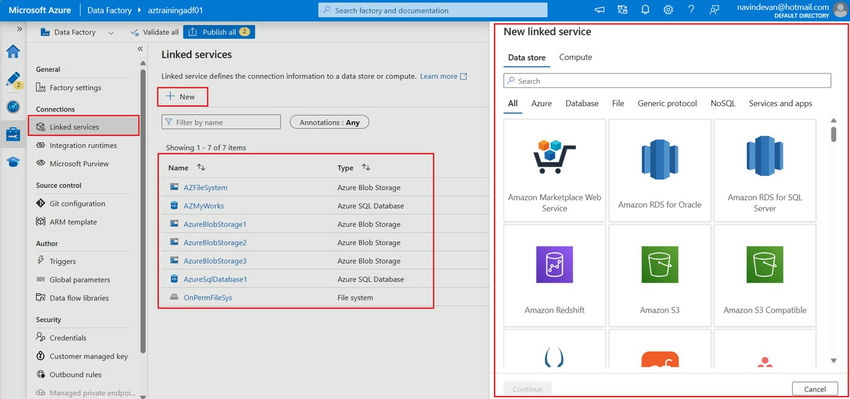

Linked service

Triggers

The triggers within ADF offer an alternative method for initiating or executing a pipeline.

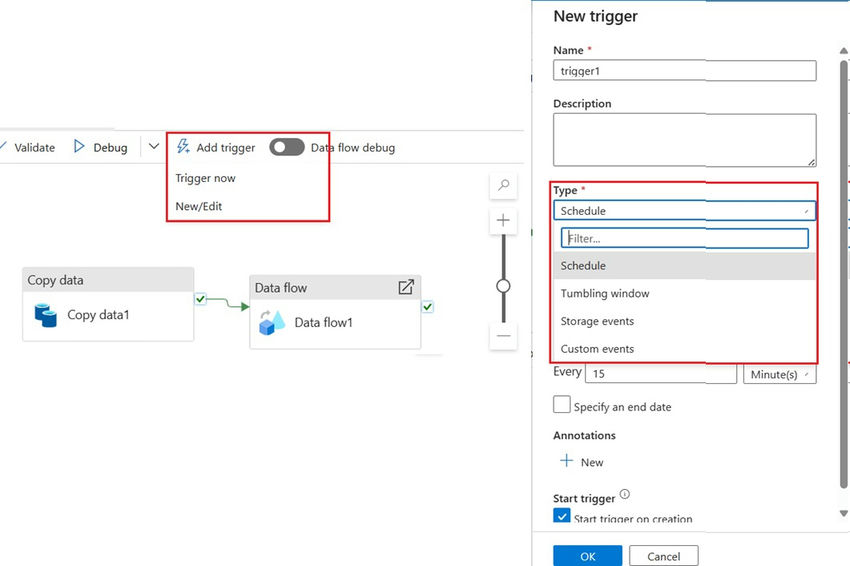

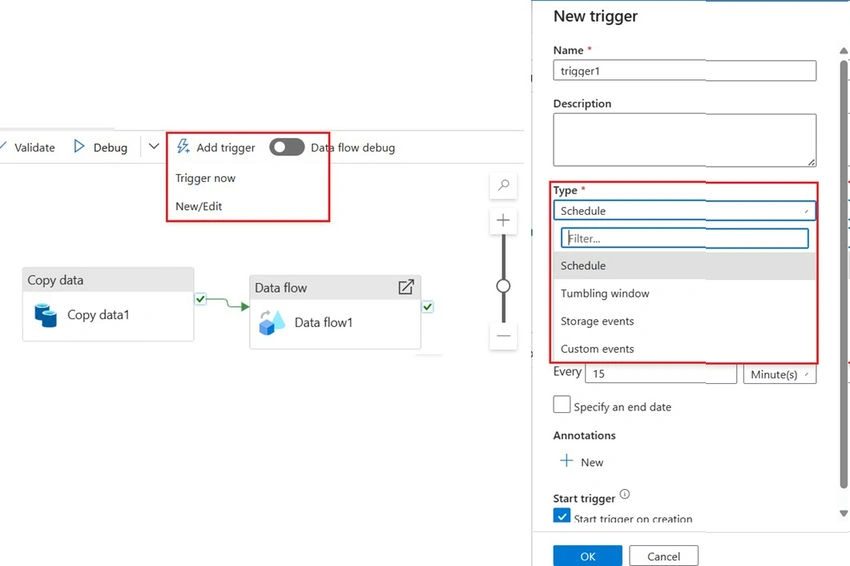

Types of Triggers

Schedule: Schedules at a particular period.
Tumbling window: Very rarely used, it retains the state of execution and goes back when the pipeline stops and restarts from the point of failure.
Storage events: Event-based trigger, execute the pipeline based on some events in Azure.
Custom events: Can parse and send a custom data payload to the pipeline. Used in parameterized pipelines.

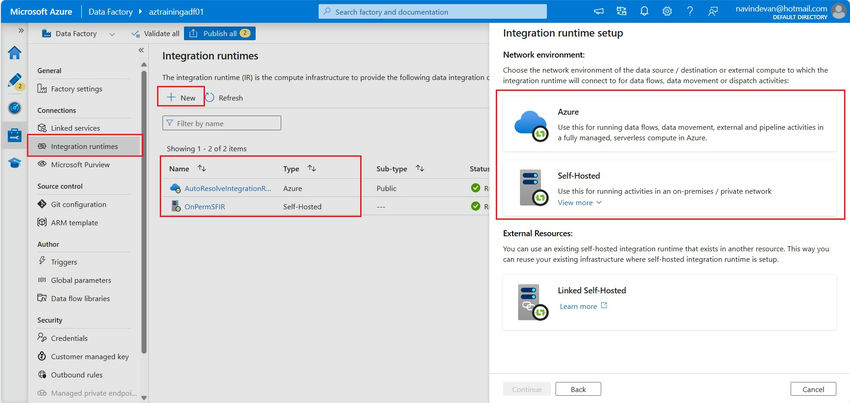

Integration Runtime

Integration Runtime in Azure Data Factory is a managed compute infrastructure used for data integration and data transfer scenarios.

Types of Integration Runtimes

Azure integration runtime: Default IR, used for any Azure-related services.
Self-hosted: Used to connect any system outside of the Azure environment.

Data movement and transformation in Azure Data Factory

In Azure Data Factory, data movement and transformation form the backbone of ETL (Extract, Transform, Load) processes, facilitating seamless data integration across various sources and destinations. Leveraging robust connectors and data integration capabilities, Azure Data Factory enables the efficient movement of data from diverse sources, such as on-premises databases, cloud storage, and SaaS applications, to Azure data services or other target destinations.

A few commonly used activities are

Copy activity: Copies data from one location to another (e.g., from an on-premises database to Azure Blob Storage).
Data flow activity: Provides visual data transformation capabilities using a code-free interface.
HDInsight activities: Enable interaction with Hadoop clusters (Hive, Pig, MapReduce, and Streaming).

Monitoring and Management

Monitoring and management in Azure Data Factory are pivotal for ensuring the reliability, performance, and efficiency of data integration workflows. Azure Data Factory offers comprehensive monitoring capabilities that provide insights into the execution status, health, and resource utilization of data pipelines in real-time.

Through Azure Monitor, users can track key performance metrics such as pipeline execution times, data throughput, and resource consumption, enabling proactive identification and resolution of issues. Additionally, built-in logging and auditing functionalities facilitate compliance and governance requirements by providing detailed records of data movement activities and pipeline executions.

Conclusion

Azure Data Factory emerges as a powerful data integration tool that empowers organizations to orchestrate and automate data movement and transformation processes across hybrid environments. With its rich set of features, seamless integration with other Azure services, and ability to handle diverse data sources, ADF enables organizations to unlock the full potential of their data, driving innovation and competitive advantage. By leveraging Azure Data Factory, organizations can streamline data integration workflows, accelerate time-to-insight, and make data-driven decisions that propel business growth and success in the digital age. Whether it's enterprise data warehousing, real-time data processing, or cloud data migration, Azure Data Factory offers a scalable and flexible solution for all data integration needs.
