Detect Poor Performing Queries In Entity Framework 6.x

Recently I came upon a post from Rown Miller in which he created a simple interceptor to log poor performing queries or failing queries, which really seems promising to track down those queries. Although there is already an awesome well-known tool, Glimpse, this helps you track down the server processing time and other informational data with a quick setup. It also logs the queries if your ASP.NET application is using Entity Framework. But it’s limited to Web applications. So what about Windows, WPF, and other standalone apps?

I just extended the interceptor class as a library and included the support to introduce a custom logger to write queries on any target.

By introducing an Interface for logging:
    1. /// <summary>
    2. /// Implement this logger for any custom targets where queries should be logged.
    3. /// </summary>
    4. public interface IQueryLogger
    5. {
    6.    void Write(params string[] content);
    7. }
    Check out the original interceptor here. I have tweaked it a little to have a filter for including StackTrace. Here’s the updated class.
    1. public class ExpensiveSqlLoggerInterceptor: DbCommandInterceptor {
    2.     private readonly IQueryLogger _queryLogger;
    3.     private readonly int _executionMillisecondThreshold;
    4.     private readonly bool _includeStackTrace;
    5.
    6.     public ExpensiveSqlLoggerInterceptor(IQueryLogger logger, int executionMillisecondThreshold, bool enableStackTrace = true) {
    7.         _queryLogger = logger;
    8.         _executionMillisecondThreshold = executionMillisecondThreshold;
    9.         _includeStackTrace = enableStackTrace;
    10.     }
    11.
    12.     public override voidR eaderExecuting(DbCommand command, DbCommandInterceptionContext < DbDataReader > interceptionContext) {
    13.         Executing(interceptionContext);
    14.         base.ReaderExecuting(command, interceptionContext);
    15.     }
    16.
    17.     public override void ReaderExecuted(DbCommand command, DbCommandInterceptionContext < DbDataReader > interceptionContext) {
    18.         Executed(command, interceptionContext);
    19.         base.ReaderExecuted(command, interceptionContext);
    20.     }
    21.
    22.     public override void NonQueryExecuting(DbCommand command, DbCommandInterceptionContext < int > interceptionContext) {
    23.         Executing(interceptionContext);
    24.         base.NonQueryExecuting(command, interceptionContext);
    25.     }
    26.
    27.     public override void NonQueryExecuted(DbCommand command, DbCommandInterceptionContext < int > interceptionContext) {
    28.         Executed(command, interceptionContext);
    29.         base.NonQueryExecuted(command, interceptionContext);
    30.     }
    31.
    32.     public override void ScalarExecuting(DbCommand command, DbCommandInterceptionContext < object > interceptionContext) {
    33.         Executing(interceptionContext);
    34.         base.ScalarExecuting(command, interceptionContext);
    35.     }
    36.
    37.     public override void ScalarExecuted(DbCommand command, DbCommandInterceptionContext < object > interceptionContext) {
    38.         Executed(command, interceptionContext);
    39.         base.ScalarExecuted(command, interceptionContext);
    40.     }
    41.
    42.     private void Executing < T > (DbCommandInterceptionContext < T > interceptionContext) {
    43.         var timer = new Stopwatch();
    44.         interceptionContext.UserState = timer;
    45.         timer.Start();
    46.     }
    47.
    48.     private void Executed < T > (DbCommand command, DbCommandInterceptionContext < T > interceptionContext) {
    49.         var timer = (Stopwatch) interceptionContext.UserState;
    50.         timer.Stop();
    51.
    52.         if (interceptionContext.Exception != null) {
    53.             _queryLogger.Write("FAILED COMMAND",
    54.                 interceptionContext.Exception.Message,
    55.                 command.CommandText,
    56.                 _includeStackTrace ? Environment.StackTrace : string.Empty,
    57.                 string.Empty,
    58.                 string.Empty);
    59.         } else if (timer.ElapsedMilliseconds >= _executionMillisecondThreshold) {
    60.             _queryLogger.Write(
    61.                 string.Format("SLOW COMMAND ({0} ms)", timer.ElapsedMilliseconds),
    62.                 command.CommandText,
    63.                 _includeStackTrace ? Environment.StackTrace : string.Empty,
    64.                 string.Empty,
    65.                 string.Empty
    66.             );
    67.         }
    68.     }
    69. }
    Let's say I want to write to Visual Studio Debug window, simply implement the IQueryLogger interface:
    1. /// <summary>
    2. /// Writes the output to the visual studio output window.
    3. /// </summary>
    4. public class OutputWindowLogger: IQueryLogger
    5. {
    6.     public void Write(params string[] content)
    7.     {
    8.         content.ToList().ForEach(data => System.Diagnostics.Trace.WriteLine(data, "Expensive Query log =>"));
    9.     }
    10. }
    A quick setup to use the interceptor is just  to implement the DbConfiguration class and add the interceptor:
    1. public class CustomConfig: DbConfiguration
    2. {
    3.     public CustomConfig()
    4.     {
    5.         this.AddInterceptor(new ExpensiveSqlLoggerInterceptor(new OutputWindowLogger(), 1, false));
    6.     }
    7. }

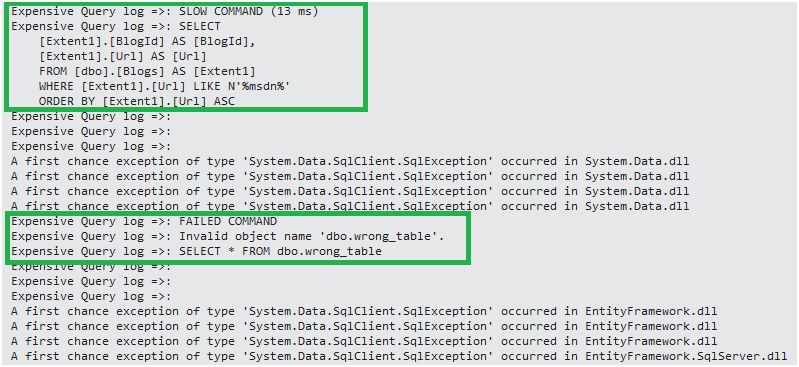

    That’s it. Now you can run your application and look for the debug window with “Expensive Query Log =>”

    Expensive Query Log

    Here’s the complete source code of the EF6Logger library on GitHub.
