Detailed use of Tuples and Value Tuples in C#

I am proceeding with my earlier article concerning Tuples and Value Tuples.

Explanation of Tuple

The Tuple<T> class was first introduced in the .NET Framework 4.0. A tuple serves as a data structure that encompasses a series of elements, each potentially of a different data type. This structure is particularly useful when there is a need to encapsulate an object with various properties without the necessity of defining a distinct type for it.

Tuples serve various purposes in programming, including.

  1. Facilitating the return of multiple values from a method without the necessity of using ref or out parameters.
  2. Allowing the transmission of multiple values to a method via a single parameter.
  3. Enabling the temporary storage of a database record or other values without the need to create a distinct class.

Limitations of Tuples

  1. Tuples are classified as reference types rather than value types, which means they are allocated on the heap and may lead to CPU-intensive operations.
  2. A tuple can only contain a maximum of eight elements; to accommodate more, nested tuples must be utilized, potentially leading to confusion.
  3. Accessing tuple elements is done through properties following the naming convention Item<elementNumber>, which may lack clarity.

Syntax for Tuple

Tuple<T1, T2, T3, T4, T5, T6, T7, TRest>

The first approach for the creation of a tuple consisting of three elements.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace WpfValueConverter
{
    internal class Tuples
    {
        // Create the tuple
        private void InitializeTuple()
        {
            Tuple<int, string, string> employeeDetails = new Tuple<int, string, string>(1, "Sanjay", "Kumar");

            // Access and print the elements
            Console.WriteLine("Employee ID: " + employeeDetails.Item1);   // Output: Employee ID: 1
            Console.WriteLine("First Name: " + employeeDetails.Item2);    // Output: First Name: Sanjay
            Console.WriteLine("Last Name: " + employeeDetails.Item3);     // Output: Last Name: Kumar
        }
    }
}

Explanation of the above code

Tuple<int, string, string>

Tuple<int, string, string> specifies the type of the tuple. In this case, the tuple will contain three elements.

  • The first element is of type int.
  • The second element is of type string.
  • The third element is of type string.

employeeDetails is the name of the variable that will hold the tuple.

new Tuple<int, string, string>(1, "Sanjay", "Kumar");

This part of the code creates a new instance of a Tuple object with three elements.

new Tuple<int, string, string> indicates that we are creating a tuple with three elements, the types of which are specified as int, string, and string.

The constructor Tuple<int, string, string>(1, "Sanjay", "Kumar") initializes the tuple with the provided values.

  • 1 (an integer) is assigned to the first element of the tuple.
  • "Sanjay" (a string) is assigned to the second element of the tuple.
  • "Kumar" (a string) is assigned to the third element of the tuple.

C# includes a static helper class known as Tuple, which facilitates the creation of tuples without the necessity of explicitly defining the type for each element. The utilization of this helper class enhances code clarity and reduces complexity. Below is an example of how to create an equivalent tuple using the Tuple helper class.

The above example can also be expressed below.

private void InitializeCreateTuple()
{
    // Create the tuple using the Tuple helper class
    var employeeDetails = Tuple.Create(1, "Sanjay", "Kumar");

    // Access and print the elements
    Console.WriteLine("Employee ID: " + employeeDetails.Item1);   // Output: Employee ID: 1
    Console.WriteLine("First Name: " + employeeDetails.Item2);    // Output: First Name: Sanjay
    Console.WriteLine("Last Name: " + employeeDetails.Item3);     // Output: Last Name: Kumar
}

Tuple.Create(1, "Sanjay", "Kumar") creates a new tuple with three elements.

In C#, the Tuple class is limited to a maximum of eight elements. Attempting to add more than eight elements to a single tuple will result in a compiler error. This limitation is inherent to the design of the Tuple class within the .NET Framework. Below is an explanation of this restriction and suggestions for how to manage situations where more than eight elements are required. Maximum of Eight Elements in a Tuple When utilizing the Tuple class to create a tuple, you are permitted to include a maximum of eight elements. The tuple classes are structured as Tuple<T1, T2, T3, T4, T5, T6, T7, TRest>

A tuple with maximum elements

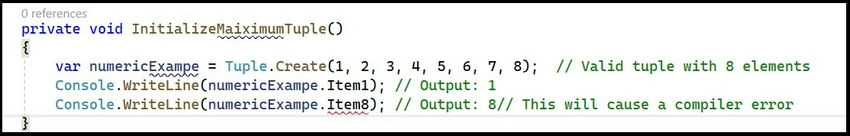

Case 1. Tuple with Maximum of 8 elements

private void InitializeMaiximumTuple()
{
    var numericExampe = Tuple.Create(1, 2, 3, 4, 5, 6, 7, 8);  // Valid tuple with 8 elements

    Console.WriteLine(numericExampe.Item1); // Output: 1

    Console.WriteLine(numericExampe.Item8); // Output: 8 // This will cause a compiler error
}

Private void

In this instance, seven elements can be accessed directly; however, the eighth element cannot be accessed. So it can be accessed below.

Console.WriteLine(numeric example.Rest.Item1); // Output: 8,

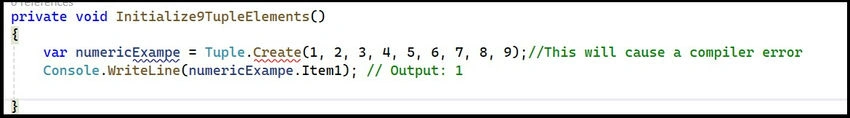

Case 2. In Tuple, if there are more than 8 elements, a compile-time error will be generated as shown below.

private void Initialize9TupleElements()
{
    var numericExampe = Tuple.Create(1, 2, 3, 4, 5, 6, 7, 8, 9); // This will cause a compiler error

    Console.WriteLine(numericExampe.Item1); // Output: 1
}

Tuple

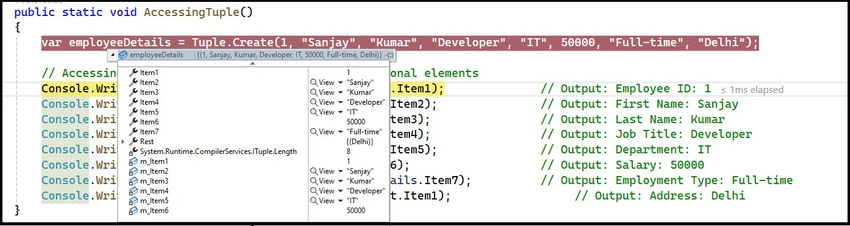

Retrieving Elements from a Tuple

The elements of a tuple can be accessed through the Item<elementNumber> properties, such as Item1, Item2, Item3, and continuing up to the Item7 property. The Item1 property retrieves the first element, Item2 retrieves the second element, and this pattern continues accordingly. The final element, which is the 8th element, can be accessed using the Rest property.

private void AccessingTuple()
{
    var employeeDetails = Tuple.Create(
        1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time", "Delhi");

    // Accessing and printing the elements using positional elements
    Console.WriteLine("Employee ID: " + employeeDetails.Item1);              // Output: Employee ID: 1
    Console.WriteLine("First Name: " + employeeDetails.Item2);             // Output: First Name: Sanjay
    Console.WriteLine("Last Name: " + employeeDetails.Item3);              // Output: Last Name: Kumar
    Console.WriteLine("Job Title: " + employeeDetails.Item4);              // Output: Job Title: Developer
    Console.WriteLine("Department: " + employeeDetails.Item5);             // Output: Department: IT
    Console.WriteLine("Salary: " + employeeDetails.Item6);                // Output: Salary: 50000
    Console.WriteLine("Employment Type: " + employeeDetails.Item7);       // Output: Employment Type: Full-time
    Console.WriteLine("Address: " + employeeDetails.Rest.Item1);           // Output: Address: Delhi
}

Public Static void

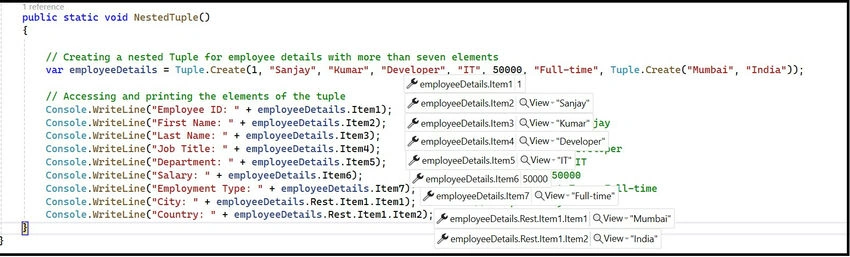

Nested Tuples

private void NestedTuple()
{
    // Creating a nested Tuple for employee details with more than seven elements
    var employeeDetails = Tuple.Create(
        1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time",
        Tuple.Create("Mumbai", "India"));

    // Accessing and printing the elements of the tuple
    Console.WriteLine("Employee ID: " + employeeDetails.Item1);           // Output: Employee ID: 1
    Console.WriteLine("First Name: " + employeeDetails.Item2);          // Output: First Name: Sanjay
    Console.WriteLine("Last Name: " + employeeDetails.Item3);           // Output: Last Name: Kumar
    Console.WriteLine("Job Title: " + employeeDetails.Item4);           // Output: Job Title: Developer
    Console.WriteLine("Department: " + employeeDetails.Item5);          // Output: Department: IT
    Console.WriteLine("Salary: " + employeeDetails.Item6);              // Output: Salary: 50000
    Console.WriteLine("Employment Type: " + employeeDetails.Item7);     // Output: Employment Type: Full-time
    Console.WriteLine("City: " + employeeDetails.Rest.Item1.Item1);     // Output: City: Mumbai
    Console.WriteLine("Country: " + employeeDetails.Rest.Item1.Item2);  // Output: Country: India
}

Nested tuples

Tuple as a Method Parameter

using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            // Creating a tuple for employee details with up to seven elements
            var employeeDetails = Tuple.Create(
                1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time");

            // Display the employee details
            DisplayEmployeeDetails(employeeDetails);
        }

        private void DisplayEmployeeDetails(Tuple<int, string, string, string, string, int, string> employeeDetails)
        {
            Console.WriteLine($"Employee ID: {employeeDetails.Item1}");
            Console.WriteLine($"First Name: {employeeDetails.Item2}");
            Console.WriteLine($"Last Name: {employeeDetails.Item3}");
            Console.WriteLine($"Job Title: {employeeDetails.Item4}");
            Console.WriteLine($"Department: {employeeDetails.Item5}");
            Console.WriteLine($"Salary: {employeeDetails.Item6}");
            Console.WriteLine($"Employment Type: {employeeDetails.Item7}");
        }
    }
}

A method can return a Tuple as its return type.

using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            // Creating a tuple for employee details with up to seven elements
            var employeeDetails = GetEmployeeDetails();
        }

        private Tuple<int, string, string, string, string, int, string> GetEmployeeDetails()
        {
            return Tuple.Create(
                1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time");
        }
    }
}

Explanation of ValueTuple

The introduction of the ValueTuple structure in C# 7.0, which is part of the .NET Framework 4.7, provides a value-type representation of the Tuple.

Advantages

  1. Simplicity and Clarity
    • ValueTuple offers a streamlined method for aggregating multiple values. The use of named members enhances the readability of the code and serves as a form of self-documentation.
    • Each element can be assigned a name, which improves the clarity of the code and minimizes potential confusion regarding the representation of each value.
  2. Performance
    • As a value type, ValueTuple is typically stored on the stack (for smaller sizes) rather than on the heap, resulting in improved performance for small, transient data structures.
    • In contrast to reference types, ValueTuple avoids the overhead of boxing and unboxing, which can yield performance benefits in specific situations.
  3. No Additional Class/Struct Required: There is no necessity to create a separate class or struct to encapsulate related values, thereby reducing boilerplate code and maintaining a lightweight implementation.
  4. Flexible Return Types: Functions can return several values encapsulated within a single ValueTuple, simplifying the process of returning complex results without the requirement for custom types.

Use of ValueTuple


ValueTuple Initialization

Creating and initializing a ValueTuple is a straightforward process. It can be accomplished by using parentheses () and providing the corresponding values within them.

ValueTuple<int, string, string, string, string, int, string> employeeDetails =
    (1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time");

Named Members in ValueTuple

// Initializing a ValueTuple for employee details with named elements explicitly
(
    int Id,
    string FirstName,
    string LastName,
    string JobTitle,
    string Department,
    int Salary,
    string EmploymentType
) employeeDetails = (
    1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time"
);

Accessing elements in ValueTuple

private void DisplayValue()
{
    (int Id, string FirstName, string LastName, string JobTitle, string Department, int Salary, string EmploymentType) employeeDetails = (
        1, "Sanjay", "Kumar", "Developer", "IT", 50000, "Full-time"
    );

    // Accessing and displaying each element of the ValueTuple
    Console.WriteLine($"Employee ID: {employeeDetails.Id}");
    Console.WriteLine($"First Name: {employeeDetails.FirstName}");
    Console.WriteLine($"Last Name: {employeeDetails.LastName}");
    Console.WriteLine($"Job Title: {employeeDetails.JobTitle}");
    Console.WriteLine($"Department: {employeeDetails.Department}");
    Console.WriteLine($"Salary: {employeeDetails.Salary}");
    Console.WriteLine($"Employment Type: {employeeDetails.EmploymentType}");
}

ValueTuple as Parameter

using System.Windows;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            var employeeDetails = (
                Id: 1,
                FirstName: "Sanjay",
                LastName: "Kumar",
                JobTitle: "Developer",
                Department: "IT",
                Salary: 50000,
                EmploymentType: "Full-time"
            );

            // Pass the ValueTuple to a method
            DisplayEmployeeDetails(employeeDetails);
        }

        private void DisplayEmployeeDetails(
            (int Id, string FirstName, string LastName, string JobTitle, string Department, int Salary, string EmploymentType) employeeDetails)
        {
            // Access and display each element of the ValueTuple
            Console.WriteLine($"Employee ID: {employeeDetails.Id}");
            Console.WriteLine($"First Name: {employeeDetails.FirstName}");
            Console.WriteLine($"Last Name: {employeeDetails.LastName}");
            Console.WriteLine($"Job Title: {employeeDetails.JobTitle}");
            Console.WriteLine($"Department: {employeeDetails.Department}");
            Console.WriteLine($"Salary: {employeeDetails.Salary}");
            Console.WriteLine($"Employment Type: {employeeDetails.EmploymentType}");
        }
    }
}

ValueTuple As Return Type

using System.Windows;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            // Call the method that returns a ValueTuple
            var employeeDetails = GetEmployeeDetails();

            // Display the employee details
            DisplayEmployeeDetails(employeeDetails);
        }

        // Method that returns a ValueTuple
        private (int Id, string FirstName, string LastName, string JobTitle, string Department, int Salary, string EmploymentType) GetEmployeeDetails()
        {
            // Return a ValueTuple with employee details
            return (Id: 1, FirstName: "Sanjay", LastName: "Kumar", JobTitle: "Developer", Department: "IT", Salary: 50000, EmploymentType: "Full-time");
        }

        // Method that takes a ValueTuple as a parameter and displays its contents
        private void DisplayEmployeeDetails(
            (int Id, string FirstName, string LastName, string JobTitle, string Department, int Salary, string EmploymentType) employeeDetails)
        {
            // Access and display each element of the ValueTuple
            Console.WriteLine($"Employee ID: {employeeDetails.Id}");
            Console.WriteLine($"First Name: {employeeDetails.FirstName}");
            Console.WriteLine($"Last Name: {employeeDetails.LastName}");
            Console.WriteLine($"Job Title: {employeeDetails.JobTitle}");
            Console.WriteLine($"Department: {employeeDetails.Department}");
            Console.WriteLine($"Salary: {employeeDetails.Salary}");
            Console.WriteLine($"Employment Type: {employeeDetails.EmploymentType}");
        }
    }
}

Nested Value Tuples

using System.Windows;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            var largeTuple = (
                Id: 1,
                Name: "Alice",
                Age: 30,
                Job: "Engineer",
                Department: "IT",
                Salary: 50000,
                EmploymentType: "Full-time",
                Address: (Street: "123 Elm St", City: "Somewhere", ZipCode: "12345"), // Nested tuple
                Contact: (Phone: "555-1234", Email: "[email protected]"), // Nested tuple
                Status: "Active"
            );

            DisplayLargeTuple(largeTuple);
        }

        private void DisplayLargeTuple(
            (int Id, string Name, int Age, string Job, string Department, int Salary,
            string EmploymentType, (string Street, string City, string ZipCode) Address,
            (string Phone, string Email) Contact, string Status) tuple)
        {
            Console.WriteLine($"ID: {tuple.Id}");
            Console.WriteLine($"Name: {tuple.Name}");
            Console.WriteLine($"Age: {tuple.Age}");
            Console.WriteLine($"Job: {tuple.Job}");
            Console.WriteLine($"Department: {tuple.Department}");
            Console.WriteLine($"Salary: {tuple.Salary}");
            Console.WriteLine($"Employment Type: {tuple.EmploymentType}");
            Console.WriteLine($"Address: {tuple.Address.Street}, {tuple.Address.City}, {tuple.Address.ZipCode}");
            Console.WriteLine($"Contact: Phone - {tuple.Contact.Phone}, Email - {tuple.Contact.Email}");
            Console.WriteLine($"Status: {tuple.Status}");
        }
    }
}

Deconstruction

The process of deconstruction allows for the retrieval of individual elements from a ValueTuple. By utilizing a deconstructing declaration syntax, a ValueTuple can be divided into its constituent components, with each component being assigned to new variables separately.

using System.Windows;

namespace Tuple_ValueTupleExample
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            DeconstructionDisplay();
        }

        private void DeconstructionDisplay()
        {
            // Initialize a ValueTuple for employee details
            var employeeDetails = (
                Id: 1,
                FirstName: "Sanjay",
                LastName: "Kumar",
                JobTitle: "Developer",
                Department: "IT",
                Salary: 50000,
                EmploymentType: "Full-time"
            );

            // Deconstruct the ValueTuple into individual variables
            var (id, firstName, lastName, jobTitle, department, salary, employmentType) = employeeDetails;

            // Display the deconstructed values
            Console.WriteLine($"Employee ID: {id}");
            Console.WriteLine($"First Name: {firstName}");
            Console.WriteLine($"Last Name: {lastName}");
            Console.WriteLine($"Job Title: {jobTitle}");
            Console.WriteLine($"Department: {department}");
            Console.WriteLine($"Salary: {salary}");
            Console.WriteLine($"Employment Type: {employmentType}");
        }
    }
}

Using Discards in Deconstruction

When deconstructing a ValueTuple, you can use the underscore to omit elements you are not interested in. This can be helpful when dealing with tuples containing many elements, but you only need to work with a subset of them.

private void DiscardsConstructorExample()
{
    // Initialize a ValueTuple for employee details
    var employeeDetails = (
        Id: 1,
        FirstName: "Sanjay",
        LastName: "Kumar",
        JobTitle: "Developer",
        Department: "IT",
        Salary: 50000,
        EmploymentType: "Full-time"
    );

    // Deconstruct and use only specific elements with discards
    var (_, firstName, lastName, jobTitle, _, _, _) = employeeDetails;

    // Display the deconstructed values
    Console.WriteLine($"First Name: {firstName}"); // Outputs: First Name: Sanjay
    Console.WriteLine($"Last Name: {lastName}");  // Outputs: Last Name: Kumar
    Console.WriteLine($"Job Title: {jobTitle}");  // Outputs: Job Title: Developer
}

Advantages of Utilizing Discards

  • Clarity: Emphasizes the pertinent components while eliminating extraneous variables associated with the omitted elements.
  • Simplicity: Enhances the cleanliness and readability of the code by explicitly specifying the tuple elements in use.


Similar Articles
