Deploy an Azure Service Bus Topic Using ARM Template

Utilize an ARM Template to Deploy an Azure Service Bus Topic through the 'Deploy a Custom Template' method.

Login to Azure

• URL: https://portal.azure.com
• Username: [email protected]
• Password: **********

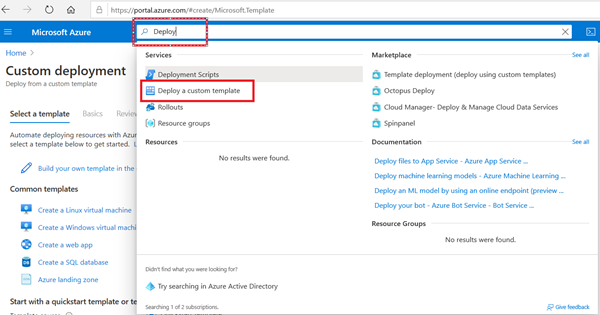

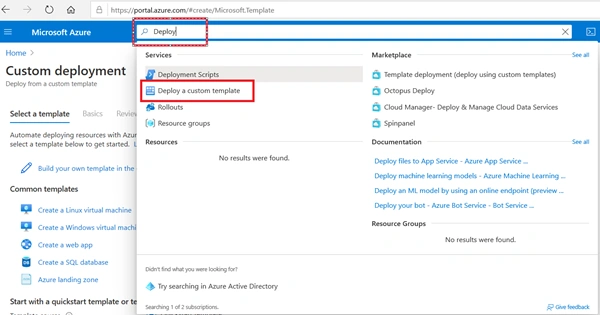

Upon logging into Azure, locate the 'Deploy a Custom Template' option and proceed to open it.

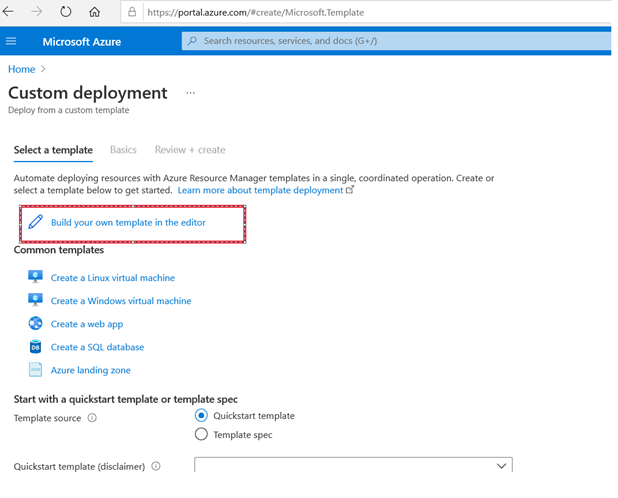

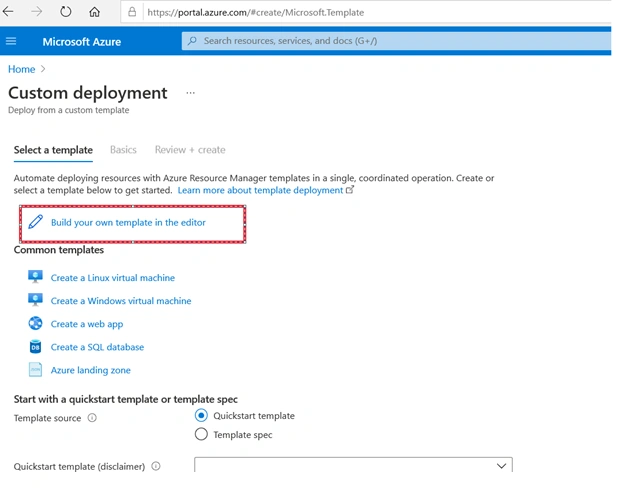

Click on Build your own template in the editor.

Create a json file with below code.

Example. AzureDeploy.json

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "serviceBusNamespaceName": {
            "type": "string",
            "metadata": {
                "description": "Name of the Service Bus Namespace"
            }
        },
        "serviceBusTopicName": {
            "type": "string",
            "metadata": {
                "description": "Name of the Service Bus Topic"
            }
        },
        "serviceBusTopicSubscriptionName": {
            "type": "string",
            "metadata": {
                "description": "Name of the Service Bus Topic Subscription"
            }
        }
    },
    "variables": {
        "sbVersion": "2015-08-01"
    },
    "resources": [
        {
            "apiVersion": "[variables('sbVersion')]",
            "name": "[parameters('serviceBusNamespaceName')]",
            "type": "Microsoft.ServiceBus/namespaces",
            "location": "[resourceGroup().location]",
            "properties": {},
            "resources": [
                {
                    "apiVersion": "[variables('sbVersion')]",
                    "name": "[parameters('serviceBusTopicName')]",
                    "type": "Topics",
                    "dependsOn": [
                        "[concat('Microsoft.ServiceBus/namespaces/', parameters('serviceBusNamespaceName'))]"
                    ],
                    "properties": {
                        "path": "[parameters('serviceBusTopicName')]"
                    },
                    "resources": [
                        {
                            "apiVersion": "[variables('sbVersion')]",
                            "name": "[parameters('serviceBusTopicSubscriptionName')]",
                            "type": "Subscriptions",
                            "dependsOn": [
                                "[parameters('serviceBusTopicName')]"
                            ],
                            "properties": {},
                            "resources": []
                        }
                    ]
                }
            ]
        }
    ],
    "outputs": {}
}

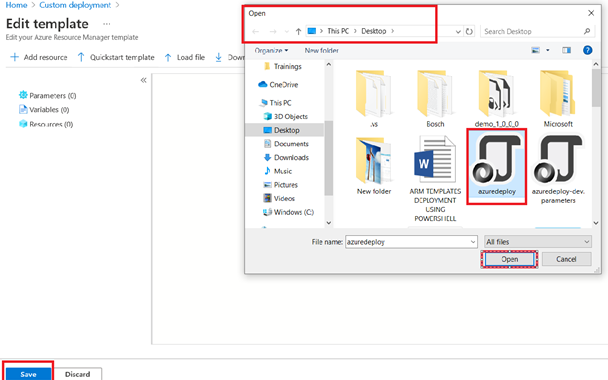

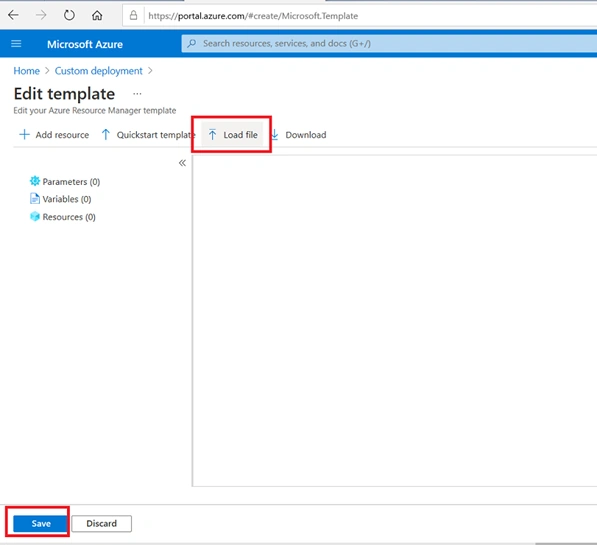

Click on Load file and upload above created json file AzureDeploy.json.

As seen below.

After Uploaded file click on Save button

Create Another json file

Example. AzureDeploy-Dev.Parameters.json

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "environment": {
            "value": "dev"
        },
        "resourceGroupIndex": {
            "value": "003"
        },
        "resourceGroupName": {
            "value": "Demo"
        },
        "serviceBusNamespaceName": {
            "value": "testapy003"
        },
        "serviceBusTopicName": {
            "value": "apytest-003"
        },
        "serviceBusTopicSubscriptionName": {
            "value": "apysubName"
        }
    }
}

After creating a json file.

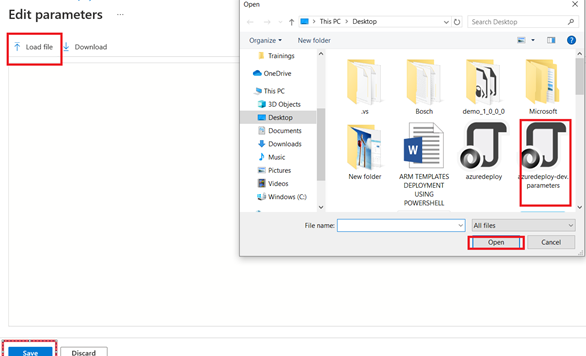

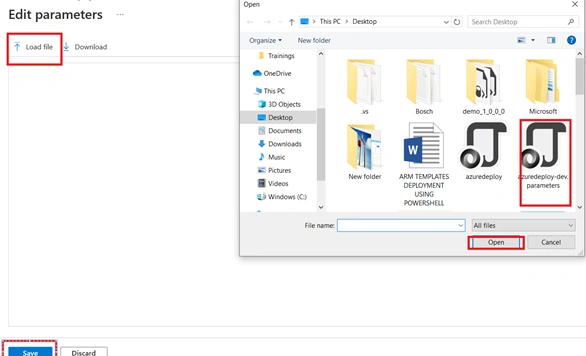

Click on Edit parameters button as seen below:

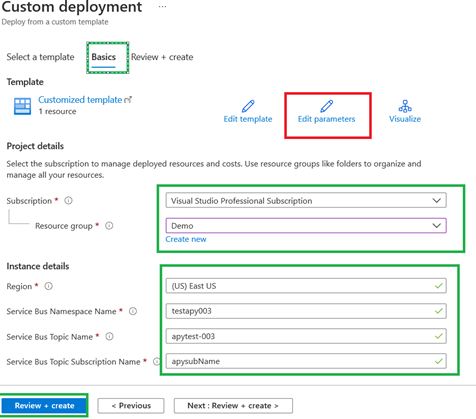

After uploading the file seen below.

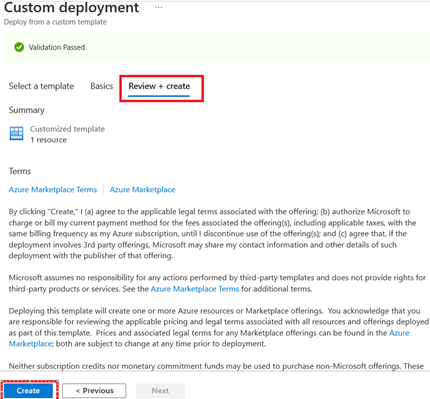

Click on Review + Create button

Select the "Create" button, and after a short duration, observe the successful creation of Azure Service Bus as displayed below.
