Define Style For Toast In Android Using Android Studio

Introduction


In a previous article, we saw how to create custom toast. Continuing in this article, we are going to see how to define a style for Toast in an Android app using the Android Studio. It will allow us to define color, structure, style, design, shape, etc.

Step 1

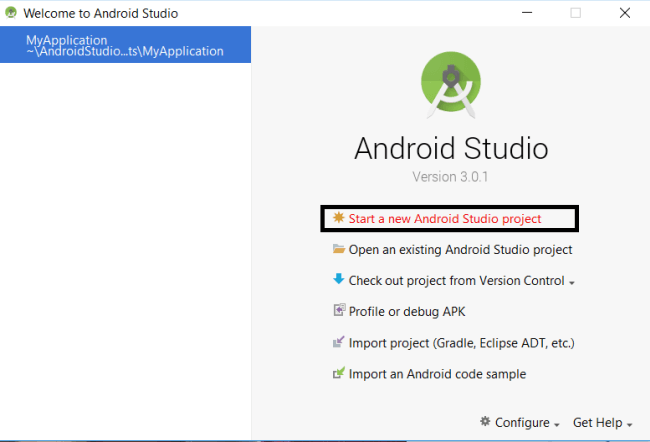

Create a new project in Android Studio.

Android

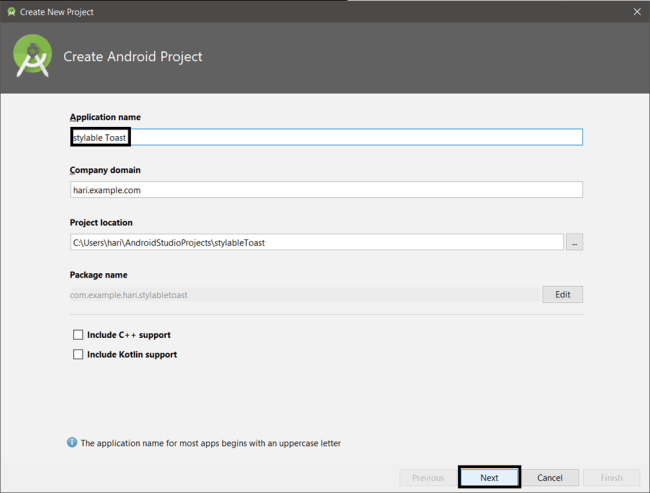

Give a name to the project and click "Next".

Android

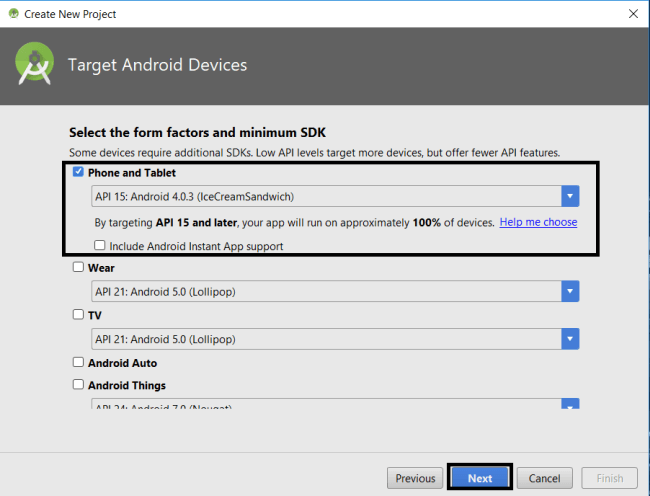

Select the "Phone and Tablet" and click "Next".

Android

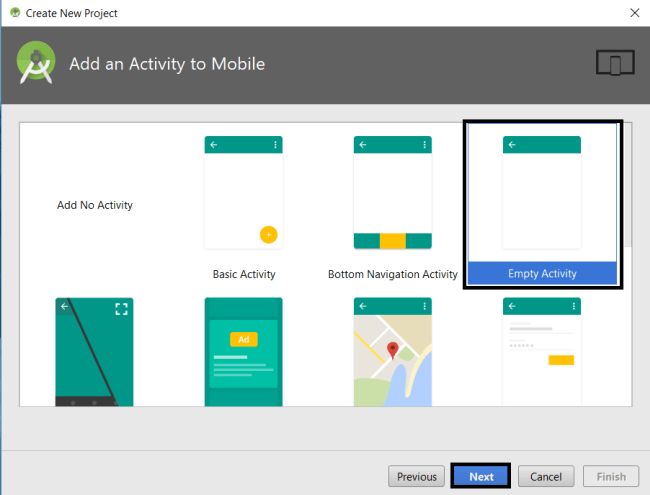

Select an empty activity and click "Next".

Android

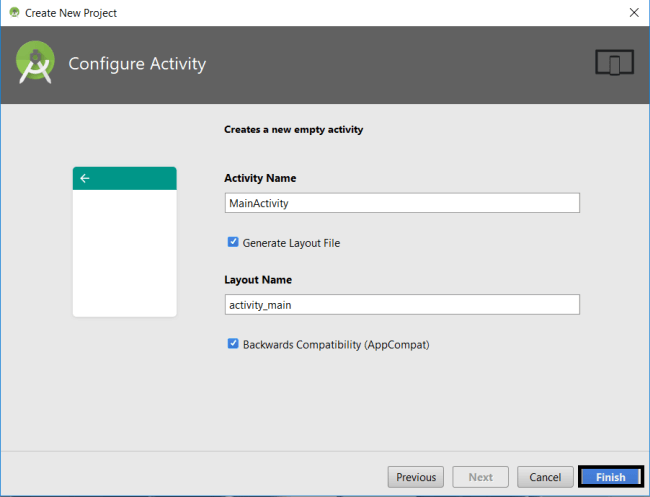

At last, give the activity name and click on "Finish".

Android

Step 2

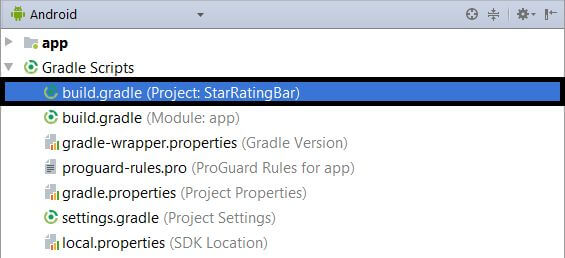

Setup the gradle by just locating the Gradle Scripts>>Build.Gradle 1.

Android

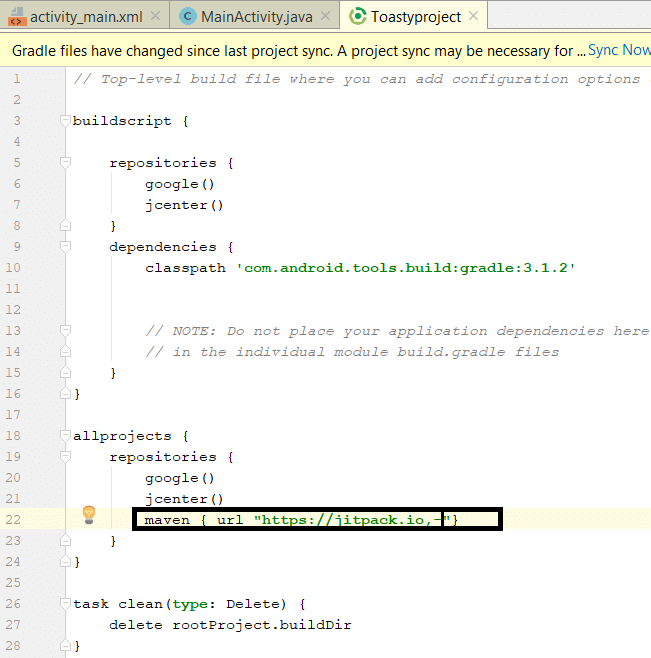

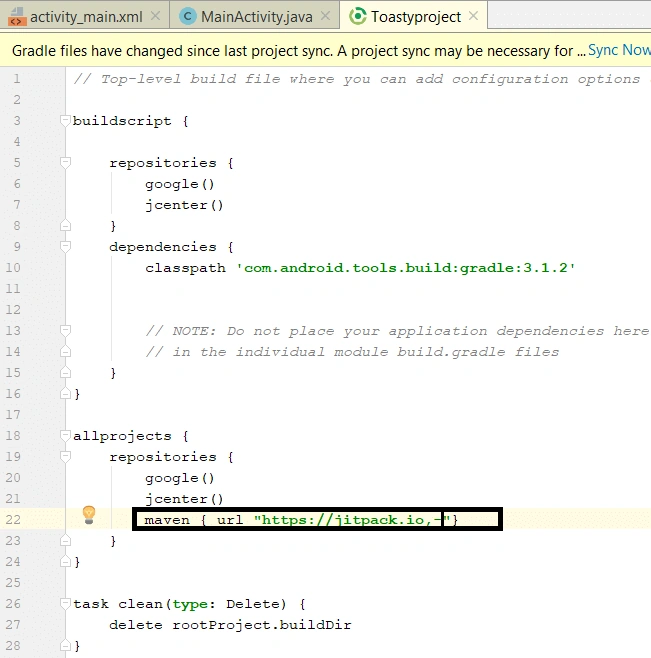

And type the following dependency in your app's build.gradle.

Android

Code copy is here.
  1. maven
  2. {
  3.    url "https://jitpack.io";
  4. }
Step 3

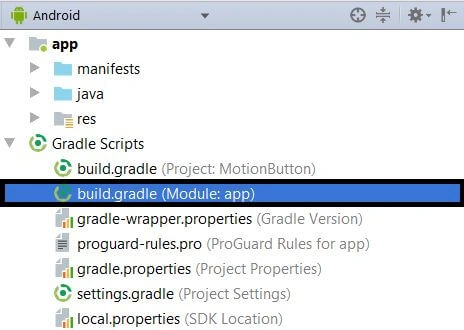

Locate the Gradle Scripts>>Build.Gradle 2.

Android

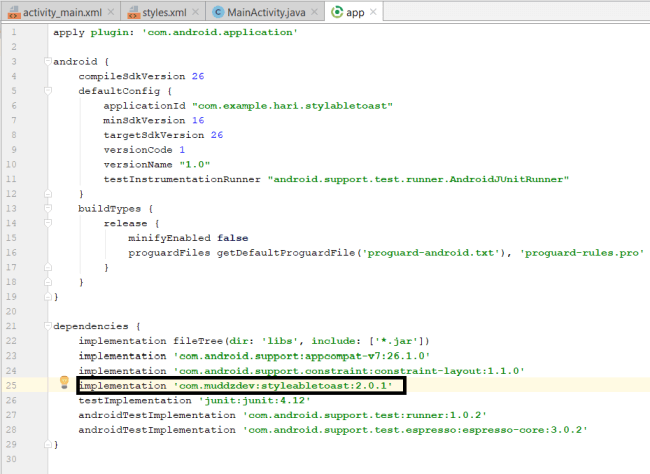

And type the following dependency in your app's build.gradle.

Android

Code copy is here.
  1. implementation 'com.muddzdev:styleabletoast:2.0.1'
Step 4

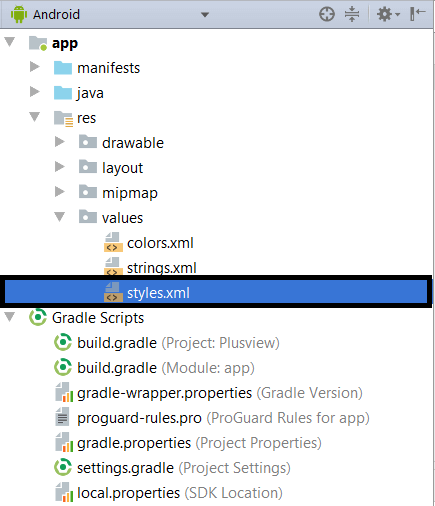

Next, go to app >> res >>Styles and

Android

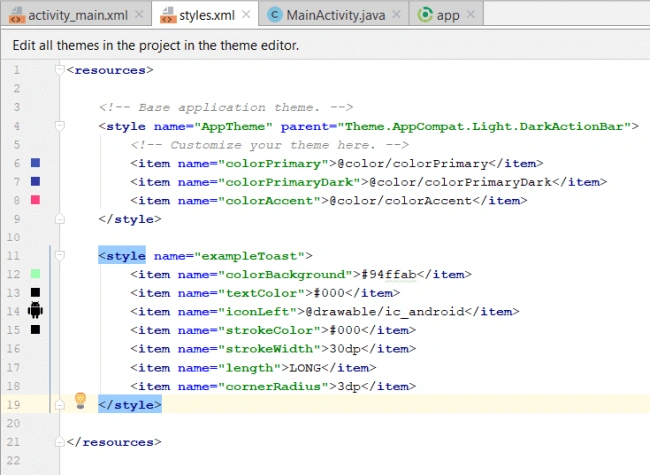

Just type the code as following.

Android

Code copy is here,
  1. <style name="exampleToast">
  2.         <item name="colorBackground">#94ffab</item>
  3.         <item name="textColor">#000</item>
  4.         <item name="iconLeft">@drawable/ic_android</item>
  5.         <item name="strokeColor">#000</item>
  6.         <item name="strokeWidth">30dp</item>
  7.         <item name="length">LONG</item>
  8.         <item name="cornerRadius">3dp</item>
  9.     </style>
Step 5

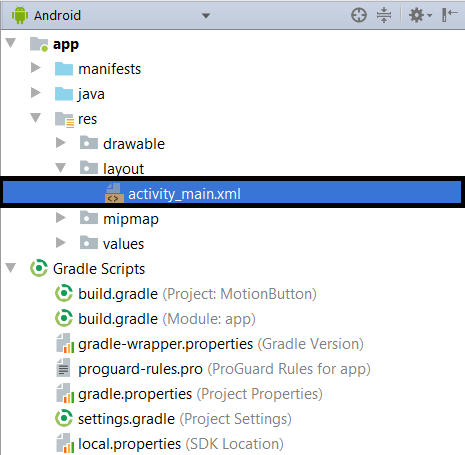

Next, go to app >> res >> layout >> activity_main.xml. Select activity page

Android

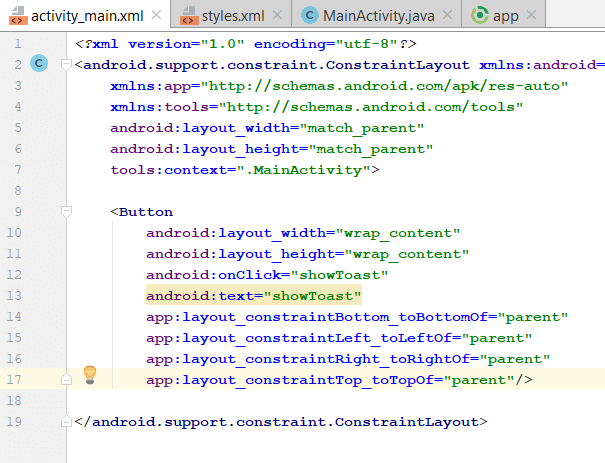

and just type the code as follows.

Android

Code copy is here,
  1. <Button
  2.         android:layout_width="wrap_content"
  3.         android:layout_height="wrap_content"
  4.         android:onClick="showToast"
  5.         android:text="showToast"
  6.         app:layout_constraintBottom_toBottomOf="parent"
  7.         app:layout_constraintLeft_toLeftOf="parent"
  8.         app:layout_constraintRight_toRightOf="parent"
  9.         app:layout_constraintTop_toTopOf="parent"/>
Step 6

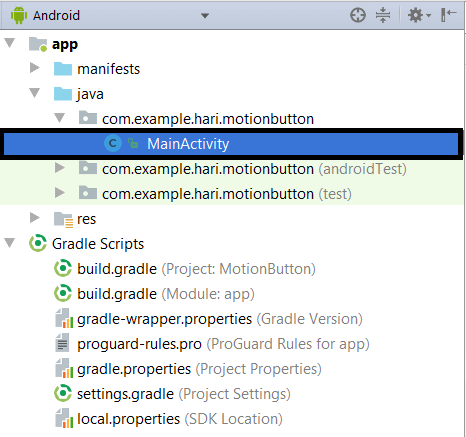

Next, go to app >> java>>Mainactivity.java. Select Mainactivity page,

Android

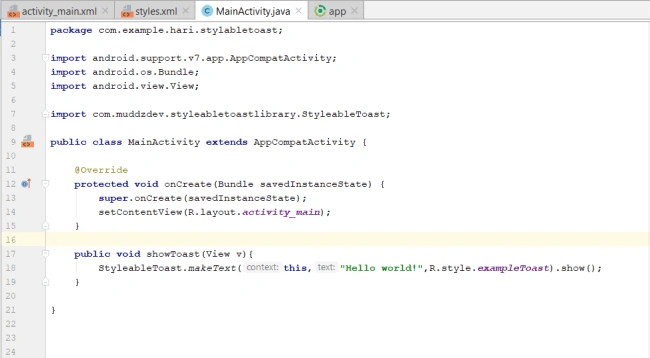

And just type the code as follows,

Android

Code copy is here,
  1. public void showToast(View v){
  2.        StyleableToast.makeText(this,"Hello world!",R.style.exampleToast).show();
  3.    }
Step 7

After step 4, Sync all the dependency gradles and Mainactivity.java resource files by clicking the Sync button on the top right corner of the gradle page.

Android

Step 8

Verify the preview.

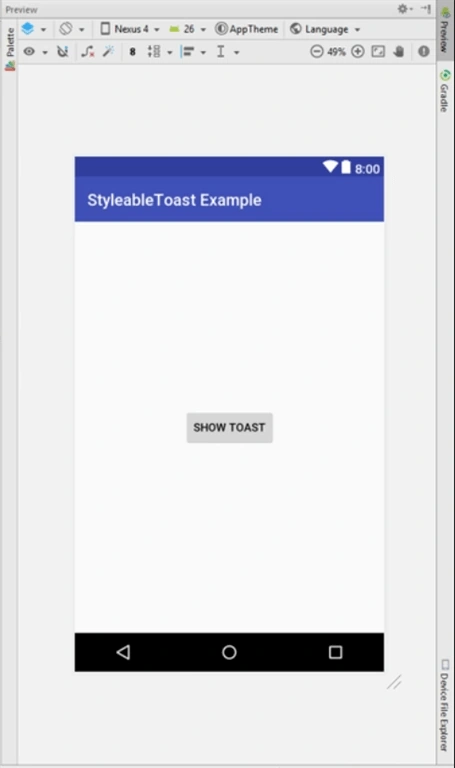

->After the code is applied, the preview will appear like this.

Android

Step 9

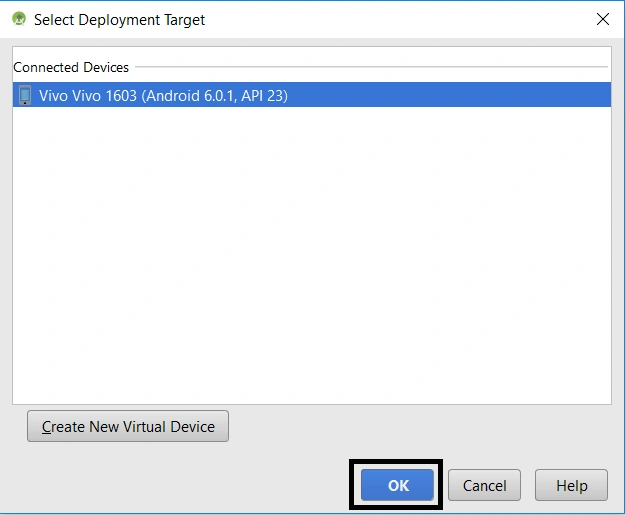

Next, go to Android Studio and deploy the application. Select an Emulator or your Android mobile with USB debugging enabled. Give it a few seconds to make installations and set permissions.

Android

Run the application in your desired emulator (Shift + F10).

Android

Explanation of source code

The source code provided in this article is just the dependencies of Toast and the code used in activity_main.xml will make the Toast appear and to define its attributes.


Summary


In this article we created the app named Styleable Toast ,then we have inserted a Gradle and we learned how to use the circular process bar and finally we have deployed that as output.
