Default Error Handling Behavior of a Mule application

Introduction

This article is the continued part in the MuleSoft articles series; if you would like to understand the basics of MuleSoft, refer to these articles before going next:

• Getting Started MuleSoft
• How To Connect to Azure SQL Database with MuleSoft
• Load Data from S3 Bucket Using MuleSoft S3 Connector
• How To Call Stored Procedure with MuleSoft
• How To Post Data Using Stored Procedure with MuleSoft
• How To Set Variable and Payload in MuleSoft
• Fetch MySQL Data Using Database Connector in MuleSoft
• Retrieve Data From Database Based On Conditions In MuleSoft
• Create and Write CSV Files Using File Connector in MuleSoft
• Read Files Using File Connector in MuleSoft

What is Error Handling in MuleSoft?

Error handling in MuleSoft refers to the process of managing and handling errors that occur during the execution of MuleSoft applications or integrations. Error handling is an essential aspect of building robust and resilient integrations, as it allows you to gracefully handle and recover from unexpected situations or failures.

In MuleSoft, error handling can be implemented at different levels, including global error handling for the entire application or specific error handling within individual components or flows. The main objective of error handling is to detect and manage errors in a way that prevents system failures, minimizes data loss, and ensures that errors are handled appropriately.

Here are some key concepts and techniques related to error handling in MuleSoft:

1. Error Types: MuleSoft distinguishes between system errors and application errors. System errors represent technical failures or infrastructure issues, while application errors are specific to the business logic or data processing within an integration.
2. Error Handling Strategies: MuleSoft provides various strategies for handling errors, such as catch exceptions, choice exception strategies, and rollback exception strategies. These strategies allow you to define actions to take when errors occur, including logging error messages, transforming error payloads, retrying failed operations, sending notifications, or invoking alternative error flows.
3. Error Handlers: Error handlers are components that define how to handle specific types of errors. Error handlers can be configured globally at the application level or attached to specific components or flows. They typically consist of one or more error handlers or exception strategies, which define the actions to be taken when a specific error condition is encountered.
4. On-Error-Continue: This feature allows you to instruct MuleSoft to continue processing even when an error occurs. With this approach, you can handle errors within a flow without interrupting the entire integration. It enables you to define alternative routes or fallback mechanisms to handle errors and ensure that data integrity is maintained.
5. Error Propagation: MuleSoft allows you to propagate errors from one component to another within a flow or between different flows. This enables you to centralize error-handling logic and avoid repetitive error-handling code across multiple components.

By effectively implementing error handling in MuleSoft, you can enhance the resilience and fault tolerance of your integrations, improve error visibility and logging, and ensure that your applications can handle unexpected scenarios in a controlled and reliable manner.

Getting Started with Anypoint Studio

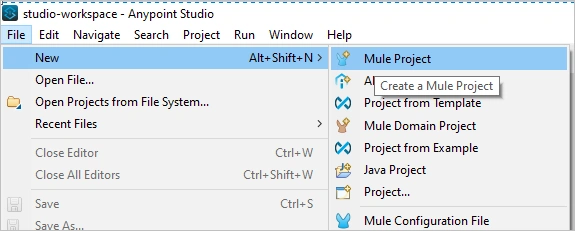

First, open Anypoint Studio and Create a New Mule Project.

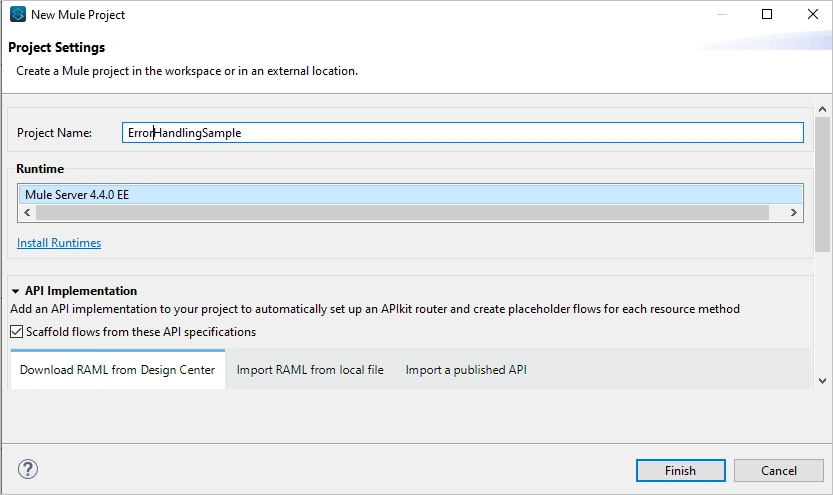

Enter the project name and select runtime and project location and click the Finish button.

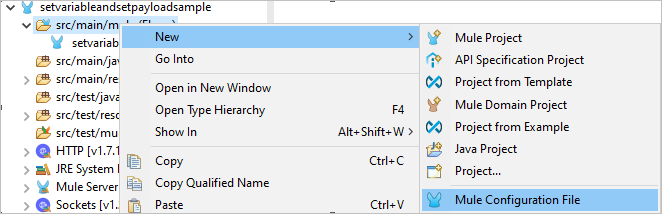

Next, add a New Mule Configuration file for global settings.

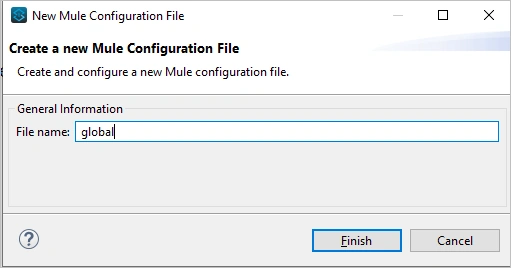

Give the file name global and click Finish.

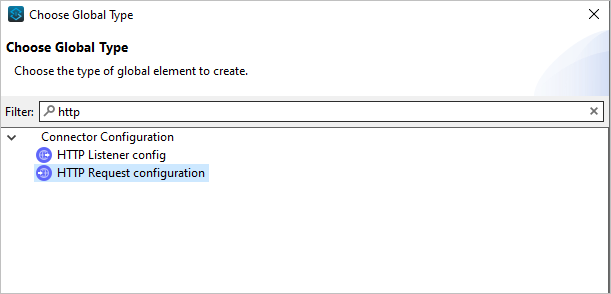

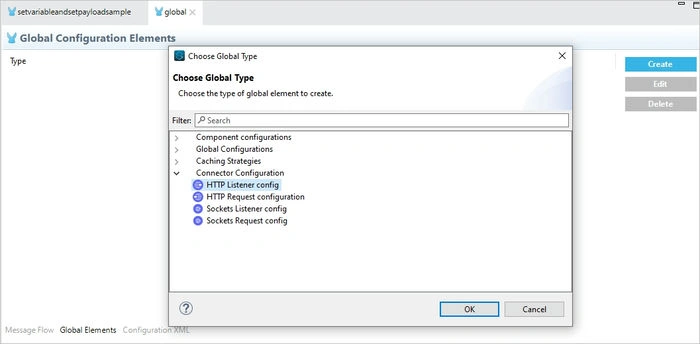

Next, go to the global.xml file and click on the Global Elements tab and click Create button and select HTTP Listener config and click OK.

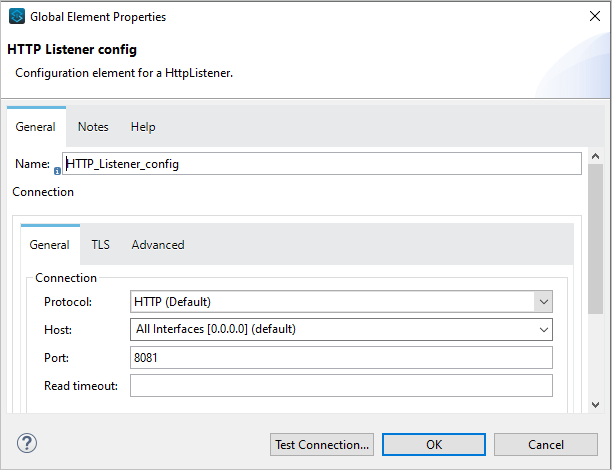

Enter the required details like listener name, protocol, host, and port. I am keeping everything as default and clicking OK.

Also, add a new HTTP Request configuration as well.

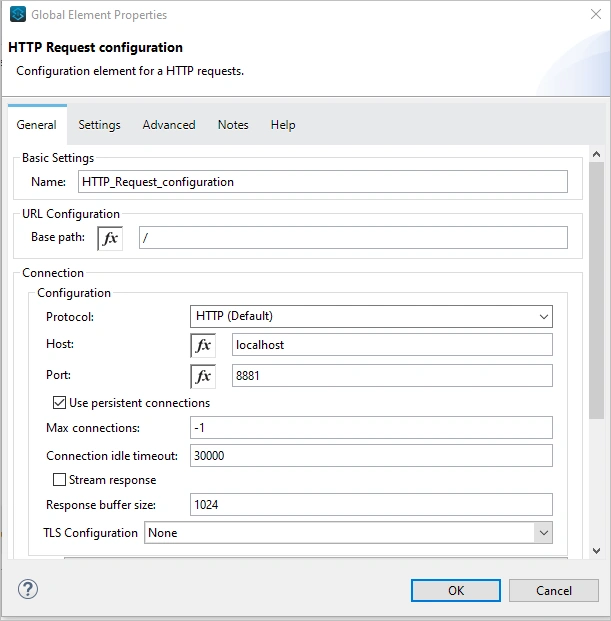

Enter the host name (localhost) and port (8881) and click ok.

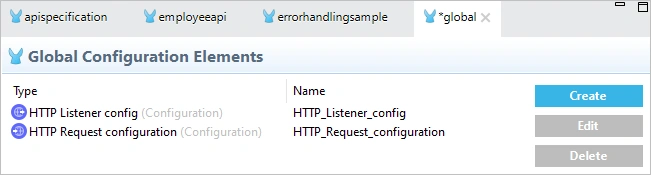

So now we have defined two global configurations.

The global configuration is done for the HTTP listener and HTTP Request configuration. Let's work on Message flow. Drag and drop HTTP Listener from HTTP Palette to Message Flow.

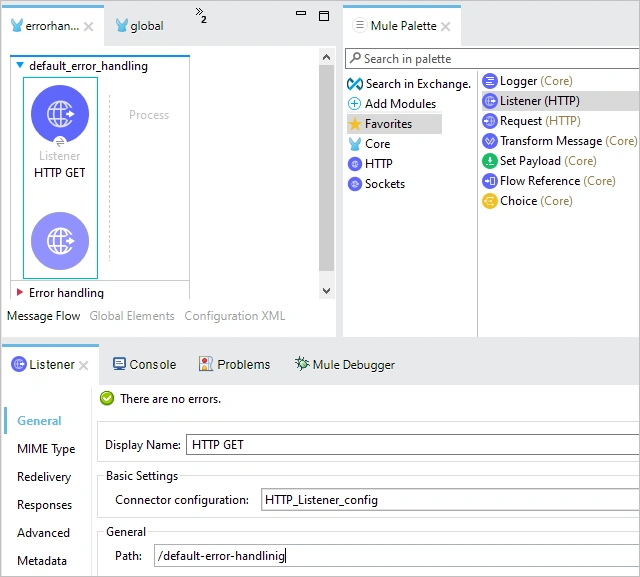

Enter the default name for HTTP Listener and display name and select connector and api endpoint path.

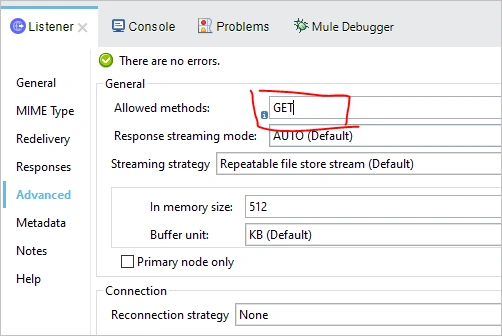

Also, in Advanced settings, enter Allowed methods (GET). Now drag and drop the Request (HTTP) connector from the mule palette.

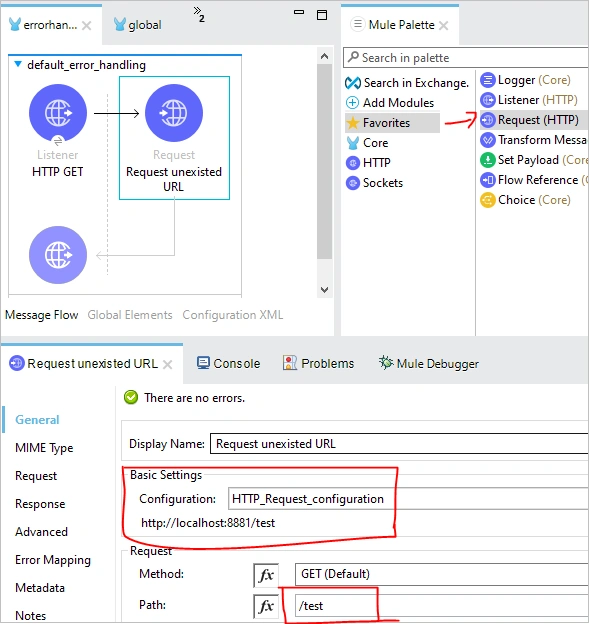

Provide display name, select basic configurations we created in the global file, give a method, provide endpoint path, and click and click save.

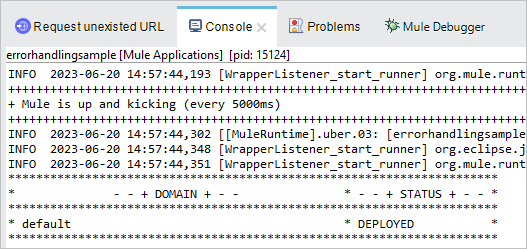

Let's run the application to see the default error handling behavior; right-click on the file and click Run as Mule Application. Once you see the message Deployed, everything is good, and the application is deployed.

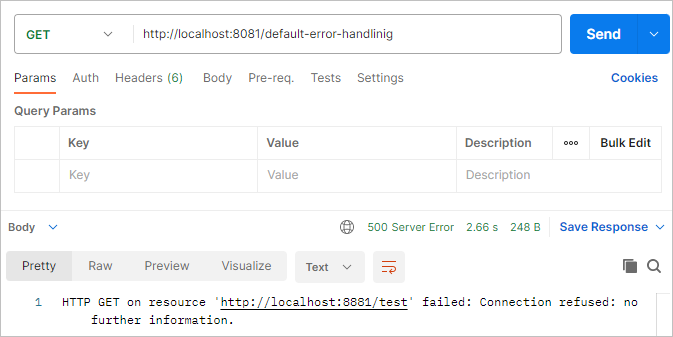

Open Postman to see the result and enter the request endpoint to see the result.

As you can see, the response in Postman is the error description; by default, unhandled message errors are logged and propagated. In other words, when the flow is processing in mule messages and tries an error, the normal execution of the flow stops, and the process transfers to the flow's default error handler.

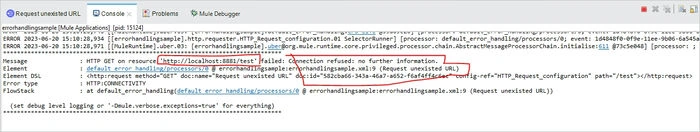

You also can see the error log in the Mule application console log.

Conclusion

In this article, we learned about the default error-handling behavior of a Mule application and how to see the result in Postman.
